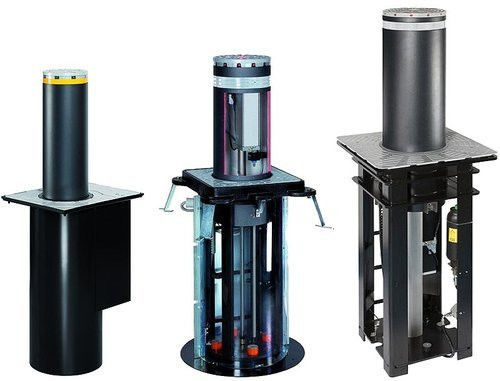

304 stainless steel Automatic Hydraulic Rising Bollards Stainless Steel Road Traffic Control Equipment Bollard

product description:

This is new designed electric-hydraulic operated retractable bollard for roadblock management.
The system can be quickly and easily operated, suitable for both security and access control applications.
The system is designed to bring convenience and enhancements to higher level security. It is ideal choice for universities, pedestrian sidewalks, parking lots, government buildings, gyms, amusement parks, airports, shopping centers, hospitals, and occasions with high traffic flow.

Hydraulic bollards performance:
The structure of hydraulic bollards is firm and durable, the bearing load is large, the action is stable and the noise is low. PLC control is adopted, and the operation performance of the system is stable and reliable, which is convenient for integration. The hydraulic bollards can be linked with other equipment such as the parking barrier gate or can be combined with other control equipment to realize automatic control.

In case of power failure or failure, if the lifting column is in the raised state and needs to be lowered, it can be lowered by hand. The moving operation will lower the raised column to the horizontal position with the ground to allow vehicles to pass. The international leading low-pressure hydraulic drive technology is adopted, and the whole system has high safety, reliability, and stability.
Remote control device: through wireless remote control, it can be within 30 meters around the controller (depending on the on-site radio communication environment), the lifting of movable remote control barricade column.

Product parameters:

Storage Environment: -10℃~65℃, water-proof, damp-proof,dust-proof.
Rising height: 600mm(standard) Max can be 800mm
Standard Thickness: 6 (standard ) 8,10,25,30mm(optional).
Cylinder Diameter: 219
Casing size: 430*430*900mm
Structure: With load-bearing steel beam-column, anti-collision steel beam-column, 4 navigation rod
Integrated electrical mechanism: stroke 600mm, Cylinder outer diameter 60mm,
Piston rod diameter: 16mm
6K Mirror Surface Cylinder
With LED(Acrylic light circle)
Reflective sticker: 2 strips
In case of a power outage, the bollards can be manually lowered by connecting with a backup battery
IP rate: IP68 Certified
Weight: 150±KG
