Product Details
Place of Origin: Shenzhen China
Brand Name: Zento
Certification: CE ISO9001 ROHS
Model Number: ZT-H02
Payment & Shipping Terms
Minimum Order Quantity: 2pcs
Price: Negotiation
Packaging Details: wooden box
Delivery Time: 3-7days
Payment Terms: T/T, Western Union,
Supply Ability: 60 pcs per week
Rise Height: |
600mm-1200mm |
Packing: |
Wooden |
Lowring Speed: |
2S |
Rising Speed: |
3S |
Warranty: |
1 Year |
Lamp Belt: |
LED Lamp(Acrylic Light Circle) |
Control Time: |
3S |
Operating Temperature: |
-40℃ To 70℃ |
Bollard Material: |
SS304/316 |
Thickness: |
6mm |
Rise Height: |
600mm-1200mm |
Packing: |
Wooden |
Lowring Speed: |
2S |
Rising Speed: |
3S |
Warranty: |
1 Year |
Lamp Belt: |
LED Lamp(Acrylic Light Circle) |
Control Time: |
3S |
Operating Temperature: |
-40℃ To 70℃ |
Bollard Material: |
SS304/316 |
Thickness: |
6mm |

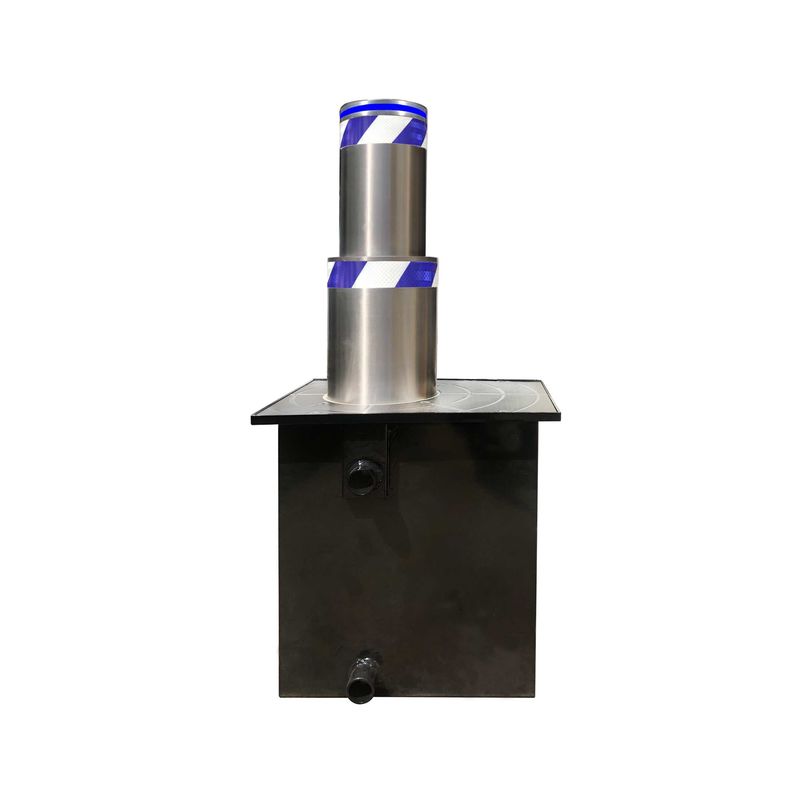

Hydraulic bollards are a kind of equipment to control the passage of road vehicles, which can be used together with the parking turnstile gate control system or alone; It is specially designed and developed to prevent unauthorized vehicles from breaking into sensitive areas and has high practicability, reliability, and safety.
1.The electric control adopts DC motor to drive stable and reliable, and has low failure rate. Ultra high light traffic indicator function: directional instructions are designed with ultra bright LED lights, indicating more prominently;
2.In the case of the person who has not swiped the card into the passageway, the equipment alarm will prompt the traveler to swipe the card.
3.The function of the reverse alarm system: when a pedestrian swipes the card, the device alarms the alarm.
4.Check the following function: when the first person swipes the card, the second person doesn't swipe the card and the device will alarm.
5.The bicycle delay function: prevent the gate from hitting the bicycle;
6.Various control functions: by set the setting, the brake machine can be set at special time to the regular open mode, which satisfies a large number of people.
7.The mode of choice: to meet the different requirements, it can be set up as a two-way credit card or a one-way credit card and free pass.
8.Various control functions: external button, remote control, bar code, IC or ID, etc. 9.Remote control function: the RS485 can be connected to RS485 by computer and the RS485 remote control brake machine.
10.Automatic reset function: after the credit card has not passed in the specified time, the lock will return the lock to cancel the pass, time 1-60 seconds.
|
Color |
Silver |
|
Raising/lowering speed |
3-6s(adjustable) |
|
Diameter |
219mm |
|
raised height |
600-1100mm(optional) |
|
Material |
304 stainless steel/Carbon steel |
|
Control mode |
remote control(<50m) |
|
system control |
hydraulic and electric control |
|
Working temperature |
-30℃～+75℃ |
|
Embedded cylinder depth |
1100mm |
|
Lamp belt |
LED lamp(Acrylic light circle) |
|
Power Supply |
Single phase 220VAC Three phase 220VAC |
|
thickness |
6mm |
|
weight |
100kg |
|
anti-collision levels |
k4 |
|
service life |
3 million times |
|
Drainage mode |
natural drainage+External drainage system
|
1.Will you install the channel lock for the first time?
Answer: on channel brake installation is very simple, just put the product fixed well, main machine and insert 110V/220V power supply, can normal use, if you need to connected to the Internet, only need to use a network line can be received from the main computer, we will provide all the one-on-one phone technology Guidance services.
2.Can machines be used outside?
Answer:It can be used outside. We all have waterproof function.
3.What is the warranty for the machine?
Answer:(1) we guarantee all goods quality assurance for two years.
(2) within the two years warranty time,if the machine have problem,we can offer you the accessories(but you pay the freight cost)
4.When will you make the delivery?
Answer:regular products:(3-5 days),irregular products:communication when you place the order.
5.How does your factory control the quality?
Answer:We always attach great importance to quality controlling from the beginning to the ending.
6.What is your MOQ?
Answer:Any quantity is acceptable for your order. And the price is negotiable for big quantity.
7.payment term?
Answer:30% by T/T in advance.70% by T/T before delivery.
