Product Details
Place of Origin: CHINA
Brand Name: Zento
Certification: CE
Model Number: ZT-16C
Payment & Shipping Terms
Minimum Order Quantity: 2
Price: Negotiable
Packaging Details: Wooden case
Delivery Time: 7-15 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1000
MCBF: |
3 Million Times |
Weight: |
100-155kg |
Lamp Belt: |
LED Lamp(Acrylic Light Circle) |
System Control: |
Hydraulic And Electric Control |
Movement Principle: |
Hydraulic Driving |
Cylinder Stainless Steel Finish: |
Stoving Varnish |
MCBF: |
3 Million Times |
Weight: |
100-155kg |
Lamp Belt: |
LED Lamp(Acrylic Light Circle) |
System Control: |
Hydraulic And Electric Control |
Movement Principle: |
Hydraulic Driving |
Cylinder Stainless Steel Finish: |
Stoving Varnish |

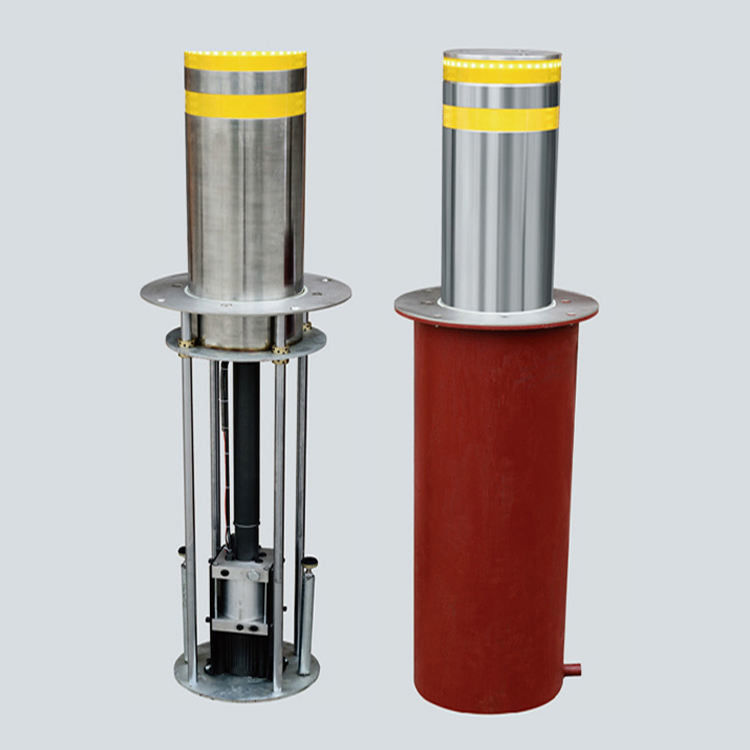

Full automatic hydraulic road rising bollard barrier lifting column with LED light
Automatic bollard:
This is new designed electric-hydraulic operated retractable bollard for roadblock management.
The system can be quickly and easily operated, suitable for both security and access control applications.
The system is designed to bring convenience and enhancements to higher level security. It is ideal choice for universities, pedestrian sidewalks, parking lots, government buildings, gyms, amusement parks, airports, shopping centers, hospitals, and occasions with high traffic flow.
Feature:
1. The structure is sturdy and durable, with large load carrying capacity, stable operation and low noise.
2. Adopt PLC control, the system running performance is stable and reliable, and easy to integrate.
3. In the case of power failure or when there is a fault, the vehicle can be manually operated.
4. Adopting international leading low pressure hydraulic drive technology, the whole system is safe, reliable and stable.
5, remote control device: lift by wireless remote control.
6, swipe control: add a card reader, swipe the card automatically control the lift.
7. Linkage between the gate and the lifting column: plus control to realize the linkage of the gate, and the access control and the lifting column.
8. It is controlled by the computer in conjunction with the computer buried system or the charging system.
9. LED flashing function, flashing warning during the movement of the column, and warning at night.
10. Sound alarm intermittent alarm sound.
Product parameters
Product name | Electric automatic bollard |
Control system | electric-hydraulic operated |
Maximum weight of passing cars | ≤8 T |
Power supply | 220 V (control voltage: 24V) |
System power | 1.5kW / 2.2kW |
Rising time | ≤ 4 s (adjustable) |
Dropping time | ≤ 2 s (adjustable) |
Working temperature | -35°C ~75°C |
Material | #304 stainless steel |
Diameter of pillar | 219mm (168mm, 275mm, 324mm are also available) |
Thickness of housing | 6mm(8mm, 10 mm are also available) |
