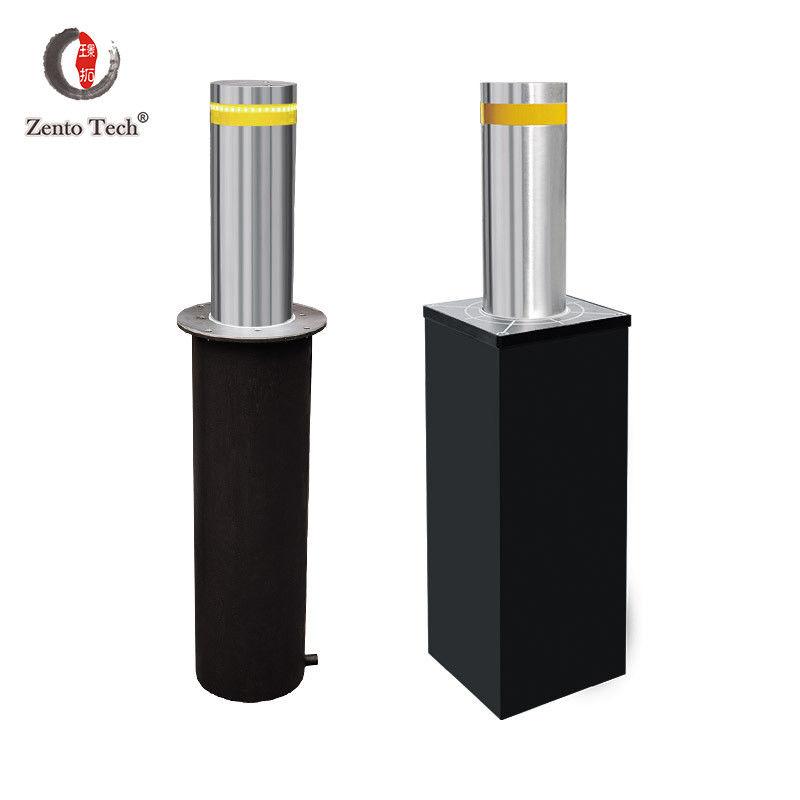

6mm 304 Stainless Steel Rise And Fall Bollards Rising Part Diameter 219MM

Automatic rising bollard

Product details

Top flange 304 stainless steel, thickness 10mm using custom reflective film; Acrylic light plate to protect the light bar, more beautiful built-in ultra-high brightness LED waterproof light strip, light time can be set freely

Panel textured design, 304 stainless steel thickness of 10mm, the panel has a frosted and car light surface can be selected

Four outer hexagonal steel rods connect the guide pillar, and the pre-wire can be wound around it; easy to disassemble. Four adjustable limit top rubber to keep the vertical gap even after the column rises. The fixing screws are made of 304 stainless steel with nylon sleeve between the inner barrel and the flange for protection and durability

Suspension structure design, the use of gravity, the guide rail has a regulating role, when the vehicle passes, to prevent extrusion deformation four guide pillars, the force is uniform

Drainage method:

1. Use artificial drainage or electric pumping mode, need to dig a small pool near the column, regular manual and electric drainage.

2. Use the natural drainage mode to connect directly to the sewer.

Application:

Scientific and educational units: schools, computer rooms, research centers, libraries, etc.;

Leisure and entertainment venues: parks, scenic spots, pedestrian streets, municipal squares, playgrounds, etc..

Traffic: bus station, railway station, subway station, airport, etc..

Business service places: hospitals, banks, hotels, clubs, commercial buildings, etc..

Office space: large office buildings, public inspection units, hydro power and oil and gas units and other government agencies.

A. At the installation junction (two), dig out two square grooves

square grooves: (user-defined)mm (L)* 1000mm(W)* 1330mm(H)

B. Fill the bottom of the groove with 200mm-high concrete, the precision requirement of the horizontal plane is high(Lifting column rack can be subjected to force), and at the middle of the side of the trough, leave a PVC# for drainage
