Product Details
Place of Origin: Shenzhen China
Brand Name: Zento
Certification: CE ISO9001 ROHS
Model Number: ZT-939A
Payment & Shipping Terms
Minimum Order Quantity: 2pcs
Price: Negotiable
Packaging Details: carton/wooden box
Delivery Time: 3-7days
Payment Terms: T/T, Western Union,Paypal
Supply Ability: 100 pcs per week
Anti-collision: |
Yes |
Door Leaf: |
Single/Double |
Emergency Function: |
Yes |
Input Interface: |
Relay Signal/12V Level Signal/DC12V Pulse Signal |
Motor Life: |
8 Million Times |
Flap Material: |
Acrylic |
Size: |
1400*300*980mm |
Weight: |
60kg |
Anti-collision: |
Yes |
Door Leaf: |
Single/Double |
Emergency Function: |
Yes |
Input Interface: |
Relay Signal/12V Level Signal/DC12V Pulse Signal |
Motor Life: |
8 Million Times |
Flap Material: |
Acrylic |
Size: |
1400*300*980mm |
Weight: |
60kg |

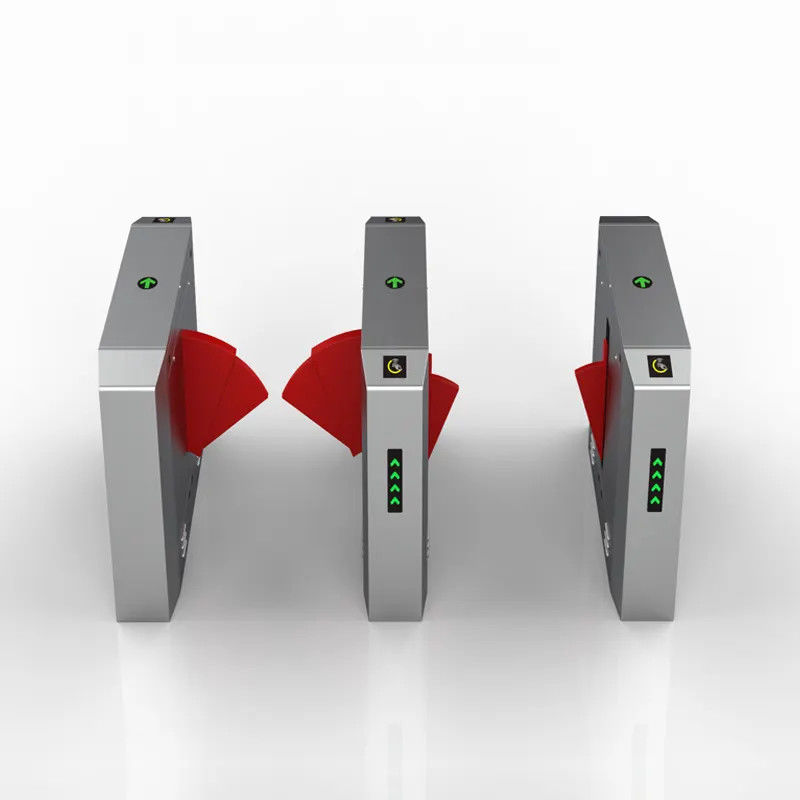

Reliable Performance Flap Electronic Barrier Gate Turnstile QR Code Reader Solutions Pedestrian Channel
This type of turnstile features a flap gate that revolves around a fixed post to avoid tailgating of users. it is fast, highly secure and offers remarkable integration opportunities with advanced access control systems. Plus it is ideal for internal and external applications.Designed reasonable and reliable movement, noise small, the internal hydraulic device automatically Buffer, run a smooth, long service life.
| Material | 1.5mm 304# Stainless Steel |
| Dimension | 1,200*280*1000mm (L*W*H) |
| Channel width | 500-600mm |
| 40mm | |
| Open or close time | 1 second |
| Passage direction | Single or Bi-directional |
| Flow of passage | 30-40 passengers per minute |
| Motor | DC Brush motor (24v) |
| Emergency mode | Free egress when fire signal triggered |
| Power supply | AC220±10% V,50HZ |
| Power output | DC12V |
| Control typw | RFID/Barcode/Fingerprint control |
| Working temperature | -45℃- 80℃ |
| Lifetime | Over 3 million times |
| ODM/OEM service | Available |
| Usage | Indoor or outdoor |
| Gross weight | 65kg |
| Warranty | One Year |
Functions:
1. Compatible with IC/ID, magnetic card, barcode card, anti-static and other control equipment;
2. The brake lever runs smoothly, with low noise and quick and reliable unlocking;
3. With power failure emergency function, the power failure gate is automatically opened;
4. Protection grade: IPX4;
5. Infrared anti-pinch;
6. Door opening and closing delay;
7. Illegal break-in to the police;
8. Anti-reverse intrusion.
Performance and Features:
1. Fault detection and alarm functions, easy to use and maintenance.
2. The running status can be programmed and controlled with the built-in keyboard on the main board.
3. Mechanical antipinch function. If the gate meets resistance in the reset process,motors will stop working automatically within the prescribed time and reset again after the default delay (till fully reset)
4. Anti-breakthrough function. The gate is locked automatically until opening signal received.
5. Synchronization functions (for dual gate equipment).
6. Automatic reset function. Should the user fail to pass within the prescribed time, the system will cancel the authority of the current user automatically.
7. Gate can be set as normally open or normally closed.
8. Can be used with variety of card readers: IC / ID card readers, bar codes, fingerprints, etc.
9. Direction can be set as single-direction or bi-direction.
10. LED direction indicator.
11. Gate auto opens when power off and auto close when power on, complying with fire safety requirements.
12. Alarm function, in case of illegal intrusion and reverse intrusion, etc.
13. Counter function (optional).
14. Support infrared photocell for anti-pinch and reset function
