Product Details
Place of Origin: Shenzhen China
Brand Name: Zento
Certification: CE ISO9001 ROHS
Model Number: ZT-936A
Payment & Shipping Terms
Minimum Order Quantity: 2pcs
Price: Negotiable
Packaging Details: carton/wooden box
Delivery Time: 3-7days
Payment Terms: T/T, Western Union,Paypal
Communication Interface: |
RS485/TCP/IP |
Lifespan: |
5 -8 Million Times |
Passage Speed: |
30-40 Persons/minute |
Passage Width: |
550-600mm |
Power Supply: |
AC220V/110V |
Warranty: |
1 Year |
Weight: |
60KG |
Working Environment: |
Indoor/Outdoor |
Communication Interface: |
RS485/TCP/IP |
Lifespan: |
5 -8 Million Times |
Passage Speed: |
30-40 Persons/minute |
Passage Width: |
550-600mm |
Power Supply: |
AC220V/110V |
Warranty: |
1 Year |
Weight: |
60KG |
Working Environment: |
Indoor/Outdoor |

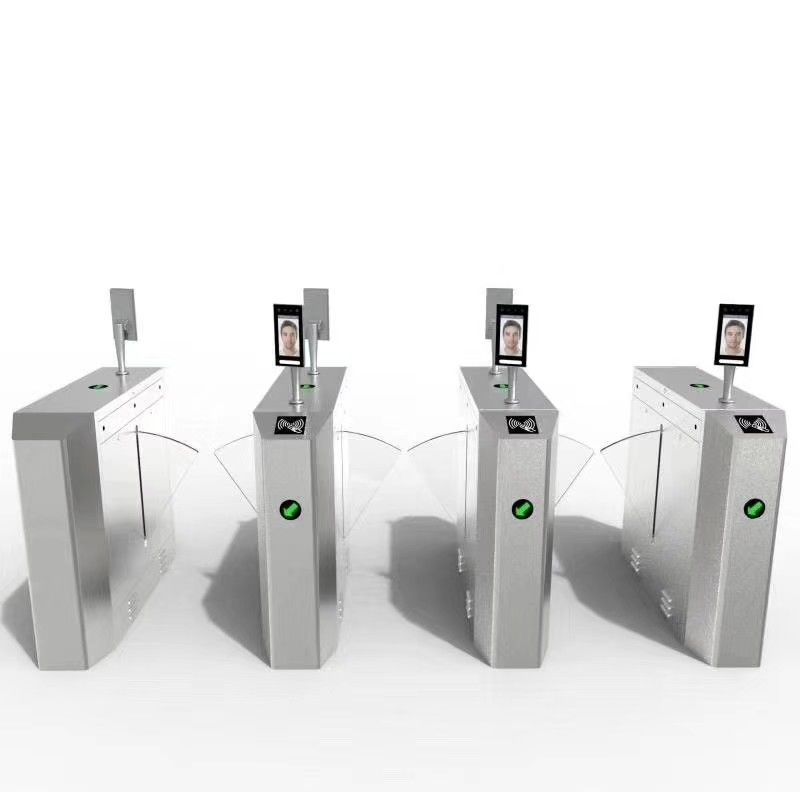

Access Control Turnstile Stable Quality CE Approved Door for Public Office Entrance
1. Fault detection and alarm functions, easy to use and maintenance.
2. The running status can be programmed and controlled with the built-in keyboard on the main board.
3. Mechanical antipinch function. If the gate meets resistance in the reset process,motors will stop working automatically within the prescribed time and reset again after the default delay (till fully reset)
4. Anti-breakthrough function. The gate is locked automatically until opening signal received.
5. Synchronization functions (for dual gate equipment).
6. Automatic reset function. Should the user fail to pass within the prescribed time, the system will cancel the authority of the current user automatically.
7. Gate can be set as normally open or normally closed.
8. Can be used with variety of card readers: IC / ID card readers, bar codes, fingerprints, etc.
9. Direction can be set as single-direction or bi-direction.
10. LED direction indicator.
11. Gate auto opens when power off and auto close when power on, complying with fire safety requirements.
12. Alarm function, in case of illegal intrusion and reverse intrusion, etc.
13. Counter function (optional).
14. Support infrared photocell for anti-pinch and reset function
1. Working Temperature: -20℃～+65℃
2. Power Supply Input Voltage: AC220V±10%, AC110V±10%
3. Motor Voltage: DC24V
4. Enclosure Rating: IP40
5. Passing speed: 30-40 people/minute
6. Duty Cycle: 100%
7. Material of Cabinet: 304 stainless steel
8. Width of Passage: Standard 600mm, Max 800mm (a pair)
9. Opening & Closing Speed: 0.6 seconds
10. MTBF: 3,000,000 times
APPLICATIONS:
1.Bus station, school,factory entrance and exit management
2.Tourist attraction Ticketing system
3.Time attendance, access control, consumption management for Building office
4.Special aaccess management system
