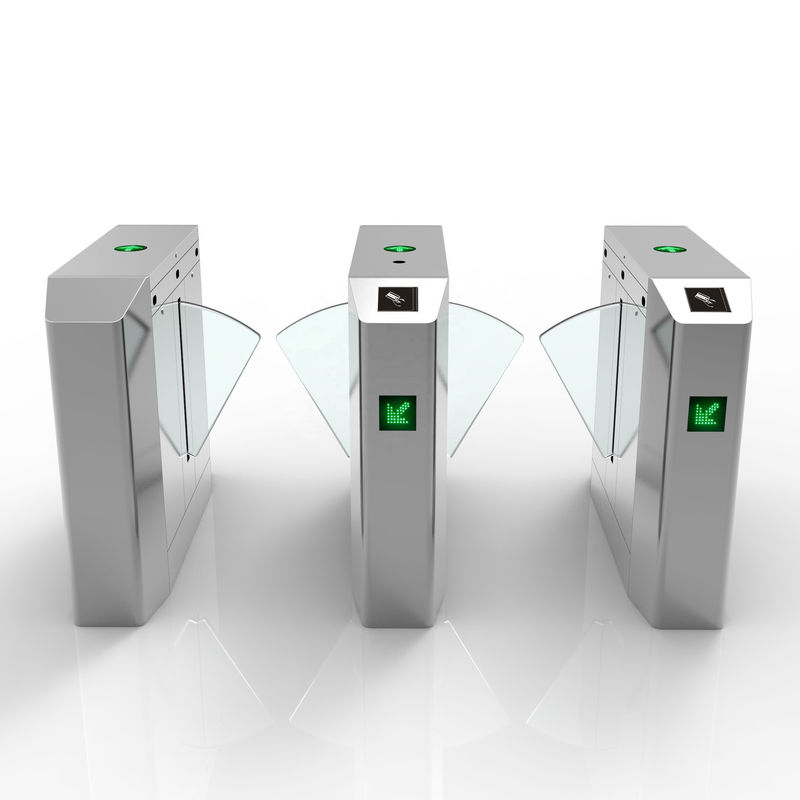

Passage Width 550mm RFID Flap Turnstile Retractable Entrance For Apartment

New Upgraded Version Rfid Card Reader Security Turnstile Gate Mechanism Flap Barrier Gate Barrier

A flap turnstile, also known as a swing gate turnstile or wing gate turnstile, is a type of access control device commonly used in entry points to regulate the flow of people. It consists of individual panels or flaps that swing open and close to allow or deny access. The flaps are typically made of sturdy materials like metal or acrylic.

Flap turnstiles can be configured to operate in both directions or only allow entry or exit in one direction, depending on the security requirements and traffic flow. They are often integrated with access control systems, such as RFID card readers or biometric scanners, to grant access to authorized individuals.

When a person presents a valid credential or passes the authentication process, the flap turnstile will unlock and swing open, allowing the person to pass through. Afterward, the flap automatically returns to its original position, preventing unauthorized access.

Flap turnstiles offer a combination of aesthetic appeal, efficient operation, and effective access control while providing a physical barrier between different areas. They are commonly used in places like airports, train stations, stadiums, office buildings, and other high-security facilities.

Flap Turnstile Function:

(1) Automatic return function: After the passage process is completed, the brake wings automatically return to the initial blocking position.

(2) Power-off and opening function: When the power is off, the system will automatically open the brake wings to open, which is convenient for evacuation of the crowd and meets fire protection requirements.

(3) Anti-illegal intrusion function: When the card is invalid, there is no card swiping, or the passage is forbidden, the forcible entry into the channel will be regarded as illegal intrusion, and the system will automatically alarm and close the flap.

(4) Anti-reverse intrusion function: Before the end of the passage process in a certain direction, pedestrians entering the passage from the opposite direction will be regarded as reverse intrusion, the system will automatically alarm and close the wing.

(5) Anti-trailing function: The photoelectric switch detects the pedestrian traffic situation, and detects the following phenomenon (the people behind are close to the person in front, intending to pass without swiping the card), the system will automatically alarm and close the brake wings.

(6) Intelligent linkage alarm: including illegal intrusion, reverse traffic and other alarms, which can be linked with other alarm monitoring equipment and can be heard.

(7) Anti-pinching and anti-collision function:
A. Infrared anti-pinch: Install multiple pairs of photoelectric switches near the area where the wing is active (anti-pinch area). Once a person or object is detected in the anti-pinch area, the wing automatically stops; The flaps continued to move.

Flap turnstiles offer several advantages that make them a popular choice for access control in various settings. Here are some of their advantages:

1. Effective Access Control: Flap turnstiles provide controlled entry and exit, allowing only authorized individuals to pass through. They help prevent unauthorized access, tailgating, or piggybacking, enhancing security.

2. Deterrent Effect: The physical barrier created by the flaps acts as a visual deterrent and discourages unauthorized individuals from attempting to gain access. It promotes a sense of security and helps maintain order.

3. Space Efficiency: Flap turnstiles have a compact design, making them suitable for areas with limited space. They can be installed in narrow corridors or entry points without obstructing the flow of people or causing congestion.

4. Bi-directional Capability: Flap turnstiles can be configured to allow passage in both directions or restricted to one direction based on specific requirements. This flexibility enables efficient management of traffic flow during different times, such as entry-only during peak hours and bi-directional during off-peak periods.

5. Integration with Access Control Systems: Flap turnstiles easily integrate with various access control technologies, including RFID cards, barcode scanners, biometric readers, or ticketing systems. This integration allows for swift and accurate authentication of individuals, enhancing convenience and efficiency.

6. Smooth and Controlled Operation: Flap turnstiles offer smooth and controlled operation, ensuring a steady flow of people while maintaining security. The flaps swing open and close in a controlled manner, preventing rushing or unauthorized access attempts.

7. Customization Options: Flap turnstiles are available in various designs and materials, offering customization options to match the aesthetics and requirements of different environments. They can be designed to blend in with the architectural style of the building or stand out as a prominent access control feature.

Overall, flap turnstiles provide reliable access control, enhanced security, efficient traffic management, and customization possibilities, making them a preferred choice for many organizations.

Tripod Turnstile Gate Parameter:
