Product Details
Place of Origin: Shenzhen China
Brand Name: Zento
Certification: CE ISO9001 ROHS
Model Number: ZT-804A
Payment & Shipping Terms
Minimum Order Quantity: 2pcs
Price: Negotiable
Packaging Details: carton /wooden box
Delivery Time: 3-7days
Payment Terms: T/T, Western Union,Paypal
Supply Ability: 100 pcs per week
Dimension: |
420mm(L) X 660mm(W) X 980mm(H) |
Lane Width: |
550mm-600mm |
Material: |
Stainless Steel |
Opening/Closing Time: |
0.2s |
Passage Speed: |
30-40 Persons/min |
Product Name: |
Tripod Turnstile Gate |
Weight: |
50kg |
Working Life: |
≥5,000,000 Cycles |
Dimension: |
420mm(L) X 660mm(W) X 980mm(H) |
Lane Width: |
550mm-600mm |
Material: |
Stainless Steel |
Opening/Closing Time: |
0.2s |
Passage Speed: |
30-40 Persons/min |
Product Name: |
Tripod Turnstile Gate |
Weight: |
50kg |
Working Life: |
≥5,000,000 Cycles |

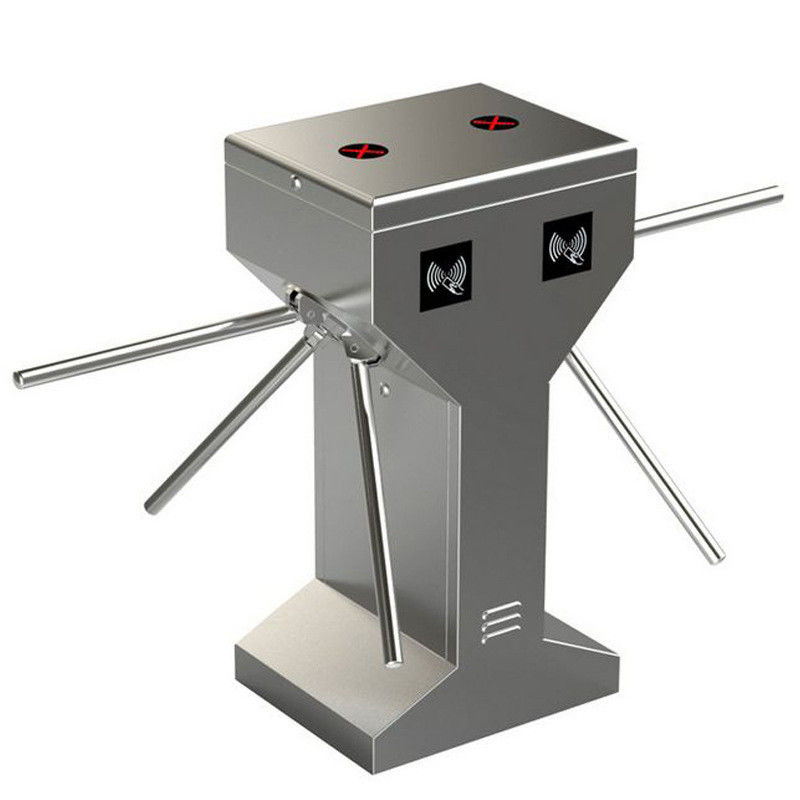

Anti-tailgating Double Ways Tripod Turnstile Integration with Security Systems Gate
vertical tripod turnstiles include durability, reliability, and compatibility with various access control systems. They are typically made of sturdy materials such as stainless steel to withstand frequent use and resist tampering or vandalism.
Integration capabilities include compatibility with RFID card readers, barcode scanners, fingerprint recognition systems, or other customized access control solutions. Additionally, these turnstiles can be equipped with sensors and alarms to detect unauthorized access attempts or tailgating.
Parameters
| Item | Semi-Automatic DC Brushless Motor Type Tripod Turnstile | |
| 1 | Power Voltage | AC220V/110V±10% 50HZ/60HZ |
| 2 | Operation Temperature | -25°C to +75°C |
| 3 | Relative Humidity | <90%, no condensation |
| 4 | Access Width | ≤600mm |
| 5 | Passing Speed | ≤40 Persons/min. (IC Card) |
| 6 | Motor | 0.5NM/24V (Fully Automatic) |
| 7 | Input Connection | +12V Level Signal or Pulse Wide>10ms DC12V |
| 8 | Communication Connection | RS485 Communication Module Standard |
| 9 | Material | Stainless Steel 304; Thickness is no less than 1.5mm |
| 10 | IP | IP54 |
| 11 | Colour | SSB (US32D) - Stainless Steel Brushed/Power Coating (Optional) |
| 12 | Operation Place |
Subway Station, Hoverport, Tourism, Sports, Exhibition, Swimming Hall, Residence Area, Enterprise Entrance and Exit, Attendance, Gateway Guard, Charge Management, Special Access Control, ect. |
Benefits of the Two-Way Tripod Turnstile include:
Enhanced Security: By requiring valid credentials for entry, the turnstile helps prevent unauthorized individuals from entering controlled areas. It provides a physical barrier and acts as a deterrent against tailgating or forced entry attempts.
Crowd Control: The turnstile efficiently manages the flow of pedestrian traffic, preventing congestion and ensuring orderly movement in high-traffic areas.
Customizable Design: Two-way tripod turnstiles come in various designs, materials, and finishes, allowing them to blend seamlessly with different architectural styles and aesthetics. They can be customized to match the specific requirements and design preferences of the installation location.
Durability: Built with robust materials like stainless steel, these turnstiles are designed for long-term use in high-traffic environments. They are resistant to wear, vandalism, and harsh weather conditions.
Overall, the Two-Way Tripod Turnstile provides a reliable and efficient solution for controlling access and managing pedestrian flow in a wide range of applications, including office buildings, transportation hubs, stadiums, and more.
