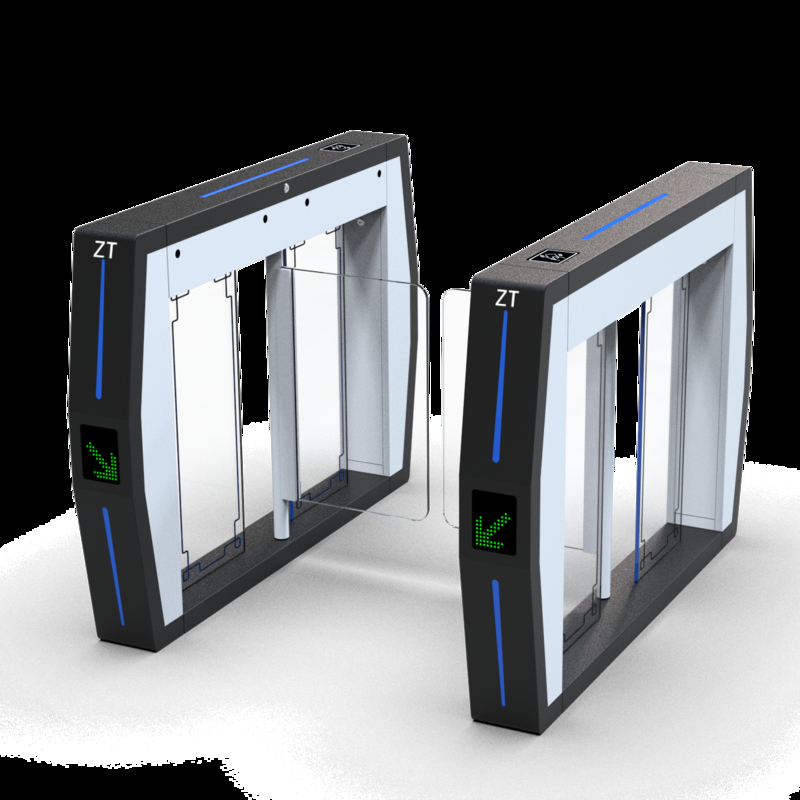

Stainless Steel 304 Swing Turnstile Gate with IP65 Waterproof and Military-Grade Durability

Product Details

Place of Origin: China

Brand Name: zento

Certification: CE, ROHS, ISO9001

Model Number: ZT-610-1

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: Contact us to get big discount

Packaging Details: carton+ wooden case

Delivery Time: 5-7 working days

Payment Terms: T/T,Western Union,MoneyGram

Supply Ability: 400 unit per month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                Stainless Steel 304 Swing Turnstile Gate


Product Name:	Access Control Face Recognition Swing Turnstile Gate	Response Time:	0.2-0.8s
Swing Turnstile Standard Size:	1400160980mm	Key Word:	Swing Turnstile Gate
Frequency:	30-45per/people	Swing Turnstile Color:	Customized

Product Name:	Access Control Face Recognition Swing Turnstile Gate
Response Time:	0.2-0.8s
Swing Turnstile Standard Size:	1400160980mm
Key Word:	Swing Turnstile Gate
Frequency:	30-45per/people
Swing Turnstile Color:	Customized

Stainless Steel 304 Swing Turnstile Gate with IP65 Waterproof and Military-Grade Durability

ZT-610-1 Face Recognition Access Control Swing Turnstile Gate

Elevate the security and aesthetics of your building with our swing barrier turnstiles. Combining cutting-edge technology with a sleek design, these gates provide a modern, reliable, and user-friendly solution for managing pedestrian traffic in high-end environments.

Why Choose Zento Swing Gate Turnstile?

Zento swing gate turnstiles are engineered to address the specific needs of busy, public spaces. They operate with a smooth, swinging motion, using panels that retract into the chassis to create a wide, open lane for passage.

Exceptional Accessibility: Wide passage width makes them a perfect ADA compliant turnstile solution, accommodating wheelchairs, strollers, and large luggage.
Elegant & Modern Design: Refined, minimalist design with clear glass or acrylic panels complements contemporary architecture.
High-Volume Throughput: Ideal for high-traffic areas with quick, reliable entry (30-45 persons/minute).
Robust Security Features: Advanced sensors prevent tailgating and unauthorized entry when integrated with access control systems.

Product Specifications

Product Name	Access Control Face Recognition Swing Turnstile Gate
Response Time	0.2-0.8s
Standard Size	1400160980mm
Throughput Capacity	30-45 persons/minute
Color Options	Customizable

Swing Turnstile Gate Features

0.8s Fast Passage: High-torque motor enables throughput ≥35 persons/min
Military-Grade Durability: 304 stainless steel + 8mm tempered glass with impact resistance ≥1000J
99.9% Accurate Recognition: Supports Face ID/QR Code/RFID Card/NFC multi-authentication
360° Safety Protection: Dual infrared anti-pinch + anti-tailgating alarm system
Extreme Environment Adaptability: IP65 waterproof rating, operates reliably from -30℃ to 70℃

Technical Parameters

Category	Parameter	Specification
Basic Information	Model Number	ZT-610-1
	Product Name	Swing Turnstile Barrier
	Brand	Zento
Material & Structure	Main Material	Stainless steel 304/316
	Surface Treatment	Brushed/Polished
	Frame Thickness	1.5mm
	Barrier Arm Material	Aluminum alloy/Stainless steel
Dimensions	Device Size (LWH)	1400160980mm
	Passage Width	550-900mm (adjustable)
	Barrier Arm Length	250-450mm
	Performance	Opening/Closing Time	0.2 seconds
	Operating Speed	30-45 passages/minute
	Temperature Range	-30°C to +90°C
	Humidity Range	5% - 95% (non-condensing)

Advanced Functionality

Self-diagnostic system with fault detection and maintenance alerts
Programmable operation modes via integrated control panel
Anti-collision mechanism with automatic motor cutoff
Synchronized swing arm adjustment for dual-arm configurations
Automatic reset function with configurable timeout (default 5 seconds)
Fail-safe power-off open mode for emergency egress
Multi-protocol support for various card readers and access control systems
Bi-directional operation with configurable entry/exit controls
Remote management capability via network connection

Optional Features

Audible/visual alarm systems for security violations
People counting functionality
Enhanced infrared detection systems
Custom chassis and arm length configurations
