Product Details
Place of Origin: China
Brand Name: zento
Certification: CE, ROHS, ISO9001
Model Number: ZT-B101
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: 2000
Packaging Details: carton+ wooden case
Delivery Time: 5-7 working days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 400 unit per month
Size: |
Display:150×200mm Face Display:150×200mm Total Size:1400×200×130mm |
Operating Temperature: |
-25℃ ~+60℃, RH ≤90% |
Related Humidity: |
≥90%RH |
Normal Work Life: |
Five Years |
Power Supply: |
AC 220V/110V ±10% 50/60MHZ(optional) |
Operating System: |
Win XP, Win11, Win8, Win10, 32/62 Bits |
Power Interface: |
DC12V |
Voice Prompt: |
0.2 Seconds |
Size: |
Display:150×200mm Face Display:150×200mm Total Size:1400×200×130mm |
Operating Temperature: |
-25℃ ~+60℃, RH ≤90% |
Related Humidity: |
≥90%RH |
Normal Work Life: |
Five Years |
Power Supply: |
AC 220V/110V ±10% 50/60MHZ(optional) |
Operating System: |
Win XP, Win11, Win8, Win10, 32/62 Bits |
Power Interface: |
DC12V |
Voice Prompt: |
0.2 Seconds |

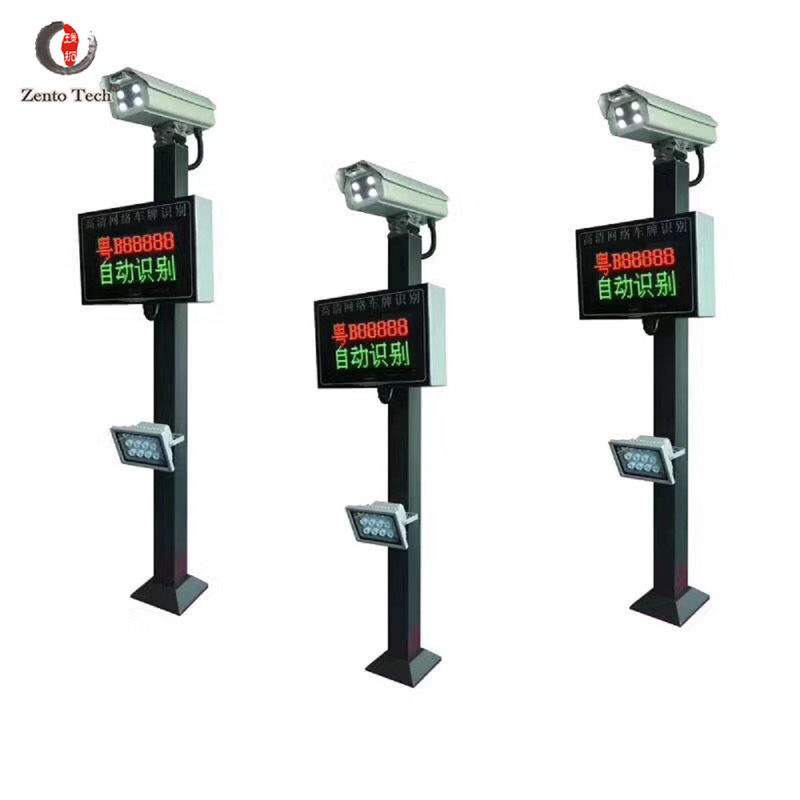

The Newest ANPR LPR ALPR Parking Management Camera System PMS Automatic Vehicle License Plate Reading Recognition System
License Plate Recognition technology (License Plate Recognition, LPR) is based on the computer technology, image processing technology, and the fuzzy Recognition, to build the characteristics of the vehicle model, identify the vehicles' characteristic, such as Plate, model, color, etc. It can automatically extract the plate image from an image, it USES the advanced image processing technology, pattern recognition and artificial intelligence to the collected images information and processing, it can be identify the license plate Numbers, letters and Chinese characters, and directly given recognition result, makes the system become a reality.
1.Can identify vehicle license text and figures
2.Can identify one line and two lines license plate number
3.Can identify Chinese and English of license plate number
4.Can recognize 0-2 letters and numbers 1 to 4 for the license plate number
5.The database can store the capture image, license plate number, lane number and the time of vehicle through record.
6.License plate number entrance and exit record can report output
7.Support English, Korean, Simplified Chinese and Traditional Chinese and other language customizable.
8.Image size: 768*576pixels
9.Front size: 16*16-48*64 pixels
10.Camera gun level angle: the maximum angle 25 degree into the drive lane
11.Camera gun vertical angle: the maximum angle 25 degree into the horizontal
12.Minimum brightness: 500lux
HD Camera Parameter:
Sensor: 1/2.8" progressive scan Sony CMOS Senso, 3 million pixels
Minimum illumination: color 0.01Lux @F1.2(ICR)
Black and white 0.001Lux @F1.2 (ICR)
Effective pixels: 1920(H)×1080(V), 2.1 mega pixel
Wide dynamic range: ≥100db
Signal-to-noise ratio: ≥50db (AGC OFF)
Video encoding: H.264 Main Profile, Baseline encoding, MJPEG encoding
Recognizing license plates: license plate recognition in various countries
License plate recognition rate: 99.9% during the day and 99.6% at night
Trigger mode: support video detection trigger, IO trigger, RS485 trigger
Output information: vehicle color, license plate image, license plate type color, time
Adapt to vehicle speed: 0-60Km/H
Storage interface: support SD2.0 standard Micro SD (TF) card, the maximum capacity is 64G
I/O interface: 1 switch input, 1 switch output, 1 RS485
Network interface: RJ45
Power supply: DC 12V 3A
Working temperature: -45℃～55℃
Relative humidity: ≤95%
Here's how an LPR parking system typically works:
1. License Plate Capture: The system uses specialized cameras strategically positioned at entry and exit points of the parking facility to capture images of vehicle license plates. These cameras may employ infrared illumination to ensure optimal image quality day and night.
2. Optical Character Recognition: The captured images are processed by OCR algorithms, which analyze the images and extract the alphanumeric characters from the license plates. This allows the system to convert the visual data into readable text.
3. License Plate Recognition: The recognized license plate information is then compared with the existing database of authorized or registered vehicles. The system checks if the vehicle is allowed entry or if any restrictions apply, such as unpaid fees or unauthorized access attempts.
4. Access Control: Based on the matching results and configured rules, the LPR parking system controls the entry and exit barriers or gates for vehicles. If the license plate is authorized and meets the specified criteria, the barrier will open automatically, allowing the vehicle to enter or exit the parking facility.
5. Payment and Analytics: In parking facilities where fees are applicable, the LPR parking system can integrate with payment systems to calculate and record parking fees based on the duration and other parameters. Additionally, the system may capture data for analytics purposes, such as occupancy rates, peak usage times, or vehicle patterns.
Benefits of LPR parking systems include:
1. Increased Efficiency: Manual ticket issuance and validation processes are eliminated, leading to smoother traffic flow and reduced congestion at entry and exit points.
2. Enhanced Security: The system provides accurate identification of vehicles, improving security measures and deterring unauthorized access.
3. Real-time Monitoring: LPR parking systems can offer real-time monitoring of parking areas, allowing operators to quickly identify any security breaches or suspicious activities.
4. Improved Revenue Management: With automated fee calculation and payment systems integration, the LPR parking system ensures accurate revenue collection and reduces the likelihood of fraud.
5. Data Analysis and Reporting: The system generates data reports and insights on parking usage, peak hours, revenue trends, etc., helping operators make informed decisions for better parking management.
1. Support centralized management and control, efficient and perspective group management.
(1) Timely transmit the operating status of various equipment in the parking lot to the monitoring center through the network to prevent or solve equipment failures in a timely manner. Parking lots in different areas can be managed through the network.
(2) Transmit various vehicle entry and exit data and charging data to the monitoring center in real time to facilitate effective supervision and data analysis.
(3) Through the network camera installed at the entrance and exit of the parking lot, the video of the entrance and exit is transmitted to the monitoring center in real time to detect abnormal situations in time.
2. High license plate recognition rate and fast recognition speed
(1) The license plate recognition system reduces its dependence on the environment to a minimum, can achieve normal operation around the clock, and maintains a high recognition rate.
(2) The LPR-based recognition system improves the speed and accuracy of recognition.
(3) It has extremely high processing capabilities and can identify and process all images while the vehicle is traveling without relying on a single picture, effectively improving the device's adaptability to complex environments.
Advantages of license plate recognition software
The license plate recognition software organically combines computer vision technology, neural network system technology, machinery, electronic automation equipment, computer and smart card technology, so as to effectively manage various types of vehicles entering and leaving.
The license plate recognition software is a graphical Chinese version application developed on the basis of Microsoft Windows10 Professional, Borland C++ Builder 6.0, and Microsoft IE 18.0 platforms. It uses the stable and reliable large-scale database software Microsoft SQL Server 2008, and is compatible with other SQL server 2000 and SQL server 2005 , SQL server 2012, etc.
The license plate recognition software has a unified operation interface, online help throughout the process, and strong compatibility. Automatic license plate recognition, real-time monitoring, voice quotes, personalized voice, custom advertising words, parking space prompts, universal charging standards, visitor appointments, QR code discounts, unattended, remote management and other functions. Detailed reports (forty types of reports can be printed out), perfect vehicle management, and free combination authority control.
The universal report query of license plate recognition can realize the daily, monthly and annual charging and traffic flow analysis functions, and provide necessary help for managers to analyze the operation of the parking lot.
The license plate recognition software is equipped with a shortcut key processing method under the monitoring interface, which is convenient for the toll collector to quickly find out the charging situation and the entry and exit of vehicles.
License plate recognition software is fully automatic from database building to backup and restoration, no professional knowledge is required, and no need to worry about data loss or negative effects caused by computer system crashes.
