Product Details
Place of Origin: China
Brand Name: zento
Model Number: 8065A
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: carton+ wooden case
Delivery Time: 10-15 working days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 400 unit per month
Certification: |
CE,FCC,RoHS,ISO9001,FCC&GB-15210-2003 |
Application: |
Station,body Security Inspection,Quality Inspection,Security Safety Checking,security Door |
X-ray Generator: |
Anode Voltage: 80kV, Cooling Method: Sealed Oil Cooling |
Electric Drum: |
DC |
Control Panel: |
Imx6_mainboard |
Monitor: |
21.5-inch LCD Monitor, Resolution: 1920x1080 |
Keyboard: |
Dedicated Keyboard |
Function Settings: |
You Can Adjust The Log Level Of The Work, Save The File Time, Whether To Open The Training Function, Whether To Turn On Smart Roller To Set |
Certification: |
CE,FCC,RoHS,ISO9001,FCC&GB-15210-2003 |
Application: |
Station,body Security Inspection,Quality Inspection,Security Safety Checking,security Door |
X-ray Generator: |
Anode Voltage: 80kV, Cooling Method: Sealed Oil Cooling |
Electric Drum: |
DC |
Control Panel: |
Imx6_mainboard |
Monitor: |
21.5-inch LCD Monitor, Resolution: 1920x1080 |
Keyboard: |
Dedicated Keyboard |
Function Settings: |
You Can Adjust The Log Level Of The Work, Save The File Time, Whether To Open The Training Function, Whether To Turn On Smart Roller To Set |

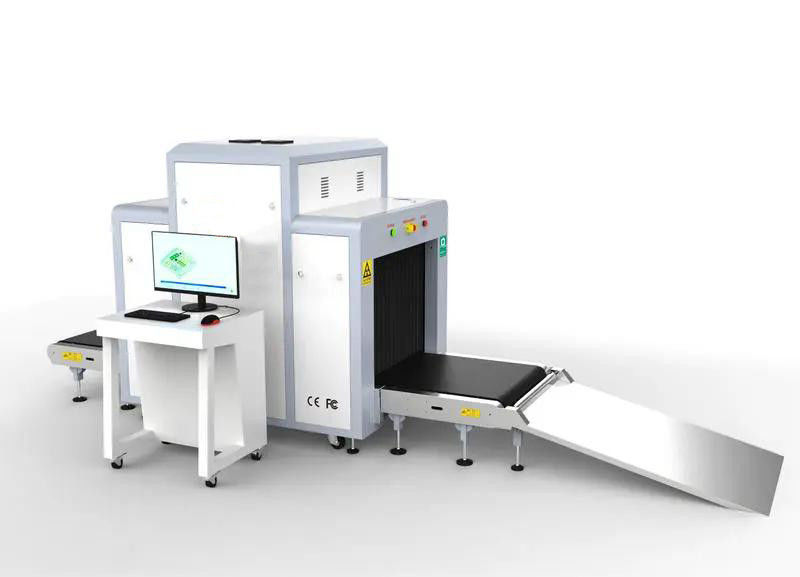

Security Airport Pallet Big Luggage Inspection Detector Linux system Dual Energy Parcel X-ray Baggage Scanner X Ray Safety
An electronic device that uses a conveyor belt to send the inspected baggage into the X-ray inspection channel to complete the inspection. When baggage enters the X-ray inspection channel, it will block the package detection sensor, and the detection signal is sent to the system control part to generate an X-ray trigger signal, which triggers the X-ray source to emit an X-ray beam. A fan-shaped X-ray beam passing through the collimator passes through the inspected items on the conveyor belt. The X-rays are absorbed by the inspected items and finally bombard the dual-energy semiconductor detector installed in the channel. The detector converts X-rays into signals. These very weak signals are amplified and sent to the signal processing box for further processing.
X-ray equipment has the capability to display material types in different colors. 7 colors and Z-scan are designed to help operators detect a range of dangerous liquid and explosives & narcotics respectively in real time by marking a potential threat on the X-ray image. Safeagle® Systems detection algorithms are based on regulatory material analysis techniques.
* Orgaince: some chemical liquid, explosives, drugs,etc. are displayed in orange, but Safeagle® x-ray system can display observable this kinds of threats in red/organic/yellow
8065 belongs to the “X-Ray Luggage Scanner” product family, which are designed for the security inspection of the big baggage&parcels, luggaes etc.
It is Linux system, different from 8065, windows system.
It’s widely used in the shopping malls, subways, schools, factories and other infrastructures.
Product highlights
* Linux operation system
* ARM CPU
* Digital signal and processor
* Continous hard work for 10000 hours
* Energy saving design
* High penetration
* Good quality images
Technical Data
| NO. | Item | Tested Value | |
| 1 | Wire resolution | 38 | AWG |
| 2 | Penetration resolution | 32 | AWG |
| 3 | Spatial resolution | Vertical: 1.6 Horizontal: 1.6 | mm |
| 4 | Penetration | 34 | mm |
| 5 | Organic matter resolution | 1-120 | mm |
| 6 | Grayscale, mixture resolution | 1-40 | mm |
| 7 | Inorganic resolution | 0.2-12 | mm |
| 8 | Effective material resolution | Compliant with GB15208.1-2018 standards | |
| 9 | single dose | ≤4.5 | uSv(uGy) |
| 10 | leakage dose | ＜1 | uSv/h(uGy/h) |
| 11 | noise level | No more than 60dB | |
| 12 | conveyor belt speed | Around 0.2 m/s | |
| 13 | Conveyor belt maximum load | 200kg | |
| 14 | Maximum power consumption | 1.0kW | |
| 15 | safety performance requirements | Compliant with GB15208.1-2018 standards | |
| 16 | Electromagnetic Compatibility Requirements | ||
| 17 | Electrical Safety | ||
| 18 | Environmental adaptability | ||
| 19 | leakage current | No more than 5.0mA | |
| 20 | film security | Compliant with ASA/ISO 1600 film safty standards | |
| 21 | weight | 630kg | |
| 22 | Working environment temperature/relative humidity | 5℃～40℃；0%～90% | |
| 23 | Storage temperature/humidity | -20℃～+60℃/10%～90% | |
| 24 | Atmospheric pressure | 86kPa～106kPa | |
| 25 | Working power | AC220V+10%~-15%,50Hz±3Hz | |
| 26 | operating system | LINUX | |
| 27 | running memory | 1G | |
| 28 | storage memory | 8G | |
Software functions
| NO | Item | Functions |
| 1 | POST | With fault self-checking function, the corresponding fault information can be displayed when a fault occurs (1. Emergency stop 2. Side panel open 3. Calibration failure 4. Acquisition system failure 5. Hard disk not found) |
| 2 | Image Processing | With color/black and white, local increase, high penetration, low penetration, super increase, organic highlighting, inorganic highlighting, inverse color, brightening, darkening, gray sweeping, zooming, organic marking, suspicious object marking, edge enhancement processing functions |
| 3 | image pullback | 30 checked images can be played back |
| 4 | Number of image storage | Can store 10,000 checked images |
| 5 | real-time curve | The real-time curve can be used to detect whether the acquisition system and components are working properly |
| 6 | time setting | System time can be set |
| 7 | Probe setting | Can realize manual deletion of high and low energy detection board dead pixels, and display the deleted dead pixels in the display area |
| 8 | Ray source settings | There are two ray source control modes, digital source and analog source, and can control the digital source.Set the ray source parameters |
| 9 | Alarm system | The alarm function can be turned on and off, the alarm type of the alarm frame and sound and light alarm can be selected, and the sensitivity, minimum absorption rate, maximum absorption rate, and alarm duration can be sets |
| 10 | Troubleshooting | It can diagnose whether the import and export light barrier, side panel switch, emergency stop switch, light source and other components are normal, and display the standard value and current value of the detected voltage |
| 11 | Image settings | You can set the control direction of the drum operation and the movement direction of the image display |
| 12 | software registration | It can realize software registration function, and has serial number, registration code, registration status, system time information display |
| 13 | User login | By entering different user names and passwords to log in to the menu, only login can be used for other parameter settings |
| 14 | User Management | Can add, delete, edit operation user name and password and set user level, restore deleted historical users |
| 15 | authority management | Different default permissions can be set according to user level |
| 16 | language settings | System language can be set to switch between Chinese and English |
| 17 | log management | User operations can be monitored and user operations can be queried |
| 18 | about | Display version and device number |
| 19 | TIP report | report can be generated for the operation of identifying TIP after the TIP insertion function is enabled. The report content: user name, number of TIP insertions, number of marks, false positive rate, detection probability, false positive probability |
| 20 | TIP management | It can be set to enable and disable the insertion of dangerous goods, and can set the identification time, prompt time, insertion frequency, proportion of single items, add TIP files and delete files. |
| 21 | file management | Query, open and export inspected images |
| 22 | Function settings | You can adjust the log level of the work, save the file time, whether to open the training function, whether to turn on Smart Roller to set |
| 23 | Statistics | Display the working time of the system, the total working time of the ray source, the total number of luggage packages in the system, the total number of luggage packages this time, and the above data can be cleared |
| 24 | System parameter settings |
Export data, pictures, backup directory can be selected, motor type, Select and adjust the detector type, whether to open the debugging mode, model, and gain. You can enter the corresponding IP address on the network connection to achieve the sharing function, there are in the system settings The corresponding software can realize the system upgrade |
Key components
| NO | Item | Details |
| 1 | X-ray generator | Anode voltage: 140kV, cooling method: sealed oil cooling |
| 2 | electric drum | Three phase |
| 3 | control panel |
IMX6_mainboard-V030 |
| 4 | monitor | 21.5-inch LCD monitor, resolution: 1920x1080 |
| 5 | Console & Keyboard | console table with dedicated keyboard |
Packaging Accessories
| NO | List | Q’TY(PCS) |
| 1 | 8065 complete machine | 1 |
| 2 | User manual, warranty card + certificate, mouse pad, packing list, key, sticker | 1 |
| 3 | Dedicated keyboard and mouse | 1 |
| 4 | console with monitor | 1 |
| 5 | extended table | 1 |
| 6 | power cable | 1 |
