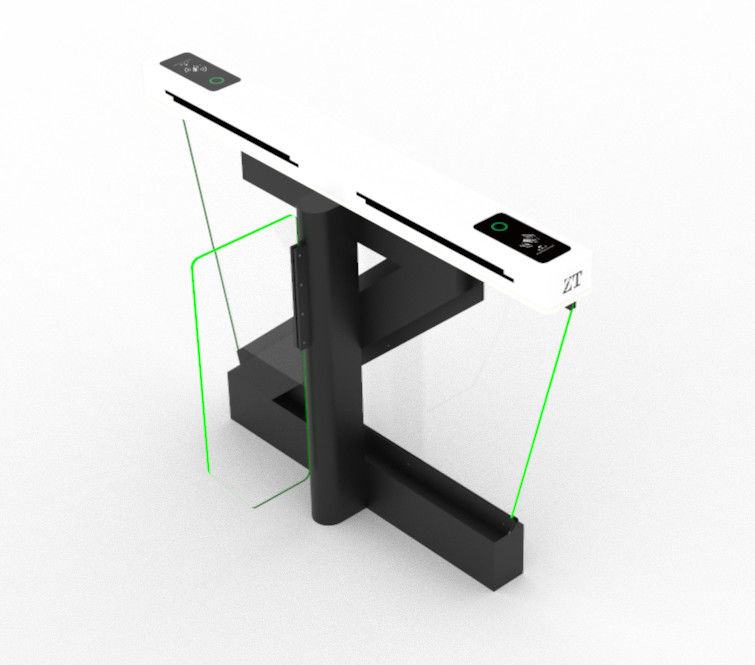

Rapidentry Access Speedlane Turnstile Advanced Anti Tailgating Technology

Product Details

Place of Origin: ShenZhen

Brand Name: Zento

Certification: CE, ISO9001, ROHS

Model Number: ZT-987D

Payment & Shipping Terms

Minimum Order Quantity: 2

Price: Negotiable

Packaging Details: Wooden case

Delivery Time: 15 working days

Payment Terms: T/T, Western Union

Supply Ability: 100 sets per week

Get Best Price
Highlight:

rapidentry access speedlane turnstile

,

anti tailgating speedlane turnstile

Operating Voltage:
24V DC
Power Consumption:
160 W
Consumption Current:
6.5 A
Throughput Rate (in The Single Passage Mode):
60-75 Persons/min
Passageway Width:
650- 900 Mm
Operating Temperature Range:
From -30 °C To +70 °C
Operating Voltage:
24V DC
Power Consumption:
160 W
Consumption Current:
6.5 A
Throughput Rate (in The Single Passage Mode):
60-75 Persons/min
Passageway Width:
650- 900 Mm
Operating Temperature Range:
From -30 °C To +70 °C
Rapidentry Access Speedlane Turnstile Advanced Anti Tailgating Technology

RapidEntry Access Speed Lane Turnstile: Swift and Smooth Passage with Advanced Anti-Tailgating Technology



We are a leading turnstile manufacturer with a decade of experience. Our turnstiles have gained global recognition for their exceptional performance and customer satisfaction. With CE, ROHS, and ISO9001 certifications, we adhere to stringent production processes, ensuring the highest quality standards.



What sets us apart from our competitors is our state-of-the-art factory and skilled production team. Equipped with advanced technology, we deliver turnstiles with precision and efficiency. Our streamlined processes guarantee timely order fulfillment, surpassing industry expectations.



We take pride in our ability to provide customized solutions. Whether you have specific designs or samples, our experienced team can bring your visions to life. Our dedicated sales and technical teams are committed to understanding your unique requirements and offering tailored solutions.



At our company, customer satisfaction is paramount. Our professional sales team provides prompt assistance and guidance throughout your journey with us, from product selection to after-sales support. We prioritize building lasting relationships by delivering outstanding products and exceptional service.



Experience our exceptional manufacturing capabilities, commitment to quality, and customer-centric approach. Stand out from the competition with turnstile solutions that exceed expectations. Contact us today for more information.

Rapidentry Access Speedlane Turnstile Advanced Anti Tailgating Technology 0



Operating modes



The tracking system is equipped with two levels of infrared sensors: 14 pairs are located on the upper level and 28 – on the lower one, which guarantees the safety of passage at high throughput and provides avoiding simultaneous passage of two or more people. The delivery set includes an RC-panel; the orientation of the RC-panel buttons relative to the directions of passage is set when connecting to the turnstile. The powered speed gate operates in normally closed mode. It is possible to switch the turnstile to the additional "Automatic opening in the selected direction" mode, as well as to adjust the home position of the swing panels in the "training" mode. The product provides independent control of the passage in two directions.



Control commands:

• passage denial

• authorized single passage in the set direction

• authorized free passage in the set direction

• authorized free passage in both directions When the power is off, the turnstile panels are unlocked and can be moved manually in any direction.



Speed Lane Turnstile Features



1. Anti-trailing function: There is an infrared light band detection area in the channel. The switch state can be adjusted by software according to customer accuracy requirements. The application of light bands to adapt to different needs avoids the shortcomings of point-type infrared detectors being easily contaminated and affecting the reliability of judgment. It can effectively identify the followers who have not read the card. When the system determines that tailgating has occurred, the system will respond based on the location of the valid cardholder returned by the infrared detector. After the door opening signal is sent, there are still some abnormal uses that will trigger an alarm.



2. Abnormal use conditions:



(1) When the door is closed, a reverse intruder enters the door after the authorized door opening signal is sent. Before passing the first safety photoelectric detection strip, if the reverse detection strip detects someone entering, as long as As long as the person does not leave, the buzzer will keep sounding the alarm and the door will remain closed. The "aging" function does not calculate the time interval at this time.



(2) Reverse intrusion when the door is open. After the door wings are opened, if an unauthorized pedestrian enters the door detection area in the opposite direction, the door will be closed immediately. As long as the first protective detection belt detects the presence of someone, the "time limit" The function does not calculate the time at this time, and the door resumes normal operation when the person leaves the second detection zone.



(3) When the pedestrian left, he reversely broke into the pedestrian and passed the second safety detection zone. Before the door returned to the basic state, the second safety detection zone detected someone entering again without a legal door opening signal, and the alarm system sounded an alarm. But as long as someone is still detected in the protection detection zone, the door will not close.



(4) Close tracking: from the first detector detecting the pedestrian to the last detector when he leaves the first safety detection zone, the time gap is about 0.25 seconds. After the pedestrian leaves the first safety detection zone, the card reader signal When there is no signal to open the door, a pedestrian (follower) is detected in the first detection zone, the alarm sounds, and the door is still open.



(5) After the normally following pedestrian leaves the protection detection area, the first safety detection area detects the intrusion of an unauthorized person, and the door is immediately closed and the alarm sounds.



3. Drive: DC servo drive system and DC brushless drive system



4. Response of the door body in emergency conditions: If there is a sudden power outage during operation of the door, the door wings will stop in the original position and can be pushed freely, or an external 12V battery can be connected ( When there is a power outage, the battery is energized briefly to open the swing door). According to requirements, each device can be equipped with an emergency button. Pressing the button can activate the selected emergency response mode. Channels are generally opened in times of danger or panic. In emergencies such as police, the channel can be closed manually through the remote control button. After power-on or emergency release, the door wing automatically resets after self-checking and clearing the door.



Rapidentry Access Speedlane Turnstile Advanced Anti Tailgating Technology 1



Model
ZT-987D
Size
1200×180×980mm
Material
Full 1.5mm SUS304 snowline + 12mm black marble top
Pass Width
600mm-800mm
Passage Direction
Single directional/Bi-directional
Pass Rate
35-40 persons/minute
Operating Time
0.2 seconds
Power Input
AC100-240V,50/60HZ
Working Voltage
24V 105W
Arm Material
10 mm Acrylic
Application
Commercial buldings, Airports, Hotels, Governemnt, Halls, etc
Working Environment
Indoor
Communication Interface
RS485, Dry contact
Mechanism
Brushless Servo Motor+Encoder+Clutch
MCBF
5,000,000 Cycles
Light
Cube + 3-color stripes





At our turnstile manufacturing company, we stand out from the competition with the following key advantages:

  1. Extensive Experience: With over 10 years in the industry, we have a proven track record of delivering high-quality turnstiles that have been installed and well-received in various regions worldwide.

  2. Quality Certifications: Our products boast prestigious certifications, including CE, ROHS, and ISO9001. These certifications reflect our commitment to meeting international quality standards and ensuring customer satisfaction.

  3. State-of-the-Art Factory: Equipped with advanced technology and machinery, our modern factory enables us to produce turnstiles with precision, efficiency, and consistency.

  4. Customization Options: We offer comprehensive OEM/ODM services, allowing customers to provide their own designs or samples for tailored turnstile solutions. Our experienced team can bring your unique vision to life.

  5. Professional Sales and Technical Support: Our dedicated sales team and technical experts are here to assist you at every step. From product selection to after-sales support, we provide prompt and personalized assistance to meet your specific requirements.

  6. Customer Satisfaction: We prioritize building long-term relationships with our clients by delivering exceptional products and outstanding service. Your satisfaction is our ultimate goal.

Experience the advantages of our exceptional manufacturing capabilities, commitment to quality, and customer-centric approach. Stand out from the competition with turnstile solutions that exceed expectations. Contact us today for more information.
