ZT-982 Access Control Speed Lane Turnstile for Office

Product Details

Place of Origin: Shenzhen China

Brand Name: Zento

Certification: CE ISO9001 ROHS

Model Number: ZT-982

Payment & Shipping Terms

Minimum Order Quantity: 2 pcs

Price: $750-$980(Contact us to get more discount)

Packaging Details: wooden box

Delivery Time: 3-7days

Payment Terms: T/T,Western Union,Paypal

Supply Ability: 100 pcs per week

Get Best Price
Highlight:
Passing Direction:
Single Or Bi-directional
Cabinet:
1200*100*980
Passage Width:
550-900mm
Temperature:
-25~+70℃
Passage Speed:
45-65 People/min
Drive Motor:
DC Brushless Motor
Material Thickness:
1.5 Mm
Barrier Material:
Acrylic Or Tempered Glass
Passing Direction:
Single Or Bi-directional
Cabinet:
1200*100*980
Passage Width:
550-900mm
Temperature:
-25~+70℃
Passage Speed:
45-65 People/min
Drive Motor:
DC Brushless Motor
Material Thickness:
1.5 Mm
Barrier Material:
Acrylic Or Tempered Glass

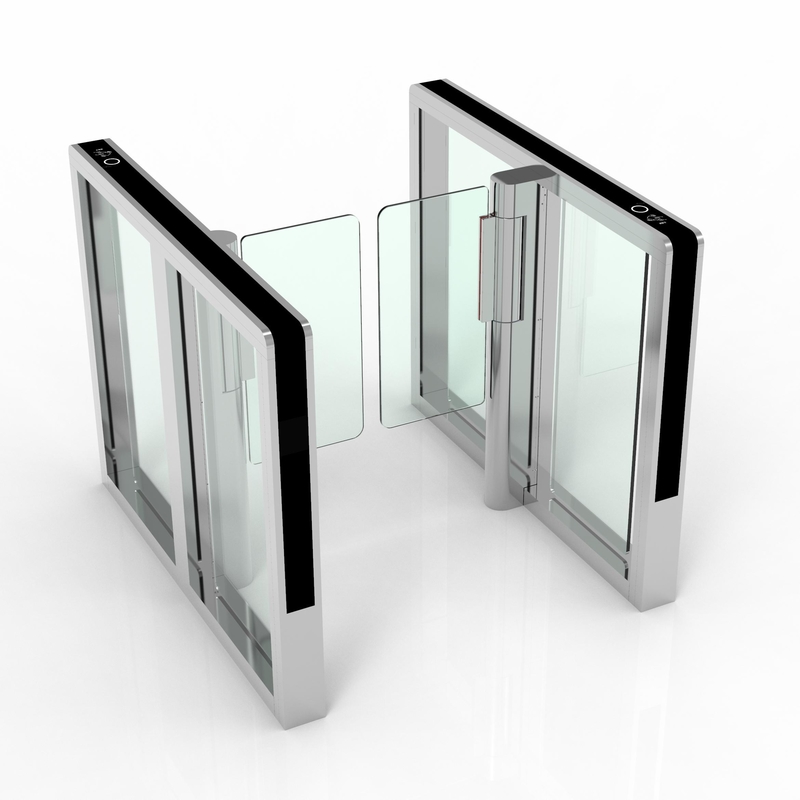

ZT-982 Access Control Speed Lane Turnstile for Office
ZT-982 Access Control Speed Lane Turnstile for Office
Product Specifications
Attribute Value
Passing Direction Single or Bi-directional
Cabinet Dimensions 1200*100*980mm
Passage Width 550-900mm
Operating Temperature -25°C to +70°C
Passage Speed 45-65 people/min
Drive Motor DC Brushless Motor
Material Thickness 1.5 mm
Barrier Material Acrylic or Tempered Glass
Product Overview

The ZT-982 Speed Lane Turnstile provides advanced access control solutions for office buildings, combining security, efficiency, and modern design. These speed barrier turnstiles enhance building security while optimizing traffic flow and management efficiency.

ZT-982 Access Control Speed Lane Turnstile for Office 0
Key Advantages
  • Enhanced Security: Integrated with access control systems for identity verification via face recognition, fingerprint, or IC cards
  • Efficient Traffic Flow: Processes 45-65 people per minute with minimal waiting time
  • Smart Management: Automated operation reduces manual intervention and provides comprehensive entry/exit data
  • Emergency Ready: Quick-release function for rapid evacuation during emergencies
  • Durable Construction: 304 stainless steel frame with weather-resistant design
Technical Features
  • Direct-drive transmission technology for silent, stable operation
  • Adjustable swing door speed for different application requirements
  • Self-diagnostic system with fault detection and alert functions
  • Multiple operation modes including bidirectional card reading or fingerprint verification
  • Dual infrared/mechanical anti-pinch protection (≤2Kg force)
  • Comprehensive alarm system for unauthorized access attempts
  • Automatic reset function (1-60 second adjustable timeout)
  • High-visibility LED passage indicators
  • Weatherproof design resistant to sun, cold, and high temperatures
Technical Specifications
Frame Material 304 Stainless Steel
Arm Length 600-900mm
Dry Contact 12V
LED Indicators 1
Card-reading Windows 2
Rated Power 120W
Operating Temperature -25°C to +60°C, RH ≤90%
Communication Interface RS485 (distance ≤1200m)
Power Supply DC 220V/110V ±10% 50/60MHZ (optional)
