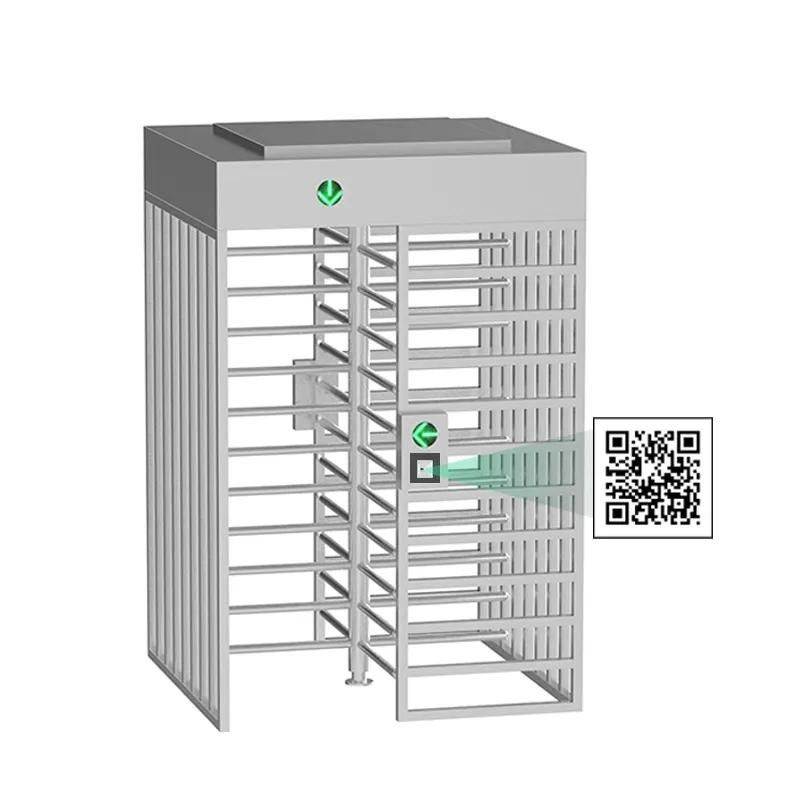

RS485 Access Control Full Height Turnstile Gate With QR Code Reader

Product Details

Place of Origin: China

Brand Name: zento

Certification: CE, ROHS, ISO9001

Model Number: ZT-827A

Payment & Shipping Terms

Minimum Order Quantity: 1 unit

Price: Negotiable

Packaging Details: carton+ wooden case

Delivery Time: 5-7 working days

Payment Terms: T/T, Western Union

Supply Ability: 400 unit per month

Get Best Price
Highlight:

RS485 Full Height Turnstile

,

Access Control Full Height Turnstile Gate

,

access control turnstile gate with QR Code Reader

Product Name:
Full Height Turnstile With QR Code Reader
Access Control:
ID Card, Fingerprint, Face Recognition
Anti-climbing:
Yes
Anti-tailgating:
Yes
Communication Interface:
RS485
Communication Protocol:
TCP/IP
Product Name:
Full Height Turnstile With QR Code Reader
Access Control:
ID Card, Fingerprint, Face Recognition
Anti-climbing:
Yes
Anti-tailgating:
Yes
Communication Interface:
RS485
Communication Protocol:
TCP/IP
RS485 Access Control Full Height Turnstile Gate With QR Code Reader

Turnstile With Qr Subway Full Height Turnstile Price Full Height Gate System Access Gate Turnstile



Turnstile With Qr Subway Full Height Turnstile Price



We are manufacturer of turnstile with qr, tripod turnstile, waist height turnstile,Speed gate, Flap turnstile, Swing Turnstile, Barrier Gate, LPR parking system, Rising bollards etc. We can supply you our standard turnstile gate and customized your own design turnstiles for you.



A full height turnstile gate is a type of access control device used to manage the flow of people in and out of secured areas. It consists of a revolving gate that extends from floor to ceiling, creating a physical barrier between two spaces. This type of turnstile effectively prevents unauthorized individuals from bypassing the gate by climbing over or crawling under it. Full height turnstile gates are often installed in high-security locations such as airports, government buildings, stadiums, or industrial facilities, where strict access control is required.



304 stainless steel snow sand
>Anti-rust / Wear / High temperature / Corrosion resistance


Sino mould full height turnstile machine core>Die-casting aluminum alloy / Always on power square solenoid
>Good quality and low price / Durable


Turnstile control board
>LED directional indicator
>Dry contact signal
>Connect fire alarm signal
>Memory function
>13 kinds gate mode of entry and exit>Counting function
>With sound and light alarm function
>Support secondary development



RS485 Access Control Full Height Turnstile Gate With QR Code Reader 0

We can supply you turnstile with qr with controller system or mechanism only.



Turnstile with QR Function:

  • Through the built-in small press disk on the main control board, the running state of the programmable device.

  • Unique two-way anti-inversion function

  • anti-scour function, when the opening signal is not received, the channel bar will be locked automatically.

  • the channel is automatically unlocked after the power is cut off, and the function of free rotation can meet the requirements of fire fighting, and the channel is locked and closed automatically after the power is turned on.

  • with automatic reset function, after opening the gate, when pedestrians do not pass within a specified period of time, the system will automatically cancel the pedestrian traffic authority, and the reset time is 1S~60S adjustable (the default time of the system is 10s).

Turnstile with QR Technical Parameter:



Power voltage AC220 ±10%V/50 ±10%HZ Open angle 120°/90°
Communication mode 232/485 TCP/TP Pass speed 30 person/minutes
Movement Hydraulic movement Structure 304 stainless steel
Relative humidity None-condensation Open direction Single and Double(optional)
Input signal 12v DC level or Dry contact signal Work environment Outdoo(Canopy)and indoor
Working Current ≤2000mA Temperature -10 ℃-- 50 ℃
Working Noise Below 65 decibels Relative humidity ≤90%, non-condensing



Access Control Turnstile System·Rugum APW-RM600


Appearance, Dimension, Material & Surface Finish


Appearance: customized according to customer’s requirement.


Stainless steel thickness of the cabinet: customized within 1.5~3.0mm.



Material of the cabinet: 304 / 316 grade stainless steel.


Material of the gate: tempered glass / organic glass / polycarbonate, and color can be customized.


System Integration
Integrate with access control system required by customers, and built-in reader appointed by customer.


Integrate with visitor management system.


Integrate with ticketing system.


Direction Indicator


The installation position of direction indicator can be adjusted.


The pattern of direction indicator can be customized.


Function
Built-in or external counter
TCP / IP communication function
Audible and visual alarm function

RS485 Access Control Full Height Turnstile Gate With QR Code Reader 1
