Product Details
Place of Origin: ShenZhen
Brand Name: Zento
Certification: CE, ISO9001, ROHS
Model Number: ZT-996
Payment & Shipping Terms
Minimum Order Quantity: 2
Price: Negotiable
Packaging Details: Wooden case
Delivery Time: 7 working days
Payment Terms: T/T, Western Union
Supply Ability: 50 sets per week
Arm Type: |
Straight/Folded |
Communication Interface: |
RS485 |
Driving Motor: |
DC Brushless Motor |
Input Interface: |
12V Level Signal Or 12V Pulse Signal With Width ≥100ms |
LED Indicator: |
Green, Red |
Power: |
90W |
Arm Type: |
Straight/Folded |
Communication Interface: |
RS485 |
Driving Motor: |
DC Brushless Motor |
Input Interface: |
12V Level Signal Or 12V Pulse Signal With Width ≥100ms |
LED Indicator: |
Green, Red |
Power: |
90W |

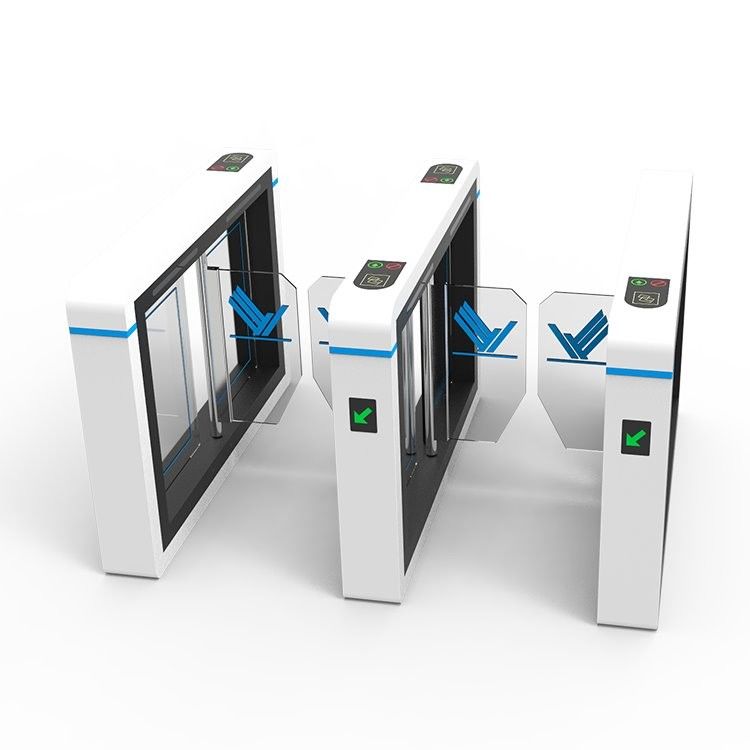

Stainless Steel Swing Gate Turnstile High Speed Pedestrian Passing Gate for Gym
Describe:
Swing turnstile gate has delicate, elegant shape which adopts stainless steel housing with surface brushed treatment. It not only adopts brushed servo motor electric control, but also adopts 6 pairs infrared sensor. Users also can choose access controller, face recognition, all-in-one QR code reader and one-key opening gates.
| Technical Parameter | |
| Material: | 304 stainless steel |
| Size: | 1400*180*1000mm |
| Power Input: | AC220V,50Hz |
| Driving Voltage: | DC24V 6.25A |
| Operating Temperature: | -20℃~70℃ indoor or outdoor |
| Passage direction: | Single directional/Bi-directional |
| Driving Mode: | brushless DC motor |
| Reacting time: | 0.2S |
| Pass Speed | 30~40p/m |
| Instruction: | voice broadcast, Indicator LED |
| Communication: | TCP/IP |
| External Equipment: | IC card reader, ID card reader, code scanner, face recognition module, fingerprint recognition module (optional) |
