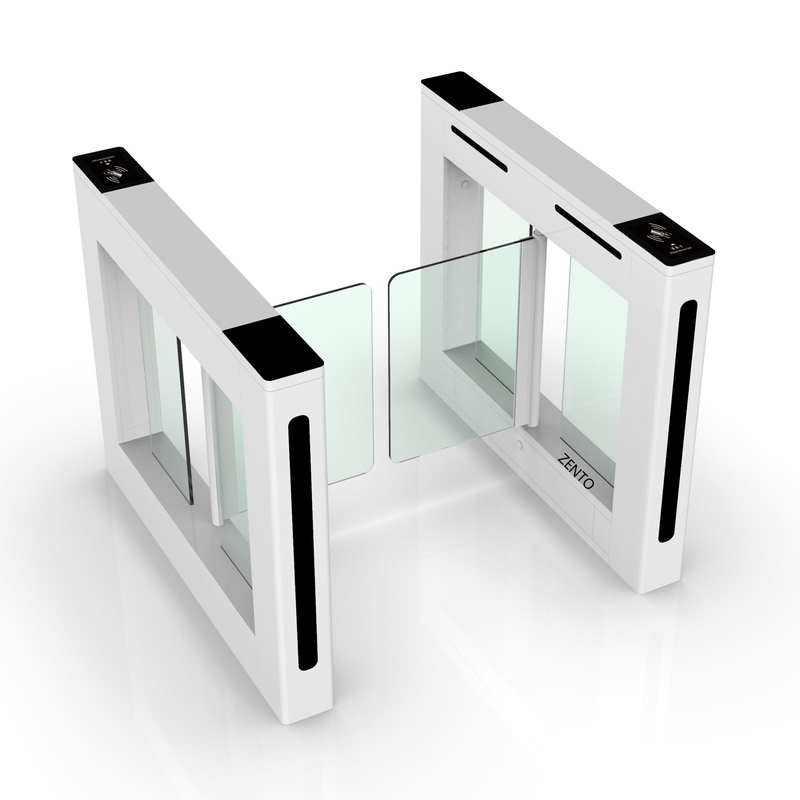

ZT-994 Face Recognition Swing Turnstile Gate 35 Persons/Min
ZT-994 Face Recognition Swing Turnstile Gate 35 Persons/Min
Key Attributes
Brand Name:zento
Model Number:ZT-994
Place of Origin:China
Certification:CE, ROHS, ISO9001
Minimum Order Quantity:1
Price:$380/pcs (Contact us to get more discount)
Supply Ability:400 unit per month
Delivery Time:5-7 working days
Payment Terms:T/T,Western Union,
Standard Packaging:carton+ wooden case
Product Summary
ZT-994 Security Access Control Swing Turnstile Gate Product Specifications Product Name Access Control Face Recognition Swing Turnstile Gate Response Time 0.2-0.8s Standard Size 1200×140×980mm Throughput Capacity 30-45 persons/minute Color Options Customizable Key Features 0.8s Fast Passage: High...
Product Details
Highlight:
face recognition swing turnstile gate
Product Name:
Access Control Face Recognition Swing Turnstile Gate
Response Time:
0.2-0.8s
Swing Turnstile Standard Size:
1200*140*980mm
Key Word:
Swing Turnstile
Frequency:
30-45per/people
Swing Turnstile Color:
Customized
Product Description
Detailed Specifications & Features
ZT-994 Security Access Control Swing Turnstile Gate
Product Specifications
| Product Name | Access Control Face Recognition Swing Turnstile Gate |
| Response Time | 0.2-0.8s |
| Standard Size | 1200×140×980mm |
| Throughput Capacity | 30-45 persons/minute |
| Color Options | Customizable |
Key Features
- 0.8s Fast Passage: High-torque motor enables throughput ≥35 persons/min
- -Grade Durability: 304 stainless steel + 8mm tempered glass with impact resistance ≥1000J
- 99.9% Accurate Recognition: Supports Face ID/QR Code/RFID Card/NFC multi-authentication
- 360° Safety Protection: Dual infrared anti-pinch + anti-tailgating alarm system
- Extreme Environment Adaptability: IP65 waterproof rating, operates reliably from -30℃ to 70℃
Technical Overview
Mechanism
Motorized swing turnstile gates utilize a control system with infrared sensors to detect presence and authorize entry. Upon valid credential verification (card, facial scan, or biometric data), the barrier swings open and automatically closes after passage confirmation.
Construction
Swing barriers are constructed from durable materials including stainless steel, plexiglass, or tempered glass, selected based on security requirements and aesthetic preferences. Available in both waist-high and full-height configurations for varying security levels.
Operation & Accessibility
Configurable for one-way or bi-directional access with self-closing or motorized operation. Features emergency breakaway functionality for power failures. ADA-compliant design accommodates wheelchairs, walkers, and luggage with adjustable passage width (550-900mm).
Technical Parameters
| Category | Parameter | Specification |
|---|---|---|
| Basic Information | Model Number | ZT-994 |
| Product Name | Swing Turnstile Barrier | |
| Brand | Zento | |
| Material & Structure | Main Material | Stainless steel 304/316 |
| Surface Treatment | Brushed/Polished | |
| Frame Thickness | 1.5mm | |
| Barrier Arm Material | Aluminum alloy/Stainless steel | |
| Dimensions | Device Size (L×W×H) | 1200×140×980mm |
| Passage Width | 550-900mm (adjustable) | |
| Barrier Arm Length | 250-450mm | |
| Performance | Opening/Closing Time | 0.2 seconds |
| Operating Speed | 30-45 passages/minute | |
| Temperature Range | -30°C to +90°C | |
| Humidity Range | 5% - 95% (non-condensing) |
Advanced Functionality
- Self-diagnostic system with fault detection and maintenance alerts
- Programmable operation modes via integrated control panel
- Anti-collision mechanism with automatic motor cutoff
- Synchronized swing arm adjustment for dual-arm configurations
- Automatic reset function with configurable timeout (default 5 seconds)
- Fail-safe power-off open mode for emergency egress
- Multi-protocol support for various card readers and access control systems
- Bi-directional operation with configurable entry/exit controls
- Remote management capability via network connection
Optional Features
- Audible/visual alarm systems for security violations
- People counting functionality
- Enhanced infrared detection systems
- Custom chassis and arm length configurations
