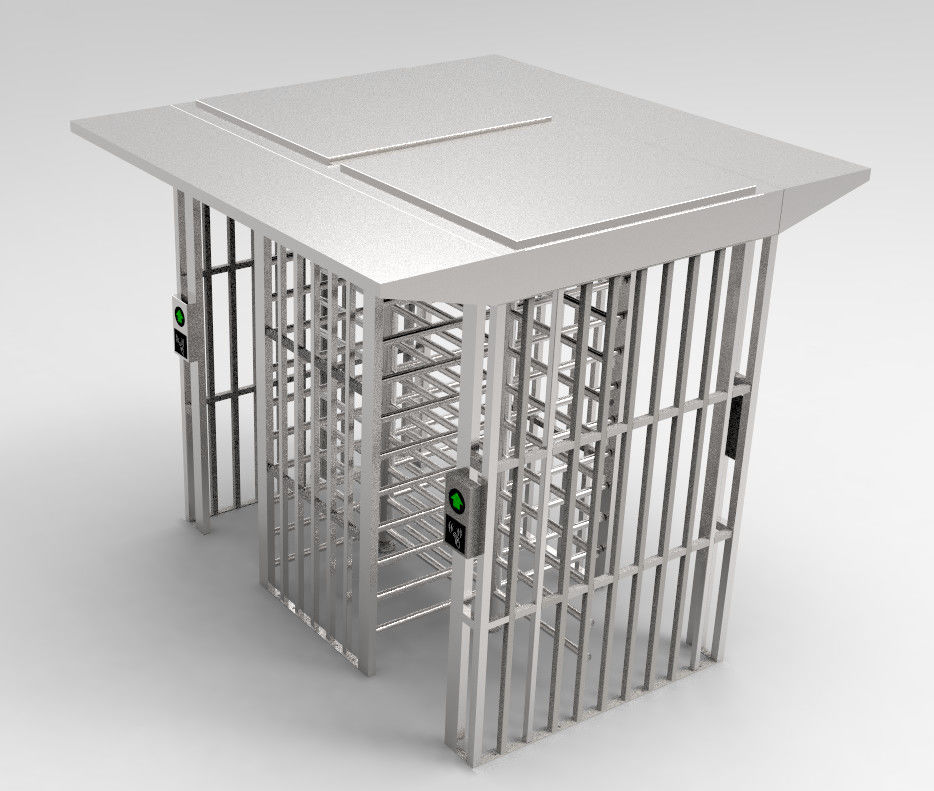

Intelligent Auto Arc Full Height Turnstile Waterproof Access Control With Double Lane

Product Details

Place of Origin: China

Brand Name: Zento

Model Number: ZT-822W

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: 900

Packaging Details: carton + wooden case

Delivery Time: 5-7 working days

Payment Terms: T/T, Western Union, MoneyGram

Supply Ability: 300 units per month

Get Best Price
Highlight:

Auto Arc Full Height Turnstile

,

Double Lane Full Height Turnstile

Certification:
ISO,CE,RoHS
Material:
304 Stainless Steel
Product Name:
Factory Price Automatic Safe Rotation Full Height Turnstile Gate
Power Supply:
AC220V/110V
Net Weight:
260kg
Dimension:
1500*1500*2300 (mm)
Warranty:
1 Year
Passing Speed:
30--40persons/min
Passage Width:
<=600mm
Color:
Optional
Type:
Single Core & Double Core
Certification:
ISO,CE,RoHS
Material:
304 Stainless Steel
Product Name:
Factory Price Automatic Safe Rotation Full Height Turnstile Gate
Power Supply:
AC220V/110V
Net Weight:
260kg
Dimension:
1500*1500*2300 (mm)
Warranty:
1 Year
Passing Speed:
30--40persons/min
Passage Width:
<=600mm
Color:
Optional
Type:
Single Core & Double Core
Intelligent Auto Arc Full Height Turnstile Waterproof Access Control With Double Lane

Waterproof Access Control Intelligent Auto Arc Full Height Turnstile With Double Lane Turnstile



A full-height turnstile gate is a type of access control device that provides a high level of security and control over pedestrian flow. Unlike other types of turnstiles, full-height turnstile gates are taller and form a complete barrier from floor to ceiling, preventing unauthorized individuals from climbing or bypassing them.



Full-height turnstile gates are commonly used in high-security areas such as prisons, detention centers, industrial facilities, sports stadiums, and other locations where stringent access control measures are required. They provide a reliable and robust solution for ensuring authorized access while maintaining a secure environment.





Functions and features

full-auto

semi-auto

manual

1,Malfunction self-check and alarm reminder, ease of maintenance and use



×



×

2,Running method can be set through small buttons on the control panel



×

3,How arm reacts in emergency

Open

automatically

Open

automatically

Full/Seimi Automatic

movement

4,How arm reacts when power on

go up

automatically

go up by hand

no

movement

5,Self-reset. pass right will be cancelled if people do not go through within a set time, the default time is 10s ( 0-60 adjustable)







×

6,Compatible for access control system, consumption system, E-ticket system, biometric system, ESD

system and so on







×

7,Unique positioning, self reset, one arm always in the horizontal level



×

8,LED lamp indicator

×

9,when open signal is given, arm rotate to a certain degree



×



×

10,how arm reacts when people passing

rotate

automatically

push by hand

push by

hand

11,one direction or bi-direction flow control

adjust by hand

12,work directly with PC for remote control and

management



×

13,Bi-direction Anti reverse rotation

×

Intelligent Auto Arc Full Height Turnstile Waterproof Access Control With Double Lane 0



Here are the key features and characteristics of a full-height turnstile gate:

1. Height: Full-height turnstile gates are typically around 6 to 7 feet (1.8 to 2.1 meters) tall, creating a physical barrier that prevents people from easily jumping over or crawling under them.



2. Security: Due to their height and sturdy construction, full-height turnstile gates offer robust security by effectively deterring and preventing unauthorized access. They provide a strong physical barrier that restricts passage without proper authorization.



3. Single Entry/Exit Point: Full-height turnstile gates are designed to allow only one person at a time to pass through. They usually have a single entry and exit point, ensuring controlled movement and preventing multiple individuals from passing simultaneously.



4. Mechanical or Motorized Operation: Full-height turnstile gates can have either mechanical or motorized operation. Mechanical versions require users to push the barrier to rotate it, while motorized versions automatically rotate the barrier upon authentication or control signal.



5. Integration with Access Control Systems: Similar to other turnstile types, full-height turnstile gates are often integrated with access control systems such as RFID card readers, biometric scanners, or barcode readers. This integration ensures that only authorized individuals can gain access through the turnstile gate.



6. Durability and Weather Resistance: Full-height turnstile gates are made of durable materials like stainless steel or galvanized steel, making them resistant to harsh weather conditions and vandalism. This makes them suitable for outdoor deployments or areas with heavy traffic.

Customization Options: Full-height turnstile gates are available in various designs and finishes to suit different environments and architectural styles. Customization options may include the addition of branding, colors, or unique features to align with the overall aesthetics of the location.

Intelligent Auto Arc Full Height Turnstile Waterproof Access Control With Double Lane 1



Framework 304 Stainless Steel
Dimensions 2450*1450* 2300 (mm)
Card-reading window: Two
Rated power 120W
Operating temperature -25℃ ~ +60℃, RH ≤90%
Related humidity ≥90%RH
Communication Interface RS485,distance ≤1200m
Power supply AC 220V/110V ±10% 50/60MHZ (optional)
Pass speed 30 persons per minute
Normal work life 15 million passages
Access control Compatible with all access control systems
Control module RS232/RS485/TCP IP
Emergency Mode

The gate is free to rotate to allow free

passage (default is fail safe)



Intelligent Auto Arc Full Height Turnstile Waterproof Access Control With Double Lane 2
