Home > products > Flap Barrier Turnstile > 12V Level Signal Stainless Steel Turnstiles Flap Gate Barrier 1.5mm Housing

12V Level Signal Stainless Steel Turnstiles Flap Gate Barrier 1.5mm Housing

Product Details

Place of Origin: Shenzhen China

Brand Name: Zento

Certification: CE ISO9001 ROHS

Model Number: ZT-935

Payment & Shipping Terms

Minimum Order Quantity: 2pcs

Price: Negotiable

Packaging Details: carton/wooden box

Delivery Time: 3-7days

Payment Terms: T/T, Western Union,Paypal

Supply Ability: 100 pcs per week

Get Best Price
Highlight:

12V Level Signal flap gate barrier

,

flap gate barrier 1.5mm Housing

,

12V Level Signal Stainless Steel Turnstiles

Dimension:
1400*330*980mm
Input Signal:
12V Level Signal Or DC12V Pulse Signal
Lane Width:
550-600mm
Material:
Stainless Steel
Application:
Security Access Control Management
Protection Level:
IP54
Service Life:
≥5 Million Times
Speed:
0.2s/person
Dimension:
1400*330*980mm
Input Signal:
12V Level Signal Or DC12V Pulse Signal
Lane Width:
550-600mm
Material:
Stainless Steel
Application:
Security Access Control Management
Protection Level:
IP54
Service Life:
≥5 Million Times
Speed:
0.2s/person

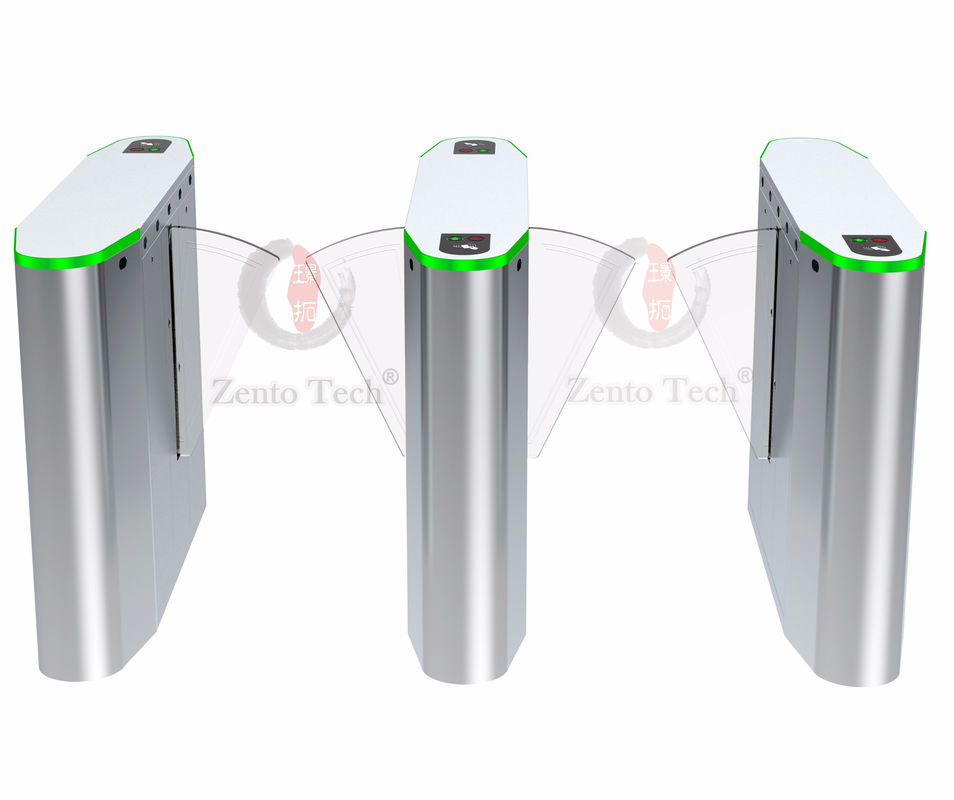

12V Level Signal Stainless Steel Turnstiles Flap Gate Barrier 1.5mm Housing

Traffic Flow Flap Turnstile Stainless Steel Pedestriain Gate for Security Access

Security flap turnstiles are highly configurable both in material and in features. This saves your budget and provides exactly the security solution you want.Elegant and discreet security from our most compact, economic, and popular model.Designed for high-traffic lobbies; exceeds safety and security requirements for a compact unit.Fast-acting “angel wing” glass barriers retract fully into the pedestals upon authorization.

12V Level Signal Stainless Steel Turnstiles Flap Gate Barrier 1.5mm Housing 0

Parameters

Housing material
304 stainless steel
Entrance width
500-600mm/850mm(optional)
Housing thickness
1.5mm(optional)
Net weight
75Kg/unit
Temperature
-10 ℃-50℃
Humidity
≤90%
Normal life-span
5-8 million times
Operation speed
30-45person/min
Working environment
indoor
Glass material
Acrylic glass/PC glass
Direction
Single direction/Bi-direction
Input interface
Dry contact signal or +12V level signal or RS485 communication signal
Communication interface
RS485(distance less than 1200m)



Inner Parts Reference:

12V Level Signal Stainless Steel Turnstiles Flap Gate Barrier 1.5mm Housing 1



Support multiple recognition modes:
Faical recognition security access flap gate
Fingerprint reader access control turnstile



Feature
1. By using 6 pairs of military level high-performance infrared sensors and exact algorithms. It can accurately detect the user’s passing position to achieve the purpose such as anti-tailing. Anti-reverse passing and anti-clamping etc.


2. Using the multiple anti-clamping designs to protect the personal safety of passengers in maximum limit


3. The widen lane is optional for carrying luggage and wheelchair access.


4. Equipped with the dry contact signal input interface, compatible with all kinds of access controllers.


5. It will alarm when break in illegally, followed by people,passed overtime,damaged for equipment.


6. After swiping card in normal condition, if within the permitting time passages do not pass, the system will
cancel the users’ pass right and arm close automatically


7. Arm automatically open when the power off to make sure safety In case of emergency


8. Optional for external counter to record the people numbers for each lane
