Hot Selling manual swing pedestrian turnstile gate from China | Zento
  • Hot Selling manual swing pedestrian turnstile gate from China | Zento

Hot Selling manual swing pedestrian turnstile gate from China | Zento

It gains favorable comments from customers in the respect of realizing user customization.
Products Details
  • Feedback
  • Over the years, Zento has been offering customers high-quality products and efficient after-sales services with the aim of bringing unlimited benefits for them. manual swing pedestrian turnstile gate We promise that we provide every customer with high-quality products including manual swing pedestrian turnstile gate and comprehensive services. If you want to know more details, we are glad to tell you.The raw materials of Zento manual swing pedestrian turnstile gate is carefully chosen from top grade suppliers.

    Shenzhen Zento Traffic Equipment Co., Ltd. has made immense progress in the development of roducts. AutoSwing Gate ,Supermarket Turnstile Gate ,Electric Swing Turnstile Barrier Gate For Supermarket is the product of our company made by the state-of-the-art technologies. Turnstile has passed a series of international quality assurance system and product safety certification . In the future, Shenzhen Zento Traffic Equipment Co., Ltd. will make full use of the wisdom of our talents and update our technologies to keep up with the trends, to make our dream of being a world-famous company come true.

    Place of Origin:Guangdong, ChinaBrand Name:ZENTO

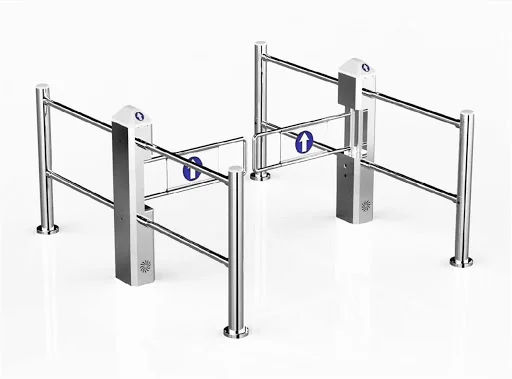

    Model Number:ZT-923AProduct name:Access control swing turnstile
    Material:304stailess steel and toughened glassApplication:Security access control management
    Warranty:1 yearlife:over 10 years

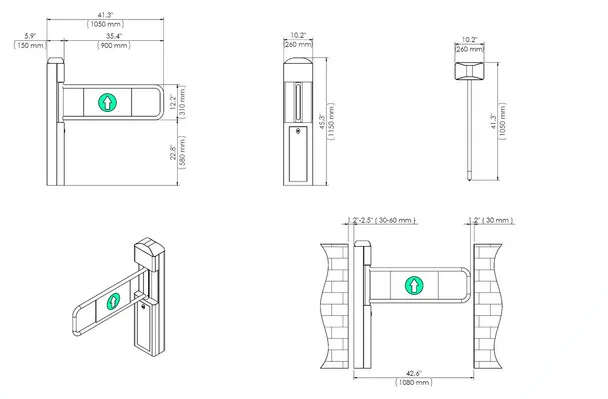

    size:380*280*990mmpassage width:500-600mm
    Pass speed:30-45 persons per minute

    Product Description
    Function: 1. working method can be set by the buttons on the main panel 2. Anti-pinch, anti-collision. If there is block during return of gate, motor stops working automatically. Reset again after a default delay, the force 2Kg. 3.Anti-illegal in, anti-intrusion, auto close for reverse direction. 4. Anti-collision, gate closes when no valid signal is given. 5. Protection functions for gate, gate open to prevent motor from being damaged if there is outer force collision. 6. Gates can be synchronous 7.Auto-reset. If not go through in a preset time, pass right would be cancelled automatically. (1-60s adjustable), default time is 10s. 8. Reset function by photocells, 4 or 6 pairs. 9. Anti-pinch function by photocells, 4 pairs 10.Compatible with Access control system, consumption system, ESD system, E-ticket system and so on. 11. One way or two way control 12. Unit can be controlled and administered by remote control 13. Led lamp indicator Extensible functions: 1. LED counter display 2. Casing and gate size can be lengthened 3.Logic judgment by photocells (8 pair or 10 pairs) 4. Speech reminder 5.normal close or normal open adjustable 6. Light, sound alarm
    Application: Intelligent swing gate ---can be compatible with IC card , ID card ,barcode card , fingerprint reading card recognition device used for staff, provide civilized , orderly access methods; effectively manage the access of staff . Can be widely used in the station, wharf subway , factories, office building , hotel , clubs, intelligent community , enterprises and institution that need intelligent access management.
    Parameters
    Framework
    304 Stainless Steel
    Dimensions
    89*600*950 mm
    Dry Contact
    12V
    LED indicating light
    One
    Card-reading window:
    Two
    Rated power
    120W
    Operating temperature
    -25℃ ~ +60℃, RH ≤90%
    Related humidity
    ≥90%RH
    Communication Interface
    RS485,distance ≤1200m
    Power supply
    AC 220V/110V ±10% 50/60MHZ (optional)
    Opening Transit speed:
    30—45persons per minute
    Closing Transit speed:
    25-35per minute
    Manufacturing Technique
    Certifications
    Company Profile
    Delivery & Packing
    FAQ
    1.What is the strength of your company in this industry? We are the top 5 in turnstile field in China, more than 120 employees and over 20 senior R & D technical persons to ensure the gate could work well in different environment, power supply and current. Experienced foreign trade business team can help you to deal with any emergency before, during and after the sales. The brand ZENTO is highly recognized in Southeast Asia.
    2. What is your pricing strategy? For overseas markets, we will use competitive prices to support a strong distributor in each area, and gradually establish overseas service agency, as a good opportunity, some long-term cooperation partners will compete with us to sign the annual cooperation agreement (including execution price).
    3. How about Quality Control? IOS9002 could help us to realize the factory management control and our ERP system can help us to control the cost of procurement links effectively, so we can provide a good price. New test system could do uninterrupted fatigue testing to ensure its using life. Pre-shipment inspection and third-party supervision are available.
    4. How about some special design? That's our advantage of design new gate or barrier according to your real situation to make different size, software and features. Video call available during design and communicate in time during this procedure.
    5. Do you have agency for after-sales service?
    Any question about delivery goods, you could find our sales anytime. For installation, we will offer instruction video to help and if you face any technical question, welcome to contact with us to have a face time to solve it.
    6. What time do you need to delivery? Commonly to say, 5-7 working days after payment could delivery for common orders, but it depends the order quantity. We could talk about this question before final payment.
    7. How about the payment method? Standard products: 30% deposit, 70% balance payment before shipment. Customized products: 50% deposit, 50% balance payment before shipment. Contract amount more than USD15000: 50% deposit, 50% balance payment before shipment. T/T, PayPal, Credit guarantee order
    8. How to ship?
    By air or by sea, quantity over 10 sets better to choose by sea to reduce cost. Contact Us
