Full Height Turnstile
VR
  • Products Details

As Shenzhen Zento Traffic Equipment Co., Ltd. steps into a more competitive market, we know that the only way to keep us ahead of other competitors is to enhance our R&D strength, improve technologies, and develop new products. At Shenzhen Zento Traffic Equipment Co., Ltd.,customer satisfaction and professional service as well as competitive prices are very important to us, a happy customer is what we strive to achieve. We have been in the trade for over many years and are a well established business with a wealth of experience and expertise.

Place of Origin:Guangdong, ChinaBrand Name:ZENTO
Model Number:ZT-802BSize:400*330*980mm
Passage width:550mmThickness:full 1.0-1.5mm
Matrial:304 stainless steelTesting:3 million no fault
Input:220V,50HZ or 110 V ,50HZDriving voltage:12V
Weight:70kg (Tripod Turnstile)Environment:-25~+70
Name:security tripod turnstiles

Product Description

Product Application

Dual mechanism access controller that combines design, technology, and the future. Its main feature is the smooth, comfortable, and quiet passage. Pedestal model access control equipment with double motorized mechanism and three swivel arms, security system, and pivoting arm. Combining smooth turning, versatility, and ease of integration with other safety components. The model stands out for being robust, versatile, and highly reliable in a unique and attractive design. These units are designed to integrate with other onboard security peripherals such as card readers, displays, keyboards, biometric readers, and Entry PASS Access Control. A variety of options, including a highly effective drop-arm mechanism, make this the worldwide turnstile of choice for the most discriminating integrator.

Framework
304 Stainless Steel
Dimensions
400*330*980 mm
work voltage
AC220V±10% 50HZ±10%
Core
DC24V solenoid valve
Arm length
500mm
Max bearing force
50kg
Rated power
120W
Operating temperature
-25℃ ~ +60℃, RH ≤90%
Related humidity
≥90%RH
Comunication Interface
RS485,distance ≤1200m
Power supply
AC 220V/110V ±10% 50/60MHZ (optional)
OpeningTransit speed:
30persons per minute
Emergency
auto drop for arm
FEATURES
* It has rounded corners and no exposed screws, preventing accidents in the passage.
* Internal space protected by a secret key that allows easy integration with the most varied access control solutions.
* Control of rotation locks through optical sensors and blocking by electromagnets, which generate less mechanical wear and
longer product life.
* Motorized turning mechanism following the user’s movement.
* Support for fixing the integration plates, allowing easy maintenance.
* Upper pictogram indicating permission and access direction.
* Side pictograms to indicate the direction of access.
* Bearing mechanism with two bearings, increasing the service life.
* Finished in carbon steel with powder epoxy paint or brushed stainless steel AISI 304.
* The anti-panic device that disarms the equipment arm, releasing the passage of users and rearms through automatic arm control.
* Top glass with ABS edges for fixing readers.
* Permission and sense pictograms manufacturing in high brightness RGB LEDs.
OPTIONS
* Light Kit with LED Indicator Lights
* Electronic counter for ticket registration.
* Anti-panic feature with disarming the arm (arm-that-falls).
* Slot for barcode or magnetic card readers.
* Card collector safe.
ACCESS CONTROL OPTIONS
* Access control card model MCA – TCP / IP.
* Barcode reader with a slot for badge pass.
* Multibeam barcode reader – entry approach.
* 2D code reader (two-dimensional).
* Wiegand / Abatrack proximity reader – HID / Indala / Acura.
* Mifare reader.
* Biometric reader, facial recognition

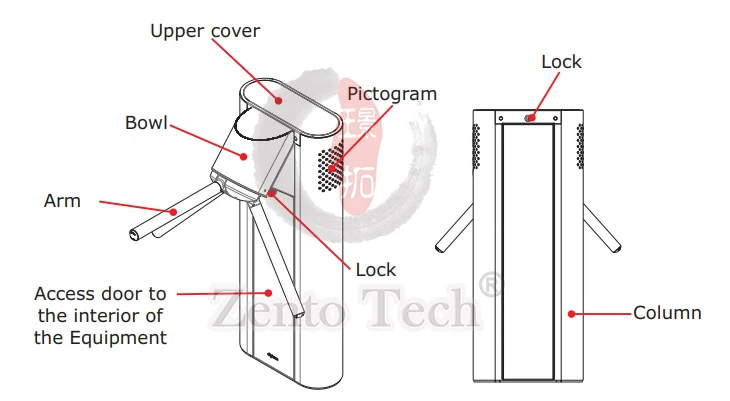

Product details

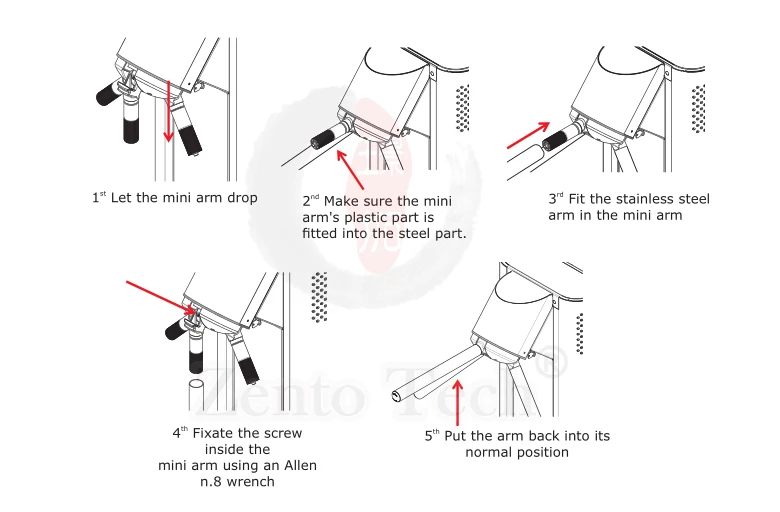

Installation Instructions

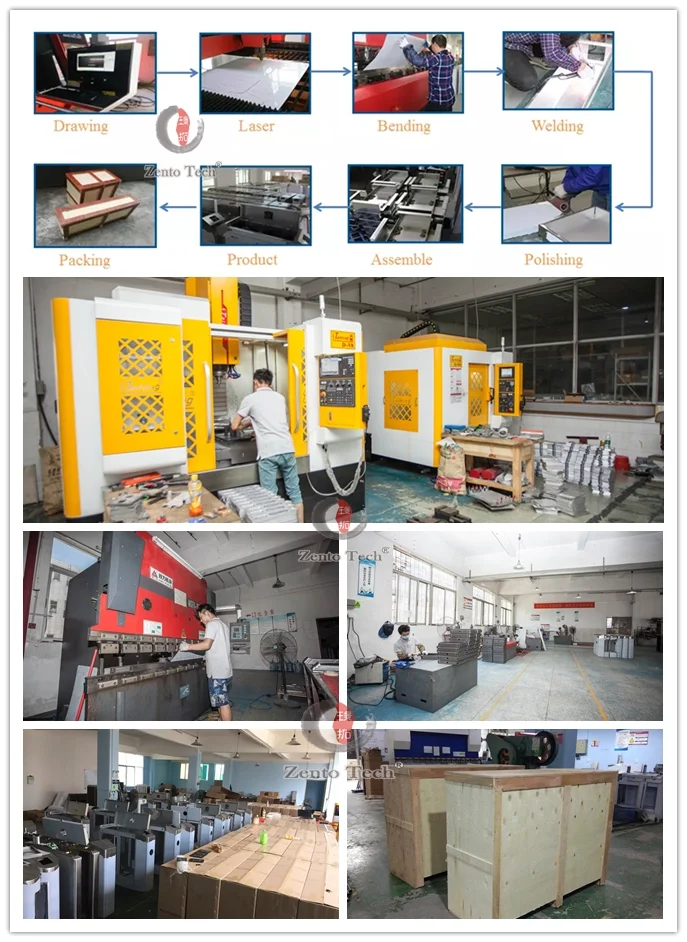

Production process
Related Products
Our Company
Packing & Delivery
FAQ

1. What is the strength of your company in this industry?
We are the top 5 in turnstile field in China, more than 120 employees and over 20 senior R & D technical persons to ensure the gate could work well in different environment, power supply and current. Experienced foreign trade business team can help you to deal with any emergency before, during and after the sales. The brand ZENTO is highly recognized in Southeast Asia.


2. What is your pricing strategy?
For overseas markets, we will use competitive prices to support a strong distributor in each area, and gradually establish overseas service agency, as a good opportunity, some long-term cooperation partners will compete with us to sign the annual cooperation agreement (including execution price).


3. How about Quality Control?
IOS9001 could help us to realize the factory management control and our ERP system can help us to control the cost of procurement links effectively, so we can provide a good price. New test system could do uninterrupted fatigue testing to ensure its using life. Pre-shipment inspection and third-party supervision are available.


4. How about some special design?
That's our advantage of design new gate or barrier according to your real situation to make different size, software and features. Video call available during design and communicate in time during this procedure.


5. Do you have agency for after-sales service?
Any question about delivery goods, you could find our sales anytime. For installation, we will offer instruction video to help and if you face any technical question, welcome to contact with us to have a face time to solve it.


6. What time do you need to delivery?
Commonly to say, 5-7 working days after payment could delivery for common orders, but it depends the order quantity. We could talk about this question before final payment.


7. How about the payment method?
Standard products: 30% deposit, 70% balance payment before shipment.
Customized products: 50% deposit, 50% balance payment before shipment.
Contract amount more than USD15000: 50% deposit, 50% balance payment before shipment.
T/T, PayPal, Credit guarantee order


8. How to ship?
By air or by sea, quantity over 10 sets better to choose by sea to reduce cost.
