Full Height Turnstile
VR
  • Products Details

Bi-Direction Glass Full Height Turnstile Gate High Secure Passage With RFID Full Height Turnstile is carefully designed by skilled designers. The product is endowed with stable and multi-functional performance. It is mainly used in the application field(s) of Turnstile. Since our inception, Shenzhen Zento Traffic Equipment Co., Ltd. have been striving forward with the aim of being a leading company in the globe. We will focus more on improving our R&D capabilities and upgrading technologies in order to develop more creative products, therefore leading the industry trends and keeping us competitive in the market.

Place of Origin:ChinaBrand Name:zento
Model Number:ZT-G821Product name:Glass full height turnstile
Power Supply:230Vac 50 Hz or 115Vac 60 HzPower Rating:50VA
Operating Temperature:0 to +113°F (RH 95% not condensing)IP rating / MCBF / MTTR:IP 30 / 1.5M cycles / less than 30 min
Casework:304 grade grained stainless steelGlass Infill::0.32" laminated glass panels
Rotor Column::304 grade stainless steel

Product Description
Zento glass full height turnstile is an elegant and transparent full-height turnstile available in many configurations: with full stainless steel construction, roof, rounded glass panel infill, full panel glass wings and stainless steel column; further enhanced by framed glass panel wings and brush strips. Delivered in a kit form, it is easily transported to the installation site. The turnstile is available with three (120°) rotor elements for more passage clearance. Passage in both directions is electronically controlled.

The ZENTO offers a standard electro-mechanical head able to prevent two passages at one time, equipped with damper for a silent mechanism and smooth operation, a sensor restricts access to the dead area generating an alarm in case of passage in the unauthorized direction of passage. The door will lock and then release in this direction via a cornice mounted keyswitch. In the event of an emergency or power-off scenario, the unit can be configured fail-safe i.e. rotor freely rotates or fail-lock i.e. rotor locks. This option is available either in one or both directions of passage.
Parameters
Casework:
304 grade grained stainless steel
Glass Infill:
 0.32” laminated glass panels
Rotor Wings
0.39” thick toughened glass panels laminated 0.45” thick with brush strips/slated acrylic wings 0.79” thick
with stator bars
Rotor Column:
304 grade stainless steel
Power Supply
230Vac 50 Hz or 115Vac 60 Hz
Power Rating
50VA
Operating Temperature
 0 to +113°F (RH 95% not condensing)
 IP rating /
MCBF / MTTR IP
 30 / 1.5M cycles / less than 30 min
Flow Rates (approximate figures): Insertion Type Reader:
12 passages per minute
Swipe Type Reader: 15 passages per minute Proximity Reader: “Hands Free”: 17 passages per minute

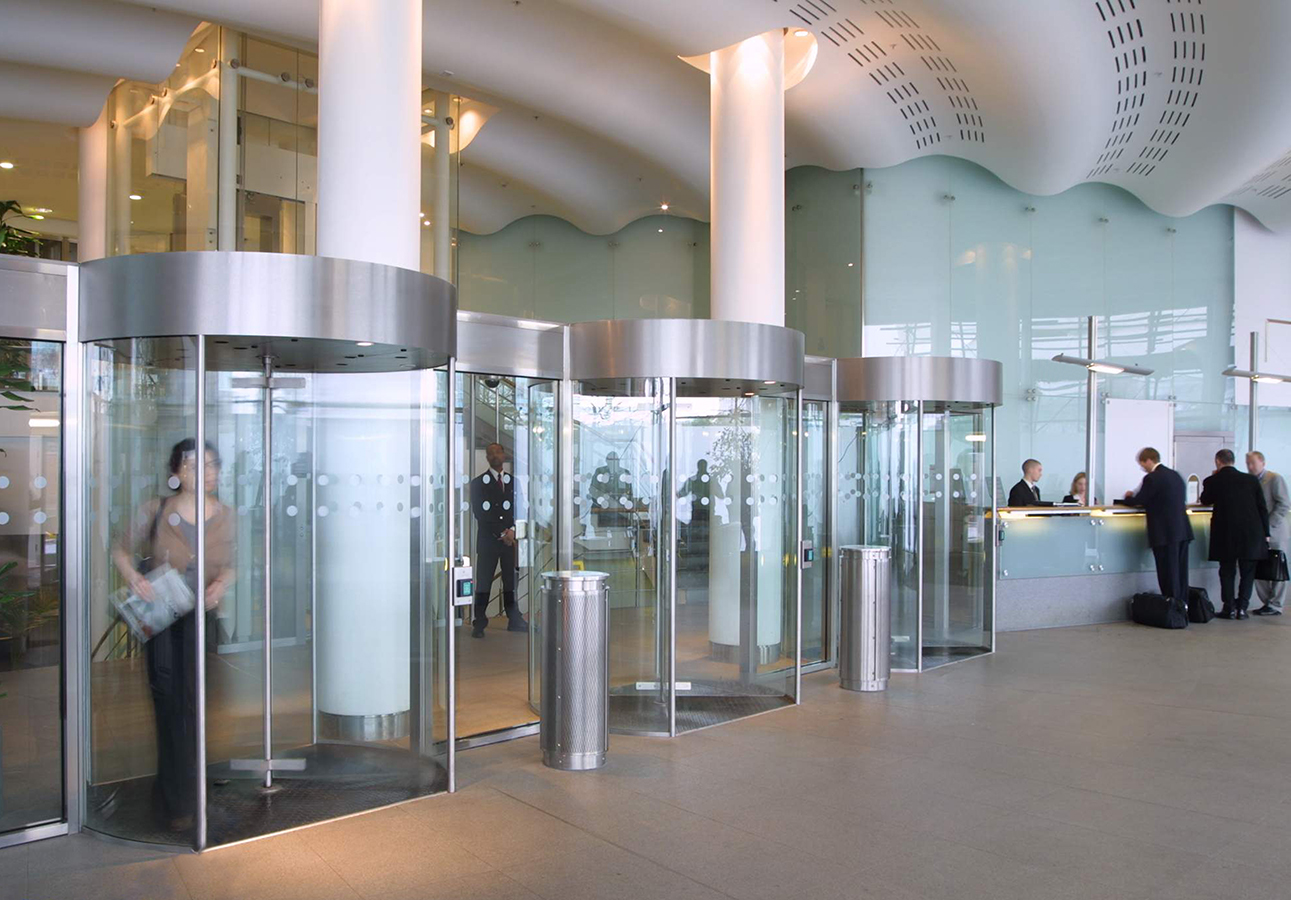

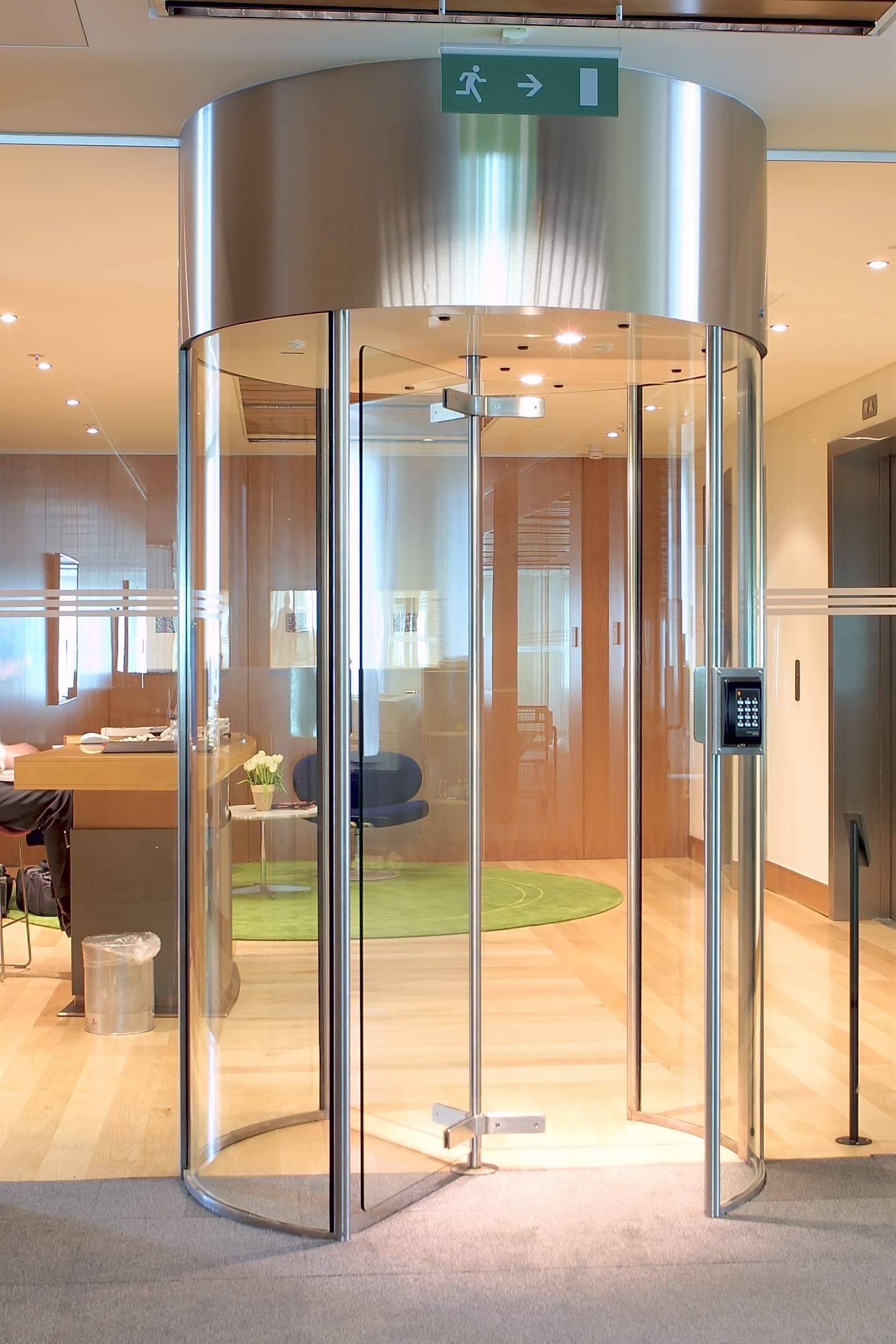

Feedback Cases
OUR COMPANY

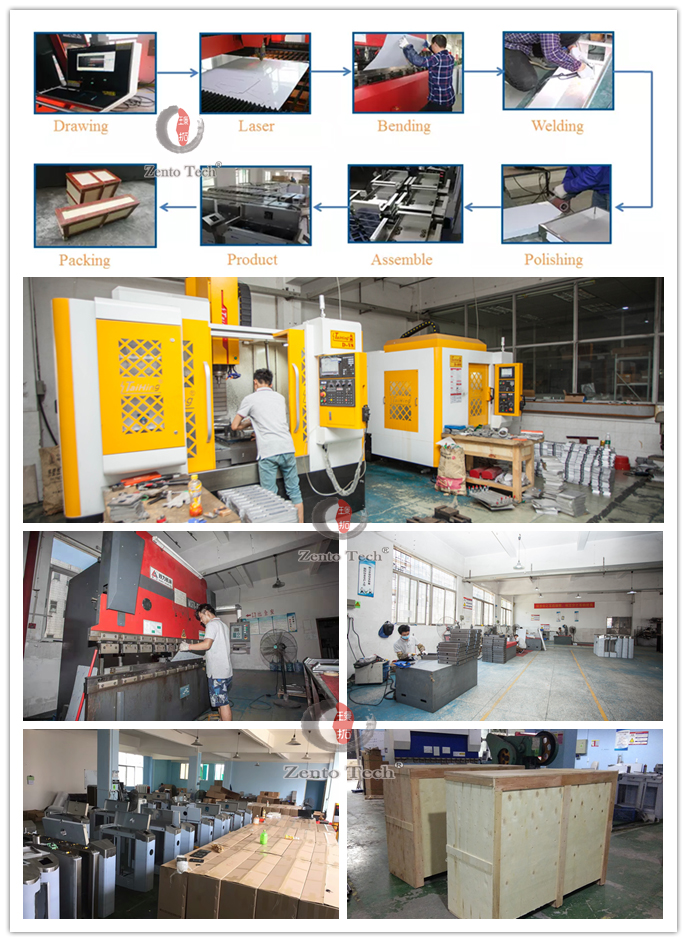

Product Processing
