  • Products Details

It is ZENTO Non-contact Face Temp Measurement Detection Time Attendance Security Card Swipe Access Control System features and appearance that differentiates it from other products in the market. We pay close attention to the selection of raw materials and the use of manufacturing technologies. In this way, the quality and performance of Turnstile Access Control Gate & Parking System Equipment can be better guaranteed. The measured data indicates that meets the market requirements. Since established, Shenzhen Zento Traffic Equipment Co., Ltd. have always been in strict compliance with international standards and high ethical standards, thus offering customers highly reliable products. We have always been following the business principle of 'honesty & integrity', which ensures that the most credible services are delivered to every customer.

Place of Origin:Guangdong, ChinaBrand Name:Zento
Model Number:ZT-F03Product Name:face recognition system
size:8 inches ,IPS LCD screenResolution:800*1028HD screen
Stranger detection:≤ ±0.3℃Recognition distance configuration:30℃~42.5℃
audio frequency:1 channel audio output(line out)Protection Level:IP66,Certain Dust-proof and Waterproof Functions
Special Features:Time & AttendanceWeight:2kg
Face Detection:Also supports detection and tracking of 5 peopleType:Card, CODE, Face

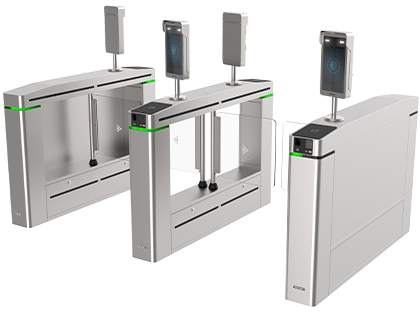

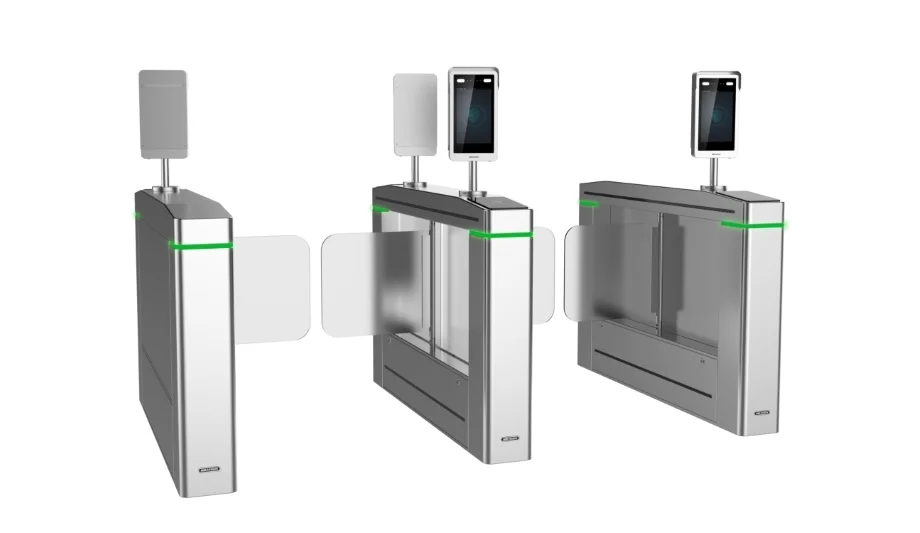

Card Swipe Entrance Face Temp Detection System

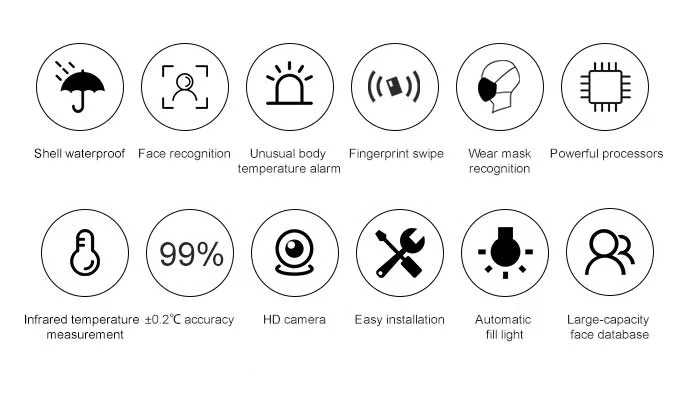

Abnormal Temperature Alarm | Face Mask Detection | Facial Recognition Attendance | Gate Access Control | Remote Management Software

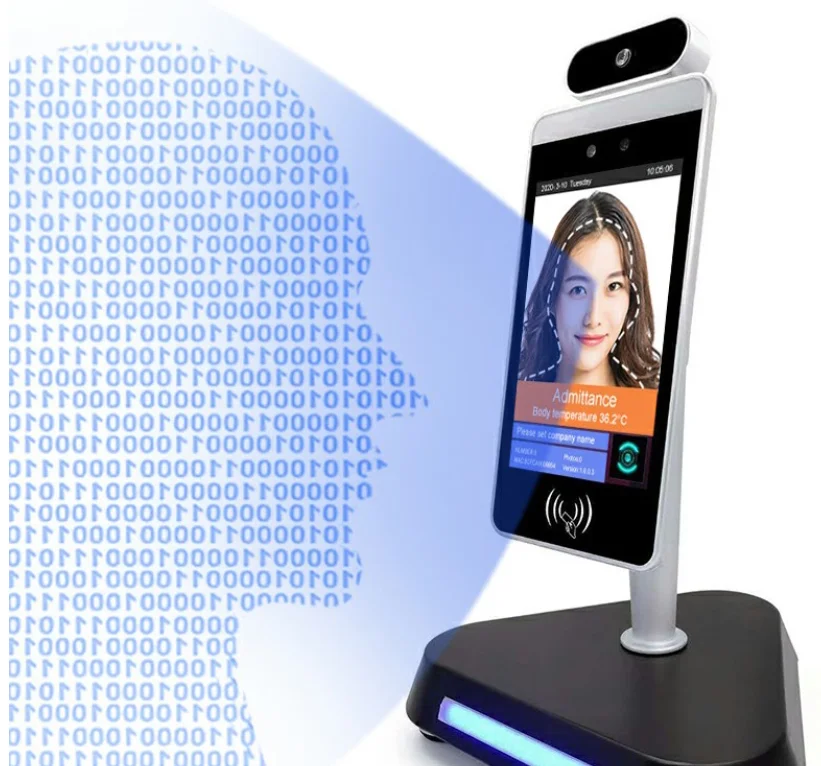

Temperature measurement & face recognition android kiosk equipped with industrial binocular camera, face biometric technology, and infrared human temperature measurement module. It can be used to achieve safe and efficient personnel access control.

Parameters


screen
Size
8 inches ,IPS LCD screen
Brightness
500 LU
Resolution
800*1028HD screen





Camera
Resolution
200W*200W
Number of cameras
2
Type
RGB Camera
Aperture
F2.0
Focal length
4.3mm
White balance
Automatic
Wide dynamic
Support
Vertical wide angle
Horizontal angle
Core paramet-ers
CPU
4Core, 1.8GHz
Device interface
2GB Memory, 8GB Storage
Audio
1 Audio output(line out)
Video
HDMI2.0 Type-A interface 1
Relay output
1 relay interface
Network Interface
1 RJ45 10M/100M adaptive Ethernet port, WIFI
Function
Face Detection
Also supports detection and tracking of 5 people
1: N Face recognition
Under the condition of three thousandths of false recognition rate, the recognition accuracy rate is 99.7%
Stranger detection
Support
Recognition distance configuration
Support
Biopsy
Support
UI interface configuration
Support
Device remote upgrade
Support
Deployment mode
Support public network and local area network
Comparison of witness
Support (separately purchase ID card reader)
Face Detection
Support
1: N Face recognition
Within 1 meter
Stranger detection
≤ ±0.3℃
Recognition distance configuration
30℃~42.5℃
Biopsy
Yes
UI interface configuration
Support
Temperature alarm value can be set
Support
Wear a mask to identify
Support
Body temperature over temperature alarm
Support
Outdoor temperature measurement
Support
The temperature alarm value can be- set
Support
Mask recognition
Support




General parameters
Protection class
IP42, certain dustproof and waterproof function
Power supply
DC12V(±10%)
Operating temperature
-10℃~60℃
Working humidity
10%~90 %
Power consumption
10W MAX
Equipment size
290*132*26(mm)
Weight
≈2kg

Product Details

Non-contact Body Temperature Measurement
Advantages
1. Supporting night light compensation with photosensitive sensor cooperation;
2. Support serial port, Wigan 26, 34 output, output content support configuration;
3. Dynamic face detection and tracking recognition algorithm based on video stream is adopted.
4. Support devices to store 10,000 people's databases locally. (a) Cloud platform devices support storing
50,000 face photos (less than 4,000 KB), 1 million recognition records (0.45 KB), 20,000 live snapshots (b)
LAN devices support storing 20,000 face photos (photos are calculated according to 1,000 KB) and 1 million recognition records (including the most). Nearly 10,000 live snapshots;
5. When the face database is 3000, the recognition accuracy of 1:N is 99.7%.
6. Recognition speed is fast. (a) Face tracking and detection takes about 20 ms. (b) Face feature
extraction takes about 200 ms. (c) Face comparison takes 0.2 Ms. (1000 people database, average recognition takes many times.) 0.5 ms. (10000 people database, average recognition takes many times.) 7. Support stranger detection, stranger level can be configured;
8. Supporting on-site photo preservation in face recognition or stranger detection;
9. Support HTTP interface docking;
10. Supporting the deployment of public network and local area network;
11. Supporting screen display content configuration;
12. Support identification distance configuration.

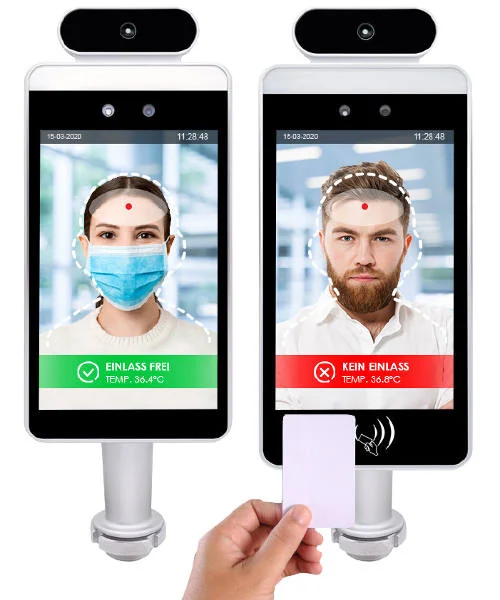

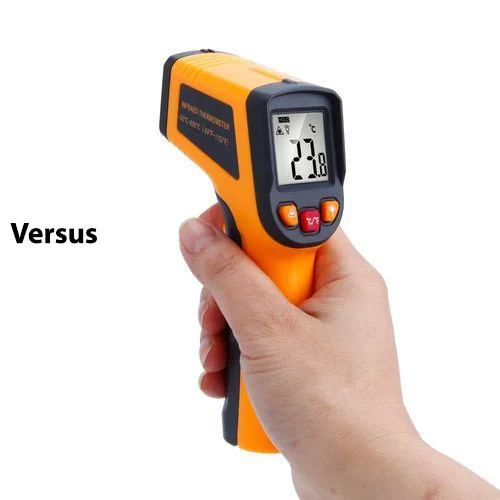

Long-distance accurate temperature measurement Long-distance non-contact

temperature measurement save manpower and reduces human contact.The temperature measurement range is 30 - 45 "C, and the accuracy is ± 0.3 "C . At the same time, it can check the visitors' temperature and reduce the viruse transmission.

Recognizable by wearing a mask

Strictly control external visitors. Strangers do not need to remove masks. People pass quickly, avoiding the possibility of cross infection.
1.Face recognition attendance +temperature measurement mode
2. Temperature measurement + face visitor record

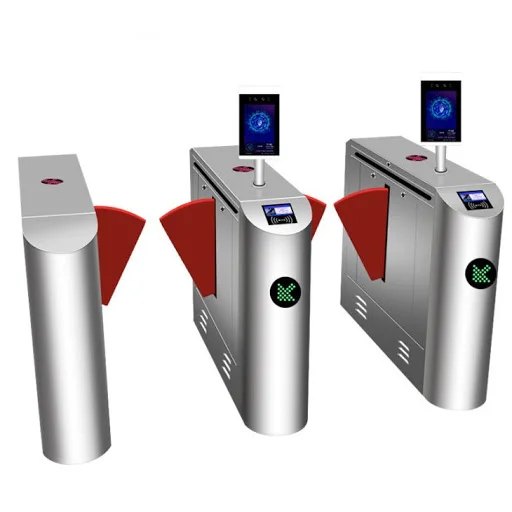

3. Face recognition access control+temperature measurement mode, which can be combined with the scene and easily installed at the entrance. Inspectors can respond quickly;
The face record is automatically saved, which can be used for secondary screening and inspection. The personnel record can be traced back.

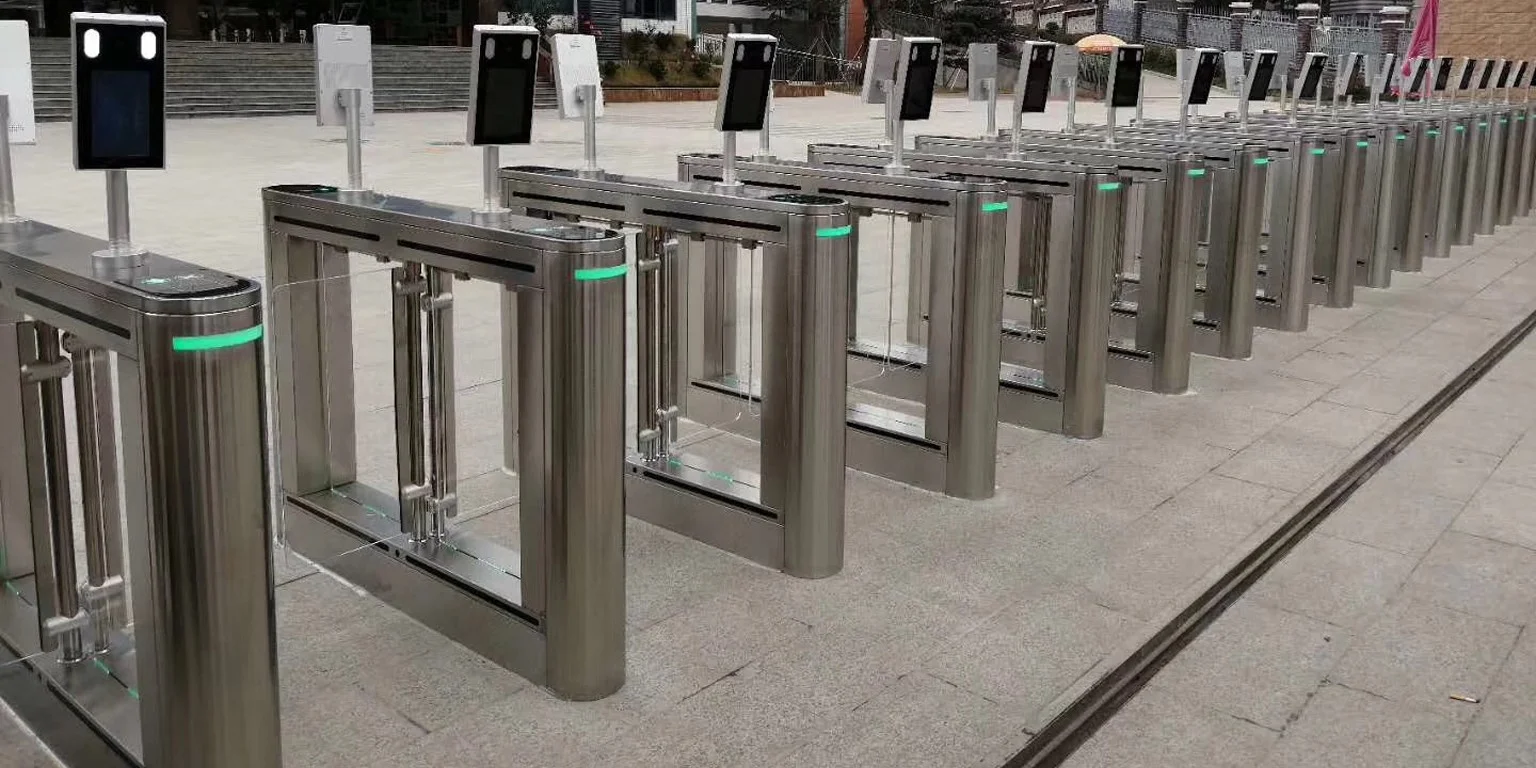

Applications
Applicable to office areas, hotels, access gates, office buildings, schools, shopping malls, shops, communities, public services and management projects need to use facial access control places.
