Shenzhen Zento Traffic Equipment Co., Ltd. has been manufacturing, exporting and supplying excellent quality Zento Good Quality Road Safety Parking Lot Stainless Automatic Rising Bollard 170*500mm Electric Bollard. Traffic Barrier has passed a series of international quality assurance system and product safety certification . Used in Traffic Barrier,Zento Good Quality Road Safety Parking Lot Stainless Automatic Rising Bollard 170*500mm Electric Bollardhas a promising application prospect.
|Place of Origin:||Guangdong, China||Brand Name:||ZENTO|
|raised height:||600-800mm(optional)||Material:||304 stainless steel|
|Control mode:||remote control||system control:||hydraulic and electric control|
|Working temperature:||-30℃~+75℃||Embedded cylinder depth:||1100mm|
|Lamp belt:||LED lamp(Acrylic light circle)||weight:||100-155kg|
Zento Good Quality Road Safety Parking Lot Stainless Automatic Rising Bollard 170*500mm Electric Bollard
Automatic pneumatic bollard,controlled by electricity,rise/fall automatically.It uses air as power and it is environment-friendly product.It can achieve unfied control,assembled power, and it is easy to operate.With high speed and high impact strength.It belongs to the high-security product.
High security and anti-collision ability

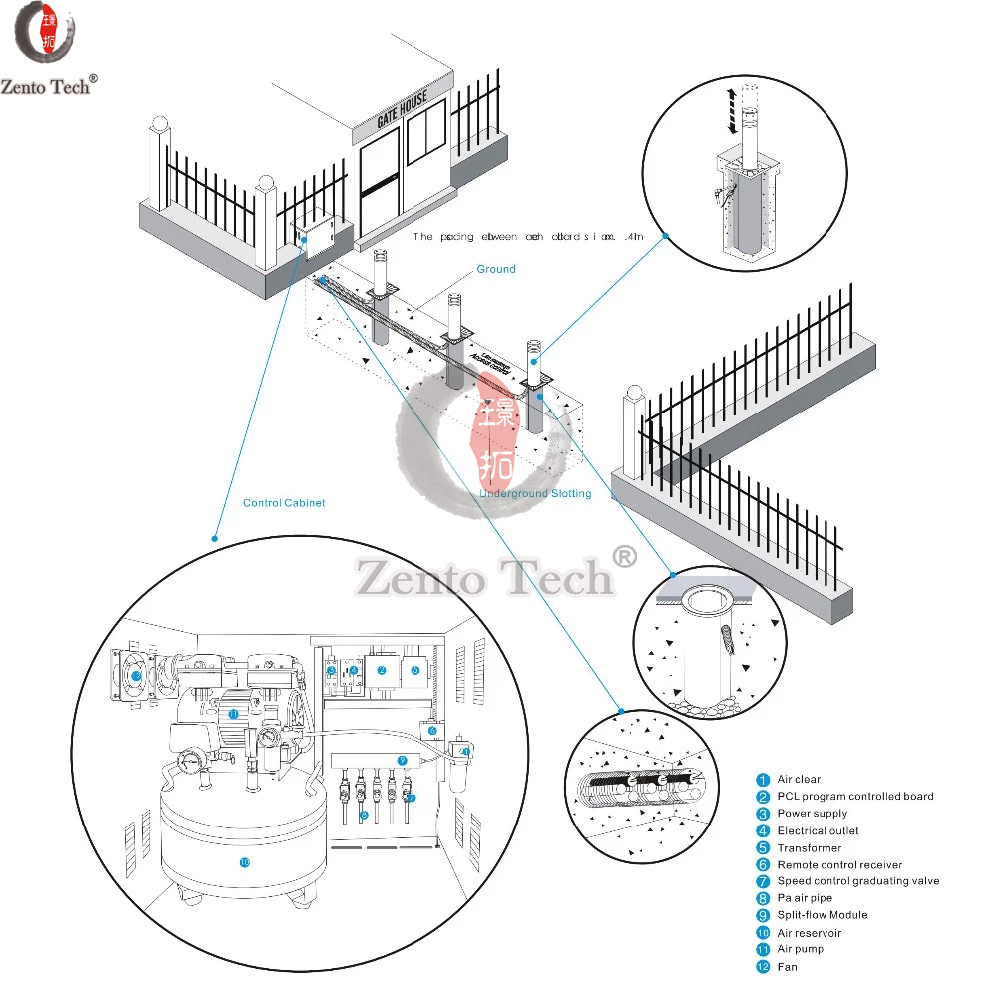

Pneumatic air pump in control cabinet could procide large power safely for a long time.
Electronic control, automatic rise/fall
High system independence
Various color options for Glossee aveolate reflective band; only need weak light to be clearly visible at night.
304 stainless steel, 316 stainless steel and carbon steel with electrophoresis spray paint.
Anti-skid flange with unique some pattern design. Compatible with various road surface styles. Built-in PA orientation.
Its simple integration design is compatible with all kinds of architectural style. Excellent workmanship is amenable to any close attack.

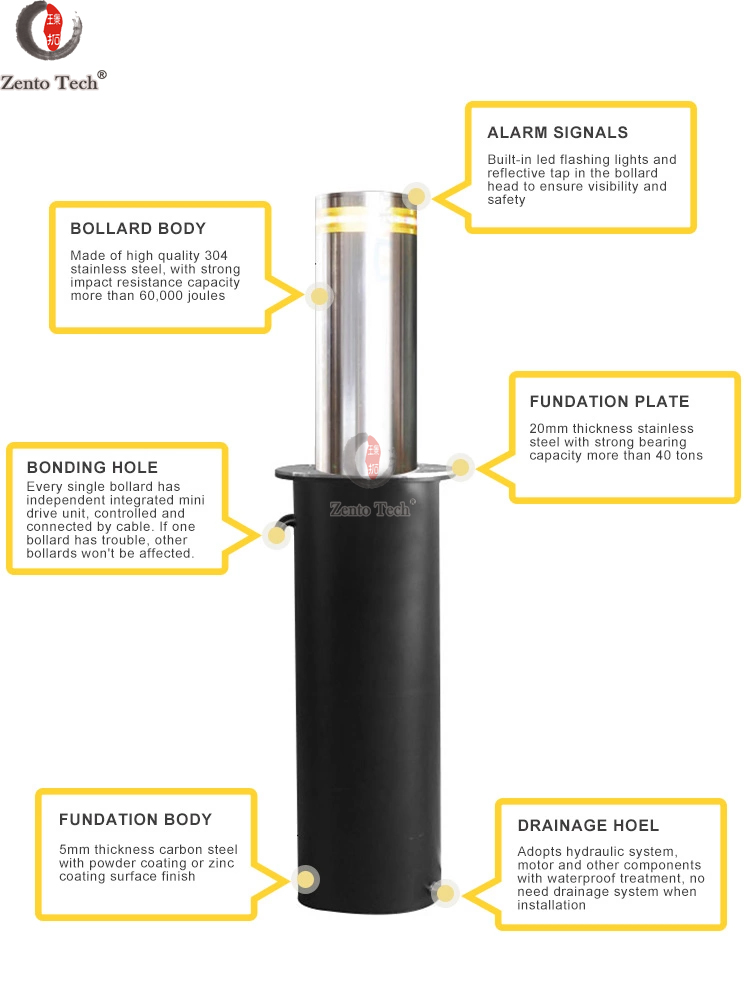

|Body cylinder Material||304 stainless steel|
|Outer cylinder diameter||325mm|
|Surface finis||Drawing / polishing / painting|
|Embedded cylinder depth||1100mm|
|Embedded cylinder material||5mm thickness carbon steel with powder coating or zinc coating surface finish|
|Work frequency||1500 cycles /day|
|Impact Resistance||More than 60,000 joules|
|Bearing Capacity||More than 40 ton|
|Level of noise||Less than 60 decibel|
|Control method||Cable button or wireless remote|
|Installation||Cemented into the ground|
|Power Supply||380V(control voltage 24V)|
|System Dynamic Power||3.7Kw|
|Protection standard||IP67 anti-water, anti-shock, anti-dust,antiimpact|

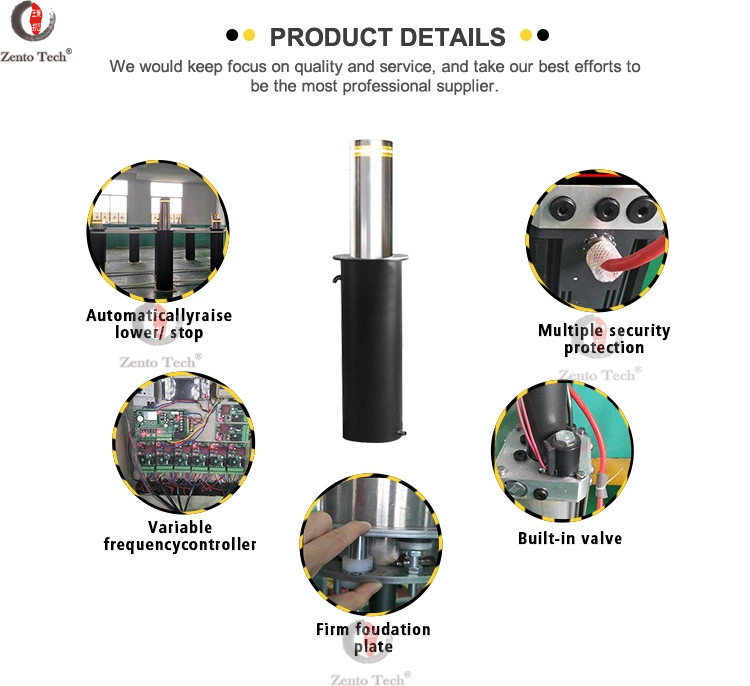

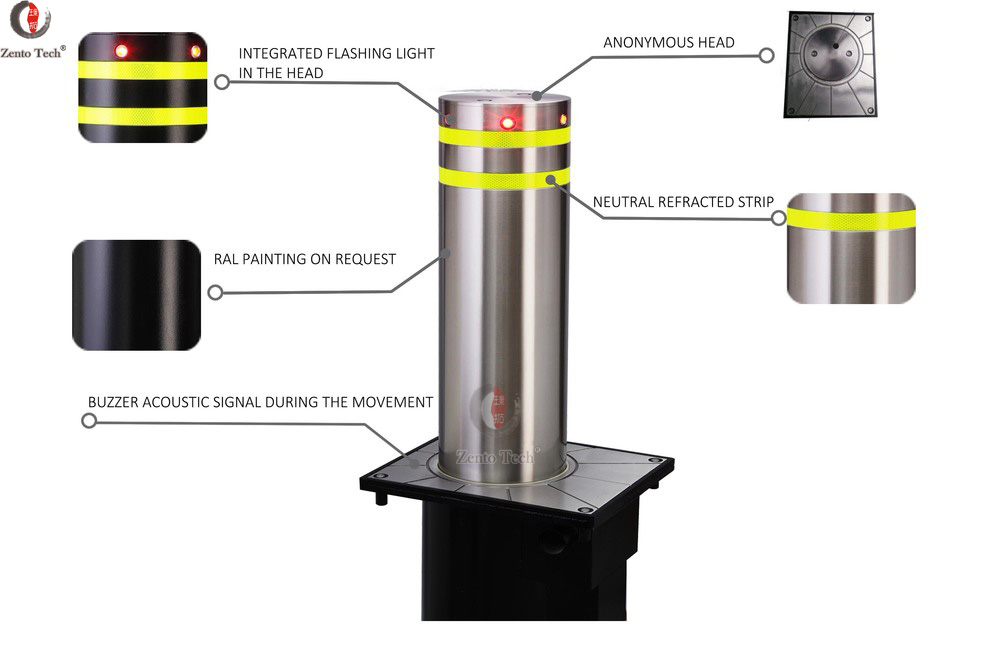

1. Automatically raise/lower/stop.The automated bollards adopt a heavy duty hydraulic power pack and operate by integrated control.Easy to install and operate. Built-in led flashing lights and reflective tap in the bollard head to ensure visibility and safety.
2. Variable frequency controller. Adopt variable frequency controller,the raise/lower speed 3-6s is adjustable.It can stop emergently during raising/lowering process. The control signal is electric transmission, quick and reliable.
3. Firm foundation plate.Thicken seamless 304 stainless steel with strong bearing capacity more than 40 tons. Rust protection and distortion resistance.
4. Built-in valve.In case of emergent issue for example power failure, the obstacle can be lowered by relief valve manually to make sure the passage of pedestrians and vehicles in not affected.
5. Adopt high quality great power motor, the bollards can raise/lower speedy,work stable and durable with 1500 cycles working frequency per day.The motor can be disassembled for easy maintenance.
6. Multiple security protection.Use high pressure air rifle to seal up the vent,the motor can work when soaked in water with electricity leakage protector.

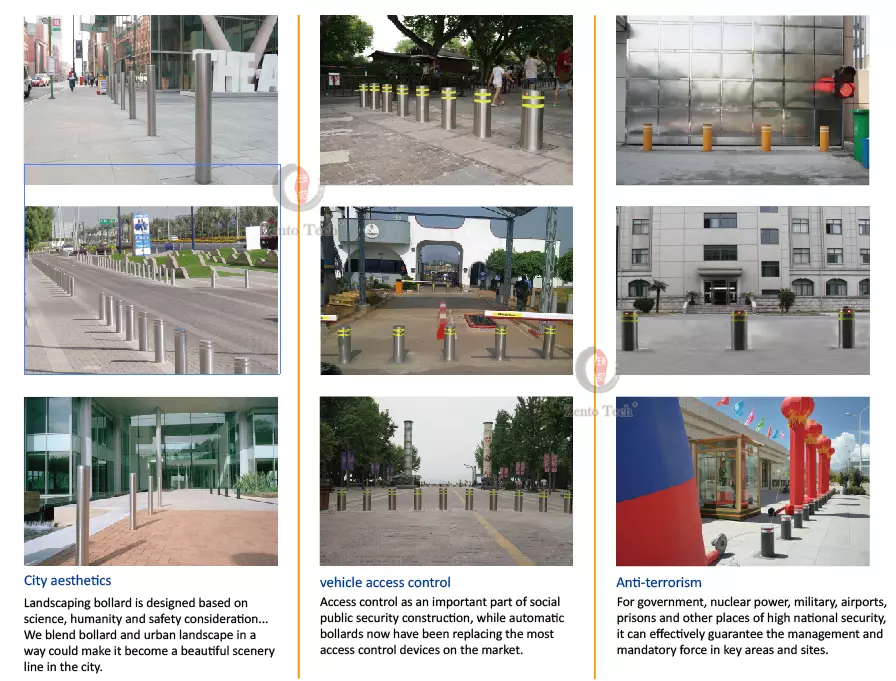

With a major dissuasive effect in upright position, The automatic bollards are designed for Security and access control for sensitive sites. They are used to define or prevent the stationing or transit of vehicles in pedestrian or private areas. Recommended for use in a variety of applications, from private residential to public realm schemes, the bollards’ pleasing aesthetics allow for near seamless integration into the surrounding area, whilst a high duty cycle hydraulic pump ensures lasting performance. The hydraulic rising bollards are designed for high security vehicle entrances, army, industrial, governmental and commercial buildings or streets which are closed to vehicle traffic between certain hours of the day
Q1. What is your terms of payment?
A: T/T,L/C, E-checking, West Union, Paypal, Credit card are all available.30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q2. How about your delivery time?
A: Generally, For bollards and movable barriers, it will take 5 to 7 days after receiving your advance payment. For road block and tyre killers, it will take 10-15 days. The specific delivery time depends on the customized requirements and the quantity of your order.
Q3.How about your after-sale service and warranty?
A:We provide lifelong after-sale service and technical support, one year warranty. Please always feel free to contact us if you meet any operation problem
Q4.How to install and maintain the equipment?
A:Our professional engineer will help provide draft construction design according to your specific on site condition. Related installation video show can also be provided. No need special maintenance, our security equipment can be installed indoor or harsh outdoor environment, they can work in good service condition as long as no deliberately sabotage.
Q5.Why your price is much higher than the same products of other suppliers?
A:As I know, our price is not high and very competitive in the market. There may be cheaper price than ours, I believe there will be difference on material, specification or quality.We are always making efforts to provide the customers best quality product with most favorable price.
The products cover the domestic market with its excellent quality and are exported to Europe, North America and other developed countries and developing countries in Southeast Asia, Africa, the Middle East and so on.
