Button Control Office Building Car Block Road Parking Barrier Automatic Stainless Steel Hydraulic Bollard LED Light

As we realize the importance of technology in this tech-driven business society, we have made some innovations and improvements in our currently-used technologies. Advanced technologies are applied in the manufacturing process now in our company.With those proven advantages,Button Control Office Building Car Block Road Parking Barrier Automatic Stainless Steel Hydraulic Bollard LED Light has received wide popularity in the field(s) of Button Control Office Building Car Block Road Parking Barrier Automatic Stainless Steel Hydraulic Bollard LED Light.

SEND INQUIRY NOW

Model Number:: ZT-HRB-01

Lead_Time:: 1 - 1(Sets):7(days) , >1(Sets):Negotiable(days)

shipping:: Sea freight

Customization:: Customized logo (Min. Order: 5 Sets) , Customized packaging (Min. Order: 5 Sets) , Graphic customization (Min. Order: 5 Sets)

Price:: >=1 SetsUS$560.0

SEND INQUIRY NOW

Product Details

Keeping close up with the latest trend, Shenzhen Zento Traffic Equipment Co., Ltd. has made Button Control Office Building Car Block Road Parking Barrier Automatic Stainless Steel Hydraulic Bollard LED Light a competitive product in the market. It is expected to lead the industry trend and bring benefits to customers. It caters to the foreign markets. Shenzhen Zento Traffic Equipment Co., Ltd. will continue to adopt scientific and advanced marketing strategies to focus on market expansion, forming a complete sales network across the world. Moreover, we will pay more attention to the talents gathering, ensuring innovative and competitive wisdom is distilled for the long-term development of our company.

Place of Origin:	Guangdong, China	Brand Name:	ZENTO
Product Name:	Hydraulic road bollards	Material:	304 Stainless Steel
Diameter:	219mm	Thickness:	6mm-8mm
Rising Height:	600-900mm	Weight:	92KG
Raising/lowering speed:	3-6s(adjustable)	Anti-collision:	K6-K8
Warranty:	2 Years	Rising speed:	≤4S

Products Description

Road Parking
Hydraulic Rising Automatic Bollard

Hydraulic automatic bollard mainly consists of oil pump unit and steel frame construction. It use soil pressure as dynamic to realize the rise/fall of bollard.As a moving device, it is usually installed at vehicle entrance/exit. It rises to block the vehicle and falls the ground level to authorize free passing.

Main Features

1. Anti-collision:It can be used normally after being hit by a 12-ton vehicle.
2. Anti-destructive power:After being hit by a 16-ton vehicle, Hydraulic road bollards deformation.
3. internal structure:With load-bearing steel beam and column, anti-collision steel beam column, 4 navigation rods.
4. Can be manually lowered in the event of a power outage.
5. Linkage interface.
6. Reversible operation according to requirements during ascent and descent.
7. Noise during operation of the device≤60 dB.
8. Waterproof integrated hydraulic drive.
9. Control solenoid valve 24V.
10. Control box display text adjustable (up, down, start, time control adjustment).
11. Display text in English.
12. Water immersion performance:no leakage during 48 hours and normal lifting.
13. Anti-corrosion performance level: 9.Technical Parameters

Parameters

Color	Silver
Raising/lowering speed	3-6s(adjustable)
Diameter	219mm
Thickness	6mm
raised height	600-900mm(optional)
Material	304 stainless steel
Control mode	remote control(<50m)
system control	hydraulic and electric control
Working temperature	-30℃～+75℃
Embedded cylinder depth	1100mm
Lamp belt	LED lamp(Acrylic light circle)
Power Supply	220V/380V
thickness	6mm
weight	100-155kg
anti-collision levels	K6
service life	3 million times
Drainage mode	natural drainage+External drainage system

Product Processing

Product detaile

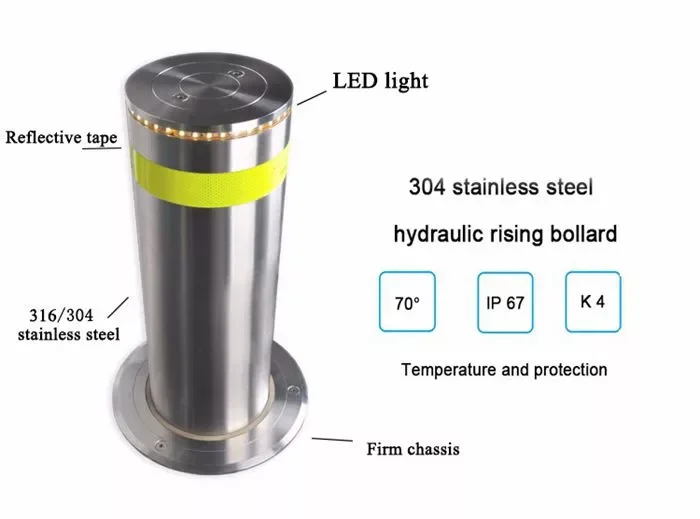

1. Automatically raise/lower/stop.The automated bollards adopt a heavy duty hydraulic power pack and operate by integrated control.Easy to install and operate. Built-in led flashing lights and reflective tap in the bollard head to ensure visibility and safety.
2. Variable frequency controller. Adopt variable frequency controller,the raise/lower speed 3-6s is adjustable.It can stop emergently during raising/lowering process. The control signal is electric transmission, quick and reliable.
3. Firm foundation plate.Thicken seamless 304 stainless steel with strong bearing capacity more than 40 tons. Rust protection and distortion resistance.
4. Built-in valve.In case of emergent issue for example power failure, the obstacle can be lowered by relief valve manually to make sure the passage of pedestrians and vehicles in not affected.
5. Adopt high quality great power motor, the bollards can raise/lower speedy,work stable and durable with 1500 cycles working frequency per day.The motor can be disassembled for easy maintenance.
6. Multiple security protection.Use high pressure air rifle to seal up the vent,the motor can work when soaked in water with electricity leakage protector.

Installation steps

1. Cut the ground surface and excavate,the foundation base need around 800mm and 1130mm.
2. Fill the bottom with 20-30mm pebble and sand as water seepage stratum.
3. Embed the bollard,make sure the head of the bottom is at the same level with the horizontal ground.
4. Install the wiring tube and drainage pipe.Make sure each wire should be secured by waterproof tape to avoid water vapor permeated into the wire.
5. Power on to test. Make sure the bollards can work well.Then cover the head of the bollard to avoid the concrete dirty it.All the drainage pipe hole need to be covered by structural adhesive.
6. Pour the concrete into the foundation base.Be careful to avoid the movement of bollard.
7. Tidy up the bollard head and ground surface, complete installation containers and bottles in all shapes.

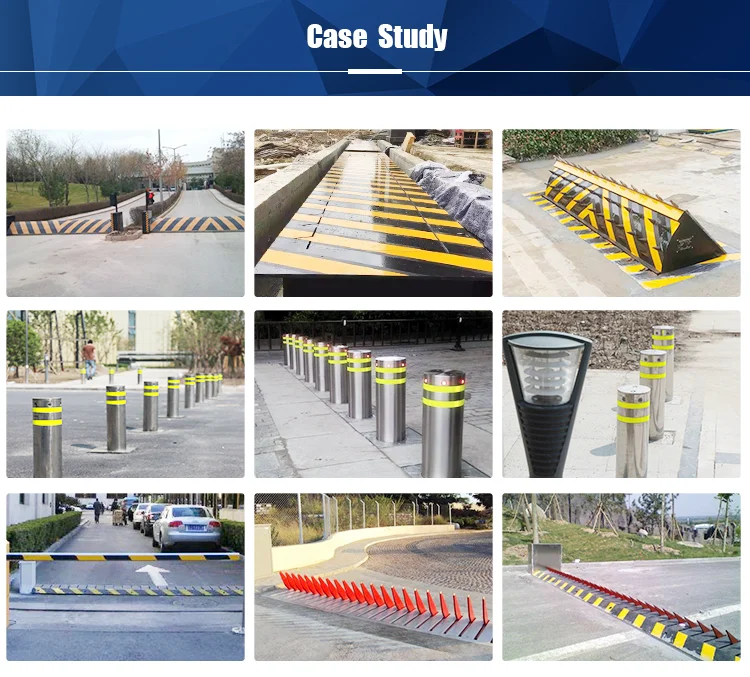

Project show

Application:
Scientific and educational units: schools, computer rooms, research centers, libraries, etc.;
Leisure and entertainment venues: parks, scenic spots, pedestrian streets, municipal squares, playgrounds, etc..
Traffic: bus station, railway station, subway station, airport, etc..
Business service places: hospitals, banks, hotels, clubs, commercial buildings, etc..
Office space: large office buildings, public inspection units, hydro power and oil and gas units and other government agencies.
