Auto Telescopic Roadway Safety Electric Rising Warning Pneumatic Hydraulic Bollard for Driveway

The utilization of mature technologies has greatly improved work efficiency and reduced manufacturing cost without sacrificing the product quality at the same time.It has proved to have a far wider range of uses in the field(s) of Traffic Barrier.

SEND INQUIRY NOW

Model Number:: Zt-hys01

Lead_Time:: 1 - 200(Sets):7(days) , >200(Sets):Negotiable(days)

shipping:: Sea freight

Customization:: Customized logo (Min. Order: 5 Sets) , Customized packaging (Min. Order: 5 Sets) , Graphic customization (Min. Order: 5 Sets)

Price:: 1-9 SetsUS$820.0 , >=10 SetsUS$750.0

SEND INQUIRY NOW

Product Details

Shenzhen Zento Traffic Equipment Co., Ltd. is capable of providing a quality range of Auto Telescopic Roadway Safety Electric Rising Warning Pneumatic Bollard for Driveway. It caters to the foreign markets. We have an experienced team consisting of several industry experts. They have years of experience in manufacturing and designing Hydraulic Bollard.In the past months, they have been focusing on improving the practical use of the product, and finally they made it. Proudly speaking, our product enjoys a wide application range and can be very useful when applied in the field(s) of Turnstile Access Control Gate & Parking System Equipment.

Place of Origin:	Guangdong, China	Brand Name:	Zento
Raising/lowering speed:	3-6s(adjustable)	Diameter:	275/220mm
raised height:	600-800mm(optional)	Material:	304 stainless steel
Control mode:	remote control	system control:	hydraulic and electric control
Working temperature:	-30℃~+75℃	Embedded cylinder depth:	1100mm
Lamp belt:	LED lamp(Acrylic light circle)	weight:	100-155kg

OUR COMPANY

Products Description

Product Detail

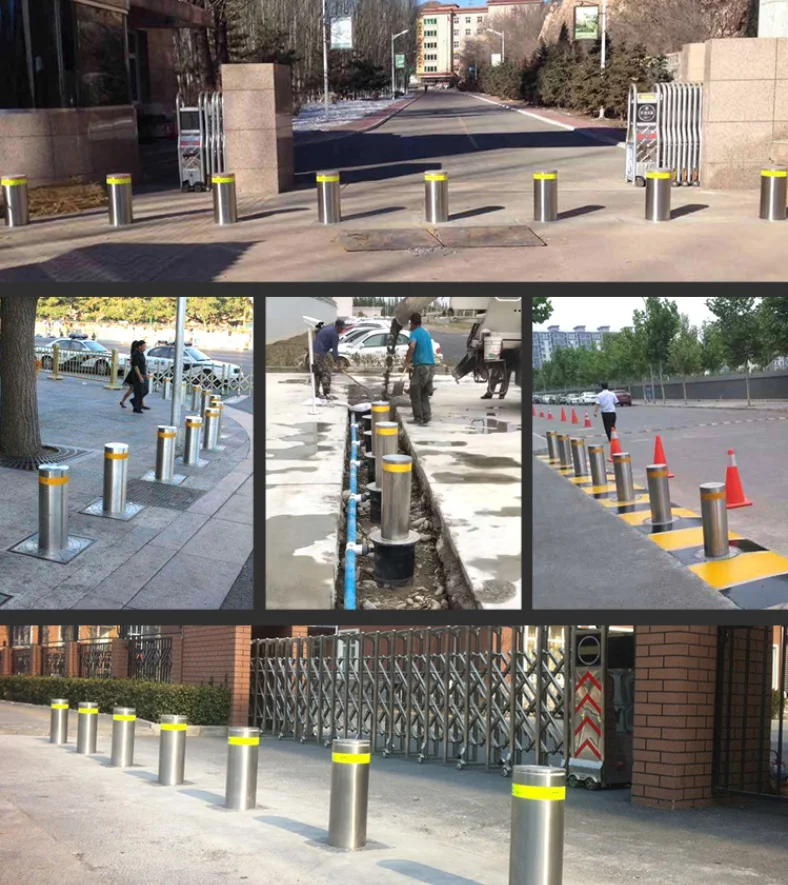

Hydraulic automatic bollard mainly consists of oil pump unit and steel frame construction. It use soil pressure as dynamic to realize the rise/fall of bollard.As a moving device, it is usually installed at vehicle entrance/exit. It rises to block the
vehicle and falls the ground level to authorize free passing.
1. Automatically raise/lower/stop.The automated bollards adopt a heavy duty hydraulic power pack and operate by integrated control.Easy to install and operate. Built-in led flashing lights and reflective tap in the bollard head to ensure visibility and safety.
2. Variable frequency controller. Adopt variable frequency controller,the raise/lower speed 3-6s is adjustable.It can stop
emergently during raising/lowering process. The control signal is electric transmission, quick and reliable.

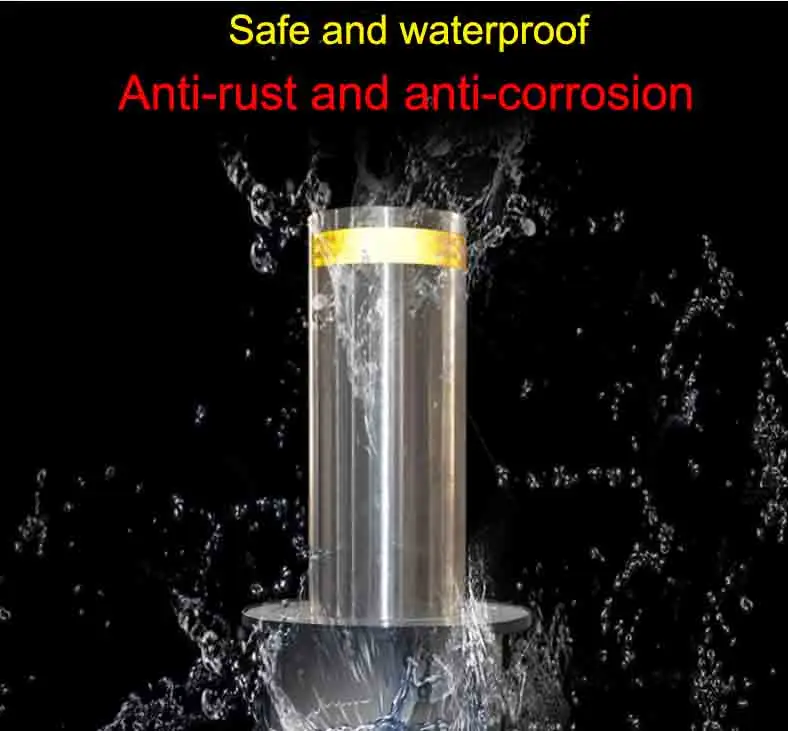

3. Firm foundation plate.Thicken seamless 304 stainless steel with strong bearing capacity more than 40 tons. Rust protection and distortion resistance.
4. Built-in valve.In case of emergent issue for example power failure, the obstacle can be lowered by relief valve manually to make sure the passage of pedestrians and vehicles in not affected.
5. Adopt high quality great power motor, the bollards can raise/lower speedy,work stable and durable with 1500 cycles working frequency per day.The motor can be disassembled for easy maintenance.
6. Multiple security protection.Use high pressure air rifle to seal up the vent,the motor can work when soaked in water with
electricity leakage protector.

Main Features

1. Anti-collision:It can be used normally after being hit by a 12-ton vehicle.
2. Anti-destructive power:After being hit by a 16-ton vehicle, Hydraulic road bollards deformation.
3. internal structure:With load-bearing steel beam and column, anti-collision steel beam column, 4 navigation rods.
4. Can be manually lowered in the event of a power outage.
5. Linkage interface.
6. Reversible operation according to requirements during ascent and descent.
7. Noise during operation of the device≤60 dB.
8. Waterproof integrated hydraulic drive.
9. Control solenoid valve 24V.
10. Control box display text adjustable (up, down, start, time control adjustment).
11. Display text in English.
12. Water immersion performance:no leakage during 48 hours and normal lifting.
13. Anti-corrosion performance level: 9.Technical Parameters

Raising/lowering speed	3-6s(adjustable)	Diameter	275/220mm
raised height	600-800mm(optional)	Control mode	remote control(≦50m)
system control	hydraulic and electric control	Working temperature	30℃~+75℃
Lamp belt	LED lamp(Acrylic light circle)	Drainage mode	natural drainage+External drainage system
