  • Products Details

The core competitiveness of a company is its capabilities in research and development.Shenzhen Zento Traffic Equipment Co., Ltd., as a technology-driven enterprise, has been striving forward to enhance our R&D capabilities and successfully developed Shenzhen ZENTO 38KHZ long range RFID card reader for parking barrier gate access control parking system. It turns out that the application of the technology plays an important role in deciding the performance of the product. At present, it can be widely seen in the field(s) of Parking Equipment. Shenzhen Zento Traffic Equipment Co., Ltd. always stick to the market-oriented business philosophy and regard 'honesty & sincerity' as the enterprise tenet. We are trying to establish a sound distribution network and aim to provide customers all over the world with the best services.

Type:CarportPlace of Origin:Guangdong, China
Brand Name:zentoModel Number:ZT-reader
Warranty:12 MonthsLoading Capacity:5000
Interface:WiegandFrequency:433MHz
Product Name:Long Range Rfid ReaderApplication:Vehicle Control
Name:Long Rang RFID Handheld ReaderRead range:User Enviroment)
Weight:45kgMaterial:Plastic
Keyword:Contactless Smart Card Reader Writername:card reader

Product Description
ZT-BT311 is long range Bluetooth RFID card reader, adopts the infrared and radio frequency synchronous communication technology, reading distance up to 15m. It's used for all kind of RFID system and project widely, such as automatic parking management system, person/staff identification, ETC highway station, custom trailer management.
Parameters:
Name:wireless bluetooth card reader
Model:ZT-BT311
Card Read Range:1-15M(indoor) 1-10M(outdoor)
Working temperature:-30°C-- +70°C.
Working humidity::≤95% non-condensing
Working voltage: AC220V±10%
Wireless Carrier Frequency: 433.92MHz
Cards: bluetooth card
Reading time: 0.5s-0.8s
Supplier:direct factory
Power Supply
DC12V
Available Angle
120°
Work Temperature
-30℃-70℃
Operating Frequency
433MHz
Read Distance
1m-15m
Communication Mode
RS485
Power Supply
Standard input power: DC12V, current >3 A
RS485
Card ID output port, this output port has certain format, see below
Wiegand
Card ID output port, wiegand 26 or wiegand 34 output can be optional by J1 jumper cap on board
Enable read card
Read card enabled signal input, short circuit en &gnd is enabled, otherwise fail
Relay
Relay output, read the card, the relay closed 100 ms
What can the Bluetooth card reader do specially for you?
1) If you want to save the cost .
Bluetooth card reader is a simple long range system with very competitive price.
2) If you need to manage the parking lot more effective and easier to operate.
Bluetooth card reader is totally automatic , no stop, not need to open the window to read card and fast reading speed.
3) If you need a product use steadily and long life.
Bluetooth card reader are with good performance which can use more than 10 years if use normally.
Company Profile

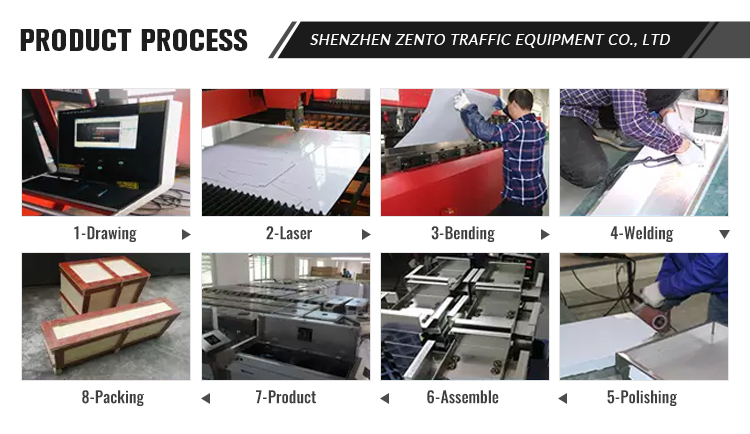

Product Processing
