Flap Turnstile Barrier
VR
  • Products Details

In Shenzhen Zento Traffic Equipment Co., Ltd., our creative employees including R&D experts and technicians largely contribute to the successful development of Kindergarten School Customized Security Face Recognition Access Control Turnstile RFID Card Flap Barrier Gate. We expect great profitability from the product release can benefit all customers. The product is characterized by multiple advantages.Its application ranges have been expanded to the Turnstile. Combining all good performance of adopted raw materials, our Kindergarten School Customized Security Face Recognition Access Control Turnstile RFID Card Flap Barrier Gate has been proved to be applied to the field(s) of Turnstile.Our staff has tested multiple times that in the applied fields, the product can give out its best performance such as durability and stability.

Place of Origin:Guangdong, ChinaBrand Name:ZENTO
Model Number:ZT-962A(Single-motor)Framework:304 Stainless Steel
Dimensions:1200*300*900 mmPassage wideth:600mm
Card-reading window:TwoDirection:Bi-directional
Rated power:120WComunication Interface:RS485,distance ≤1200m
Power supply:AC 220V/110V ±10% 50/60MHZ (optional)OpeningTransit speed:30-45persons per minute
Operating temperature:-25℃ ~ +60℃, RH ≤90%

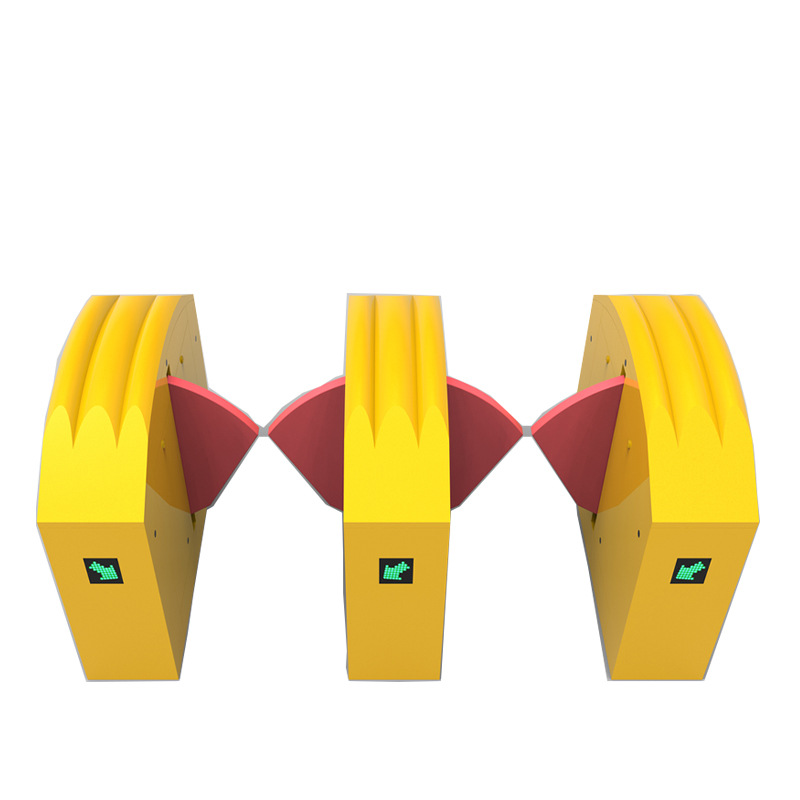

Lovely Anti-collision Swing Turnstile
* One way or two way control
* Normal close or normal open adjustable
* Anti-illegal in, anti-intrusion, auto close for reverse direction.
* Gates can be synchronous
Verified Certifications
Parameters
Material
304 Stainless Steel
Dimensions
1200*300*900 mm
Arm length
500-900mm
Dry Contact
12V
LED indicating light
One
Card-reading window:
Two
Rated power
120W
Operating temperature
-25℃ ~ +60℃, RH ≤90%
Related humidity
≥90%RH
Comunication Interface
RS485,distance ≤1200m
Power supply
AC 220V/110V ±10% 50/60MHZ (optional)
OpeningTransit speed:
30—45persons per minute
Closing Transit speed:
25-35per minute
Product Details
1. working method can be set by the buttons on the main panel
2. Anti-pinch, anti-collision. If there is block during return of gate, motor stops working automatically. Reset again after a
default delay, the force 2Kg.
3. Anti-illegal in, anti-intrusion, auto close for reverse direction.
4. Anti-collision, gate closes when no valid signal is given.
5. Protection functions for gate, gate open to prevent motor from being damaged if there is outer force collision.
6. Gates can be synchronous
7.Auto-reset. If not go through in a preset time, pass right would be cancelled automatically. (1-60s adjustable), default time is 10 s.
8. Reset function by photocells, 4 or 6 pairs.
9. Anti-pinch function by photocells, 4 pairs
10.Compatible with Access control system, consumption system, ESD system, E-ticket system and so on.
11. One way or two way control
12. Unit can be controlled and administered by remote control
13. Led lamp indicator

Extensible functions:
1. LED counter display
2. Casing and gate size can be lengthened
3. Logic judgment by photocells (8 pair or 10 pairs)
4. Speech reminder
5.normal close or normal open adjustable
6. Light, sound alar

Feedback cases

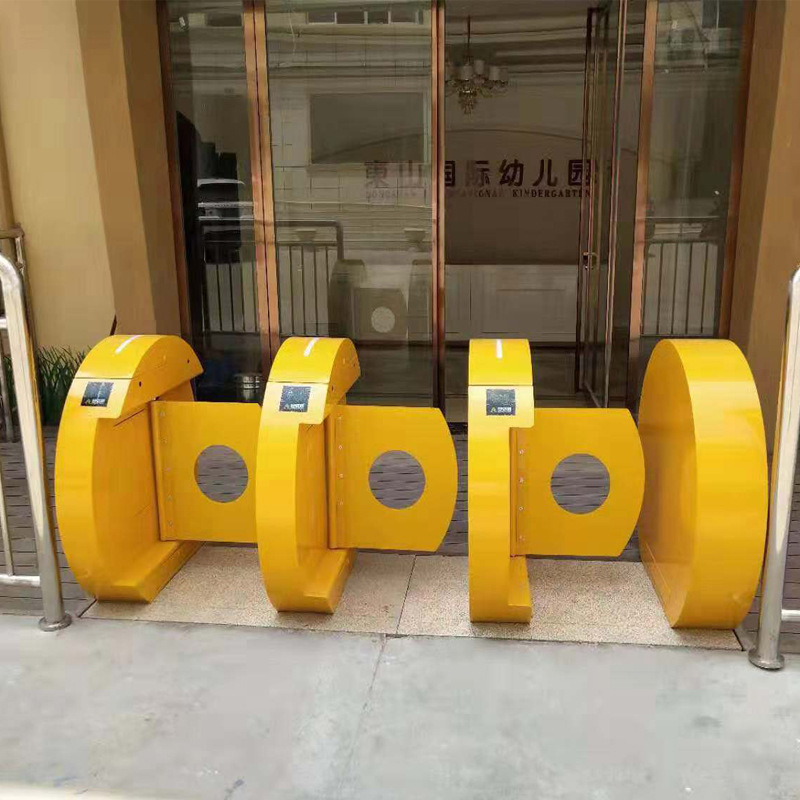

Mainly use in: Station, Wharf subway , Factories, Office Building , Hotel , Clubs, Intelligent Community ,Enterprises and Institution.
