Full Height Turnstile
VR
  • Products Details

After years of development, Shenzhen Zento Traffic Equipment Co., Ltd. has gained strong capabilities in production and R&D, which allows us to develop new products to keep close up with industry development. In recent years, we've updated technologies or higher-efficiency manufacturing of the product. Its application ranges have been expanded to the field(s) of Turnstile. The design of Security Fingerprint And Qr Code Scanner Access Control Barrier Gate Full Height Turnstile is carefully thought to fit the market trend, keeping us one step ahead of other manufacturers. It is made of raw materials that have been tested by our QC inspectors. By processing those materials with improved technologies, we ensure the product has so many advantages .Turnstile Access Control Gate & Parking System Equipment will bring convenience and benefits to customers.

Place of Origin:Guangdong, ChinaBrand Name:ZENTO
Model Number:ZT-822AProduct name:Full Height Turnstile
Material:304 Stainless SteelType:Full Height Type Turnstile
Application:Railway stationCommunication:TCP IP
Dimension:2310mm*1500mm*1630mmPower supply:DC 12V
Voltage:220-240VFrequency:50/60 Hz

Product Description

Product Application

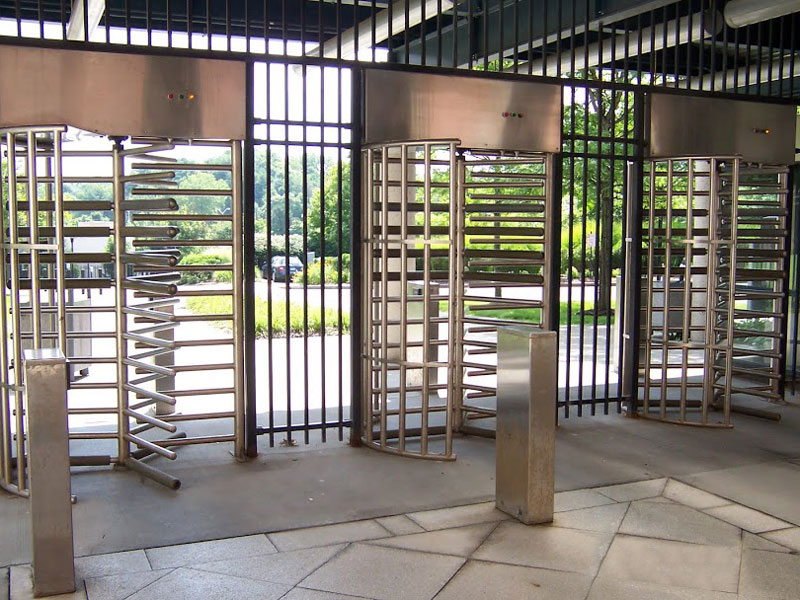

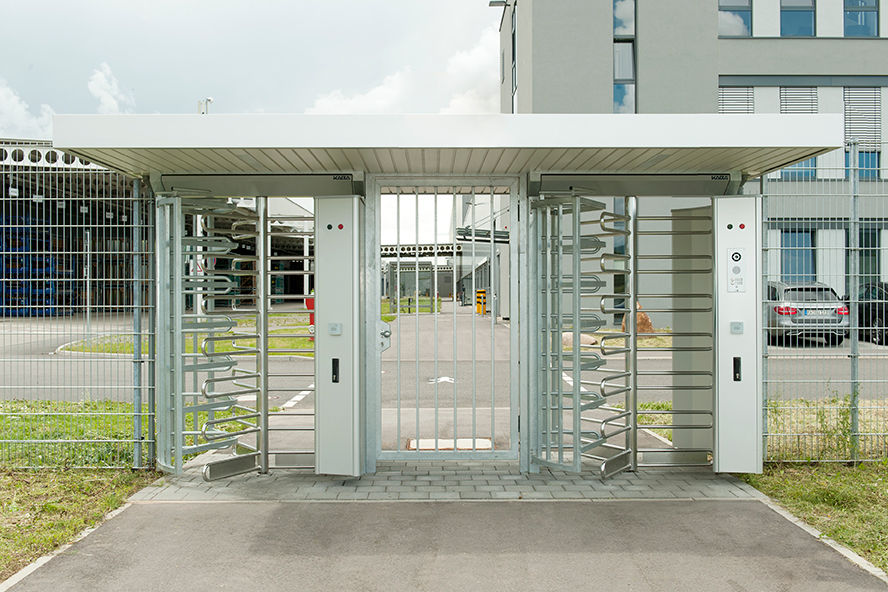

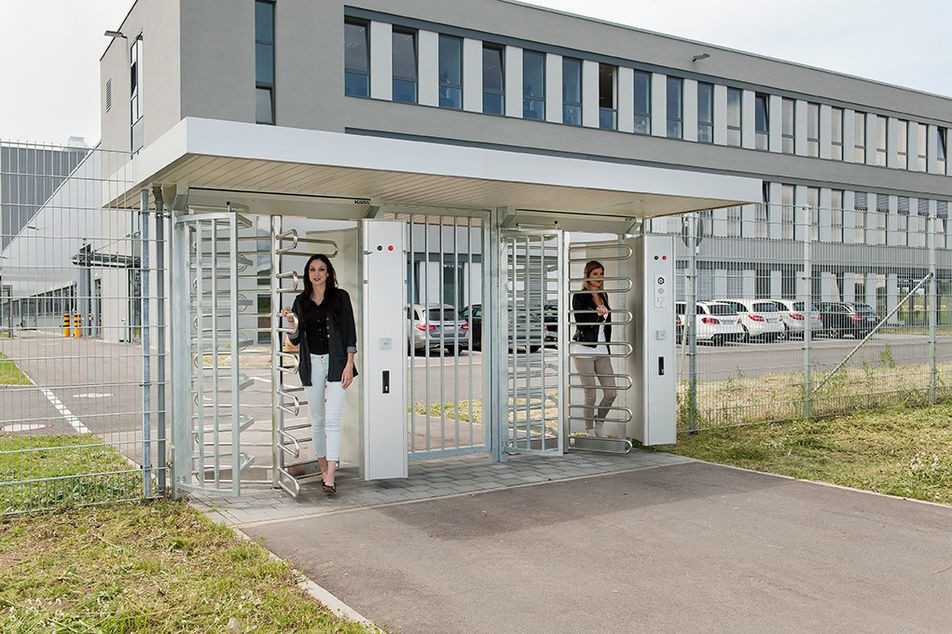

Full height turnstile ---can be compatible with IC card , ID card ,barcode card , fingerprint reading card recognition device used for staff, provide civilized , orderly access methods; effectively manage the access of staff . Can be widely used in some high security places, such as prison, stadium, parking system area, and so on .

Full Height Turnstile Gate features
High quality Stainless Steel The housing is made of high quality stainless steel, and all the internal parts are with anti-rust and antiseptic treatment to achieve high level of durability. Bi-Directional Turnstile can be configured to be bi-directional or uni-directional Easy Integration Easy integration with any third part access control or ticketing via dry contact interface. It will unlock and allow arm rotation upon receiving valid dry contact from electronic access system. Self Centering If arm is rotated more than half, it will automatically fall forward to complete the rotation. if arm is rotated less than half, it will automatically fall backward to return to home position. This will avoid arm does not stop halfway that may allow unauthorized access. Avoid unauthorized Force When the arm is locked, it will be able to sustain resistant force 70kg to restrain from unauthorized force open attempt. Anti-tailgating Smart lock mechanism uses limit switch to detect rotation and effectively re-lock back after arm has been rotated more than half. therefore current user can only finish the rotation to pass through or reverse the rotation to exit. Either way, it will not allow second person to pass through again. Safety During power failure the system will unlock the arms. User can manually push the arms for free passage. This allows convenient evacuation of people the premise. Memory Function Memory will record the sequence of passing (same or opposite direction). Passing request will be executed according to the sequence recorded.
Framework
304 Stainless Steel

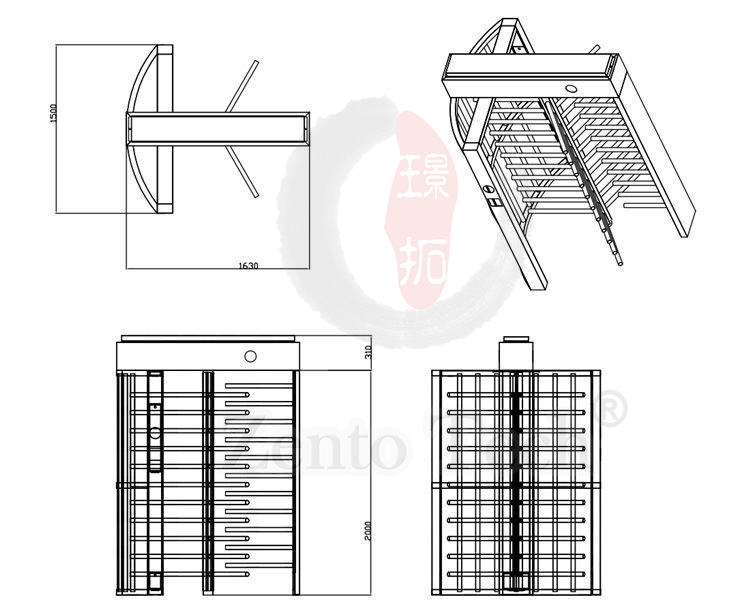

Dimensions
1450*1500*2300mm
Card-reading window:
Two
Rated power
120W
Operating temperature
-25℃ ~ +60℃, RH ≤90%
Related humidity
≥90%RH
Communication Interface
RS485,distance ≤1200m
Power supply
AC 220V/110V ±10% 50/60MHZ (optional)
Pass speed
30 persons per minute

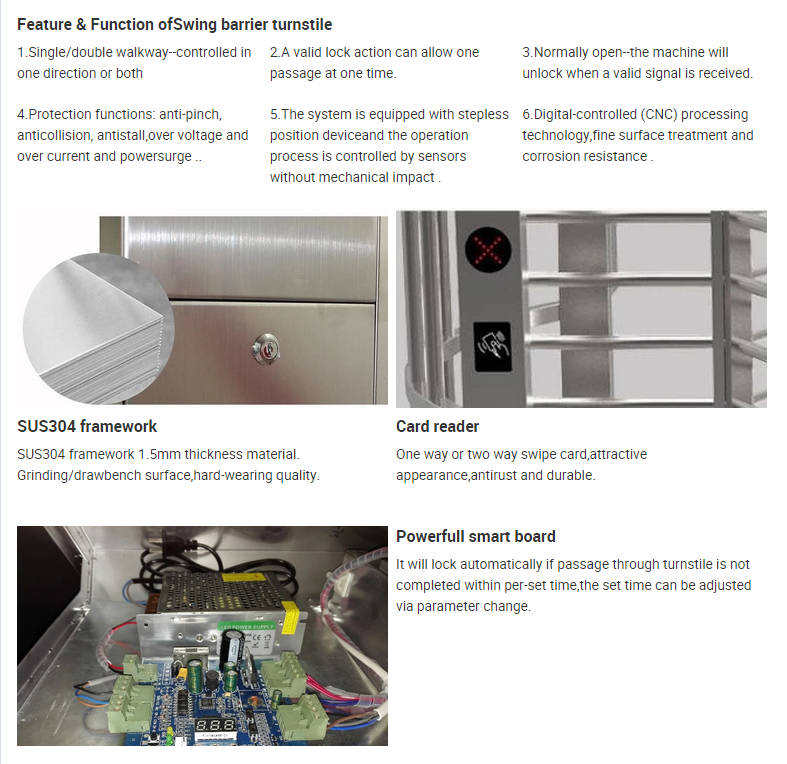

Detailed Images

Material

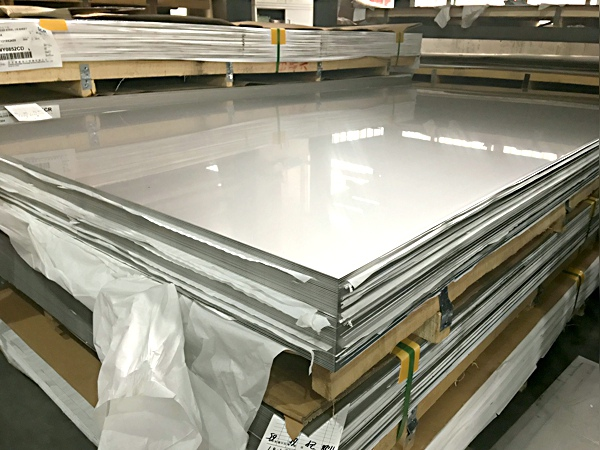

SUS304 framework

SUS304 framework 1.5mm thickness material. Grinding/drawbench surface,hard-wearing quality.

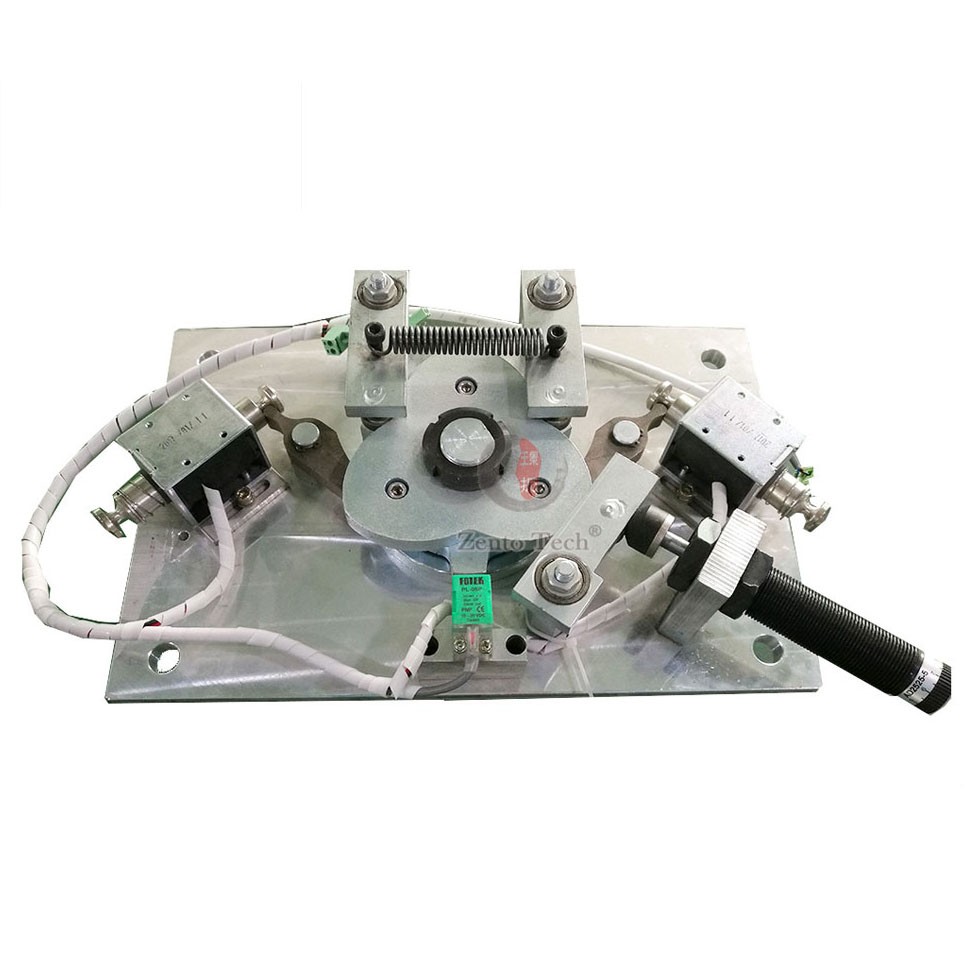

Main Part


DC Brushless Motor, no maintenance all the of life, No Attrition, Low-noise, High Intelligence China good price high quality full height turnstile with RFID access control.


Powerfull smart board

It will lock automatically if passage through turnstile is not completed within per-set time,the set time can be adjusted via parameter change.


Reading Mode

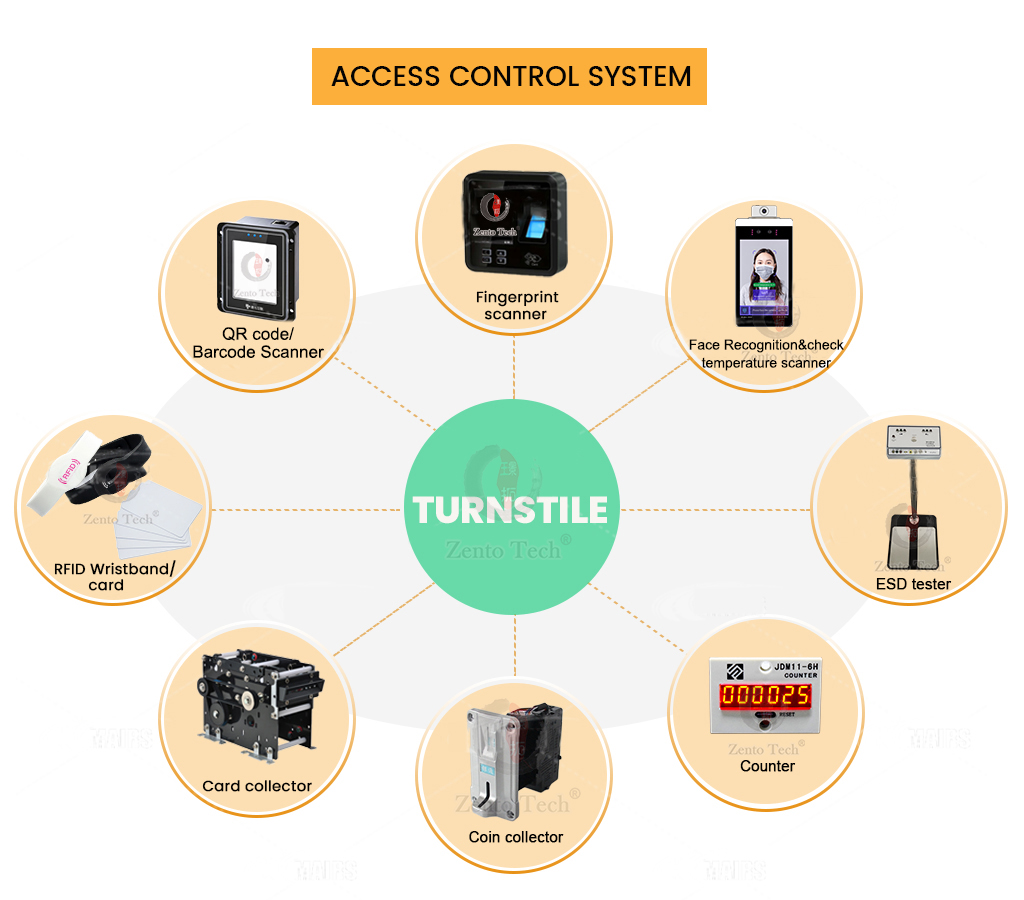

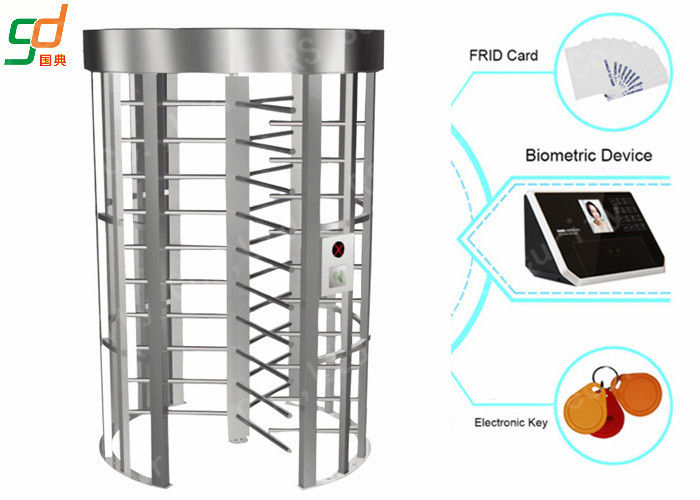

IC/ID card ,fingerprint ,face recognition ,bar code ,QR code,Iris recognition etc.

Related Products
Our Company
Certifications
Packing & Delivery
FAQ

1. What is the strength of your company in this industry?

We are the top 5 in turnstile field in China, more than 120 employees and over 20 senior R & D technical persons to ensure the gate could work well in different environment, power supply and current. Experienced foreign trade business team can help you to deal with any emergency before, during and after the sales. The brand ZENTO is highly recognized in Southeast Asia.


2. What is your pricing strategy?
For overseas markets, we will use competitive prices to support a strong distributor in each area, and gradually establish overseas service agency, as a good opportunity, some long-term cooperation partners will compete with us to sign the annual cooperation agreement (including execution price).


3. How about Quality Control?

IOS9001 could help us to realize the factory management control and our ERP system can help us to control the cost of procurement links effectively, so we can provide a good price. New test system could do uninterrupted fatigue testing to ensure its using life. Pre-shipment inspection and third-party supervision are available.


4. How about some special design?
That's our advantage of design new gate or barrier according to your real situation to make different size, software and features. Video call available during design and communicate in time during this procedure.


5. Do you have agency for after-sales service?
Any question about delivery goods, you could find our sales anytime. For installation, we will offer instruction video to help and if you face any technical question, welcome to contact with us to have a face time to solve it.
