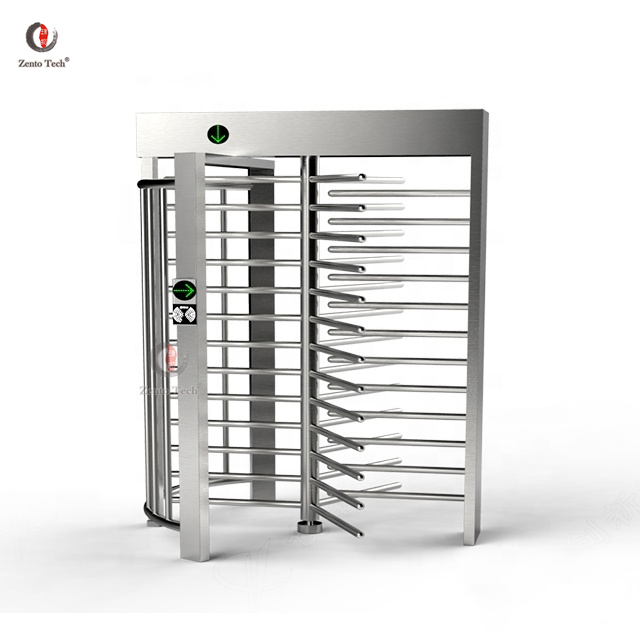

Full Height Turnstile
  • Products Details

In the fierce market competition, Shenzhen Zento Traffic Equipment Co., Ltd. has grown continuously. We invest in R&D to find better solutions in the Turnstile industry. The result of upgrades in technologies proves to be very positive. The finished Best Factory Price Full Height Turnstile/rfid Turnstile Gate Zt-fh912 is characterized by stable quality.It can play out its greatest value in the field(s) of Turnstile. Shenzhen Zento Traffic Equipment Co., Ltd. are full of passion for what we are doing now. Nurtured by the corporate culture of unity and integrity, every employee is optimistic and constantly looking for more and better methods to manufacture the products. Our vision is to create benefits for our partners and customers.

Place of Origin:Guangdong, ChinaBrand Name:ZENTO
Model Number:ZT-109AProduct name:RFID Full Height Turnstile Price
Material:304 Stainless SteelDimension:1450 * 1500 * 2300mm
Passage Width:650mmPassing Direction:Single directional / Bi-directional
Flow Rate:35-40 people per minutePower supply:AC220V/110V, 50/60Hz

Best Factory Price Full Height Turnstile/rfid Turnstile Gate Zt-fh912


Turnstiles rfid access control gate stadium full height turnstile


Product Description :

The full body is made of 304# stainless steel; consist of three bars, mechanism, electric circuit, electromagnetic, hydraulic damper, led lamp and so on. It is pedestrian access the upgrading product of tripod turnstile. With standard fire interface, arm can be free rotation by force for evacuation even power is not cut offwhen fire alarm triggered.

Anti-passback, with hydraulic damper, low impact sound and high durability:


features :

1. High Security, anti-crawling, anti-climbing, no need guard for the gate.

2.  Free rotation by force when power off. Locked when power on.

3. Arm locked until a valid signal is given.

4.Reset automatically, after authorizer pass through, arm back to zero position and locked.

5. Memory can be set, swipe cards several times for group pass.

6. One way or two way controlled.

7. Pass right will be cancelled if authorizer does not pass within preset time.

8.With standard inputs and outputs, can be integrated with different access control devices.

9.Control by PC.


Full height turnstile parameter :


Casing Material :304#SUS

Production process:impact molding / Polishing & grinding / filament drawing

product frame :stainless steel

Work voltage :AC220/110±10%V  50/60±10%HZ


Work environment :indoor,outdoor( shelter)-10℃~70℃ relative humidity:

≤90%,no condensation

Gate open &close time:0.6S

Transit speed :30 people /min(normal open),20-30people/min(normal close)

Get to work state after power on:3S

Reset time after breakdown:10s

Input:relay signal or 12V level signal or 12V pulse signal with pulse width

>100ms V,drive current>10mA







Shenzhen Zento Traffic Equipment Co., Ltd, founded in 2004, is a professional enterprises which engaged in the R&D, large-scale production and sales of high-tech innovative security and protection products around the world. As the pioneer of intelligent security system industry, our team is committed to innovative high quality products and services. Our company’s products covers the intelligent parking lot system, automatic access control system, intelligent turnstile system of dozens of smart products. Our products export to more than 50 countries around the world such as Africa, southeast Asia, the Middle East, Europe and the United States. Welcome to choose us as your long-term partner.



Q1. What is your terms of packing?

A: First, we will pack our goods by protective film. Then we will put it in a neutral cartons. Third,we will pack it  in standard export wooden case to protect the goods perfectly.


Q2. What is your terms of payment?

A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos or video of the products and packages before you pay the balance.


Q3. What is your terms of delivery?



Q4. How about your delivery time?

A: Generally, it will take 10 to 20 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.


Q5. Can you produce according to the samples?

A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.


Q6. What is your sample policy?

A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.


Q7. Do you test all your goods before delivery?

A: Yes, we have 100% test before delivery.


Q8: How do you make our business long-term and good relationship?

A:1. We keep good quality and competitive price to ensure our customers benefit ;

2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.

3. We provide effecient after sale-service. We can also send technician to support the installation.
