Full Height Turnstile
VR
  • Products Details

In order to better adapt to the diversified needs of customers,Shenzhen Zento Traffic Equipment Co., Ltd. has been working hard to develop products. Compared with other similar Guangdong, China products in the market, Turnstile Access Control Gate & Parking System Equipment it can be very stable and long-lasting when applied in the field(s) of Turnstile. Shenzhen Zento Traffic Equipment Co., Ltd. always adhere to the principle of 'creating values for customers and bringing benefits to stakeholders'. In the process of development, we highly focus on the quality and ensure no flawless product delivered to customers.

Place of Origin:Guangdong, ChinaBrand Name:ZENTO
Model Number:ZT-822B (Double-Channel)Product name:Half Height Turnstile Gate
Framework:304 Stainless SteelDimensions:1200*280*1450 mm
Card-reading window:TwoRated power:120W
Operating temperature:-25℃ ~ +60℃, RH ≤90%Communication Interface:RS485,distance ≤1200m
Power supply:AC 220V/110V ±10% 50/60MHZ (optional)Pass speed:30-35 persons per minute
Keyword:security doors stainless steel,turnstile design,control barrier

Gate Entrance Half Height Turnstile Gate


CE &ISO 9001 Verified Certifications
Compatible with all kinds of access control system
Parameters
Framework
304 Stainless Steel

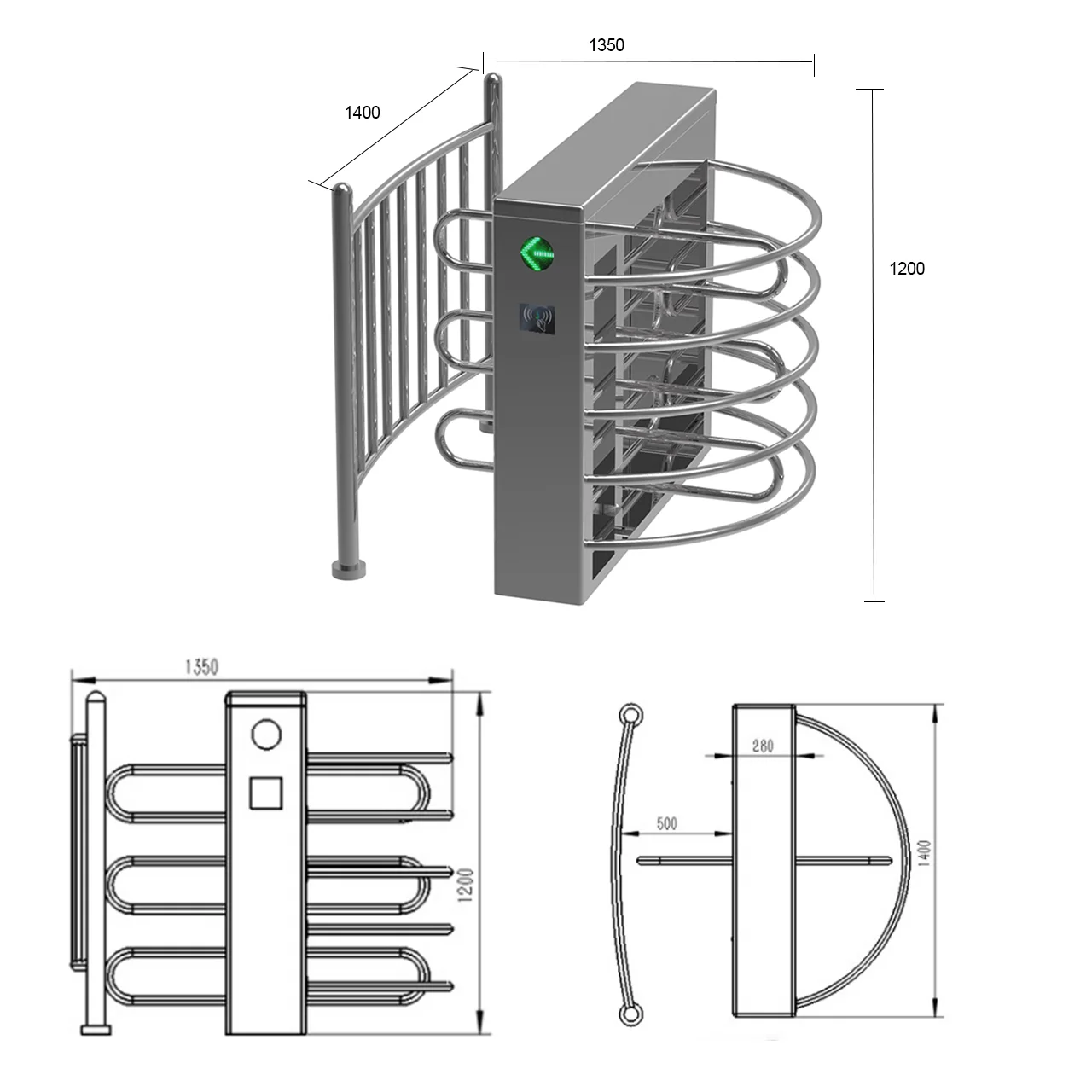

Dimensions
1200*1350*1400 mm
Card-reading window:
Two
Rated power
120W
Operating temperature
-25℃ ~ +60℃, RH ≤90%
Related humidity
≥90%RH
Communication Interface
RS485,distance ≤1200m
Power supply
AC 220V/110V ±10% 50/60MHZ (optional)
Pass speed
30 persons per minute
Product Details

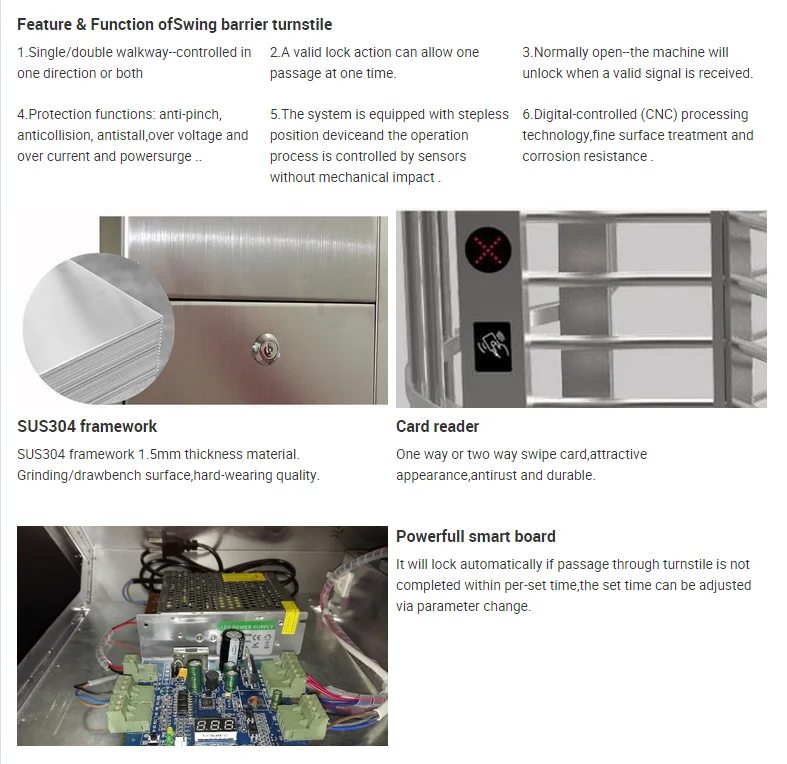

Material

SUS304 framework

SUS304 framework 1.5mm thickness material. Grinding/drawbench surface,hard-wearing quality.

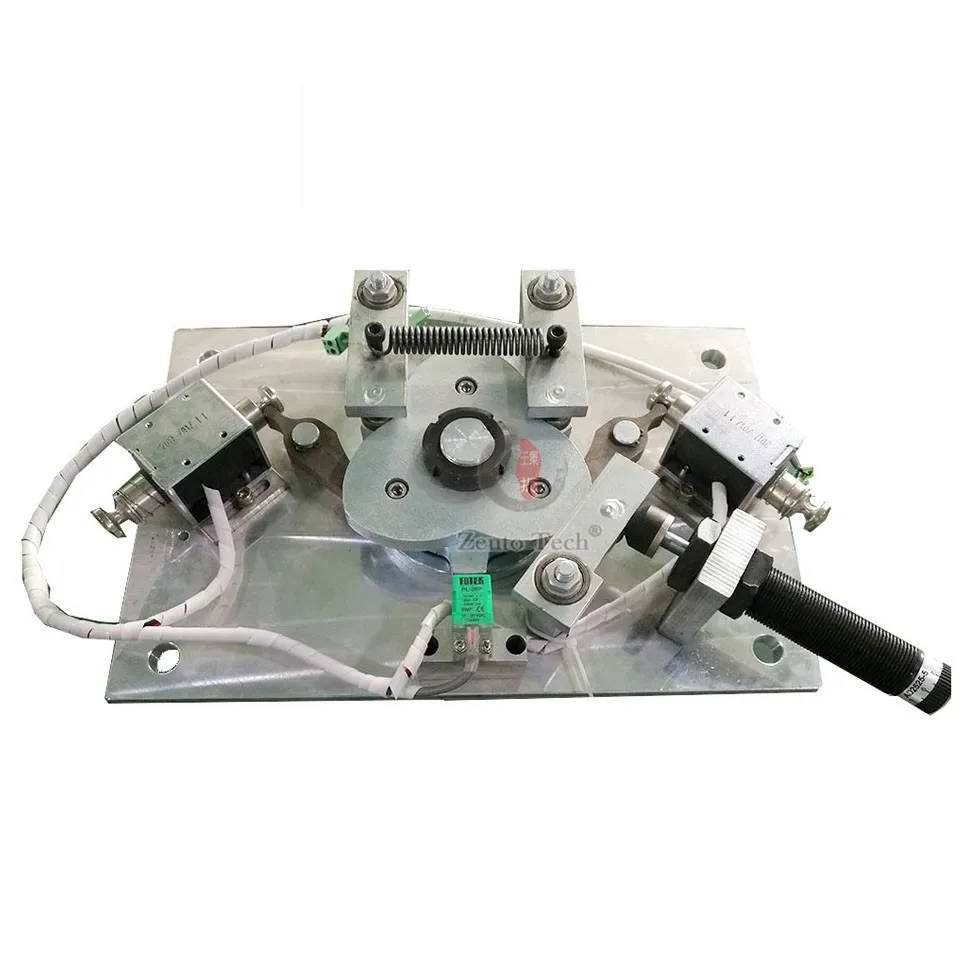

Main Part


DC Brushless Motor, no maintenance all the of life, No Attrition, Low-noise, High Intelligence China good price high quality full height turnstile with RFID access control.


Powerfull smart board

It will lock automatically if passage through turnstile is not completed within per-set time,the set time can be adjusted via parameter change.


Main Features

1) Unique two-way anti-reverse function.
2) Programmable device's operating status through the built-in small press plate on control board,
3) Anti-rushing function, when the gate signal is not received, the turnstile arms locked automatically
4) The center rotor will be set free (default) or locked (optional) automatically when the power is off.
5) Automatic Reset Functions: after you swap the card, during the specific time (the system is 10s),
6) The turnstile can work with door access control system/ consumption system /ticket system/biometric recognition system/ ESD system and so on
7) Can be unidirectional or bidirectional control of personnel access.

8) Can manager and long-range control the turnstile directly by managing the computer

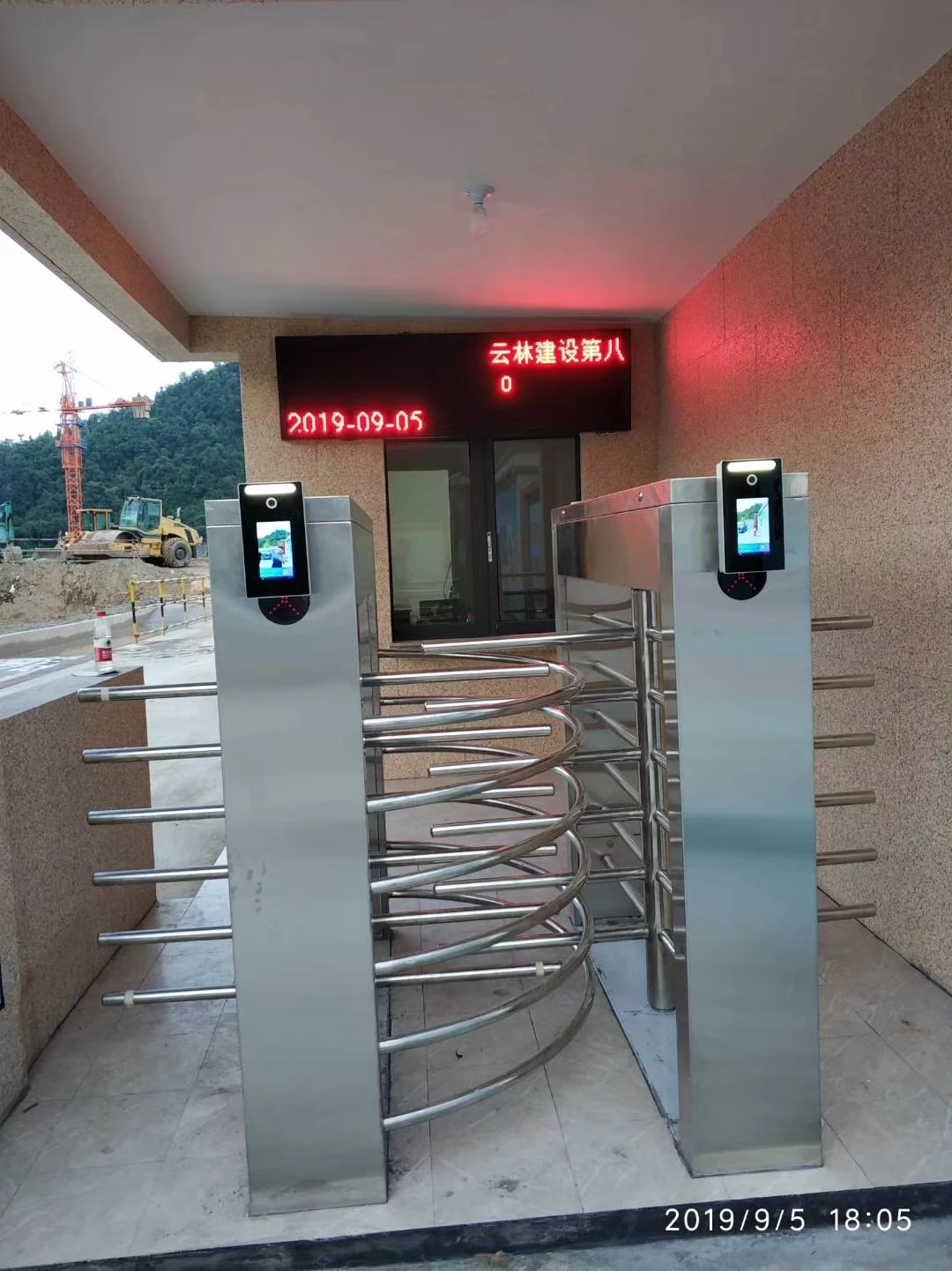

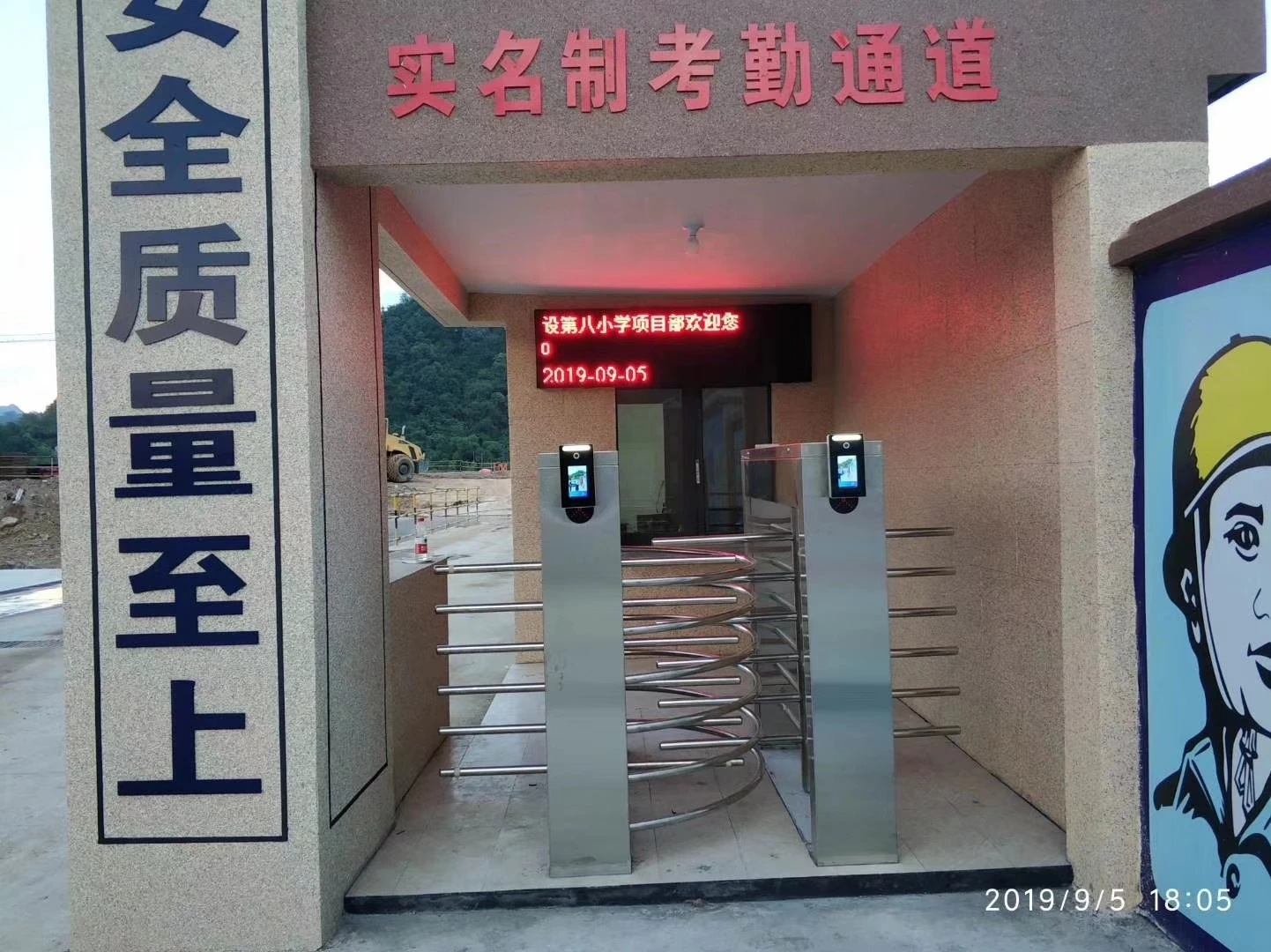

Project Show
Why Choose Zento
What Zento Can Offer
OEM & ODM Customize Service
Package & Delivery
