Shenzhen Zento Traffic Equipment Co., Ltd. has been one of the market leaders due to providing high-quality products to clients and it is very possible for the company to achieve a greater advancement in the future. Compared with other similar Guangdong, China products in the market, Turnstile Access Control Gate & Parking System Equipment it can be very stable and long-lasting when applied in the field(s) of Traffic Barrier. Since established, Shenzhen Zento Traffic Equipment Co., Ltd. have always been in strict compliance with international standards and high ethical standards, thus offering customers highly reliable products. We have always been following the business principle of 'honesty & integrity', which ensures that the most credible services are delivered to every customer.

Place of Origin:Guangdong, ChinaBrand Name:zento
Product name:hydraulic road bollardsMaterial:304 Stainless Steel
Color:SilverApplication:Outdoor
Usage:Road Traffic SafetyKeyword:hydraulic road bollards

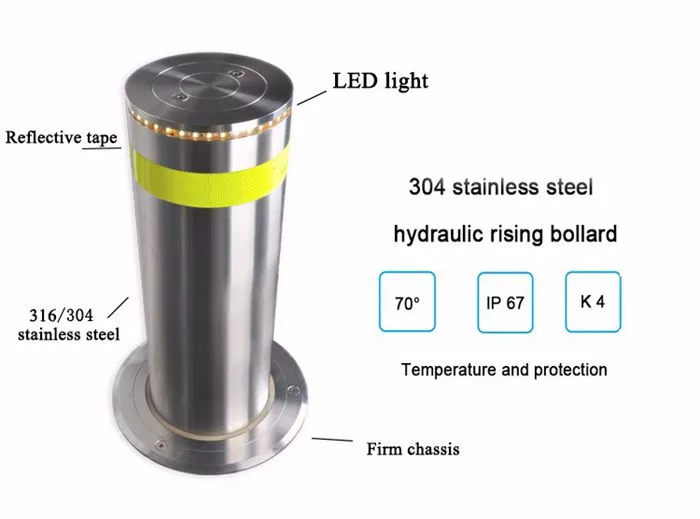

Products Description

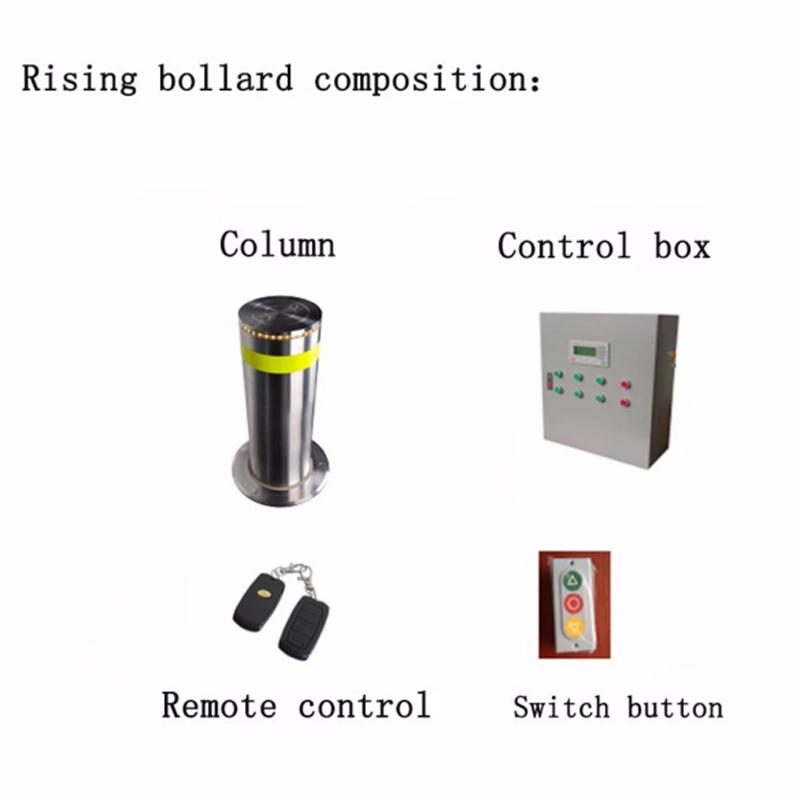

Hydraulic automatic bollard mainly consists of oil pump unit and steel frame construction. It use soil pressure as dynamic to realize the rise/fall of bollard.As a moving device, it is usually installed at vehicle entrance/exit. It rises to block the vehicle and falls the ground level to authorize free passing.
Color
Silver
Raising/lowering speed
3-6s(adjustable)
Diameter
275/220mm
raised height
600-800mm(optional)
Material
304 stainless steel
Control mode
remote control(<50m)
system control
hydraulic and electric control
Working temperature
-30℃~+75℃
Embedded cylinder depth
1100mm
Lamp belt
LED lamp(Acrylic light circle)
Power Supply
220V/380V
thickness
6mm
weight
100-155kg
anti-collision levels
K6
service life
3 million times
Drainage mode
natural drainage+External drainage system
Product details

Main Features

1. Anti-collision:It can be used normally after being hit by a 12-ton vehicle.
2. Anti-destructive power:After being hit by a 16-ton vehicle, Hydraulic road bollards deformation.
3. internal structure:With load-bearing steel beam and column, anti-collision steel beam column, 4 navigation rods.
4. Can be manually lowered in the event of a power outage.
5. Linkage interface.
6. Reversible operation according to requirements during ascent and descent.
7. Noise during operation of the device≤60 dB.
8. Waterproof integrated hydraulic drive.
9. Control solenoid valve 24V.
10. Control box display text adjustable (up, down, start, time control adjustment).
11. Display text in English.
12. Water immersion performance:no leakage during 48 hours and normal lifting.
13. Anti-corrosion performance level: 9.Technical Parameters

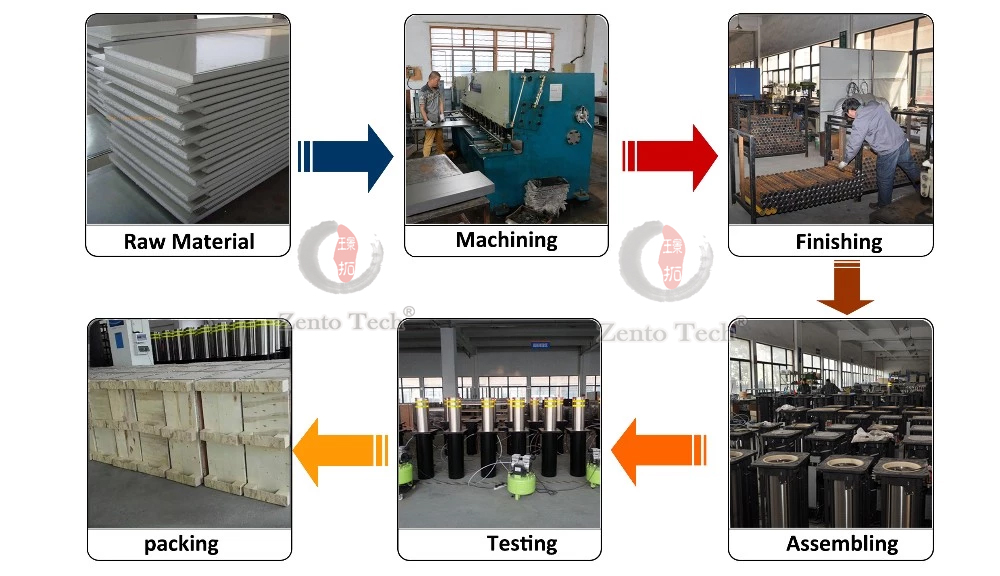

Product Processing
1. Automatically raise/lower/stop.The automated bollards adopt a heavy duty hydraulic power pack and operate by integrated control.Easy to install and operate. Built-in led flashing lights and reflective tap in the bollard head to ensure visibility and safety.
2. Variable frequency controller. Adopt variable frequency controller,the raise/lower speed 3-6s is adjustable.It can stop emergently during raising/lowering process. The control signal is electric transmission, quick and reliable.
3. Firm foundation plate.Thicken seamless 304 stainless steel with strong bearing capacity more than 40 tons. Rust protection and distortion resistance.
4. Built-in valve.In case of emergent issue for example power failure, the obstacle can be lowered by relief valve manually to make sure the passage of pedestrians and vehicles in not affected.
5. Adopt high quality great power motor, the bollards can raise/lower speedy,work stable and durable with 1500 cycles working frequency per day.The motor can be disassembled for easy maintenance.
6. Multiple security protection.Use high pressure air rifle to seal up the vent,the motor can work when soaked in water with electricity leakage protector.

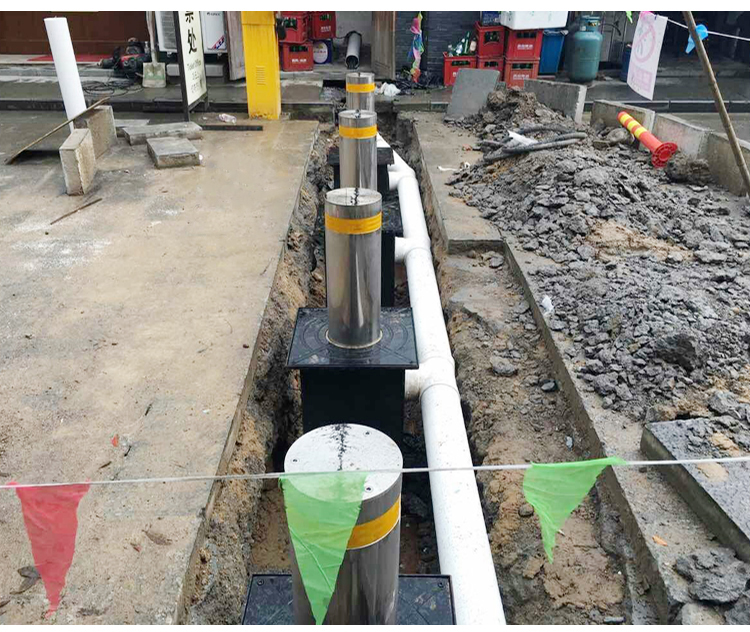

Drainage method:
1. Use artificial drainage or electric pumping mode, need to dig a small pool near the column, regular manual and electric drainage.
2. Use the natural drainage mode to connect directly to the sewer.
3. At the installation junction (two), dig out two square grooves square grooves: (user-defined)mm (L)* 1000mm(W)* 1330mm(H)

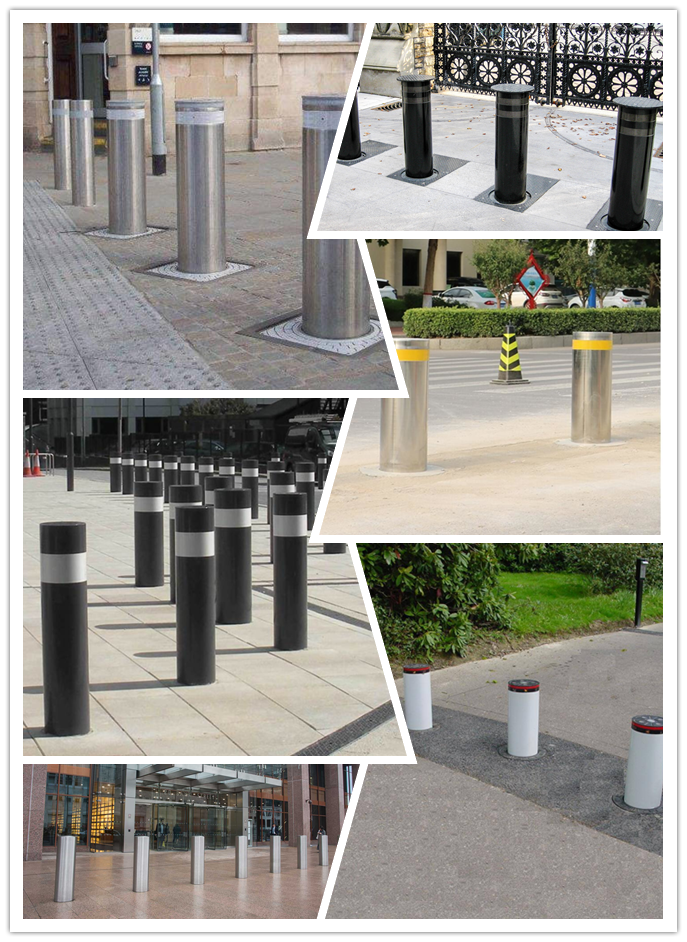

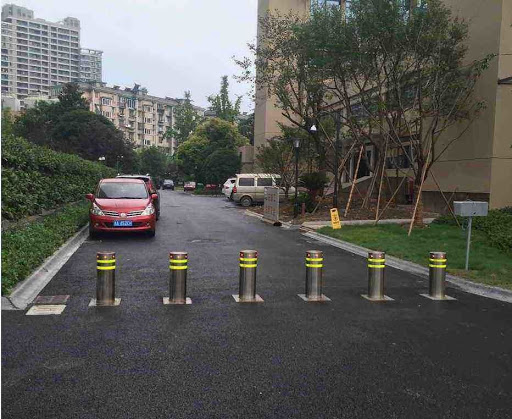

Project show

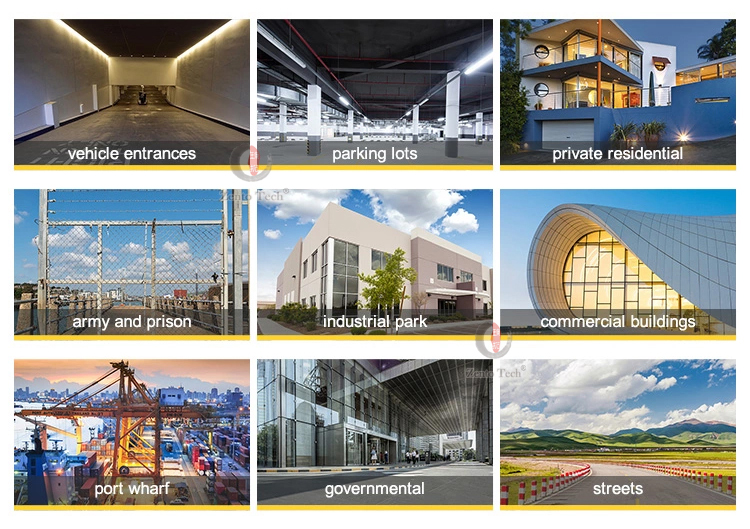

Application:
Scientific and educational units: schools, computer rooms, research centers, libraries, etc.;
Leisure and entertainment venues: parks, scenic spots, pedestrian streets, municipal squares, playgrounds, etc..
Traffic: bus station, railway station, subway station, airport, etc..
Business service places: hospitals, banks, hotels, clubs, commercial buildings, etc..
Office space: large office buildings, public inspection units, hydro power and oil and gas units and other government agencies.
