What you are witnessing here is the excellent Turnstile Access Control Gate & Parking System Equipment of Shenzhen Zento Traffic Equipment Co., Ltd..It is expected that it will lead the industry trend. Traffic Barrier has won high attention and praise from the industry and market. Shenzhen Zento Traffic Equipment Co., Ltd. are full of passion for what we are doing now. Nurtured by the corporate culture of unity and integrity, every employee is optimistic and constantly looking for more and better methods to manufacture the products. Our vision is to create benefits for our partners and customers.

Place of Origin:Guangdong, ChinaBrand Name:Zento
Raising/lowering speed:3-6s(adjustable)Diameter:275/220mm
raised height:600-800mm(optional)Material:304 stainless steel
Control mode:remote controlsystem control:hydraulic and electric control
Working temperature:-30℃~+75℃Embedded cylinder depth:1100mm
Lamp belt:LED lamp(Acrylic light circle)weight:100-155kg

OUR COMPANY
Products Description

Product Detail

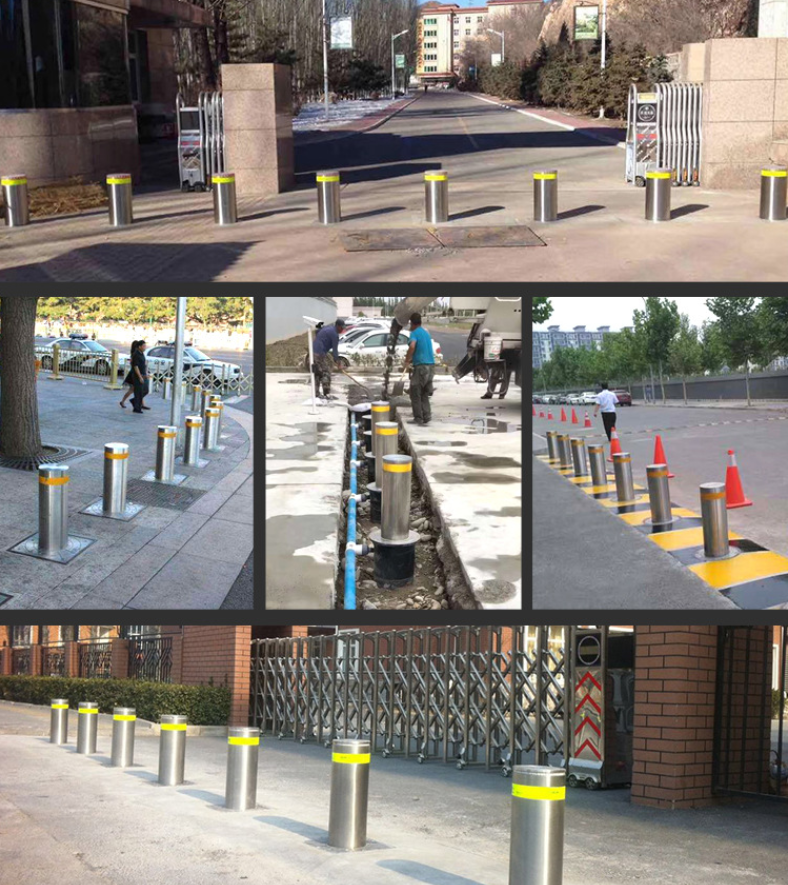

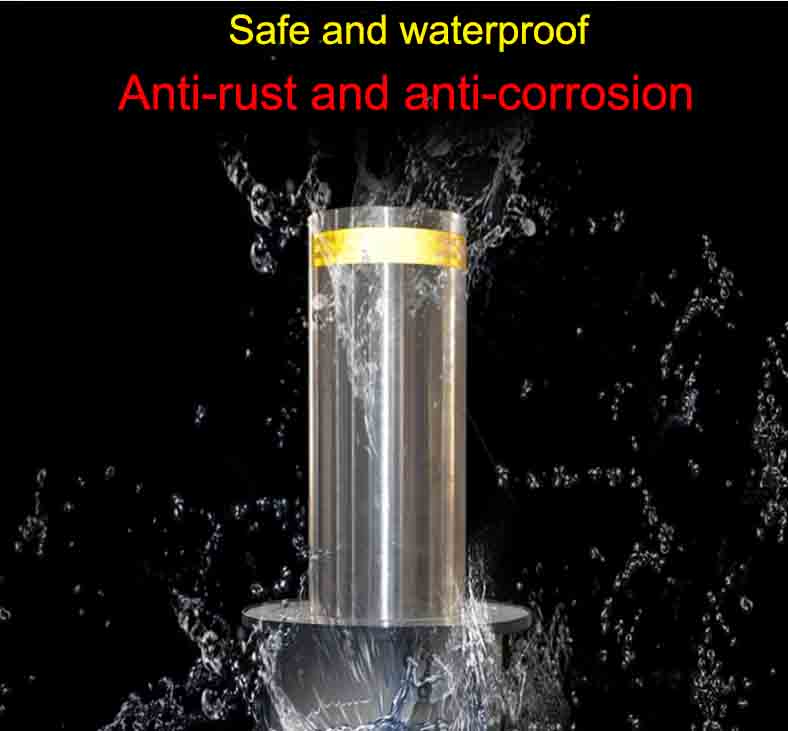

Hydraulic automatic bollard mainly consists of oil pump unit and steel frame construction. It use soil pressure as dynamic to realize the rise/fall of bollard.As a moving device, it is usually installed at vehicle entrance/exit. It rises to block the
vehicle and falls the ground level to authorize free passing.
1. Automatically raise/lower/stop.The automated bollards adopt a heavy duty hydraulic power pack and operate by integrated control.Easy to install and operate. Built-in led flashing lights and reflective tap in the bollard head to ensure visibility and safety.
2. Variable frequency controller. Adopt variable frequency controller,the raise/lower speed 3-6s is adjustable.It can stop
emergently during raising/lowering process. The control signal is electric transmission, quick and reliable.
3. Firm foundation plate.Thicken seamless 304 stainless steel with strong bearing capacity more than 40 tons. Rust protection and distortion resistance.
4. Built-in valve.In case of emergent issue for example power failure, the obstacle can be lowered by relief valve manually to make sure the passage of pedestrians and vehicles in not affected.
5. Adopt high quality great power motor, the bollards can raise/lower speedy,work stable and durable with 1500 cycles working frequency per day.The motor can be disassembled for easy maintenance.
6. Multiple security protection.Use high pressure air rifle to seal up the vent,the motor can work when soaked in water with
electricity leakage protector.

Main Features

1. Anti-collision:It can be used normally after being hit by a 12-ton vehicle.
2. Anti-destructive power:After being hit by a 16-ton vehicle, Hydraulic road bollards deformation.
3. internal structure:With load-bearing steel beam and column, anti-collision steel beam column, 4 navigation rods.
4. Can be manually lowered in the event of a power outage.
5. Linkage interface.
6. Reversible operation according to requirements during ascent and descent.
7. Noise during operation of the device≤60 dB.
8. Waterproof integrated hydraulic drive.
9. Control solenoid valve 24V.
10. Control box display text adjustable (up, down, start, time control adjustment).
11. Display text in English.
12. Water immersion performance:no leakage during 48 hours and normal lifting.
13. Anti-corrosion performance level: 9.Technical Parameters
Raising/lowering speed
3-6s(adjustable)
Diameter
275/220mm
raised height
600-800mm(optional)
Control mode
remote control(≦50m)
system control
hydraulic and electric control
Working temperature
30℃~+75℃
Lamp belt
LED lamp(Acrylic light circle)
Drainage mode
natural drainage+External drainage system
