With the help of our technicians and workers,Shenzhen Zento Traffic Equipment Co., Ltd. has finally developed the quality-guaranteed product. The product is called 2021 Upgrade Version Face Recognition Time Attendance Access Control Terminal WDR Ai Facial Recognition Devices For Office. At Shenzhen Zento Traffic Equipment Co., Ltd., it is our goal to provide the highest quality products and superior service to our customers, both being our top priority. Shenzhen Zento Traffic Equipment Co., Ltd. will always stick to the business principle of 'quality first, customers foremost' and strive towards building an even more competitive and capable company aiming for an even better future.

Special Features:Waterproof / Weatherproof, OtherCustomized support:OEM, ODM, Customized logo, Online technical support
Place of Origin:ChinaBrand Name:ZENTO
Model Number:ZT-facesize:5 inch, 170 degree IPS LCD screen
Resolving power:480*854type:RGB camera
focal length:6mmwhite balance:automatic
Device Interface:Memory 2 GB, storage 8 GBaudio frequency:1 channel audio output(line out)
video:HDMI2.0 Type -A255091;Relay interface:1 relay interface
network interface:A RJ45 10M/100M Adaptive Ethernet Port

Product Description
Product characteristics
1. Supporting night light compensation with photosensitive sensor cooperation;
2. Support serial port, Wigan 26, 34 output, output content support configuration;
3. Dynamic face detection and tracking recognition algorithm based on video stream is adopted.
4. Support devices to store 10,000 people's databases locally. (a) Cloud platform devices support storing 50,000 face photos (less than 4,000 KB), 1 million recognition records (0.45 KB), 20,000 live snapshots (b) LAN devices support storing 20,000 face photos (photos are calculated according to 1,000 KB) and 1 million recognition records (including the most). Nearly 10,000 live snapshots;
5. When the face database is 3000, the recognition accuracy of 1:N is 7%.
6. Recognition speed is fast. (a) Face tracking and detection takes about 20 ms. (b) Face feature extraction takes about 200 ms.(c) Face comparison takes about 0.2 Ms. (1000 people database,average recognition takes many times). 0.5 ms. (10000 people database, average recognition takes many )
7. Supporting stranger detection and configurable stranger rank;
8. Supporting on-site photo preservation in face recognition or stranger detection;
9. Support HTTP interface docking;
11. Supporting the deployment of public network and local area network;
12. Supporting screen display content configuration;
13. Support Distance Recognition Configuration
Core parameters
4 nuclei, 1.8 GHz
Device Interface
Memory 2 GB, storage 8 GB

audio frequency
1 channel audio output(line out)
HDMI2.0 Type -A255091;
Serial Communication
One RS232 interface
Relay interface
1 relay interface
Reset interface
RESET button on extension line
network interface
A RJ45 10M/100M Adaptive Ethernet Port
Supporting detection and tracking of 5 people at the same

1:N Face
The recognition accuracy is 99.7% under the condition that the false recognition rate is three-tenths of ten thousand.
Stranger Detection
Recognition Distance
UI interface configuration
Interface Configuration
Deployment mode
Support the use of public and local area networks

Convention al parameters
Protection Level
IP66,Certain Dust-proof and Waterproof Functions
Power Supply
working temperature
Negative 20, positive 85
Working humidity
10%~90 %
Power waste

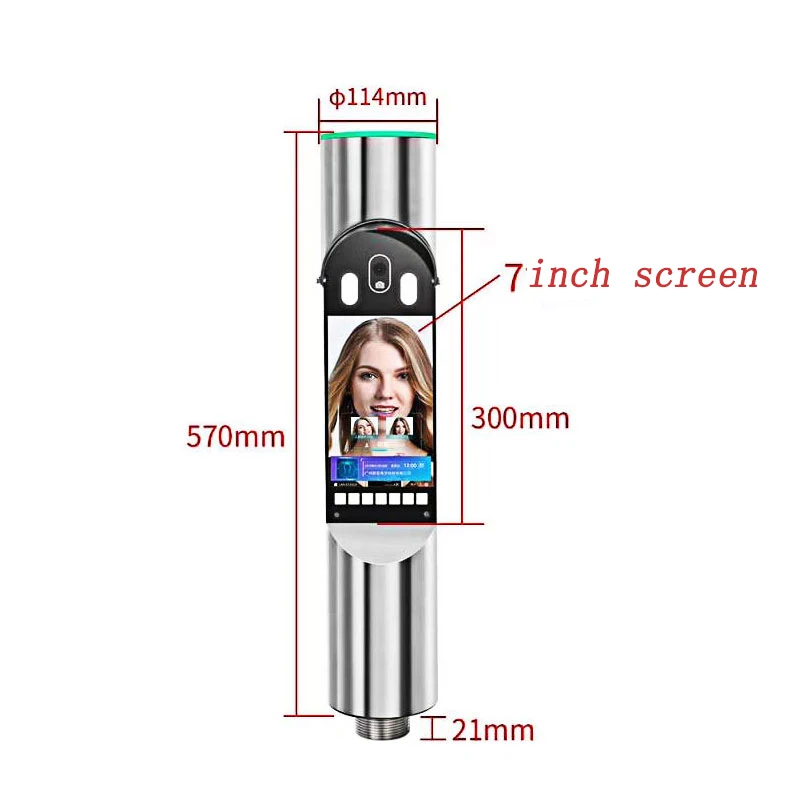

Equipment dimensions
560.25*φ114mm(High * Diameter)
