Since our inception, Shenzhen Zento Traffic Equipment Co., Ltd. has been engaged in the R&D of products to keep us ahead of other competitors in the industry. The product is endowed with stable and multi-functional performance. It is mainly used in the application field(s) of Traffic Barrier. Get in touch with us - call, fill in our online form or connect via live chat, we are always happy to help.
|Place of Origin:||Guangdong, China||Brand Name:||ZENTO|
|Material:||304 Stainless Steel||Product name:||ZENTO Hydraulic road Bollard|
|raised height:||600-800mm(optional)||system control:||hydraulic and electric control|
|Working temperature:||-30℃~+75℃||Lamp belt:||LED lamp(Acrylic light circle)|

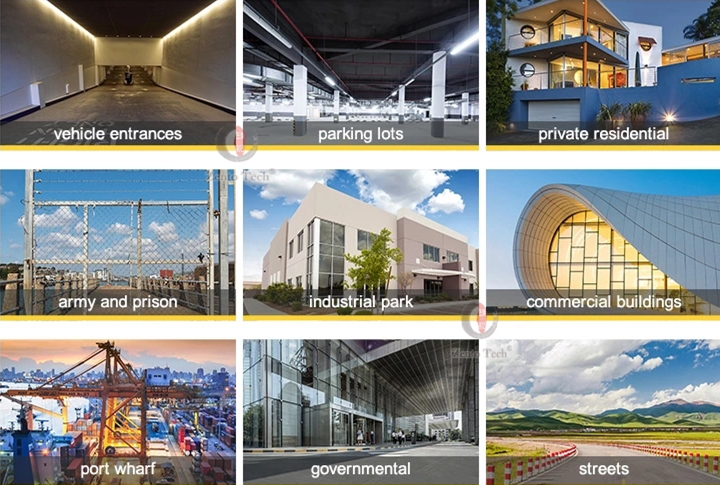

Hydraulic automatic bollard mainly consists of oil pump unit and steel frame construction. It use soil pressure as dynamic to realize the rise/fall of bollard.As a moving device, it is usually installed at vehicle entrance/exit. It rises to block the vehicle and falls the ground level to authorize free passing.

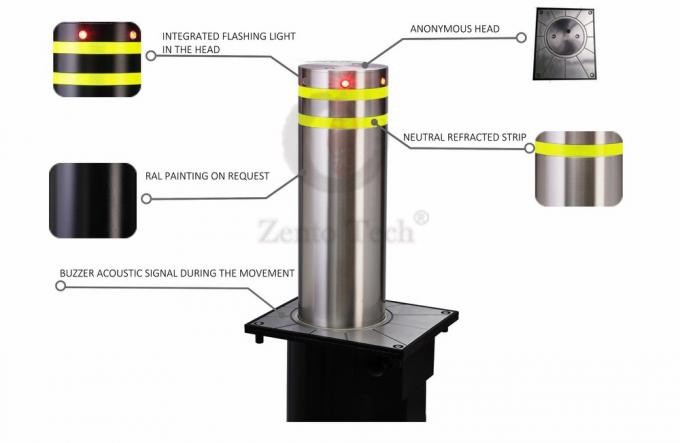

1. Automatically raise/lower/stop.The automated bollards adopt a heavy duty hydraulic power pack and operate by integrated control.Easy to install and operate. Built-in led flashing lights and reflective tap in the bollard head to ensure visibility and safety.
2. Variable frequency controller. Adopt variable frequency controller,the raise/lower speed 3-6s is adjustable.It can stop emergently during raising/lowering process. The control signal is electric transmission, quick and reliable.
3. Firm foundation plate.Thicken seamless 304 stainless steel with strong bearing capacity more than 40 tons. Rust protection and distortion resistance.
4. Built-in valve.In case of emergent issue for example power failure, the obstacle can be lowered by relief valve manually to make sure the passage of pedestrians and vehicles in not affected.
5. Adopt high quality great power motor, the bollards can raise/lower speedy,work stable and durable with 1500 cycles working frequency per day.The motor can be disassembled for easy maintenance.
6. Multiple security protection.Use high pressure air rifle to seal up the vent,the motor can work when soaked in water with electricity leakage protector.
1. Anti-collision:It can be used normally after being hit by a 12-ton vehicle.
2. Anti-destructive power:After being hit by a 16-ton vehicle, Hydraulic road bollards deformation.
3. internal structure:With load-bearing steel beam and column, anti-collision steel beam column, 4 navigation rods.
4. Can be manually lowered in the event of a power outage.
5. Linkage interface.
6. Reversible operation according to requirements during ascent and descent.
7. Noise during operation of the device≤60 dB.
8. Waterproof integrated hydraulic drive.
9. Control solenoid valve 24V.
10. Control box display text adjustable (up, down, start, time control adjustment).
11. Display text in English.
12. Water immersion performance:no leakage during 48 hours and normal lifting.
13. Anti-corrosion performance level: 9.
hydraulic and electric control
LED lamp(Acrylic light circle)
natural drainage+External drainage system
The products cover the domestic market with its excellent quality and are exported to Europe, North America and other developed countries and developing countries in Southeast Asia, Africa, the Middle East and so on.
