Our months of efforts in product R&D has finally paid off. Shenzhen Zento Traffic Equipment Co., Ltd. has successfully transformed the innovative idea into a reality - New design high quality bollard automatic parking hydraulic rising bollard. It is the newest product series of our company now. The measured data indicates that meets the market requirements. To make us continue to thrive in the next decade and beyond, we must focus on improving our technology capabilities and gathering more talents in the industry. With our full efforts, Shenzhen Zento Traffic Equipment Co., Ltd. believe that we will stay ahead of other competitors in the future.
|Place of Origin:||Guangdong, China||Brand Name:||ZENTO|
|Material:||304 Stainless Steel||Product name:||ZENTO Hydraulic road Bollard|
|raised height:||600-800mm(optional)||system control:||hydraulic and electric control|
|Working temperature:||-30℃~+75℃||Lamp belt:||LED lamp(Acrylic light circle)|

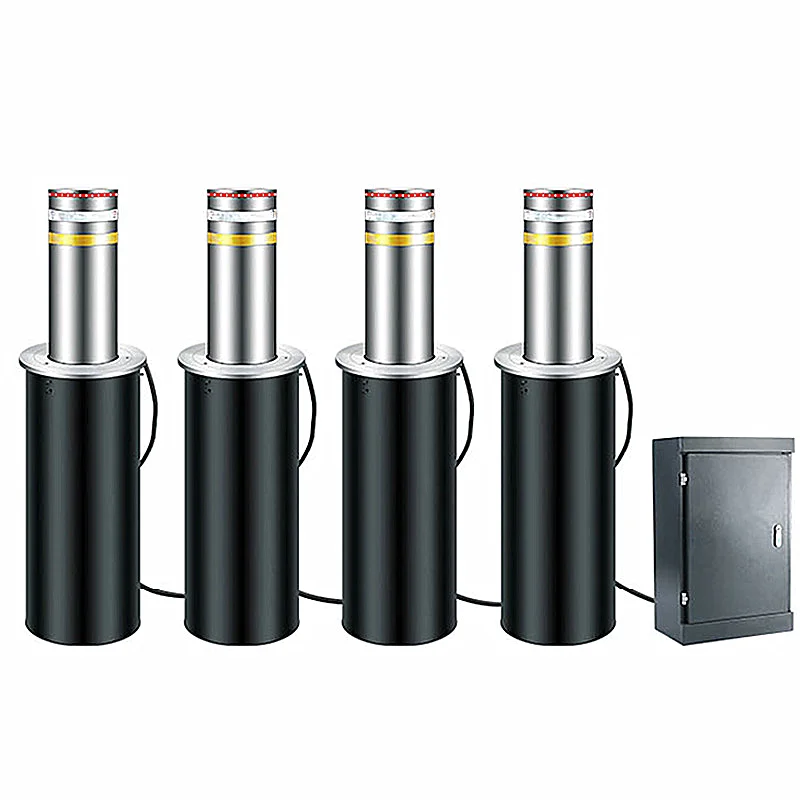

Hydraulic automatic bollard mainly consists of oil pump unit and steel frame construction. It use soil pressure as dynamic to realize the rise/fall of bollard.As a moving device, it is usually installed at vehicle entrance/exit. It rises to block the vehicle and falls the ground level to authorize free passing.

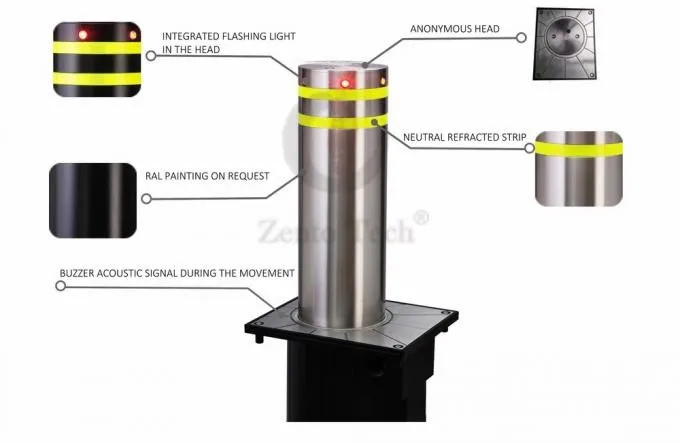

1. Automatically raise/lower/stop.The automated bollards adopt a heavy duty hydraulic power pack and operate by integrated control.Easy to install and operate. Built-in led flashing lights and reflective tap in the bollard head to ensure visibility and safety.
2. Variable frequency controller. Adopt variable frequency controller,the raise/lower speed 3-6s is adjustable.It can stop emergently during raising/lowering process. The control signal is electric transmission, quick and reliable.
3. Firm foundation plate.Thicken seamless 304 stainless steel with strong bearing capacity more than 40 tons. Rust protection and distortion resistance.
4. Built-in valve.In case of emergent issue for example power failure, the obstacle can be lowered by relief valve manually to make sure the passage of pedestrians and vehicles in not affected.
5. Adopt high quality great power motor, the bollards can raise/lower speedy,work stable and durable with 1500 cycles working frequency per day.The motor can be disassembled for easy maintenance.
6. Multiple security protection.Use high pressure air rifle to seal up the vent,the motor can work when soaked in water with electricity leakage protector.
1. Anti-collision:It can be used normally after being hit by a 12-ton vehicle.
2. Anti-destructive power:After being hit by a 16-ton vehicle, Hydraulic road bollards deformation.
3. internal structure:With load-bearing steel beam and column, anti-collision steel beam column, 4 navigation rods.
4. Can be manually lowered in the event of a power outage.
5. Linkage interface.
6. Reversible operation according to requirements during ascent and descent.
7. Noise during operation of the device≤60 dB.
8. Waterproof integrated hydraulic drive.
9. Control solenoid valve 24V.
10. Control box display text adjustable (up, down, start, time control adjustment).
11. Display text in English.
12. Water immersion performance:no leakage during 48 hours and normal lifting.
13. Anti-corrosion performance level: 9.
hydraulic and electric control
LED lamp(Acrylic light circle)
natural drainage+External drainage system
Shenzhen Zento technology co., Ltd
Shenzhen Zento technology co., Ltd is a high and new technology company that design, research and develop, produce and sale all in one. The company has gone through great improvement after years of research and development by itself, and at the same time constantly introduces the technology of the foreign countries. The main products are parking system , barrier, tripod turnstile, swing turnstile, flap turnstile, sentry box, remote control parking lock and other security and transport products. We have sold our products all over the country and also some European and North American countries like Turkey, and we have established offices in Spain and Kuwait.
The products cover the domestic market with its excellent quality and are exported to Europe, North America and other developed countries and developing countries in Southeast Asia, Africa, the Middle East and so on.
