Hydraulic Bollard
VR
  • Products Details

Since established, our company has focused on setting up a technology development team which aims to develop and upgrade technologies to effectively manufacture products. Its uses have been expanded to the field(s) of Retractable removable traffic bollardl Automatic Hydraulic Road Bollard. It is consistent with industry standards. To make us continue to thrive in the next decade and beyond, we must focus on improving our technology capabilities and gathering more talents in the industry. With our full efforts, Shenzhen Zento Traffic Equipment Co., Ltd. believe that we will stay ahead of other competitors in the future.

Place of Origin:Guangdong, ChinaBrand Name:ZENTO
Material:304 Stainless SteelProduct name:ZENTO Hydraulic road Bollard
Color:SilverRaising/lowering speed:3-6s(adjustable)
raised height:600-800mm(optional)system control:hydraulic and electric control
Working temperature:-30℃~+75℃Lamp belt:LED lamp(Acrylic light circle)
Power Supply:220V/380V

Product Description

Product Detail

Hydraulic automatic bollard mainly consists of oil pump unit and steel frame construction. It use soil pressure as dynamic to realize the rise/fall of bollard.As a moving device, it is usually installed at vehicle entrance/exit. It rises to block the vehicle and falls the ground level to authorize free passing.

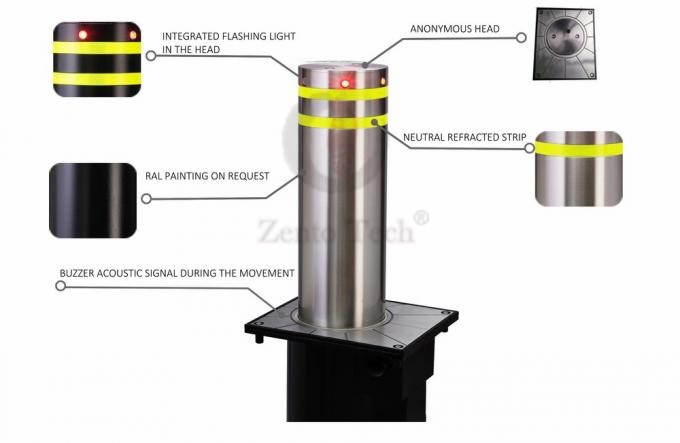

1. Automatically raise/lower/stop.The automated bollards adopt a heavy duty hydraulic power pack and operate by integrated control.Easy to install and operate. Built-in led flashing lights and reflective tap in the bollard head to ensure visibility and safety.
2. Variable frequency controller. Adopt variable frequency controller,the raise/lower speed 3-6s is adjustable.It can stop emergently during raising/lowering process. The control signal is electric transmission, quick and reliable.
3. Firm foundation plate.Thicken seamless 304 stainless steel with strong bearing capacity more than 40 tons. Rust protection and distortion resistance.
4. Built-in valve.In case of emergent issue for example power failure, the obstacle can be lowered by relief valve manually to make sure the passage of pedestrians and vehicles in not affected.
5. Adopt high quality great power motor, the bollards can raise/lower speedy,work stable and durable with 1500 cycles working frequency per day.The motor can be disassembled for easy maintenance.
6. Multiple security protection.Use high pressure air rifle to seal up the vent,the motor can work when soaked in water with electricity leakage protector.

Main Features

1. Anti-collision:It can be used normally after being hit by a 12-ton vehicle.
2. Anti-destructive power:After being hit by a 16-ton vehicle, Hydraulic road bollards deformation.
3. internal structure:With load-bearing steel beam and column, anti-collision steel beam column, 4 navigation rods.
4. Can be manually lowered in the event of a power outage.
5. Linkage interface.
6. Reversible operation according to requirements during ascent and descent.
7. Noise during operation of the device≤60 dB.
8. Waterproof integrated hydraulic drive.
9. Control solenoid valve 24V.
10. Control box display text adjustable (up, down, start, time control adjustment).
11. Display text in English.
12. Water immersion performance:no leakage during 48 hours and normal lifting.
13. Anti-corrosion performance level: 9.


Technical Parameters

Raising/lowering speed
3-6s(adjustable)
Diameter
275/220mm
raised height
600-800mm(optional)
Control mode
remote control(≦50m)
system control
hydraulic and electric control
Working temperature
-30℃~+75℃
Lamp belt
LED lamp(Acrylic light circle)
Drainage mode
natural drainage+External drainage system
