Hydraulic Bollard
VR
  • Products Details

Several tests prove that our Turnstile Access Control Gate & Parking System Equipment is a kind of product combining aesthetics, functions, and practicality. With its characteristics, it is able to be used in the application field(s) of Traffic Barrier and so on. Customers can be worry-free because the tests prove that the product is stable and excellent when being used in those fields. Our professional engineers applied technology to product development.The product can be used in a wide range of applications like Traffic Barrier requiring very high quality. Shenzhen Zento Traffic Equipment Co., Ltd. hope that we can respond more rapidly to changes in the industry with a deeper understanding of the market needs. We believe that we will stand out in the global market with our finest-quality products and unparalleled services.

Place of Origin:Guangdong, ChinaBrand Name:ZENTO
Product name:Hydraulic road bollardsMaterial:304 Stainless Steel
Application:Roadway SafetyWarranty:1 Year
Normal work life:over 5 yearsRaising/lowering speed:3-6s(adjustable)
Diameter:275/220mmraised height:600-800mm(optional)
system control:hydraulic and electric controlEmbedded cylinder depth:1100mm

OUR COMPANY
Products Description

Product Detail

Hydraulic automatic bollard mainly consists of oil pump unit and steel frame construction. It use soil pressure as dynamic to realize the rise/fall of bollard.As a moving device, it is usually installed at vehicle entrance/exit. It rises to block the
vehicle and falls the ground level to authorize free passing.
1. Automatically raise/lower/stop.The automated bollards adopt a heavy duty hydraulic power pack and operate by integrated control.Easy to install and operate. Built-in led flashing lights and reflective tap in the bollard head to ensure visibility and safety.
2. Variable frequency controller. Adopt variable frequency controller,the raise/lower speed 3-6s is adjustable.It can stop
emergently during raising/lowering process. The control signal is electric transmission, quick and reliable.
3. Firm foundation plate.Thicken seamless 304 stainless steel with strong bearing capacity more than 40 tons. Rust protection and distortion resistance.
4. Built-in valve.In case of emergent issue for example power failure, the obstacle can be lowered by relief valve manually to make sure the passage of pedestrians and vehicles in not affected.
5. Adopt high quality great power motor, the bollards can raise/lower speedy,work stable and durable with 1500 cycles working frequency per day.The motor can be disassembled for easy maintenance.
6. Multiple security protection.Use high pressure air rifle to seal up the vent,the motor can work when soaked in water with
electricity leakage protector.

Main Features

1. Anti-collision:It can be used normally after being hit by a 12-ton vehicle.
2. Anti-destructive power:After being hit by a 16-ton vehicle, Hydraulic road bollards deformation.
3. internal structure:With load-bearing steel beam and column, anti-collision steel beam column, 4 navigation rods.
4. Can be manually lowered in the event of a power outage.
5. Linkage interface.
6. Reversible operation according to requirements during ascent and descent.
7. Noise during operation of the device≤60 dB.
8. Waterproof integrated hydraulic drive.
9. Control solenoid valve 24V.
10. Control box display text adjustable (up, down, start, time control adjustment).
11. Display text in English.
12. Water immersion performance:no leakage during 48 hours and normal lifting.
13. Anti-corrosion performance level: 9.Technical Parameters
Raising/lowering speed
3-6s(adjustable)
Diameter
275/220mm
raised height
600-800mm(optional)
Control mode
remote control(≦50m)
system control
hydraulic and electric control
Working temperature
30℃~+75℃
Lamp belt
LED lamp(Acrylic light circle)
Drainage mode
natural drainage+External drainage system
Basic Information
  • Year Established
    --
  • Business Type
    --
  • Country / Region
    --
  • Main Industry
    --
  • Main Products
    --
  • Enterprise Legal Person
    --
  • Total Employees
    --
  • Annual Output Value
    --
  • Export Market
    --
  • Cooperated Customers
    --

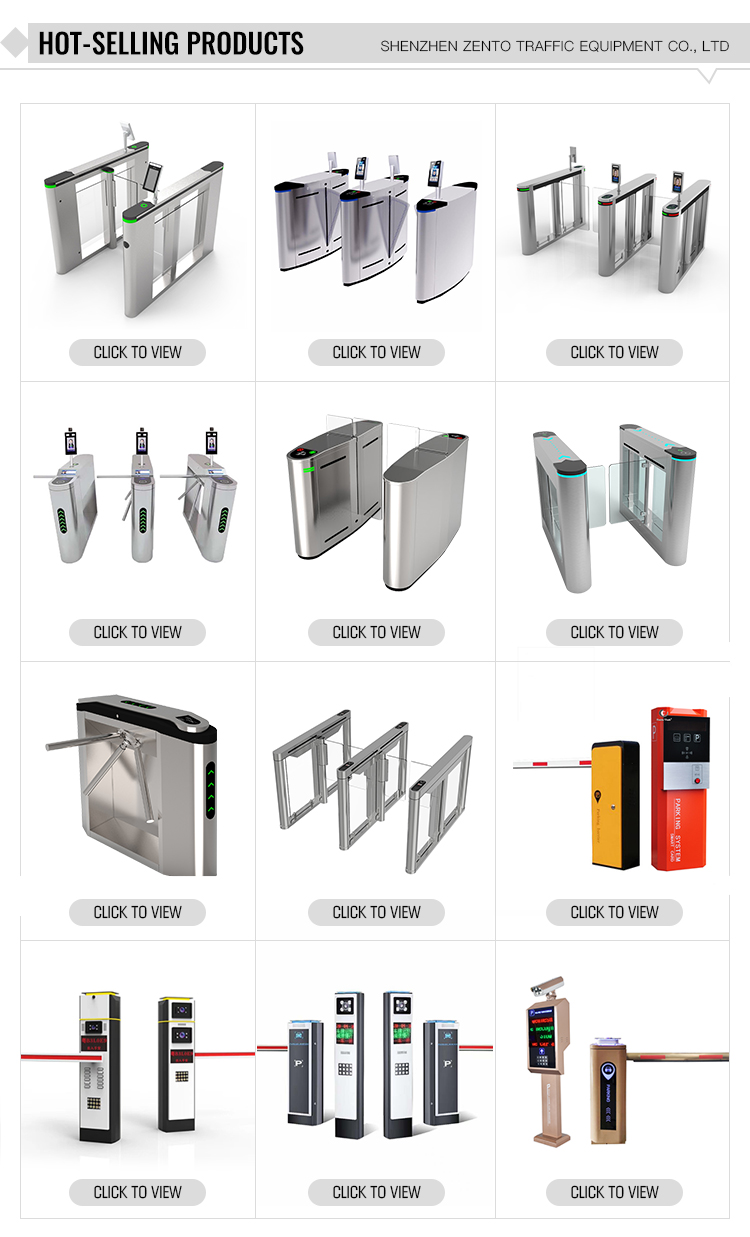

Recommended
