7 Inch Face Recognize Temperature Measuring Machine ZT-XS203

Best Quality 8 Inch AI Face Recognition For Human Body Temperature Camera Thermal Scanner Face Recognition Factory

AI200 Thermal Imaging System for Temperature Measurement

Face Recognition Temperature Measurement Automatic Infrared Body Thermal Scanner Kiosk

Access Controls Biometric Face Recognition terminal for turnstile

The utilization of mature technologies has greatly improved work efficiency and reduced manufacturing cost without sacrificing the product quality at the same time.It has proved to have a far wider range of uses in the field(s) of .

SEND INQUIRY NOW

Type:: Face

Card

fingerprint

Lead_Time:: 1 - 35(Sets):5(days) , >35(Sets):Negotiable(days)

shipping:: Sea freight

Customization:: Customized logo (Min. Order: 1 Sets) , Customized packaging (Min. Order: 1 Sets) , Graphic customization (Min. Order: 1 Sets)

Price:: >=1 SetsUS$315.0

SEND INQUIRY NOW

Products Details

Utilizing technology makes the manufacturing process go smoothly and efficiently.With regard to the product advantages, the product can be widely found in the field(s) of Access Controls Biometric Face Recognition terminal for turnstile. Having carried out multiple tests, our technical staff has proved the use of technology ensures Access Controls Biometric Face Recognition terminal for turnstile performance can be fully played out.Customers engaged in the field(s) of speak highly of our product. Our Access Controls Biometric Face Recognition terminal for turnstile has been through multiple tests conducted by professional technicians, the purpose of which is to confirm its practical use. When applied in the application area(s) of , the Turnstile Access Control Gate & Parking System Equipment can be reliable and long-lasting, saving plenty cost for users.

Place of Origin:	Guangdong, China	Brand Name:	Zento
Model Number:	YHT-5201	Product Name:	facial recognition system
Screen parameter:	1024 * 600 7 inches	Resolution:	200W pixel
Focal length:	6mm	Local-storage:	Flash memory 8G
Working temperature:	-10℃--+55℃	Weight:	5.9Kg
Power supply:	DC12V(±10%)	Audio:	1 channel audio input ( line in ); 1 channel audio output ( line out )
Video:	HDMI 2.0 type - A interface 1	Special Features:	Time & Attendance, Waterproof / Weatherproof
Certification:	CE

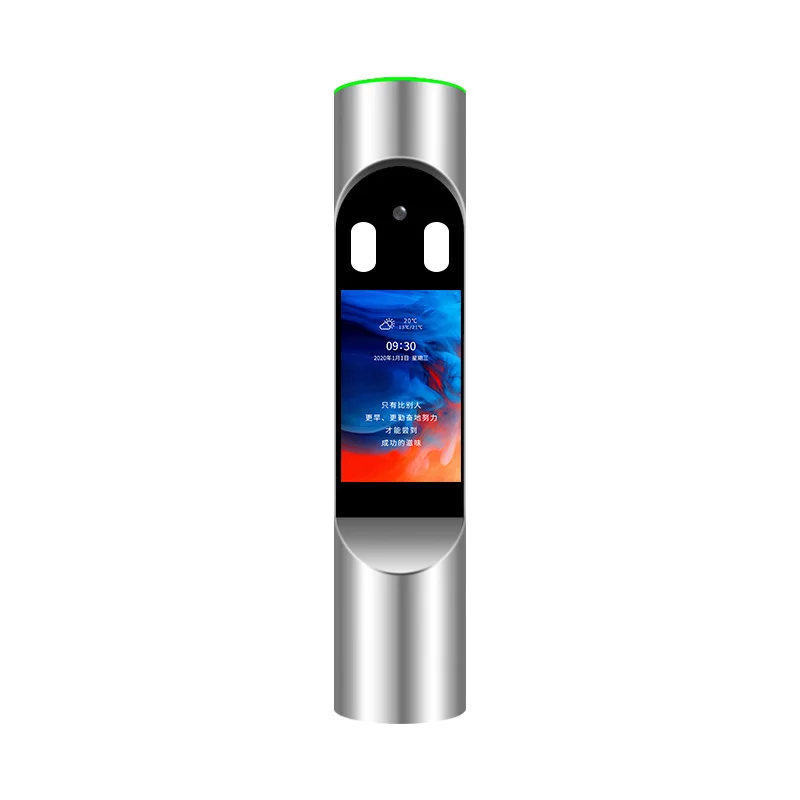

Face Recognition Machine

It has the characteristics of high recognition rate,accurate identification, easy to use and safe.

Face recognition uses technology such as digital image processing, biometric recognition and DSP algorithms. Used for access control security, entry and exit personnel identification control.

Parameters

Screen parameter			1024 * 600 7 inches
Video camera	Resolution	200W pixel
		Aperture	2.4
		Focal length	6mm
		White balance	Automatic

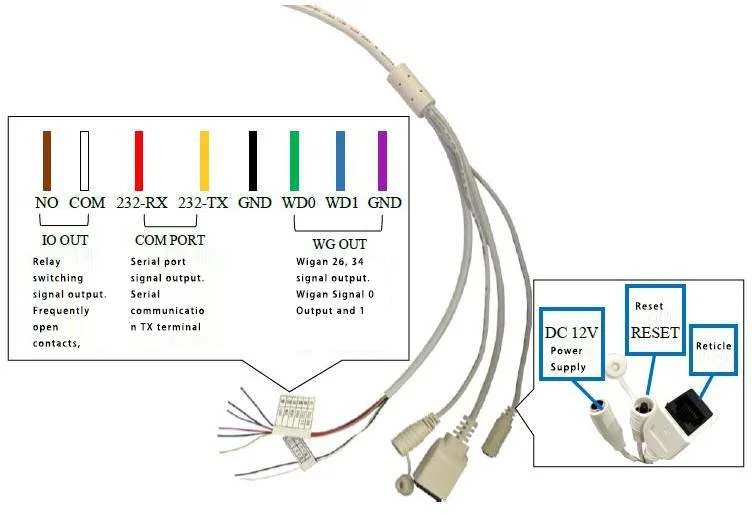

Interface	Audio	1 channel audio input ( line in ); 1 channel audio output ( line out )
		Video	HDMI 2.0 type - A interface 1
		Local-storage	Flash memory 8G
		Serial communication interface	1 RS232 interface
		Reset interface	Built - in reset button
		Wireless communication	2.4G WI-FI ( optional ) + 13.56M IC card reader ( optional )
		Network interface	1 RJ45, 10M/100M adaptive Ethernet port
Function	Face detection	At the same time support testing and tracking of 5 people
		1:N face recognition	Under the condition of supporting 97 % pass rate, 99.7 % pass rate
		1:1 face comparison	Support optional card swiping module to achieve 1:1 face comparison
		Stranger test	Support
		Identification distance configuration	Support
		UI interface configuration	Support
		Device interface	The interface includes equipment management, personnel/ photo management, record query, etc.
		Mode of deployment	LAN usage
		Power supply	DC12V（±10%）
		Working temperature	-10℃--＋55℃
		Working humidity	10％--90％
		Power consumption	10W MAX
		Weight	5.9Kg

Product Details

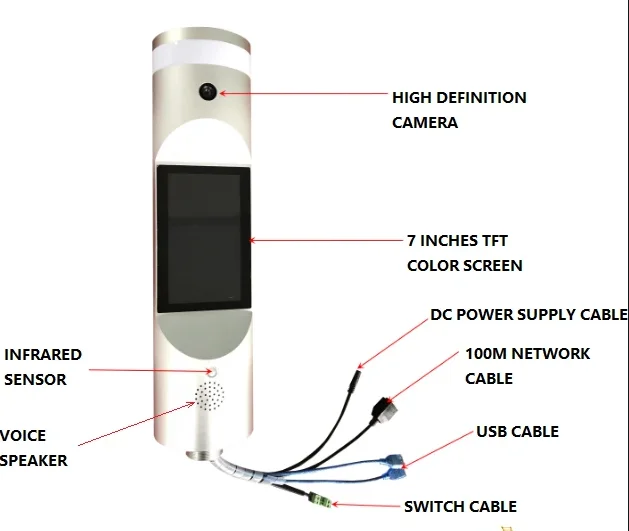

Product features

* Support external HDMI large screen;
* Support external ID card / RFID reader;
* Support serial port input and output, support Wiegandoutput, output content supports configuration;
* Support the RFID card , can also achieve the integration of human cards;
* Dynamic facedetection based on video stream and tracking recognition algorithm are adopted;
* Support to store 50, 000 face photos, 1 million recognition records;
* The accuracy rate of 1: Nrecognition is high (99.7% under 97% pass rate).
* Recognition speed is fast, face tracking and detection takes about 20ms time, facial feature extraction takes about 300ms, and
face comparison takes about 0.1ms.
* Support stranger detection, stranger level can be configured;
* Support face recognition or stranger detection of the scene of the photo preservation;
* Support interface docking;
* Support customization;
* Support screen display content configuration;
* Support identification distance configuration.

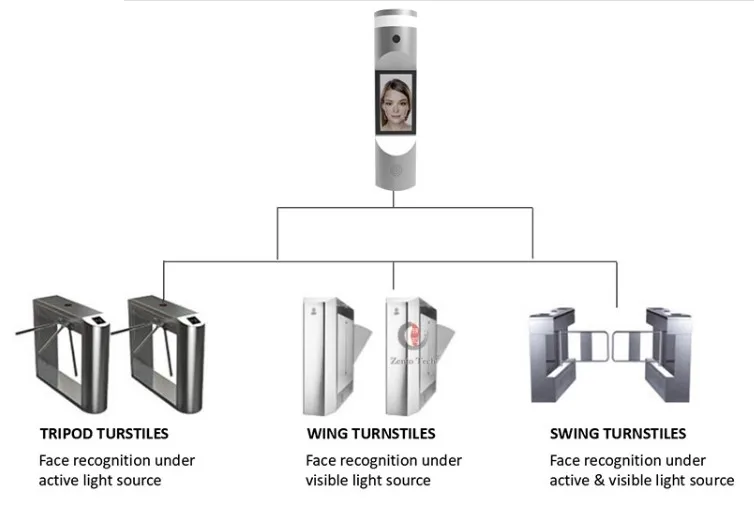

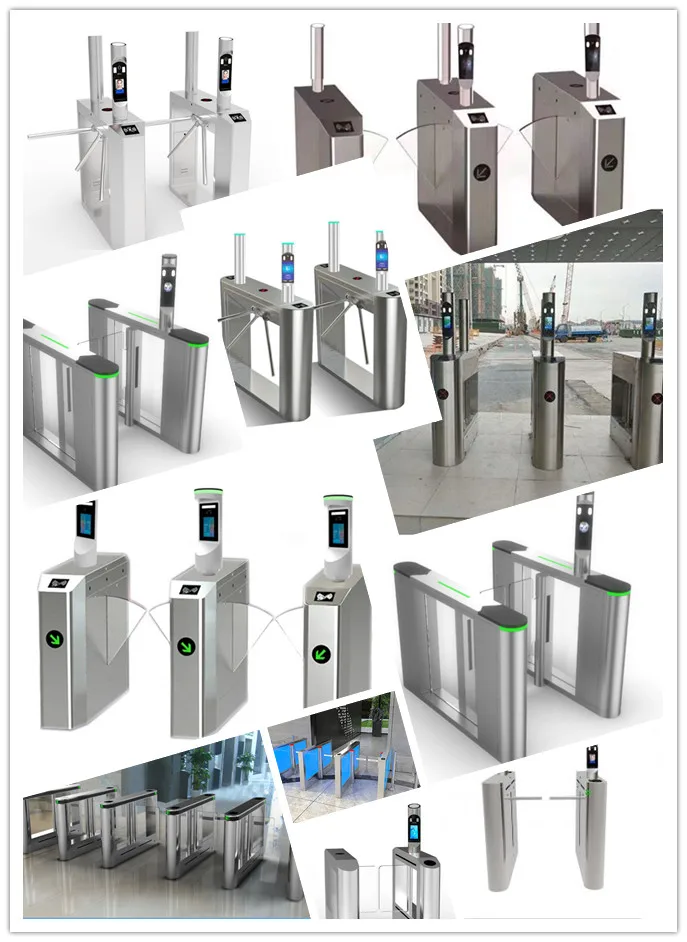

Application scene

Suitable for office area, gate passage, hotel, office building, school and other places where face recognition gate is needed.

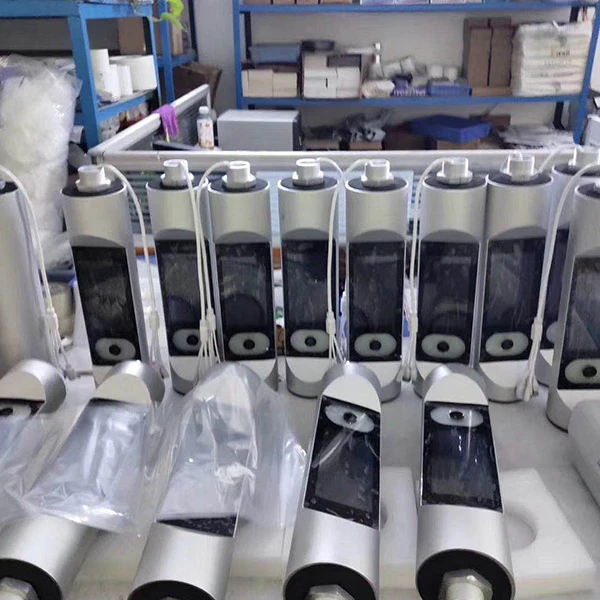

Package & Delivery

Basic Information

Year Established

--
Business Type

--
Country / Region

--
Main Industry

--
Main Products

--
Enterprise Legal Person

--
Total Employees

--
Annual Output Value

--
Export Market

--
Cooperated Customers

--

7 Inch Face Recognize Temperature Measuring Machine ZT-XS203

It is a high-performance dynamic temperature measurement type face recognition terminal, which is divided into gate installation and wall mounted installation. Face recognition has two forms: temperature-measuring face and non-temperature-measuring face. The cameras are divided into monocular cameras and binocular cameras. The product screens are divided into 5 inches, 7 inches, and 8 inches. The face recognition rate of each style is as high as 98%.
Best Quality 8 Inch AI Face Recognition For Human Body Temperature Camera Thermal Scanner Face Recognition Factory

Face Recognition is a high performance, high reliability face recognition product, relying on deep learning algorithm, with the characteristics of fast recognition speed and high accuracy. Support 1:1 and 1:N mode of face recognition and external ID card reader. Collocation personnel Access control can be realized by using channels. There are multiple installation methods, such as turnstile gate type, wall-mounted type, desktop type, children type, column type, according to your own different requirements to provide different styles to install in different places.
AI200 Thermal Imaging System for Temperature Measurement

AI200 Thermal Imaging System for Temperature Measurement. The thermal imaging recognition camera built-in 8 inch screen, and it can also connect with a big LED screen, it can detect 20 people at the same time. Thermal infrare temperature detector can work on many different places, like subway station, bus station,office building, park, hotel lobby and so on. And the thermal imaging temperature machine is only 4.3kg, can shipped by air in a cheaper price, and you can get the camera quickly.
Face Recognition Temperature Measurement Automatic Infrared Body Thermal Scanner Kiosk

The binocular dynamic face recognition machine can accurately detect the temperature of the human body, record the temperature of people entering and exiting, the time of entry and exit, and facial photos and other information. Face temperature measuring instruments are divided into desktop models, column models, and gate models. Various installation forms can meet the installation needs of different places.
