The shell is made of 304 stainless steel high temperature and corrosion resistance,durable dustproof and rainproof design for outdoor use.
Using highly advanced technologies and newest methods,Shenzhen Zento Traffic Equipment Co., Ltd. has developed Metro System Security QR Code Reader Token Contactless Access Controller Automatic Acrylic Anti-tailing Swing Turnstile. It is on sale starting now and we welcome your inquiry. Turnstile Having collected customers' needs and analyzed trends, we have spent a lot in developing new and versatile features of Turnstile in innovative ways.And the Turnstile Access Control Gate & Parking System Equipment is designed to be unique and attractive enough to catch people's attention.
Place of Origin: | Guangdong, China | Brand Name: | Zento |
Model Number: | ZT-951 | Product name: | Swing Barrier Gate |
Material: | 304 Stainless Steel | Type: | Single Core |
Size: | 1200*280*900mm | Passage Width: | 550-800mm |
Direction: | Bi-directional | Material Thickness: | 1.5 mm |
Speed: | 60-75P/Min | Operating temperature: | -25℃ ~ +60℃, RH ≤90% |
Special Features: | Waterproof / Weatherproof |
Swing barrier gate turnstile is mainly used for channel entrance and exit management. The general application site only allows personnel to pass, including personnel tow the baggage, and the disabled person. Considering that the swing gate can achieve wider channel characteristics than the flap turnstile gate. Most of the swing gates can be used to pass through some non-motorized vehicles such as pedestrians, bicycles, mopeds and handicapped vehicles. Swing gate Turnstiles are suitable for elegant and luxury entrance solutions. Its unique features and extensible functions allow it to integrate with any access control system.
Verified Certifications
Parameters
Framework | 304 Stainless Steel | ||||
Arm length | 550-600mm | ||||
Dry Contact | 12V | ||||
LED indicating light | One | ||||
Card-reading window: | Two | ||||
Rated power | 120W | ||||
Operating temperature | -25℃ ~ +60℃, RH ≤90% | ||||
Related humidity | ≥90%RH | ||||
Comunication Interface | RS485,distance ≤1200m | ||||
Power supply | AC 220V/110V ±10% 50/60MHZ (optional) | ||||
OpeningTransit speed: | 30-45persons per minute | ||||
Closing Transit speed: | 25-35per minute |
Compatible with all kinds of access control system
1. working method can be set by the buttons on the main panel
2. Anti-pinch, anti-collision. If there is block during return of gate, motor stops working automatically. Reset again after a default delay, the force 2Kg.
3.Anti-illegal in, anti-intrusion, auto close for reverse direction.
4. Anti-collision, gate closes when no valid signal is given.
5. Protection functions for gate, gate open to prevent motor from being damaged if there is outer force collision.
6. Gates can be synchronous
7.Auto-reset. If not go through in a preset time, pass right would be cancelled automatically. (1-60s adjustable), default time is 10s.
8. Reset function by photocells, 4 or 6 pairs.
9. Anti-pinch function by photocells, 4 pairs
10.Compatible with Access control system, consumption system, ESD system, E-ticket system and so on.
11. One way or two way control
12. Unit can be controlled and administered by remote control
13. Led lamp indicator

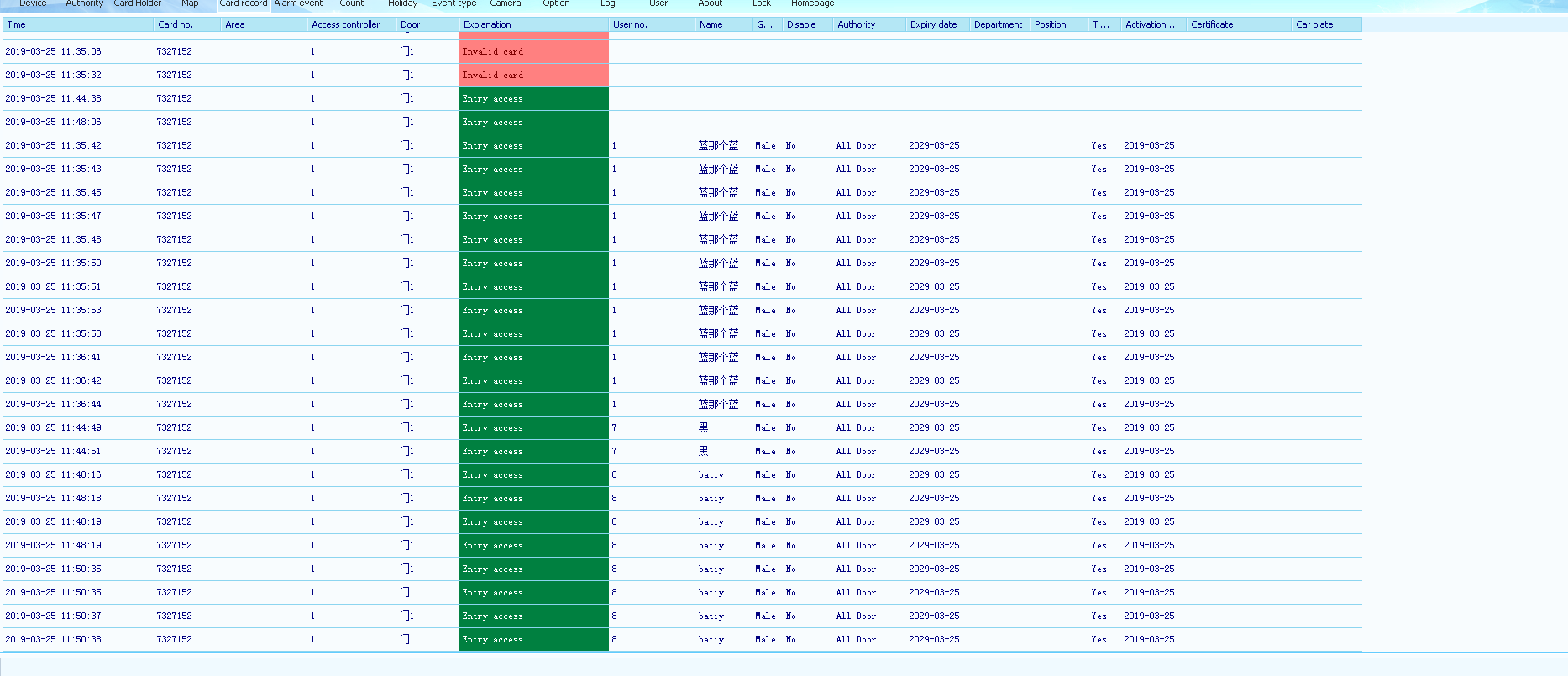

We have our own access control software, stable system, and attendance function.
The shell is made of 304 stainless steel high temperature and corrosion resistance,durable dustproof and rainproof design for outdoor use.
Traffic direction guide with high bright led lamp.Passers can simply find the correct channel and get the verification results.
It can be compatible with card,QR code,barcode,fingerprint,face,ect.
Customized according to customer needs.
