Flap Turnstile Barrier
VR
  • Product Details

With strong ability of product research and development, Shenzhen Zento Traffic Equipment Co., Ltd. ensures new products are launched on a regular basis. Our new product Zento Manufacturer High Pass Public Office Automatic Face Recognize Entrance for Thailand Card Reader Swing Barrier Turnstile is a totally new series and has different features. Zento Manufacturer High Pass Public Office Automatic Face Recognize Entrance for Thailand Card Reader Swing Barrier Turnstile Influenced by the market trends and customers' requirements, the design of Turnstile Access Control Gate & Parking System Equipment is made to be unique. It adopts the raw materials that have been tested to conform to the quality standards, which guarantees its quality from the source.

Place of Origin:Guangdong, ChinaBrand Name:Zento
Model Number:ZT-928AProduct name:Swing Barrier Gate
Material:304 Stainless SteelType:Single Core
Size:1400 * 280 * 1000mmPassage Width:550-800mm
Direction:Bi-directionalMaterial Thickness:1.5 mm
Speed:45-50P/MinOperating temperature:-25℃ ~ +60℃, RH ≤90%
Special Features:Waterproof / Weatherproof


Product Description

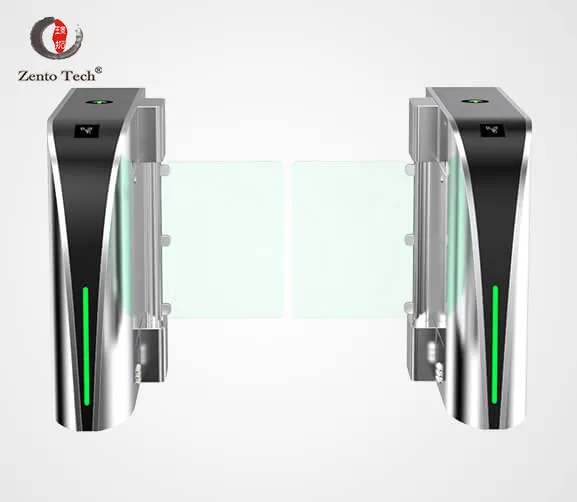

Luxury Flap Turnstile Barrier Gate

* Flap type turnstile is an elegant access solution for artistic sites at security access control purpose for indoor and outdoor.


* The system is with two versions for select, 600mm passage standard lane and 900 mm handicapped lane for wheelchairs, large luggage, trolley ect.


* Flap Turnstiel is made from brushed stainless steel for cabinet and Plexiglas/acrylic glass for arm.


* In design, it’s unique arc-shaped body with bright, long and narrow LED indication bar at front, as well as a LED indicator to show entry or no entry on top cover.


* The system is with 5 pairs infrared sensors to play alarm, anti-reverse, anti-tail and anti-intrusion function to ensure passage.

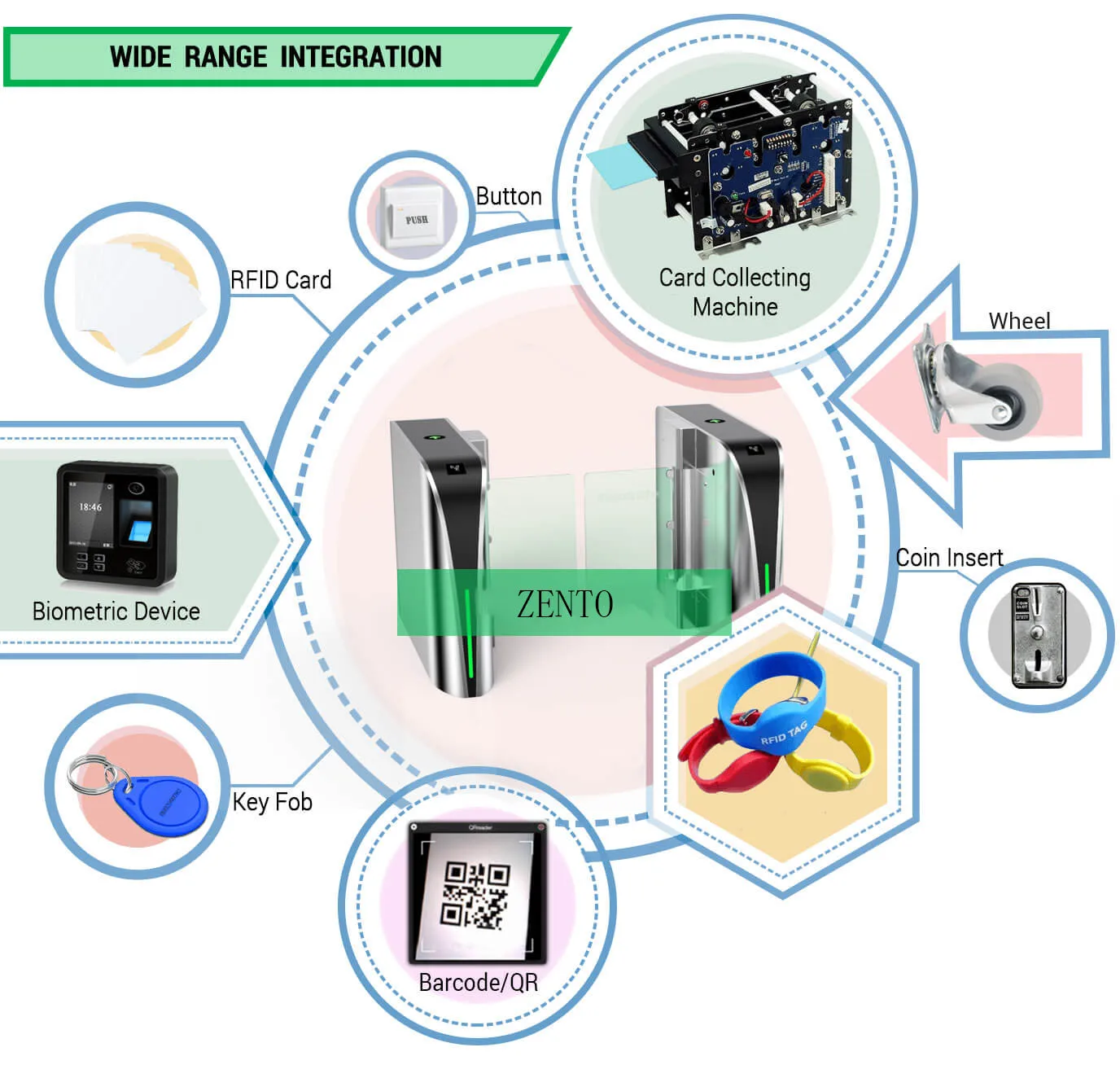

* The system can work with some third-party access control system, like RFID card reader, fingerprint and biometric device.

Compatible with all kinds of access control system
Parameters
Framework
304 Stainless Steel
MCBF
5 million
Size
1400 * 280 * 1000mm
LED indicating light
One
Card-reading window:
Two
Weight
70kg/pcs


Operating temperature
-25℃ ~ +60℃, RH ≤90%
Related humidity
≥90%RH
Comunication Interface
RS485,distance ≤1200m
Power supply
AC 220V/110V ±10% 50/60MHZ (optional)
OpeningTransit speed:
30-45persons per minute
Passage width
600-1200mm

Main Features

* Long-life performance, high operation dependability and fast response
* The whole system runs smoothly, low noise, no mechanical impact
* Single directional or Bi-directional is selectable
* Automatic reset function: swing arms will lock automatically within 5s (can be setting) if passenger delay to entry
* When power is off, swing arms will open automatically, which is complying with fire safety requirements
* LED indicator (red × means no entry; green → means entry)
* Infrared sensor alarm function, in case of illegal intrusion and reverse intrusion
* Anti-intrusion function, the turnstile is locked automatically until valid opening signal input
* Anti-reverse function, the turnstile alarms if someone wants to entry in the reverse direction
* Anti-trailing function, the turnstile alarm if someone wants to burst in without permission
* Glass arms will reset automatically if is off position after strong hit. The movement will not be broken or damaged for bump
* It has the fastest open and close speed rate, 0.2 second. The open and close speed rate can be adjusted
* Easy to install and maintain
* 3-year warranty support

We have our own access control software, stable system, and attendance function.
