  • Products Details

With immense market knowledge, we have been able to provide optimum quality Automatic Anti-pinch Child Gate Attendance Management Student Card Entrance Verified Flap Barrier Turnstile Gate Access Control. At Shenzhen Zento Traffic Equipment Co., Ltd., it is our goal to provide the highest quality products and superior service to our customers, both being our top priority. The design is the most striking aspect of Zento. Its design comes from our designers who are sensitive to fashion and are know the commercial needs of the market very well. Also, Turnstile Access Control Gate & Parking System Equipment made of well-selected raw materials.

Place of Origin:Guangdong, ChinaBrand Name:zento
Model Number:ZT-936AProduct Name:Flap Turnstile Gate
Material:304 Stainless SteelSize:420*300*980mm
Passage width:Q600mmDirection:Bi-directional
Warranty:2 YearSpecial Features:Time & Attendance
Open/Close Time:0.2sCertification:CE&ISO9001
Keyword:gate speed;flap barrier gate;gate turnstile;turnstile price

Product Description
No Touch Child Flap Turnstile Gate
Flap turnstile is the high-tech intelligent management product. It is intelligent upgraded product of Tripod Turnstile and Swing gate, with high performance, complete functions, high grade, mainly used in high-end residential, Intelligent Building, hotel, subway, dock, clubs and other high-end places.

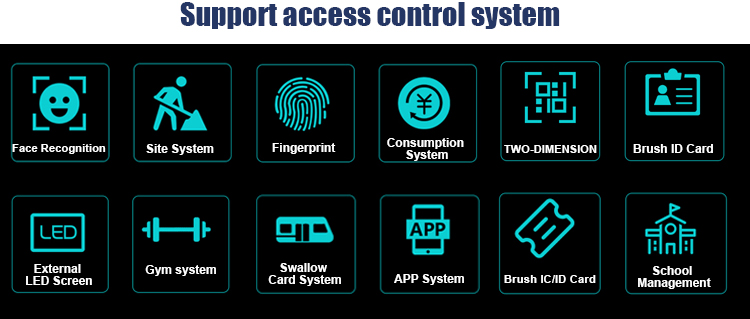

The device integrated machinery, electronics, microprocessor control and a variety of identity recognition technology. Compatible with IC card, ID card, bar code card, fingerprints and other identification equipments.
Standard Product Features:
1) With faulty self-check and alarm function, easy to maintain and use;
2) Operating buttons is built on the main control board, programmable;
3) Mechanical structure, induction of the double anti pinch function, in the process of reduction of the telescopic arm blocked,
automatic stop or in the default time motor stops working, the default delay again reset (until reset), and the intensity is very small (less than or equal to 2kg);
4) Sound, light alarm function: containing illegal intrusion, followed by the alarm;
5) Bump prevention function, if not received signal to open the turnstile, swing arm would be automatic locked;
6) Telescopic arm synchronization function;
7) With automatic reset function, after opening, within a schedule time does not pass, the system will automatically cancel the
user's access privileges, the standard is open after 5 seconds automatically reset.
8) The passage is automatically opened when power OFF, and would be automatically closed when power ON;
9) Can be connected with a wide variety of reading card equipment, receiving relay switch signal;
10) Can be a one-way or two-way to control people in and out;
11) Remote control and management can be achieved directly through management computer;

Extensible Function:
1) Counting function;
2) Case Extension, telescopic arm material selection.

Parameters
Framework
304 Stainless Steel
Dimensions
420*300*980mm
Arm length
600-900mm
Dry Contact
12V
LED indicating light
One
Card-reading window:
Two
Rated power
120W
Operating temperature
-25℃ ~ +60℃, RH ≤90%
Related humidity
≥90%RH
Comunication Interface
RS485,distance ≤1200m
Power supply
AC 220V/110V ±10% 50/60MHZ (optional)
OpeningTransit speed:
30-45persons per minute
Waterproof level
IP54
Detailed Images



Traffic Lights Guidance

Traffic direction guide with high bright led lamp.Passers can simply find the correct channel and get the verification results.

Applications
Can be widely used in the station, wharf subway , factories, office building,hotel,clubs,intelligent community,enterprisesand institution that need intelligent access management.
