Since established, our company has focused on setting up a technology development team which aims to develop and upgrade technologies to effectively manufacture ZENTO Anti-climb Touchless Motorized Access Control Three-roller Gym Full Height Turnstile. We have been constantly developing new technologies to manufacture value-added ZENTO Anti-climb Touchless Motorized Access Control Three-roller Gym Full Height Turnstile.It can be widely found in the application field(s) of Turnstile. To meet various needs of customers, Shenzhen Zento Traffic Equipment Co., Ltd. supports customized ZENTO Anti-climb Touchless Motorized Access Control Three-roller Gym Full Height Turnstile.

Place of Origin:Guangdong, ChinaBrand Name:ZENTO
Model Number:ZT-822B (Double-Channel)Product name:full height turnstile
Framework:304 Stainless SteelDimensions:1450*1350*2200 mm
Card-reading window:TwoRated power:120W
Operating temperature:-25℃ ~ +60℃, RH ≤90%Related humidity:≥90%RH
Communication Interface:RS485,distance ≤1200mPower supply:AC 220V/110V ±10% 50/60MHZ (optional)
Pass speed:30 persons per minute

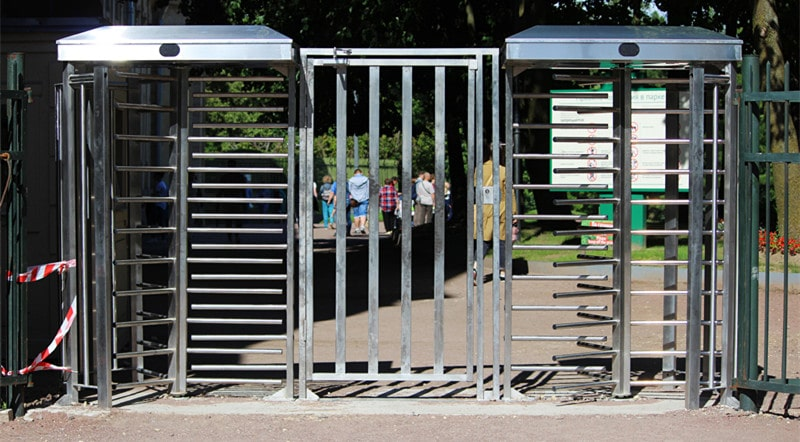

Three-roller Full Height Turnstile Gate

Full height turnstile is designed to control pedestrian entering and exiting, adopts stainless steel #304, double brushed surface treatment, dust-proof, rustproof, rainproof design, suitable for indoor and outdoor use, easy to integrate with other read/write devices, and widely use for applications like stadium, apartment, gym, museum, station, library and factory etc.

Parameters
Framework material
202/304/316 stainless steel
Housing size
1450*1300*2400mm
Length of the pole
610mm(standard)/500-700mm(optional)
Finishing
Brushed serface/polishing surface
Diameter of pole
38mm(standard)/48mm
Max tolerance of pole
80Kg
Driving force of pole
3Kg
Operation voltage
DC 24V
Operation current
3A/5A(max)
Transit speed
30-40 persons/min
Communication interface
standard RS485 interface(distance less than 1200m)
Input interface
Dry contact signal or +12V level signal or DC12V pulse signal with width of more than 100ms
Working environment
indoor, outdoor(with a tent over)
Relative humidity
90% no condensation
Warranty
2 years

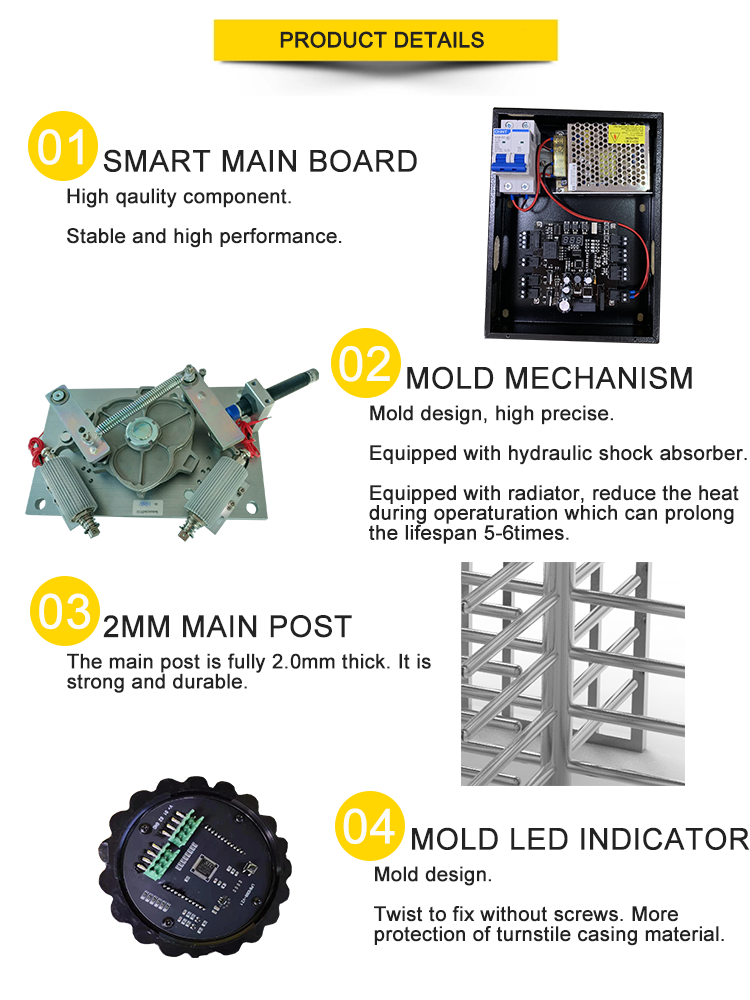

Product Details

Main Features

* The full height turnstile gate is often used for high-security access control solutions.
* The turnstile gates made of 304 stainless steel which is anti-rust, robust, rigid.
* The full height turnstile gate for Pakistan is ideal for both indoor and outdoor settings.

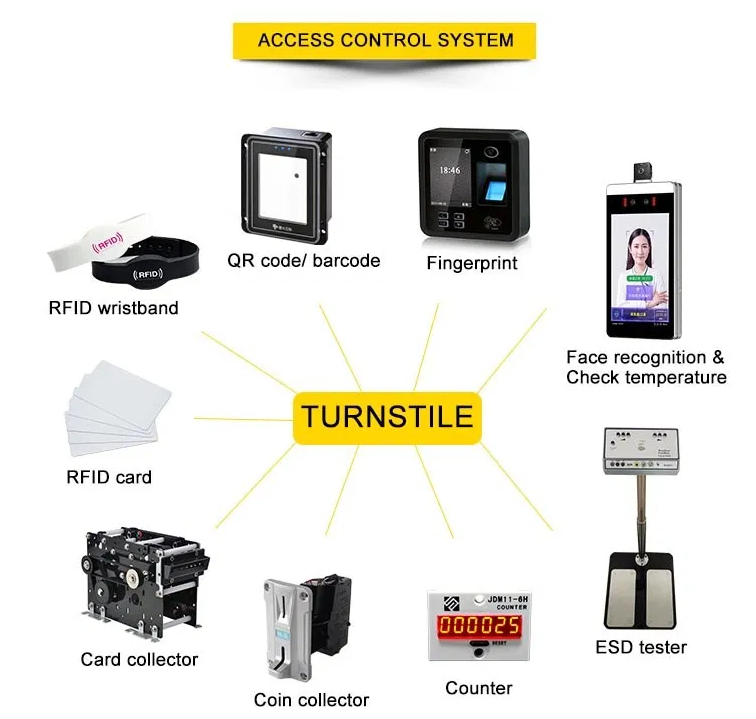

* It can be integrated with any kind of access controller system (e.g.: RFID device, Fingerprint, and Biometric device).
* The turnstile gate will open automatically when the power off, It is very safety, to meet fire-control passage requirements.
* With anti-reverse function, stop reversed direction.
* The mechanism is equipped with an automatic regulated hydraulic buffer device. No noise and impact when running.
* Self-restore function, when power on, the system will restart automatically.
* Dual-bearing device, keeping the gate in balance when there is an external force.
* Single directional or Bi-directional is optional.
* With LED indicator light.
* Affordable full height turnstile price in Pakistan.

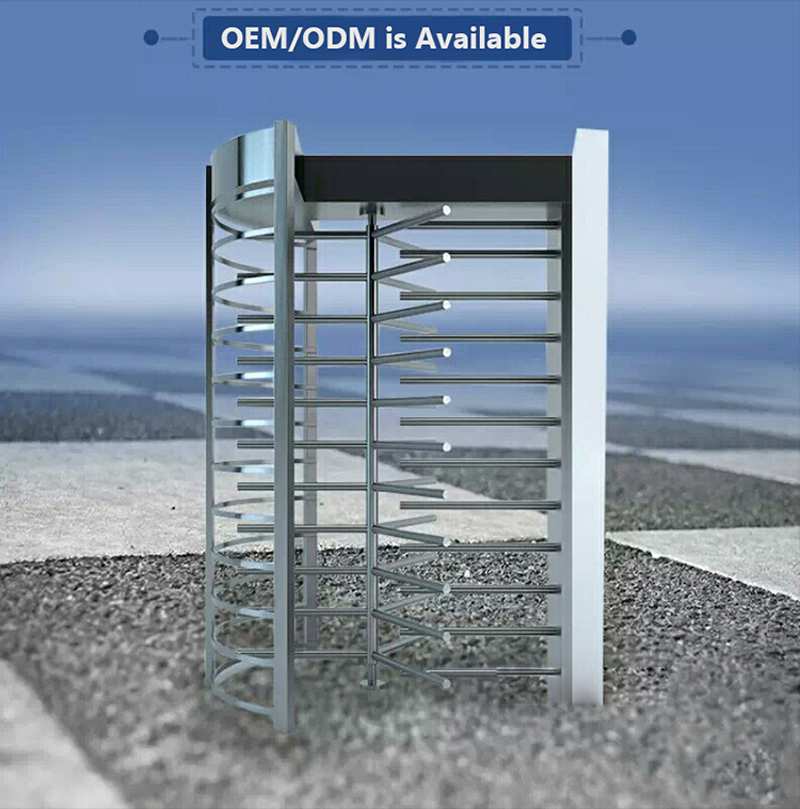

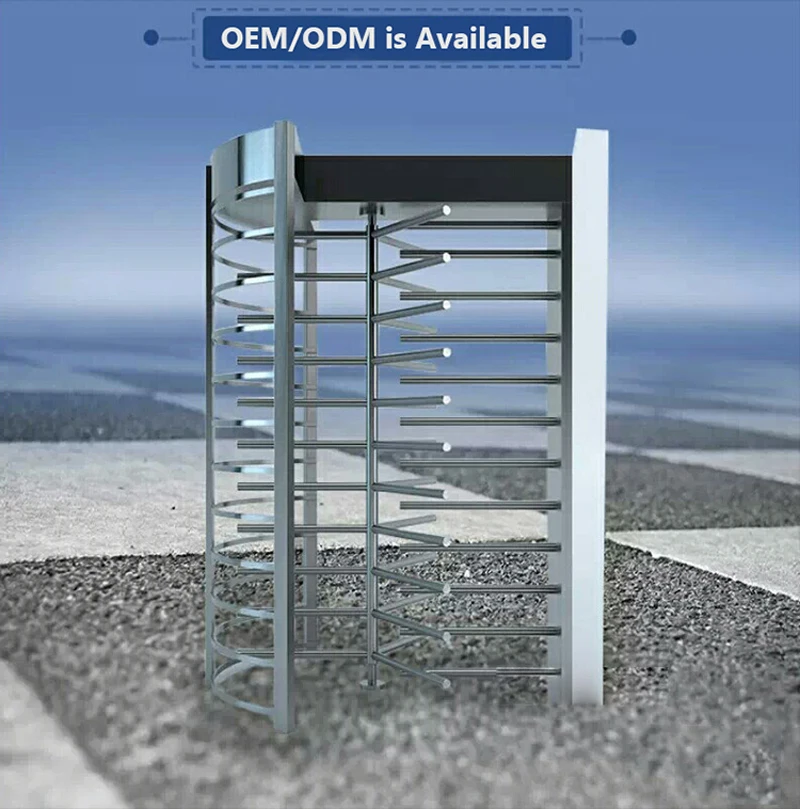

* Can be customized to meet the different requirements for different places.
* Through the control board’s built-in small keyboard, with programmable devices to manage operating status.

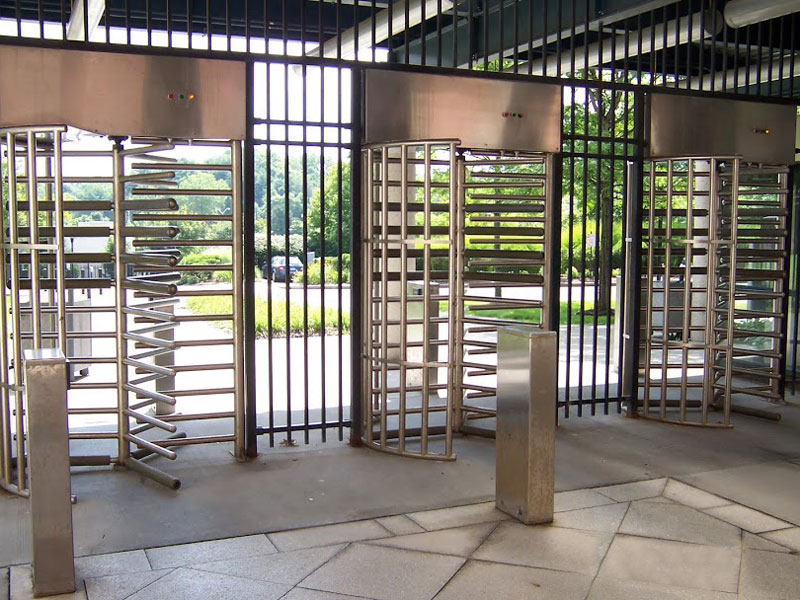

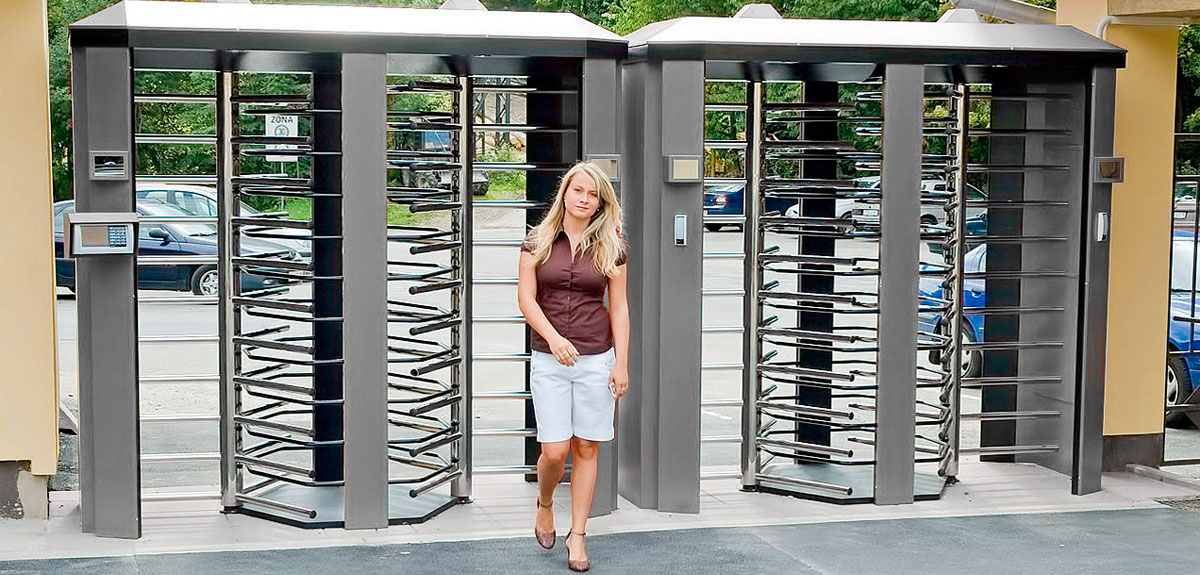

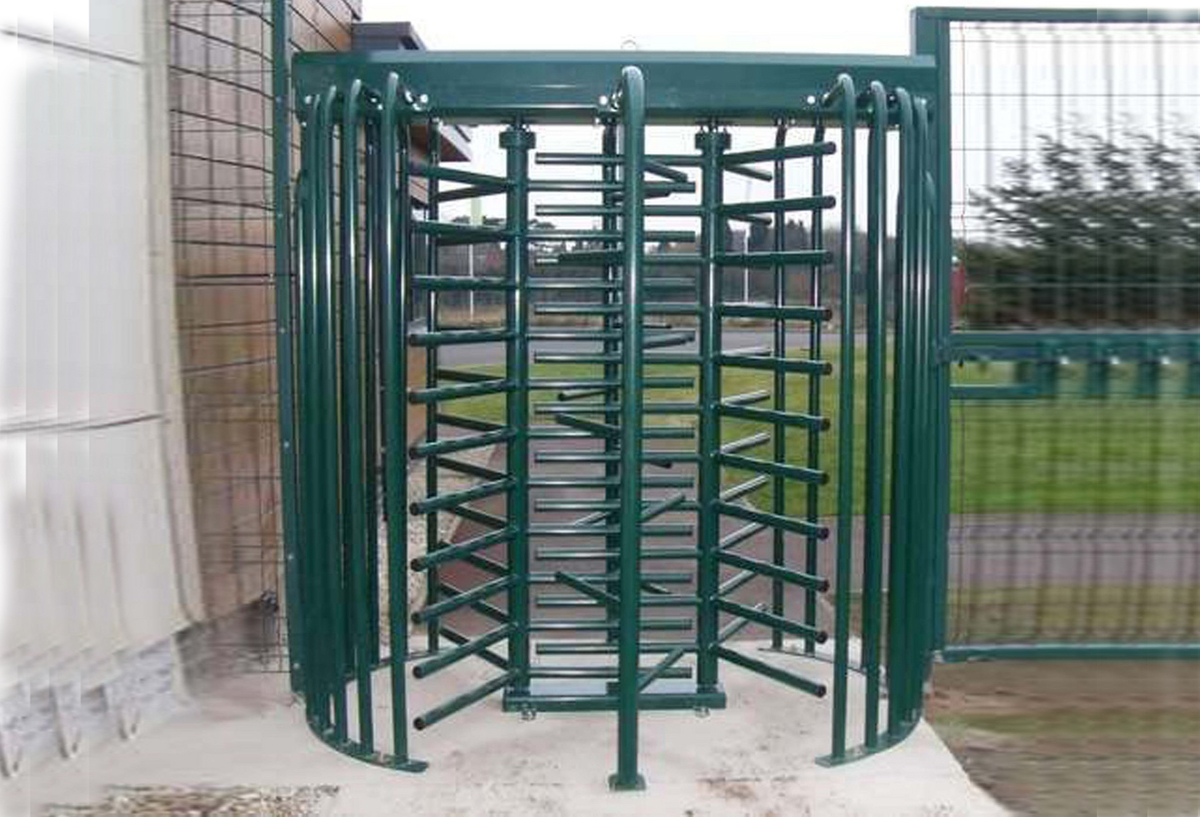

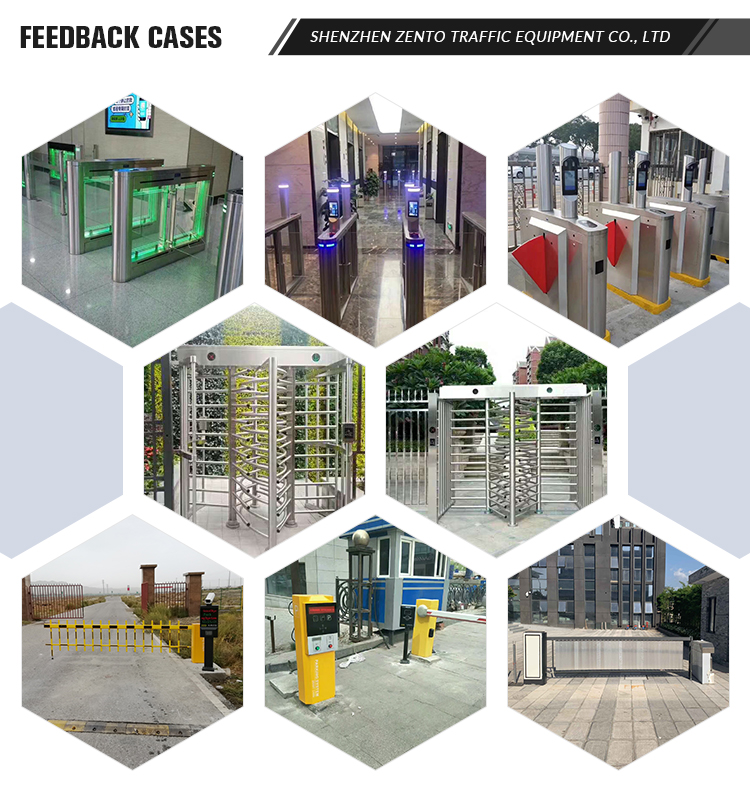

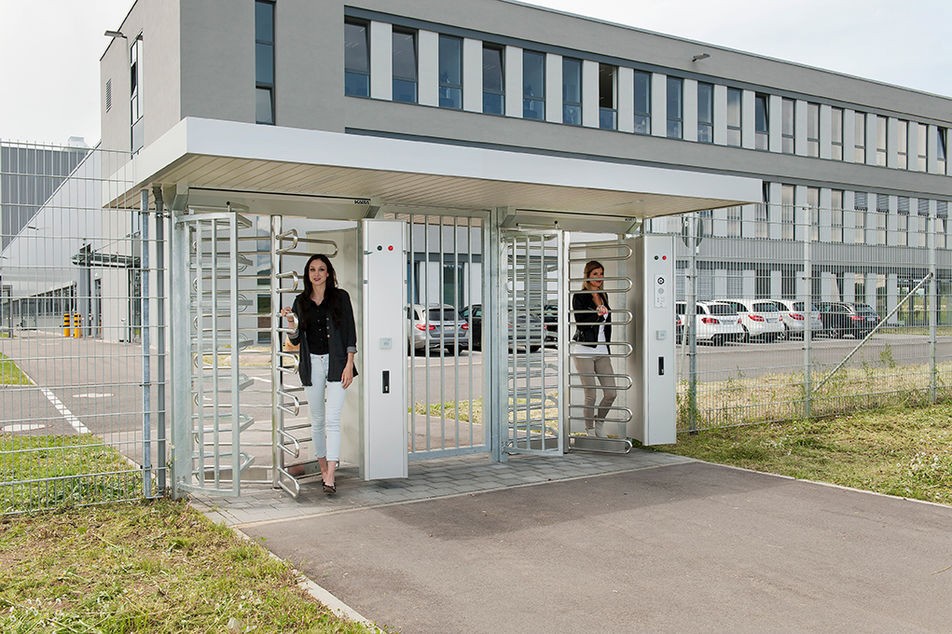

Project Show
