Flap Turnstile Barrier
VR
  • Products Details

As Shenzhen Zento Traffic Equipment Co., Ltd. steps into a more competitive market, we know that the only way to keep us ahead of other competitors is to enhance our R&D strength, improve technologies, and develop new products. Our employees are skilled at utilizing tools and technology to manufacture Zento Factory Customized High-end Front Door Security Face Recognize Access Control Flap Barrier Gate Turnstile Price.The product has an enormous application range and now is widely used in the field(s) of Turnstile. Since the beginning,Shenzhen Zento Traffic Equipment Co., Ltd. have been sticking to the business principle of 'integrity' and bearing the mind of 'offering customers the best of us'. We are fully confident that we will make a great success in the future.

Place of Origin:Guangdong, ChinaBrand Name:zento
Model Number:ZT-936AProduct Name:Flap Turnstile Gate
Place of origin:Shenzhen ChinaMaterial:304 Stainless Steel
Size:1200*300*980mmPassage width:Q600mm
Direction:Bi-directionalWarranty:2 Year
Special Features:Time & AttendanceCertification:CE&ISO9001
Keyword:gate speed;flap barrier gate;gate turnstile;turnstile price

Product Description

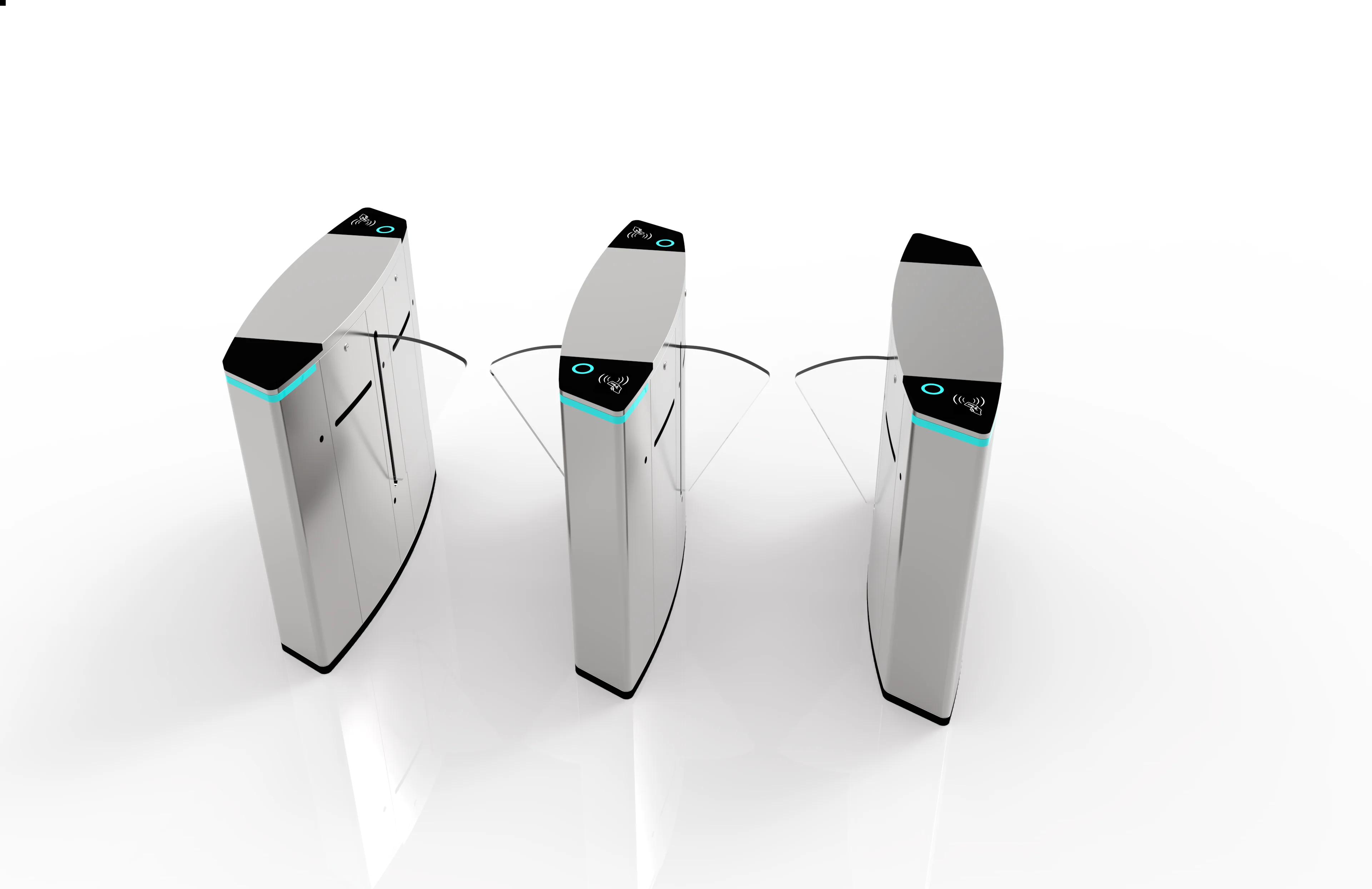

High-end Flap Turnstile Gate
Flap turnstile is the high-tech intelligent management product. It is intelligent upgraded product of Tripod Turnstile and Swing gate, with high performance, complete functions, high grade, mainly used in high-end residential, Intelligent Building, hotel, subway, dock, clubs and other high-end places.
The device integrated machinery, electronics, microprocessor control and a variety of identity recognition technology. Compatible with IC card, ID card, bar code card, fingerprints and other identification equipments.
Parameters
Framework
304 Stainless Steel
Dimensions
1200*300*980mm
Arm length
600-900mm
Dry Contact
12V
LED indicating light
One
Card-reading window:
Two
Rated power
120W
Operating temperature
-25℃ ~ +60℃, RH ≤90%
Related humidity
≥90%RH
Comunication Interface
RS485,distance ≤1200m
Power supply
AC 220V/110V ±10% 50/60MHZ (optional)
OpeningTransit speed:
30-45persons per minute
Waterproof level
IP54
Standard Product Features:
1) With faulty self-check and alarm function, easy to maintain and use;
2) Operating buttons is built on the main control board, programmable;
3) Mechanical structure, induction of the double anti pinch function, in the process of reduction of the telescopic arm blocked,
automatic stop or in the default time motor stops working, the default delay again reset (until reset), and the intensity is very small (less than or equal to 2kg);
4) Sound, light alarm function: containing illegal intrusion, followed by the alarm;
5) Bump prevention function, if not received signal to open the turnstile, swing arm would be automatic locked;
6) Telescopic arm synchronization function;
7) With automatic reset function, after opening, within a schedule time does not pass, the system will automatically cancel the
user's access privileges, the standard is open after 5 seconds automatically reset.
8) The passage is automatically opened when power OFF, and would be automatically closed when power ON;
9) Can be connected with a wide variety of reading card equipment, receiving relay switch signal;
10) Can be a one-way or two-way to control people in and out;
11) Remote control and management can be achieved directly through management computer;

Extensible Function:
1) Counting function;
2) Case Extension, telescopic arm material selection.

Detailed Images



Traffic Lights Guidance

Traffic direction guide with high bright led lamp.Passers can simply find the correct channel and get the verification results.

Applications
Can be widely used in the station, wharf subway , factories, office building,hotel,clubs,intelligent community,enterprisesand institution that need intelligent access management.
