Full Height Turnstile
VR
  • Products Details

Turnstile Secure Access Control Fingerprint Time Attendance System One way Bidirection Full Height Child Turnstile is highly recognized by more and more people for its wide and useful application(s) in Turnstile. Turnstile has passed a series of international quality assurance system and product safety certification . Our expertise and technologies enable tailor-made solutions for every customer.

Place of Origin:Guangdong, ChinaBrand Name:ZENTO
Model Number:ZT-822AProduct name:full height turnstile
Framework:304 Stainless SteelDimensions:1450*1350*2200 mm
Pass speed:30 -45 persons per minuteCard-reading window:Two
Thickness:2.0mmNormal life span:More than 3 million times
Time for opening:0.2 secondOperating temperature:-25℃ ~ +60℃, RH ≤90%
Power supply:AC 220V/110V ±10% 50/60MHZ (optional)

Access Control Tripod Arms

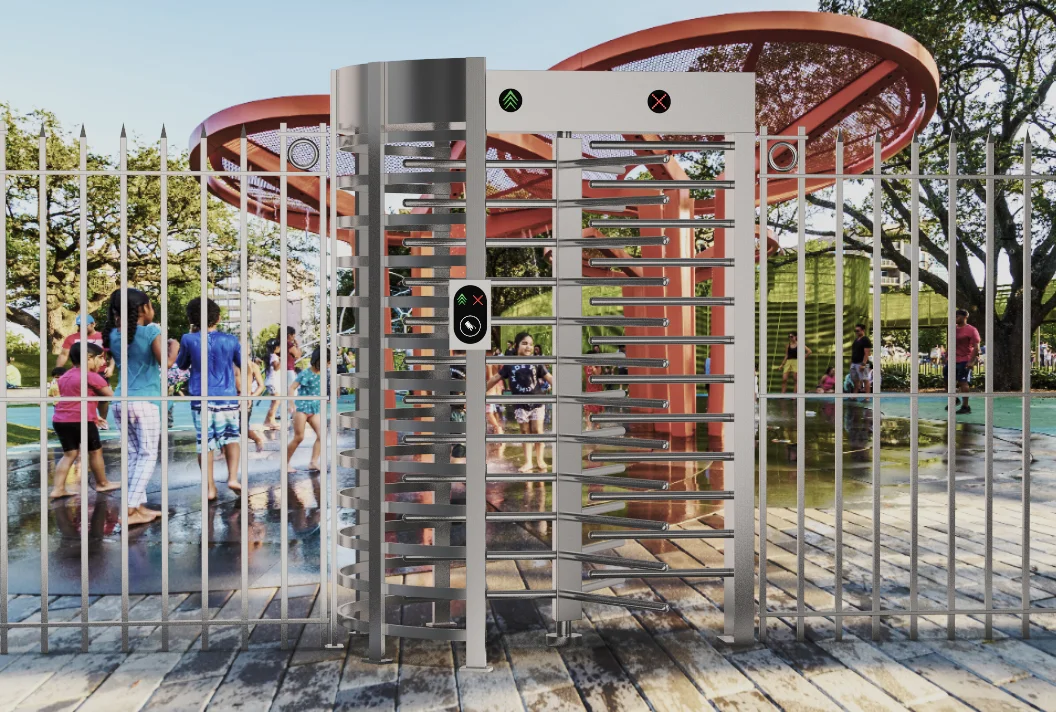

Full Height Child Turnstile Gate

Full-height turnstile is integrated with mechanism, electric and micro-controller and various kinds of identification technologies, compatible with IC, ID, barcode, fingerprint reader and so on to prvoide intelligent control and management to flow control. This turnstile series is made of 304 stainless steel, which is rustproof, durable, and can provide orderly passage to people, anti-illegal entry or exit. It can be widely used in some high security places, such as prison, stadium, parking system area , and so on...

Main Features

1.With LED indicator light.
2. Can be used with access control systems, electronic ticket system, face recognition systems, static tester and other equipment.
3.With anti-reverse function, stop reversed direction.
4. Through the control board's built-in small keyboard, with programmable devices to manage operating status.
5. With automatic reset function, if user does not pass within specified period of time, the system will automatically cancel permission to pass, the reset time is adjustable (from 5 s to 60 s, and default time is 10S).
6. Can be single direction or double direction.
7. Can be remote controlled and managed by computer directly.
8. The size/design of main frame can be customized.
9. Can be adjusted to meet the requirements in different places.

Parameters
Framework
304 Stainless Steel
Dimensions
1450*1450*2300 mm
Card-reading window:
Two
Rated power
120W
Operating temperature
-25℃ ~ +60℃, RH ≤90%
Related humidity
≥90%RH
Communication Interface
RS485,distance ≤1200m
Power supply
AC 220V/110V ±10% 50/60MHZ (optional)
Pass speed
30 persons per minute
Compatible with all kinds of access control system
Product Details

Material

SUS304 framework

SUS304 framework 1.5mm thickness material. Grinding/drawbench surface,hard-wearing quality.

Main Part


DC Brushless Motor, no maintenance all the of life, No Attrition, Low-noise, High Intelligence China good price high quality full height turnstile with RFID access control.


Powerfull smart board

It will lock automatically if passage through turnstile is not completed within per-set time,the set time can be adjusted via parameter change.


Reading Mode


IC/ID card ,fingerprint ,face recognition ,bar code ,QR code,Iris recognition etc.

Project Show
Why Choose Zento
We Have CE &ISO 9001 Verified Certifications
We Are 24h Factory Direct Sales
We Support OEM &ODM Service
