Hydraulic Bollard
VR
  • Product Details

As a driven company,Shenzhen Zento Traffic Equipment Co., Ltd. has been developing products on our own on a regular basis, one of which is Turnstile Access Control Gate & Parking System Equipment.It is the newest product and bound to bring benefits to customers. High-end technologies helps us ensure IP68 Remote Control Access Control Street Barrier School Front Door Security Gate Retractable Hydraulic Bollards quality, improve manufacturing efficiency, and reduce manpower input. It has extensive uses in the field(s) of Traffic Barrier. Shenzhen Zento Traffic Equipment Co., Ltd. will continue to work hard to improve our capabilities in R&D strength and technologies because they are the core competitiveness of our company. We aim to provide customers with the most satisfying and cost-effective products with our full efforts.

Place of Origin:Guangdong, ChinaBrand Name:Zento
Product name:Automatic Rising Hydraulic BollardsBrand name:Zento
Material:304 Stainless SteelRaising/lowering speed:3-6s(adjustable)
Diameter:219mmraised height:600-900mm(optional)
Working temperature:-30℃~+75℃Power Supply:220V/380V
Thickness:6mmKeyword:LED Light,barrier access control,barrier traffic


Products Description

Retractable Auto Rising School Hydraulic Bollards

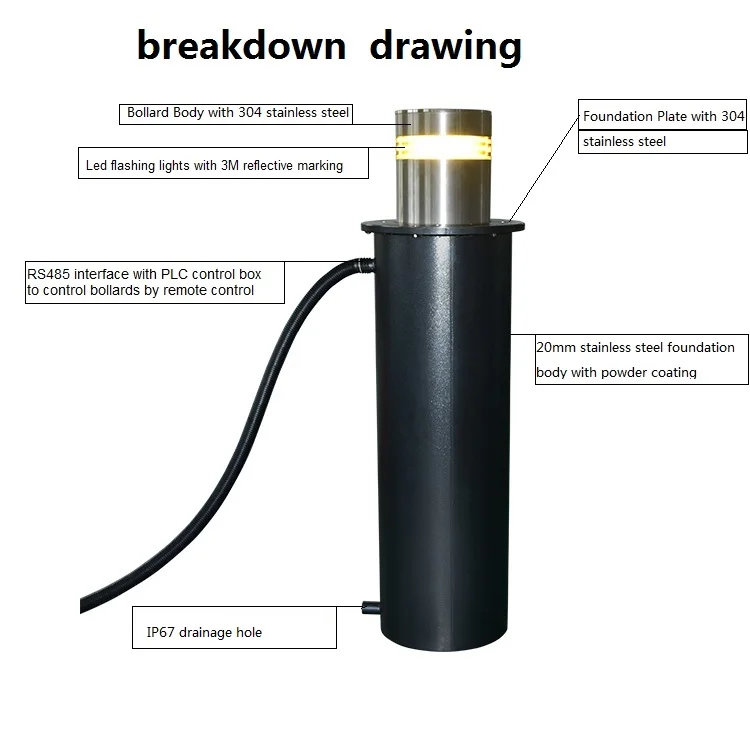

Hydraulic automatic bollard mainly consists of oil pump unit and steel frame construction. It use soil pressure as dynamic to realize the rise/fall of bollard.As a moving device, it is usually installed at vehicle entrance/exit. It rises to block the vehicle and falls the ground level to authorize free passing.
Color
Silver
Raising/lowering speed
3-6s(adjustable)
Diameter
219mm
raised height
600-900mm(optional)
Material
304 stainless steel
Control mode
remote control(<50m)
system control
hydraulic and electric control
Working temperature
-30℃~+75℃
Embedded cylinder depth
1100mm
Lamp belt
LED lamp(Acrylic light circle)
Power Supply
220V/380V
thickness
6mm
weight
100-155kg
anti-collision levels
K6
service life
3 million times
Drainage mode
natural drainage+External drainage system

Main Features

*Durable, high load-bearing design
*Microprocessor/PLC Control for easy integration
*Can link with road-blockers and other access control hardware
*Manual operation in the event of power failure
*Low pressure hydraulic drive technology
*Remote control from up to 30 meters away
*Sealed housing eliminates dust and moisture
*LED warning lights for night time operation
*Low noise pneumatic hydraulic drive unit
*3 second lift/lower time
*Energy efficient design

Products Details

One control box can control 8 pcs bollards

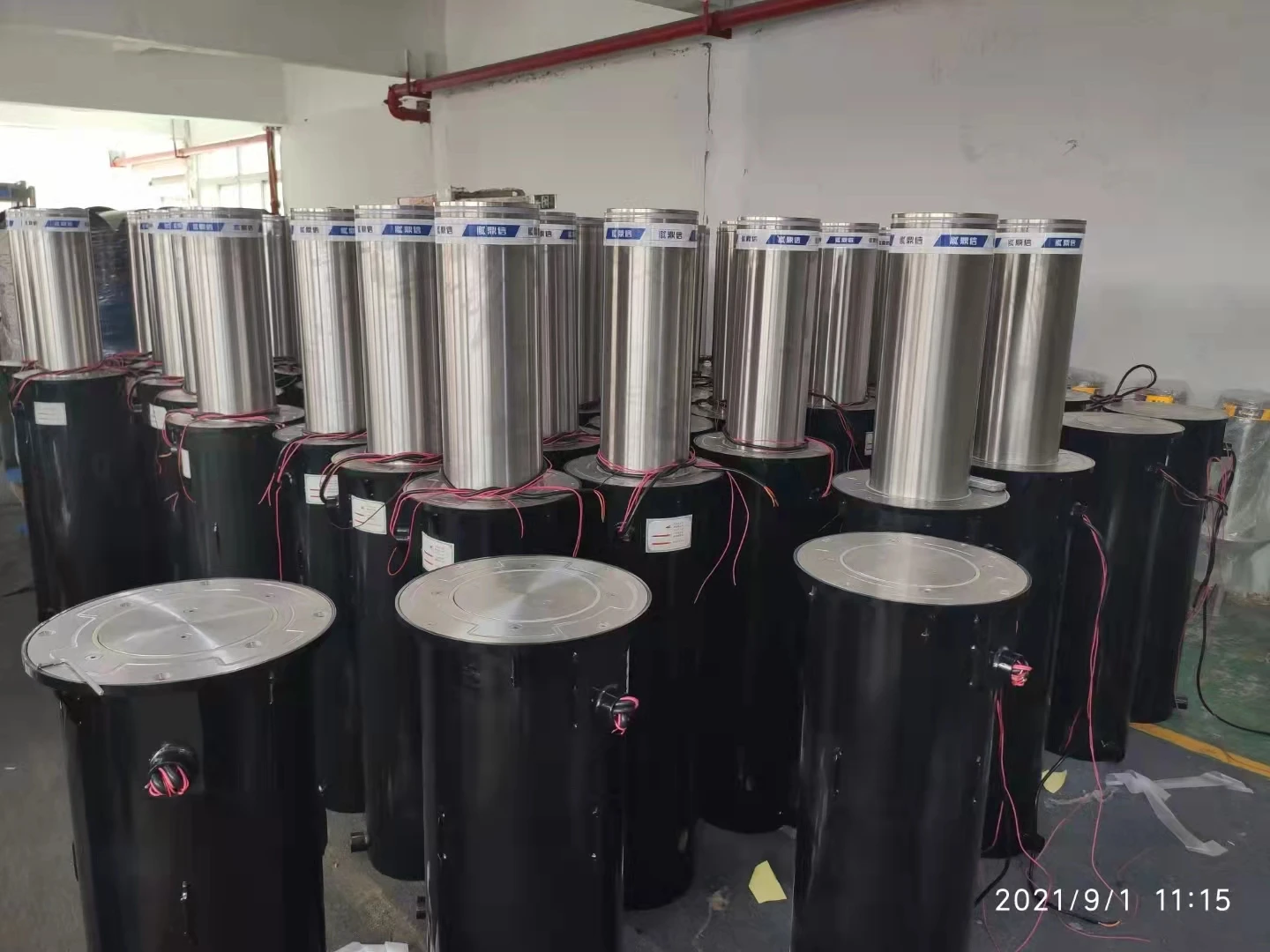

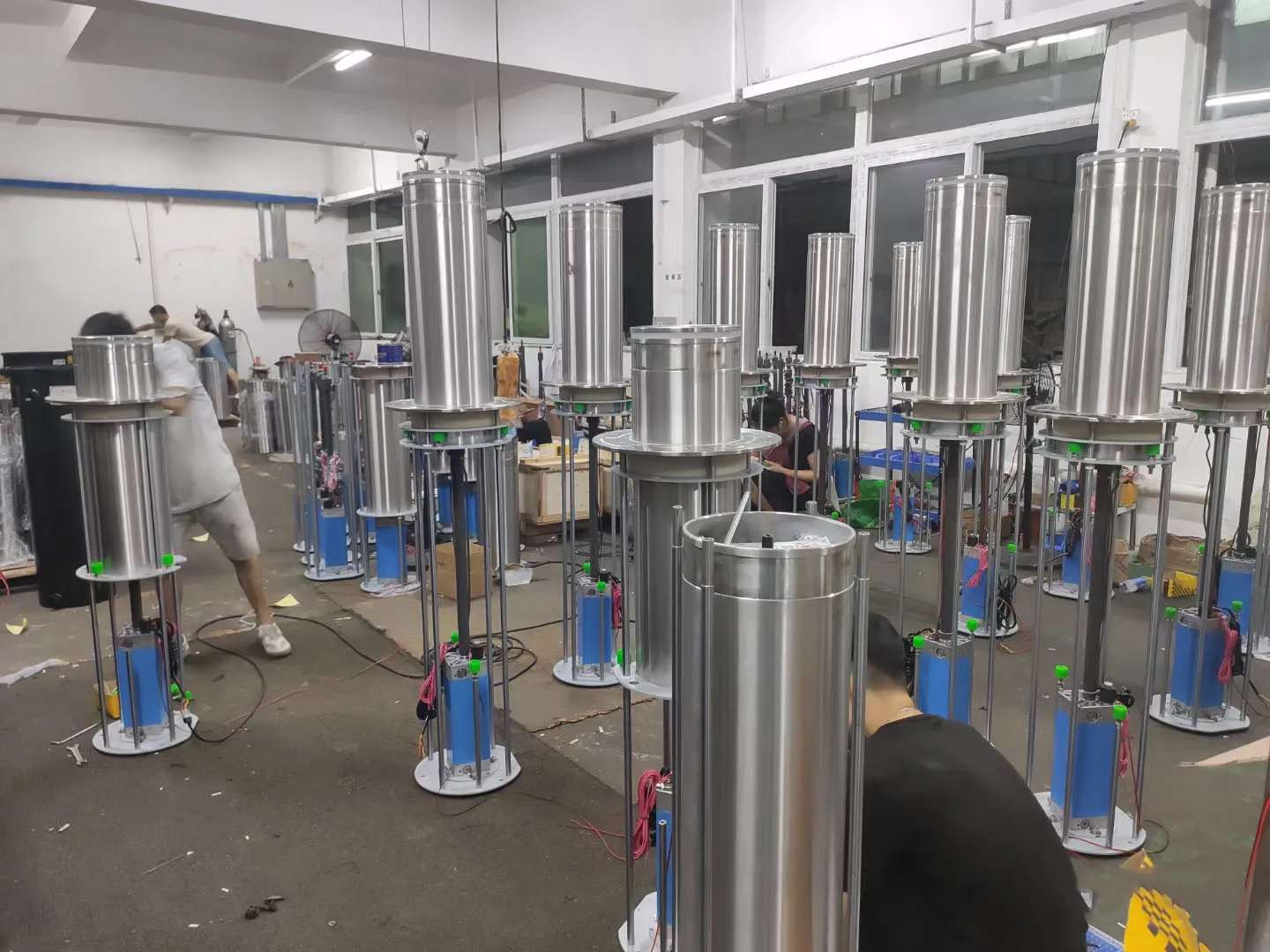

Product Processing

Installation steps

1. Cut the ground surface and excavate,the foundation base need around 800mm and 1130mm.
2. Fill the bottom with 20-30mm pebble and sand as water seepage stratum.
3. Embed the bollard,make sure the head of the bottom is at the same level with the horizontal ground.
4. Install the wiring tube and drainage pipe.Make sure each wire should be secured by waterproof tape to avoid water vapor permeated into the wire.
5. Power on to test. Make sure the bollards can work well.Then cover the head of the bollard to avoid the concrete dirty it.All the drainage pipe hole need to be covered by structural adhesive.
6. Pour the concrete into the foundation base.Be careful to avoid the movement of bollard.
7. Tidy up the bollard head and ground surface, complete installation
containers and bottles in all shapes.
Drainage method:
1. Use artificial drainage or electric pumping mode, need to dig a small pool near the column, regular manual and electric drainage.
2. Use the natural drainage mode to connect directly to the sewer.
3. At the installation junction (two), dig out two square grooves square grooves: (user-defined)mm (L)* 1000mm(W)* 1330mm(H)

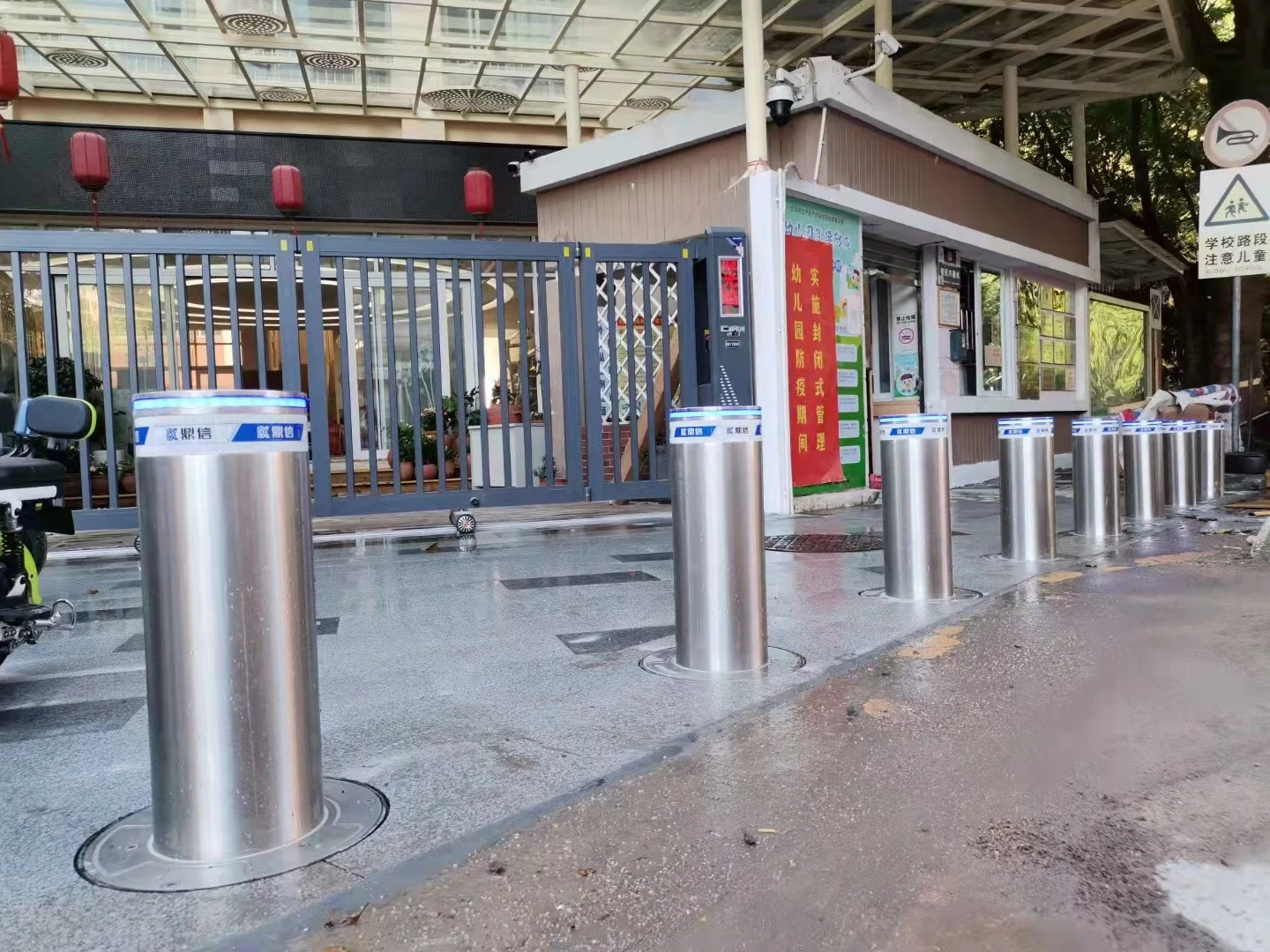

Project show
Application
Scientific and educational units: schools, computer rooms, research centers, libraries, etc.;
Leisure and entertainment venues: parks, scenic spots, pedestrian streets, municipal squares, playgrounds, etc..
Traffic: bus station, railway station, subway station, airport, etc..
Business service places: hospitals, banks, hotels, clubs, commercial buildings, etc..
Office space: large office buildings, public inspection units, hydro power and oil and gas units and other government agencies.
