Full Height Turnstile
OEM & ODM custom services for all kinds of turnstile and parking system.
Language
OEM & ODM custom services for all kinds of turnstile and parking system.
Shenzhen Zento Traffic Equipment Co., Ltd. devotes many years to developing and producing superb High class hydraulic full height turnstile mechanism turnstile parts as well as offering professional customer service. It has been proved that techniques can efficiently improve work efficiency and ensure product performance.It has extensive uses in the application field(s) of Turnstile. Influenced by the market trends and customers' requirements, the design of Turnstile Access Control Gate & Parking System Equipment is made to be unique. It adopts the raw materials that have been tested to conform to the quality standards, which guarantees its quality from the source.
| Place of Origin: | Guangdong, China | Brand Name: | ZENTO |
| Product Name: | full height turnstile mechanism | Material: | 304 Stainless Steel |
| Net weight: | 15kg | Gross weight: | 20kg |
| Mechanism: | heavy duty solenoid | Power supply: | AC220C±10v,50/60hz |
| Communication: | RS-485 | passing speed: | 30-40persons /mins |

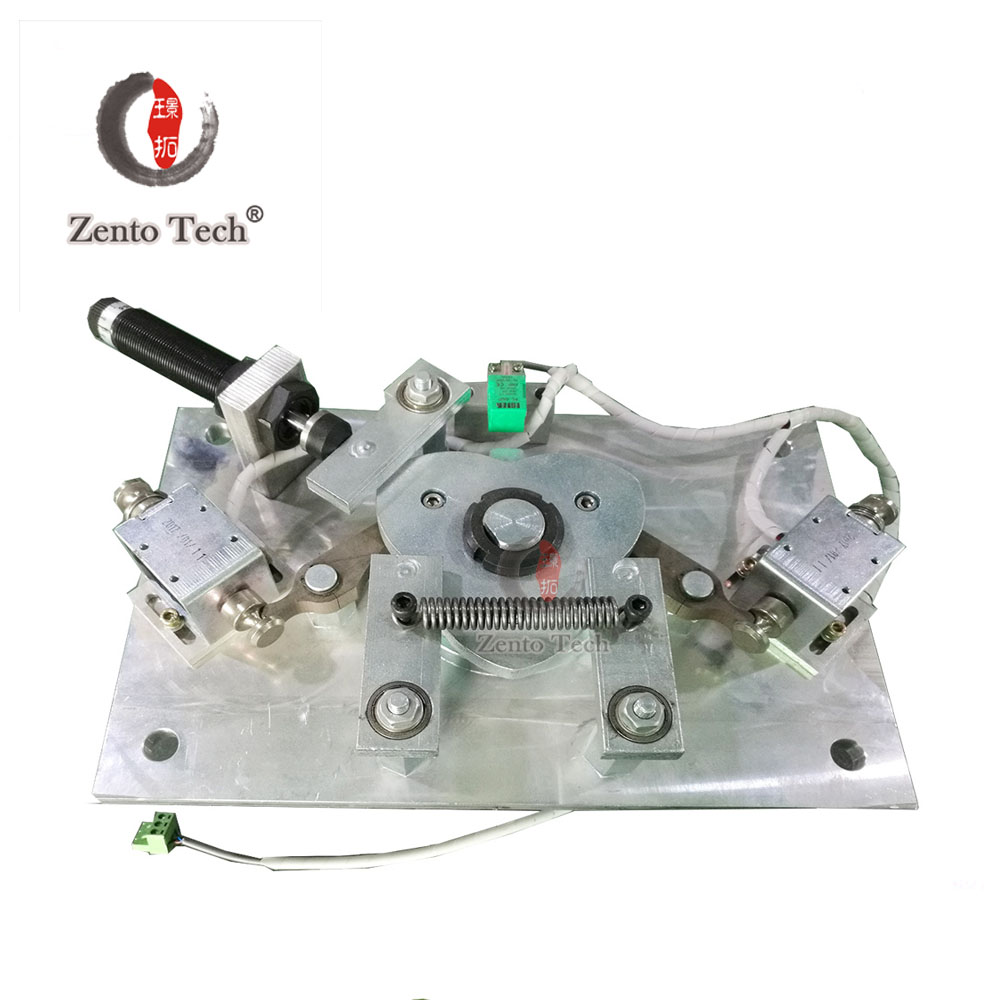

High class hydraulic full height turnstile mechanism turnstile parts
Technical Parameters
1 | Power | AC220C±10V,50/60HZ; |
2 | Machine core | Semiautomatic |
3 | Operating Temperature | -45℃-60℃ |
4 | Relative Humidity | ≤95%, No Condensation |
5 | Passage Width | ≤600mm |
6 | Passing Speed | 45persons/min |
7 | Mechanism | solenoid Mechanism |
8 | Input Connection | +12V Level Signal or Pulse Wide>100ms DC12V pulse, Current>10Ma |
9 | Communication Connection | RS485 Communication |
10 | Material | Stainless steel 304,thickness is no less than 1.3mm |
11 | Communication Distance | 1200M
|
12 | Running life | 3 Million(Continuous Opening and Closing Operation) |
13 | Protect level | IP54 |
14 | Size | 1400*1500*2300mm(Vertical house); custom made as demand |
15 | Colour | SSB(US32D)- Stainless Steel Brushed / Powder Coating(Optional) |
16 | Operation Place | Subway Station, Hoverport,Tourism Sports,Exhibition, Swimming Hall,Residence Area,Enterprise’s Entrance and Exit Attendance,Gateway Guard,Charge Management,Special Access Control |
Functions& Features
1.Running stable without noise and mechanical impact
2. The passing person number of the persons can be set
3.Several ways of working molds for you to choose
4. Bi-direction, or one direction permitted, one forbidden, or one direction charged, one for free, and all the working molds set by the buttons in the main control board
5.Beam falling and lifting can be controlled in far distance so to satisfy the special requirement of the users and the request of fire protection.
6. Direction-guide lights in the turnstile to tell you whether the direction to go or not
7.The standard electrical interface connected with various kinds of reader and writer equipment, RS485 Communication interface, Relay interface, Level interface
8.All the functions realized in one integration machine and controlled and managed by the computer in the far distance
