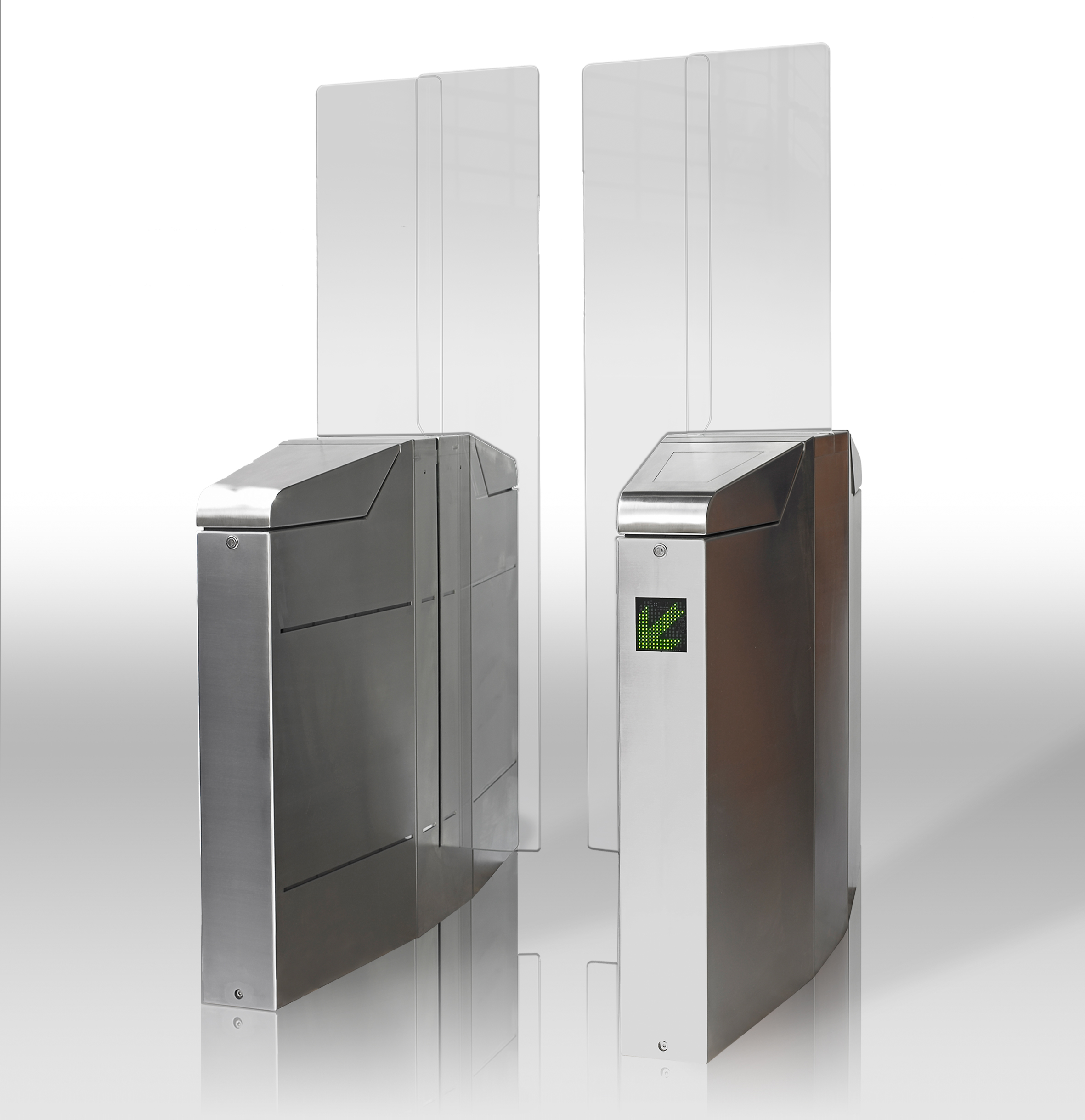

As one of the most popular products, intelligent management of pedestrian access control two Lane Security Full Height sliding Turnstile wins increasing popularity. It is designed in accordance with the national standard. Shenzhen Zento Traffic Equipment Co., Ltd. will keep focusing on customers' needs and keep up with the industry trends so as to develop the products that better satisfy customers. Our wish is to cover a wide range of global markets and win wider recognition from customers all over the world.
| Place of Origin: | Guangdong, China | Brand Name: | ZENTO |
| Model Number: | ZT-906A | Size: | 1200*330*980mm |
| Matrial: | 304 stainless steel | Thickness: | full 1.0-1.5mm |
| Weight: | 70kg (Tripod Turnstile) | Passage width: | 550mm |
| Testing: | 3 million no fault | Driving voltage: | 12V |
| Input: | 220V,50HZ or 110 V ,50HZ | Environment: | -25~+70 |
| Warranty: | 1 Year | | |
The unique barriers feature provides a fail-safe safety solution in case of an emergency or power failure, providing egress in case of crisis evacuations.All the gates models are space efficient security barriers, with a compact design, yet offer sufficient space to integrate any access control system.

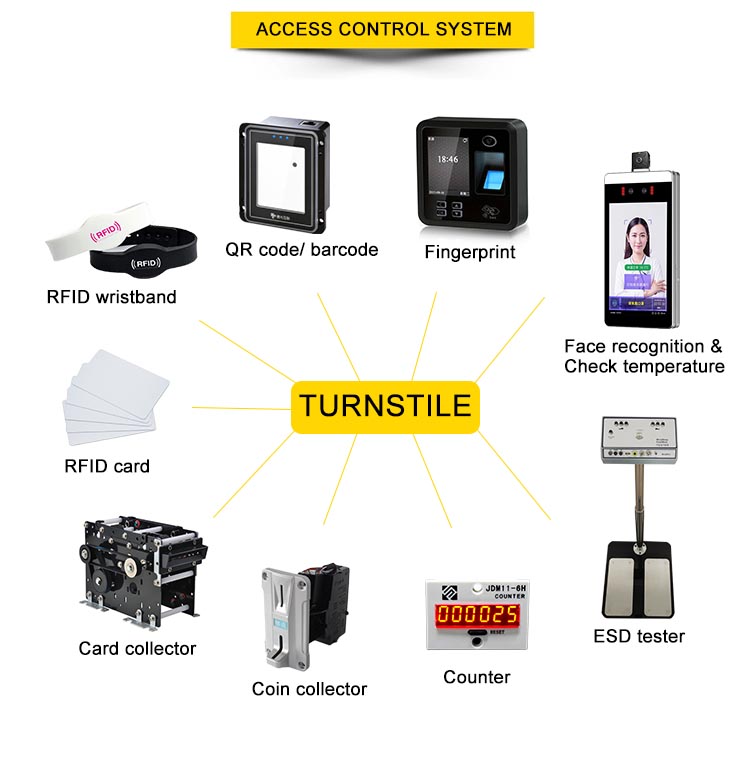

They can be mounted with display, passage counter, card reader, token operation traffic lights, command console, alarm system against unauthorized entries, interfaced with a PC through a RS232 (RS485,TCP/IP)line.Durability with minimal maintenance means years and millions of trouble free passages.
The gate creates a secure environment in. for example, a reception area. Our gates are used in applications including stadiums and arenas, perimeter and interior security, recreation and amusement parks, retail crowd control, transit fare collection and lobby access control.
Framework | 304 Stainless Steel |
Dimensions | 330*1218*980 mm |
Passage wideth | 850mm |
LED indicating light | One |
Card-reading window: | Two |
Rated power | 120W |
Operating temperature | -25℃ ~ +60℃, RH ≤90% |
Related humidity | ≥90%RH |
Comunication Interface | RS485,distance ≤1200m |
Power supply | AC 220V/110V ±10% 50/60MHZ (optional) |
OpeningTransit speed: | 30—45persons per minute |
Closing Transit speed: | 25-30 per minute |
Founction:
1. Functions of breakdown self-checking and alarm warning, very convenient for customers’ maintenance and use.
2. Program operation mode of equipments through the little button inside the main board.
3. Double Anti-Pinch function from both machine structure and induction. Stops automatically if there is something in the way during the return /rest of the doors. If there is default time delay, it will have its second return (till it comes back to where it should be), and the force is very weak
4. Anti-rushing function: without having received the signal of opening up, the doors lock automatically.
5. Doors can be adjusted into synchronization (only for double-locks)
6. Automatic returning/resetting function: when the barriers open up, if people do not pass by within the time allowed, system will cancel the right of pass for this time. 7. Adjust it to normal open or normal closed to meet the different requirements of different fields.
7. Can be linked to many kinds of card-reading equipments and work when it has received the signal of electricity relay switch.
8. One-way and two-way in and out control of passer
9. Carry out distant control and management by directly operating computer.
10. Automatic returning /resetting when there is time delay. Normally speaking, it returns/resets five seconds after its opening.
11. When the electricity is cut off, the access opens automatically, and closes automatically when the electricity is linked.Meet the requirements of fire-fighting. 13. Sound and lights alarming: including break-in and opposite direction intrusion,and so on.
12. Counting function (optional)
13. Anti-Pinch function (four pairs of infrared)
14. Accurate logical judgment, Irda returning function (four or six pairs).
15. Speech output, human voice warning the right passing. (Optional

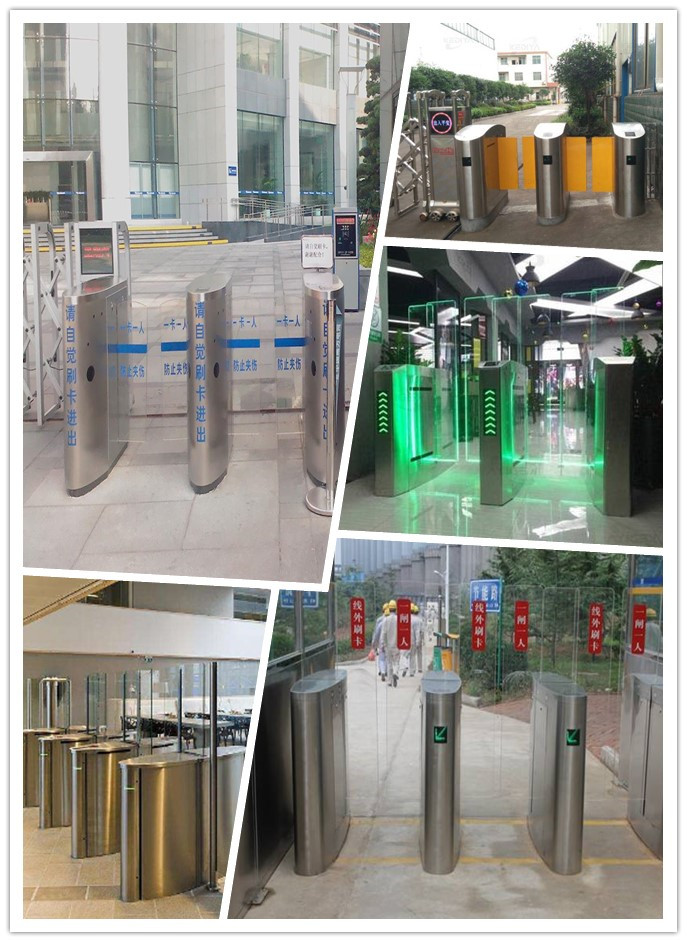

Sliding gate turnstile is arm at intelligent management of pedestrian access control, this kind of model often use in luxury office building, Luxury residential, subway, star hotel, and some other High-grade places.
1.Ship 3-5 days after order,Delivery time can be negotiated2.We have our own factory and can support customization
3.High-quality products
4.One years lifetime maintenance.We will provide one-year after sales service
5.Provide good after-sales
6.We have a good team
