Flap Turnstile Barrier
VR
  • Products Details

Thanks to the efforts of our staff,Shenzhen Zento Traffic Equipment Co., Ltd. can launch our High Security Anti-pinch Kids Turnstile Face Recognize Access Control Flap Barrier Turnstile release meeting as scheduled. Our Turnstile is supplied with a competitive price . The technology greatly improves product performance and accelerates the manufacturing process.It has a considerably expanded application range and is popular in the field(s) of Turnstile. Thanks to the multiple characteristics that have been tested by our QC inspectors,Turnstile Access Control Gate & Parking System Equipment has a wide application in different fields mainly including Flap Type Turnstile.We hold a firm belief that the broad application of the product will drive the industry to develop and advance rapidly.

Place of Origin:Guangdong, ChinaBrand Name:ZENTO
Model Number:ZT-962A(Single-motor)Framework:304 Stainless Steel
Dimensions:1200*280*900 mmPassage wideth:600mm(Customized)
Direction:Bi-directionalComunication Interface:RS485,distance ≤1200m
Power supply:AC 220V/110V ±10% 50/60MHZ (optional)OpeningTransit speed:30-45persons per minute
Operating temperature:-25℃ ~ +60℃, RH ≤90%MCBF:over 5,000,000
Weight:75kg

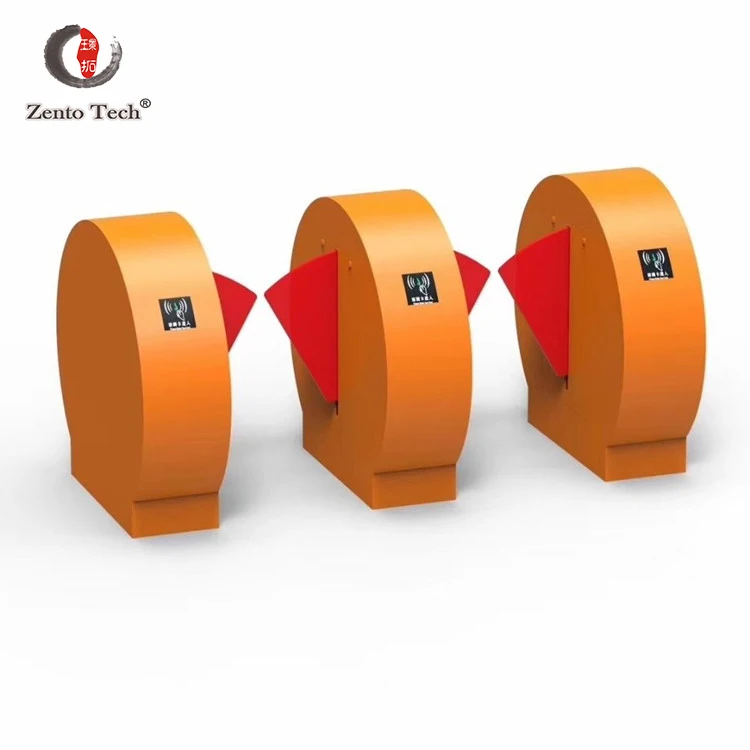

Anti-pinch Flap Barrier Turnstile
Reliable and durable, low noise and stable operation
Gate open automatically when power off to the request of fire protection,
The wing gate installed Infrared sensor interfaces, could be expanded to Infrared testing function.
Breakdown Self-checking and alarm indication, easy for maintenance and using;
Passage in both directions electronically controlled
Automatically reset function
Compatible with All Kinds Access Control System
Parameters
Material
304 Stainless Steel
Dimensions
1200*280*900 mm
Arm length
500-900mm
Dry Contact
12V
LED indicating light
One
Card-reading window:
Two
Rated power
120W
Operating temperature
-25℃ ~ +60℃, RH ≤90%
Related humidity
≥90%RH
Comunication Interface
RS485,distance ≤1200m
Power supply
AC 220V/110V ±10% 50/60MHZ (optional)
OpeningTransit speed:
30—45persons per minute

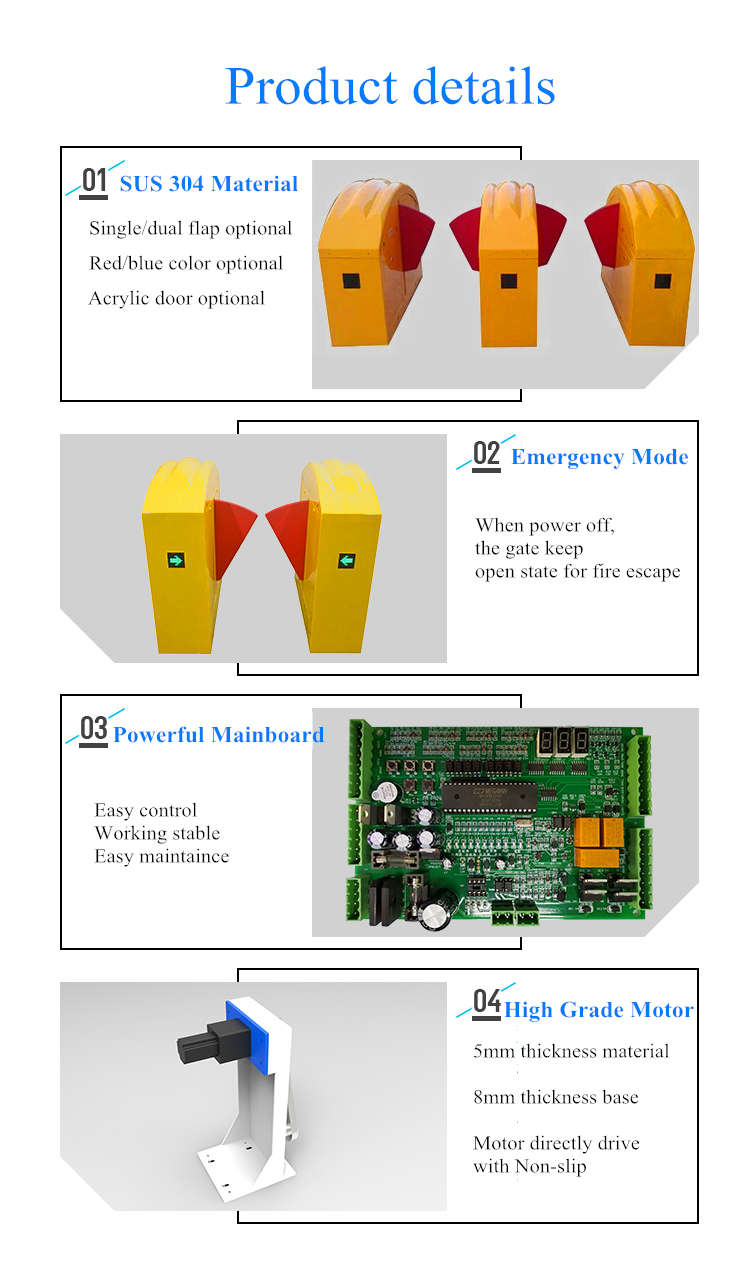

Product Details
1. working method can be set by the buttons on the main panel
2. Anti-pinch, anti-collision. If there is block during return of gate, motor stops working automatically. Reset again after a
default delay, the force 2Kg.
3. Anti-illegal in, anti-intrusion, auto close for reverse direction.
4. Anti-collision, gate closes when no valid signal is given.
5. Protection functions for gate, gate open to prevent motor from being damaged if there is outer force collision.
6. Gates can be synchronous
7.Auto-reset. If not go through in a preset time, pass right would be cancelled automatically. (1-60s adjustable), default time is 10 s.
8. Reset function by photocells, 4 or 6 pairs.
9. Anti-pinch function by photocells, 4 pairs
10.Compatible with Access control system, consumption system, ESD system, E-ticket system and so on.
11. One way or two way control
12. Unit can be controlled and administered by remote control
13. Led lamp indicator

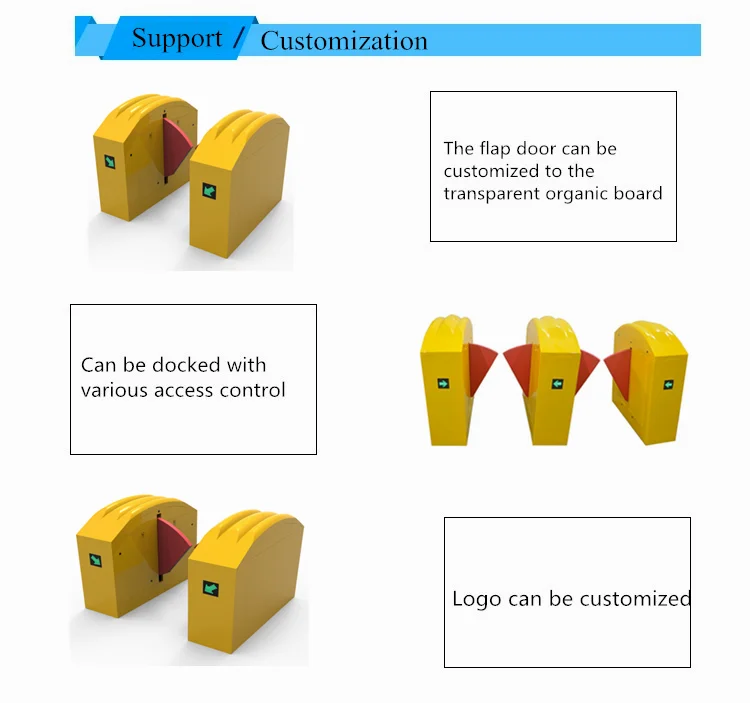

Extensible functions:
1. LED counter display
2. Casing and gate size can be lengthened
3. Logic judgment by photocells (8 pair or 10 pairs)
4. Speech reminder
5.normal close or normal open adjustable
6. Light, sound alar

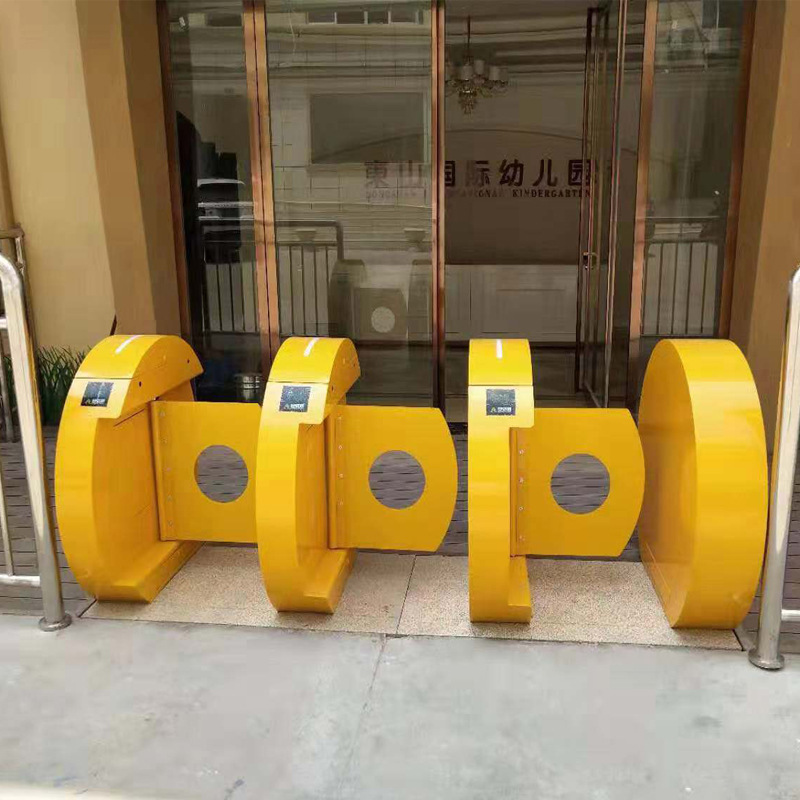

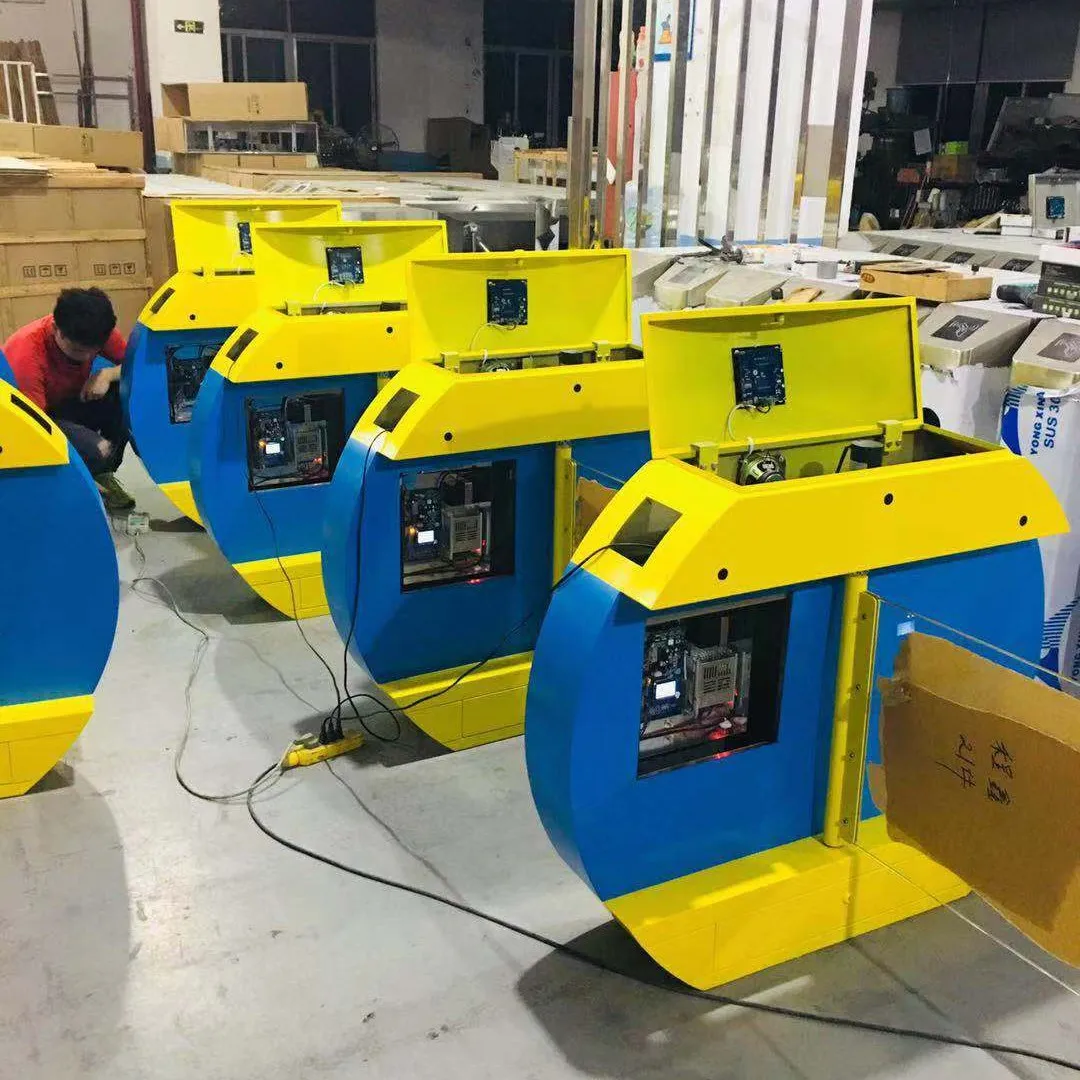

Feedback cases
Mainly use in: Station, Wharf subway , Factories, Office Building , Hotel , Clubs, Intelligent Community ,Enterprises and Institution.
