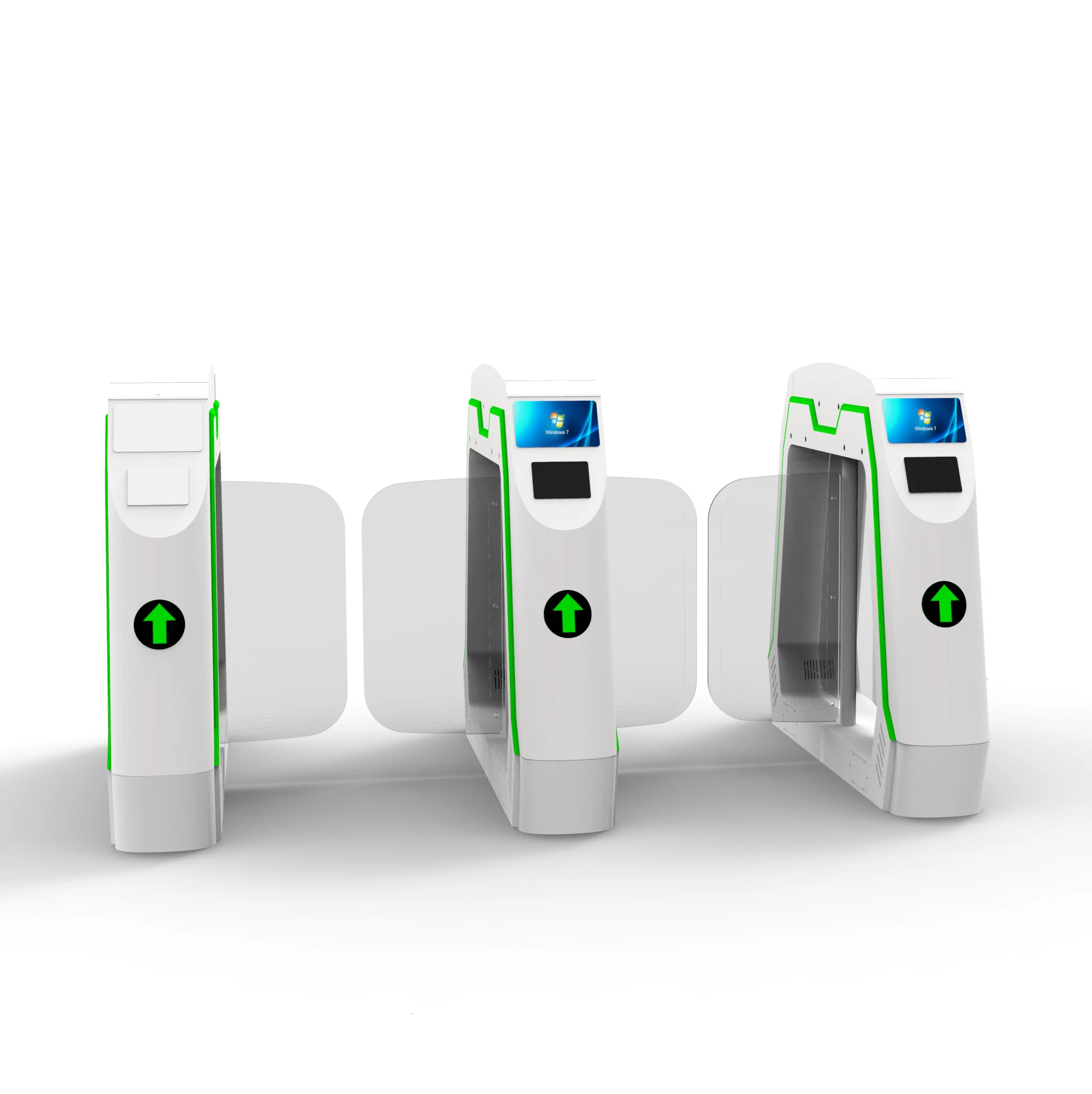

Sliding Speed Turnstile Gate
VR
  • Products Details

Shenzhen Zento Traffic Equipment Co., Ltd. is capable of providing a quality range of Price Barrier Gate Full height stainless Steel Security Door Sliding Turnstile. The result of upgrades in technologies proves to be very positive. The finished Price Barrier Gate Full height stainless Steel Security Door Sliding Turnstile is characterized by stable quality.It can play out its greatest value in the field(s) of Turnstile. Influenced by the market trends and customers' requirements, the design of Turnstile Access Control Gate & Parking System Equipment is made to be unique. It adopts the raw materials that have been tested to conform to the quality standards, which guarantees its quality from the source.

Place of Origin:Guangdong, ChinaBrand Name:ZENTO
Model Number:ZT-906ASize:1200*330*980mm
Matrial:304 stainless steelThickness:full 1.0-1.5mm
Weight:70kg (Tripod Turnstile)Passage width:550mm
Testing:3 million no faultDriving voltage:12V
Input:220V,50HZ or 110 V ,50HZEnvironment:-25~+70

Product Description
Framework
304 Stainless Steel
Dimensions
330*1218*980 mm
Passage wideth
850mm

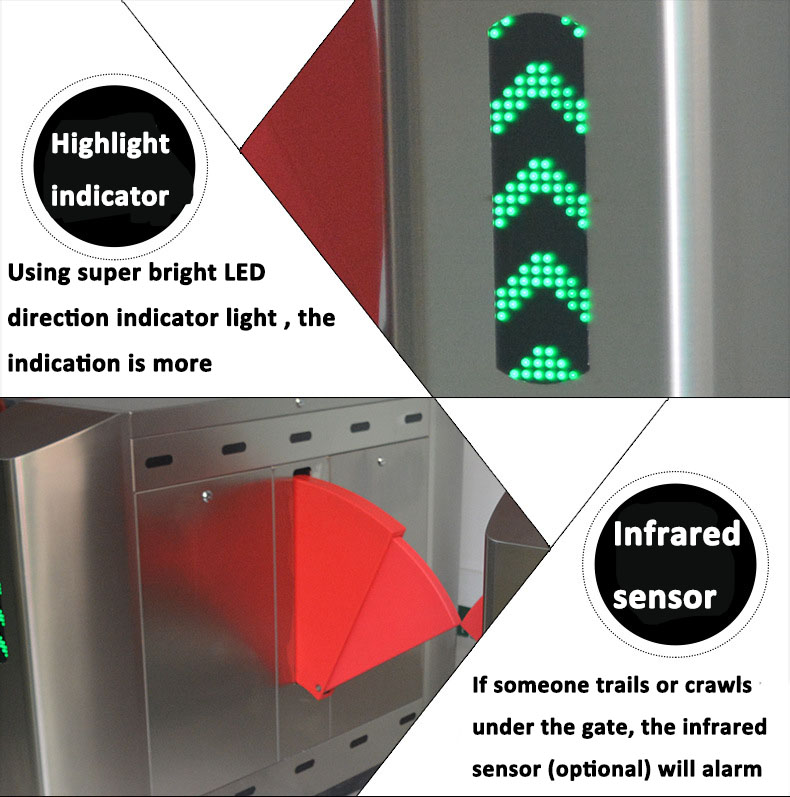

LED indicating light
One
Card-reading window:
Two
Rated power
120W
Operating temperature
-25℃ ~ +60℃, RH ≤90%
Related humidity
≥90%RH
Comunication Interface
RS485,distance ≤1200m
Power supply
AC 220V/110V ±10% 50/60MHZ (optional)
OpeningTransit speed:
30—45persons per minute
Closing Transit speed:
25-30 per minute

Founction:

1. Functions of breakdown self-checking and alarm warning, very convenient for customers’ maintenance and use.
2. Program operation mode of equipments through the little button inside the main board.
3. Double Anti-Pinch function from both machine structure and induction. Stops automatically if there is something in the way during the return /rest of the doors. If there is default time delay, it will have its second return (till it comes back to where it should be), and the force is very weak
4. Anti-rushing function: without having received the signal of opening up, the doors lock automatically.
5. Doors can be adjusted into synchronization (only for double-locks)
6. Automatic returning/resetting function: when the barriers open up, if people do not pass by within the time allowed, system will cancel the right of pass for this time. 7. Adjust it to normal open or normal closed to meet the different requirements of different fields.
7. Can be linked to many kinds of card-reading equipments and work when it has received the signal of electricity relay switch.
8. One-way and two-way in and out control of passer
9. Carry out distant control and management by directly operating computer.
10. Automatic returning /resetting when there is time delay. Normally speaking, it returns/resets five seconds after its opening.
11. When the electricity is cut off, the access opens automatically, and closes automatically when the electricity is linked.Meet the requirements of fire-fighting.
13. Sound and lights alarming: including break-in and opposite direction intrusion,and so on.
12. Counting function (optional)
13. Anti-Pinch function (four pairs of infrared)
14. Accurate logical judgment, Irda returning function (four or six pairs).
15. Speech output, human voice warning the right passing. (Optional

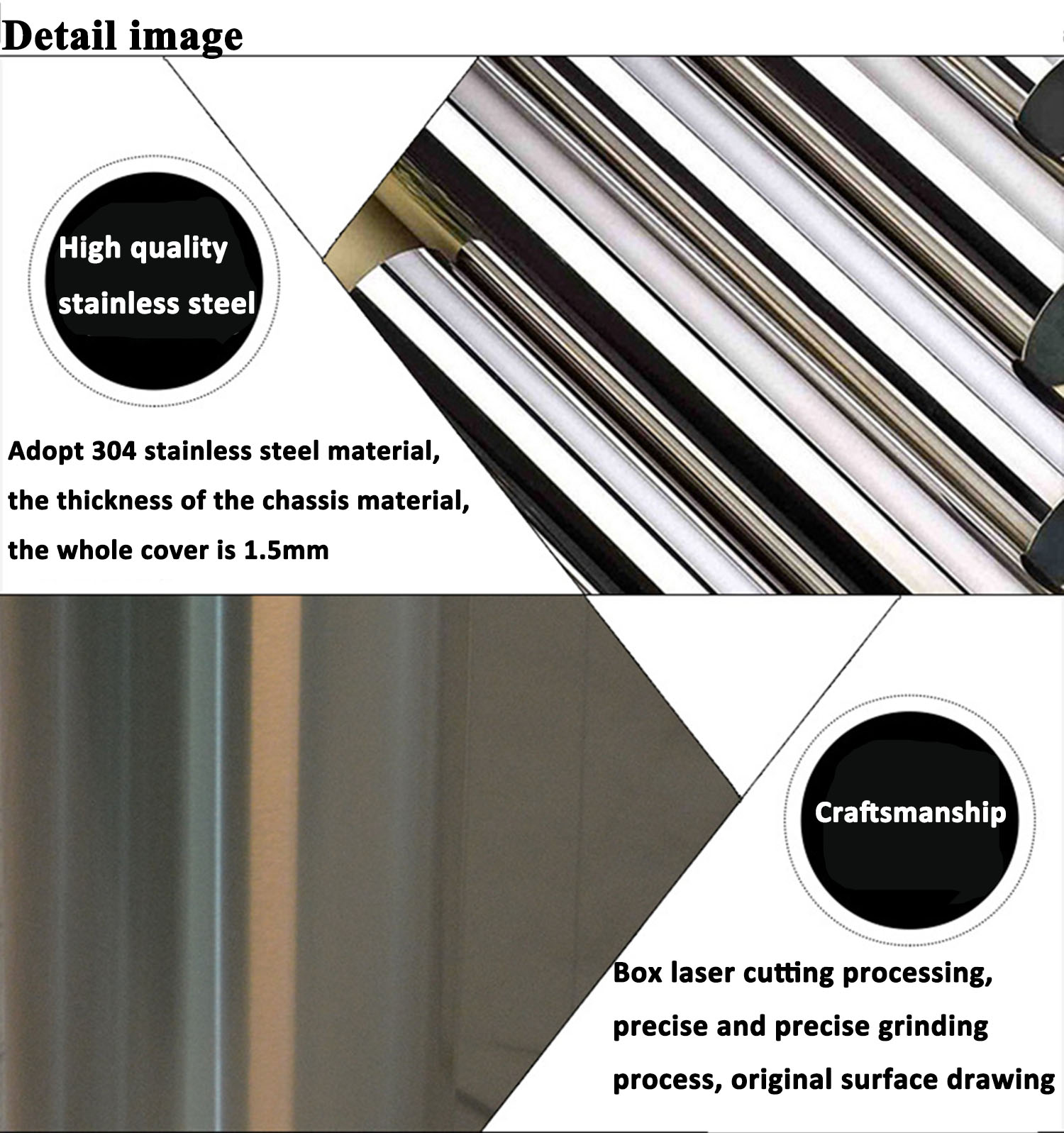

Product Processing

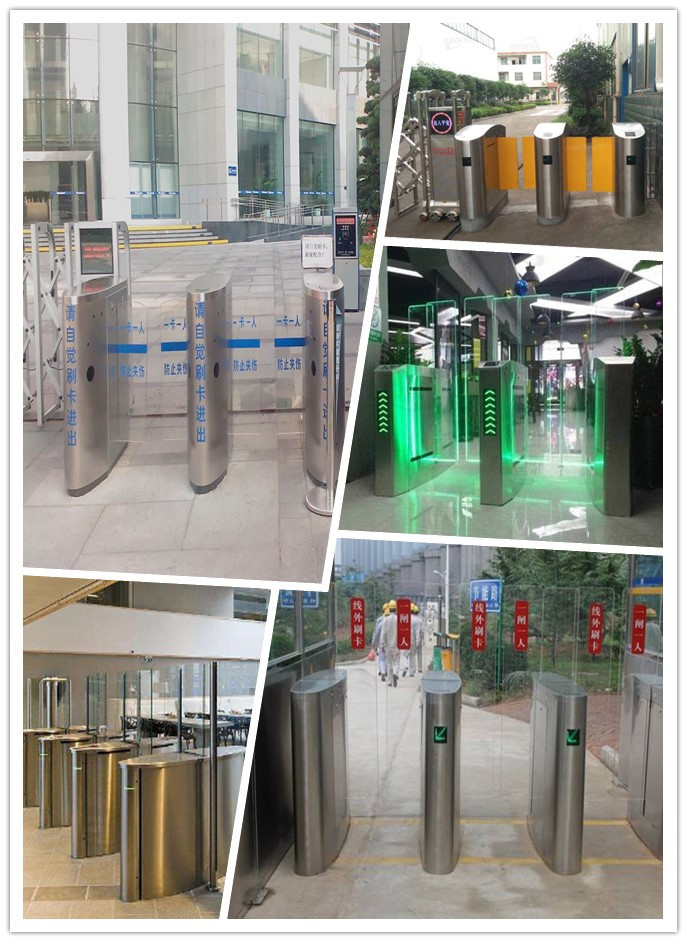

Application
Sliding gate turnstile is arm at intelligent management of pedestrian access control, this kind of model often use in luxury office building, Luxury residential, subway, star hotel, and some other High-grade places.
