Flap Turnstile Barrier
VR
  • Products Details

Using highly advanced technologies and newest methods,Shenzhen Zento Traffic Equipment Co., Ltd. has developed CE Approval OEM&ODM Service Manufactures RFID Card Access Control System Full Automatic Flap Turnstile Gate Price. It is on sale starting now and we welcome your inquiry. It turns out that the application of the technology plays an important role in deciding the performance of the product. At present, it can be widely seen in the field(s) of Turnstile. Shenzhen Zento Traffic Equipment Co., Ltd. relentlessly strive for innovations and changes, hoping to lead the industry development and improve our products and services in our unique way. We are committed to being one of the best enterprises in the market.

Place of Origin:Guangdong, ChinaBrand Name:ZENTO
Model Number:ZT-936AProduct name:Flap Turnstile
Dimension:1200 * 300 * 990mmMaterial Thickness:1.5mm
Material:304 Stainless SteelPassage Width:Q550mm
Motor:DC Brushless MotorPower supply:AC220V/110V
Direction:Bi-directionalSpeed:35-40P/Min
Certificate:CE ISO9001

Product Description

Automatic OEM&ODM

Access Control System Flap Turnstile Gate

Luxury Intelligent flap gate ---can be compatible with IC card , ID card ,barcode card , fingerprint reading card recognition device used for staff, provide civilized , orderly access methods; effectively manage the access of staff . Can be widely used in the station, wharf subway , factories, office building , hotel , clubs, intelligent community , enterprises and institution that need intelligent access management.

Feature:
1.With fault self-test and alarm prompt function, convenient for user maintenance and use.
2.Through the built-in small push-pull on the main control board, device operating state can be programed.
3.The mechanical structure has anti-pinch and anti-collision function. When the swing arm is blocked during the reset process, the motor automatically stops working within the specified time. Reset again after the default delay (until reset), and the force is very small (≤ 2kg).(In the extreme case, all infrared rays are disabled, and the movement still has mechanical anti-pinch
function, and the strength is small and will not cause harm to the human body)
4. Illegal intrusion, trailing alarm, reverse intrusion gate automatically closes
5.Anti-shock function, the arm is automatically locked when no open signal is received.
6.Telescopic arms are adjustable synchronously (for double pendulum)
7.With automatic reset function. After the switch is opened, the system will automatically cancel the user's permission for the pass when there is no pass within the specified time.The reset time is adjustable from 1s to 60s (the system default time is 10s).After the power is cut off, the channel is automatically opened (in accordance with fire protection requirements), and the power-on channel is automatically closed.
8.Infrared sensor reset, infrared sensor anti-trap function (configure 5 pairs of infrared)
9.It can be connected with a variety of devices such as access control systems, consumer systems, electronic ticket systems, biometric systems, and electrostatic testers.
10.The one-way or two-way control personnel can enter and exit, and the infrared sensing in and out channels.
11.Voice prompt function.
12.Remote control and management can be achieved directly through the management computer.

Optional Access Control
Framework
304 Stainless Steel
Dimensions
1400*300*980 mm
work voltage
AC220V±10% 50HZ±10%
Core
DC24V solenoid valve
passage width
600mm
Max bearing force
50kg
Rated power
120W
Operating temperature
-25℃ ~ +60℃, RH ≤90%
Related humidity
≥90%RH
Comunication Interface
RS485,distance ≤1200m
Power supply
AC 220V/110V ±10% 50/60MHZ (optional)
OpeningTransit speed:
30-45persons per minute
card window
2

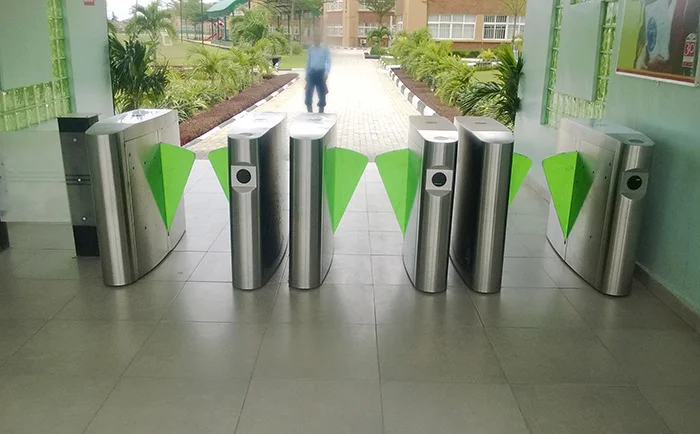

Client's Order Cases

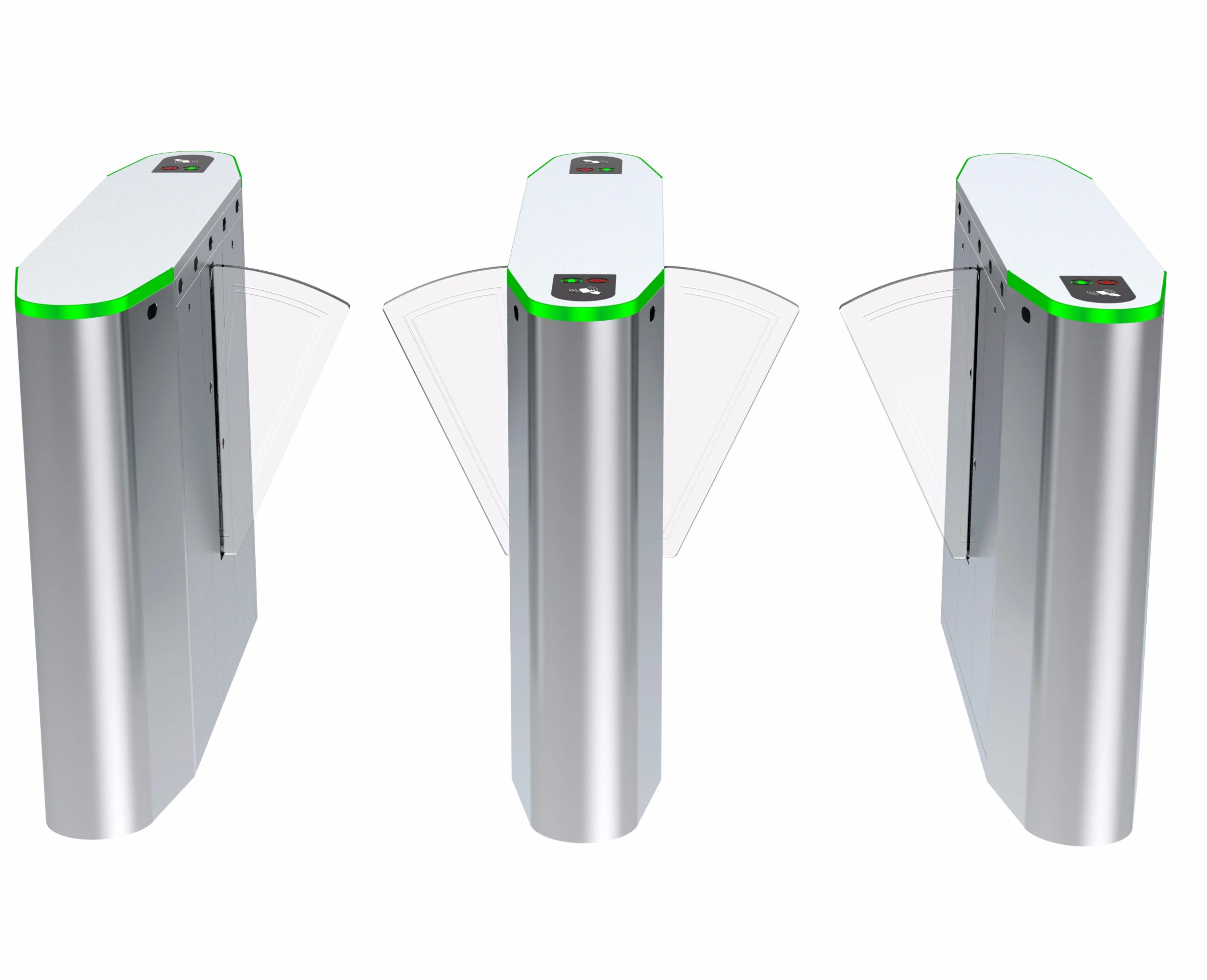

Detailed Images

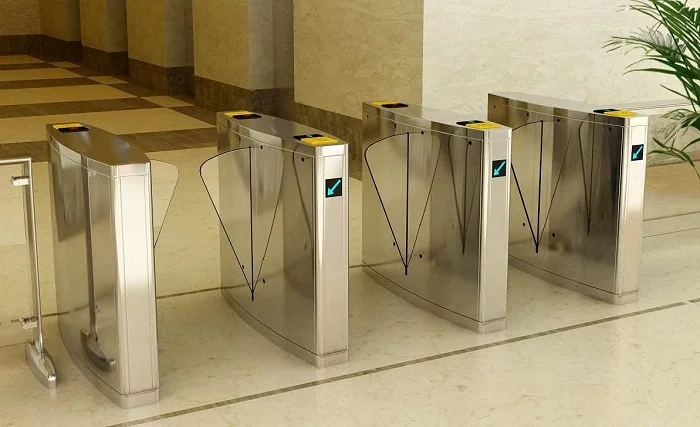

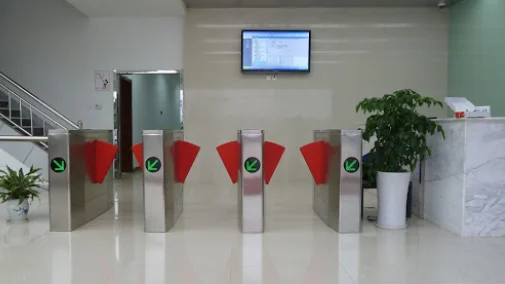

Applications
